Home >> Ford >> 2004 >> Mustang V6-3.9L VIN 6 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Components

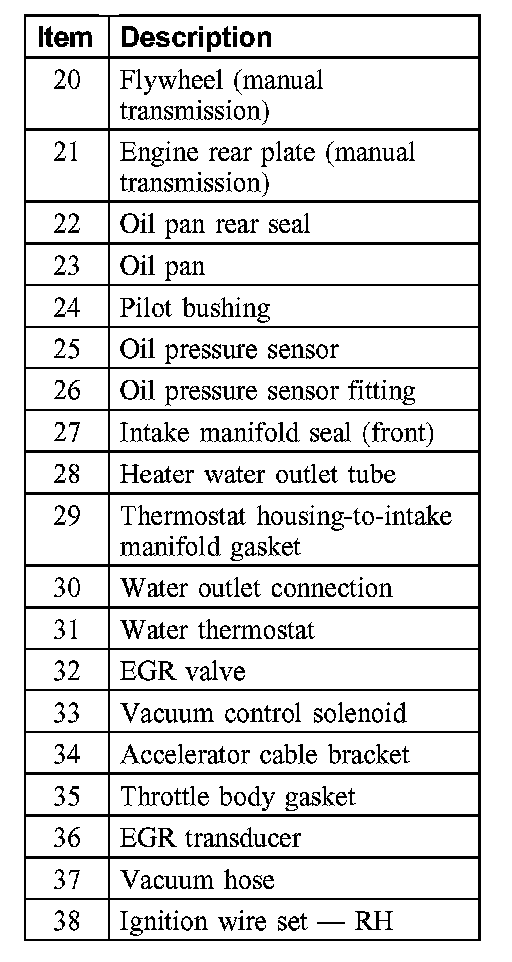

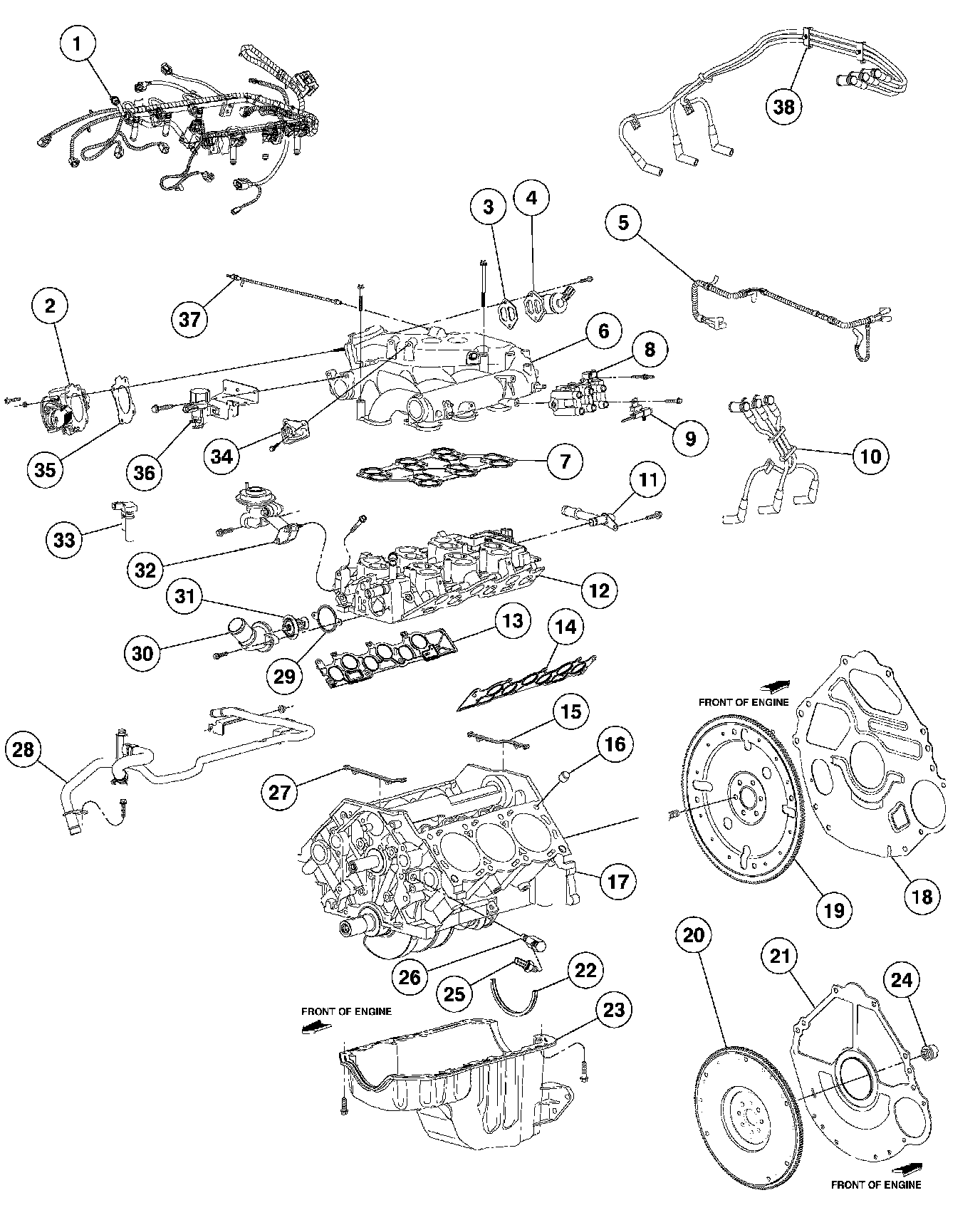

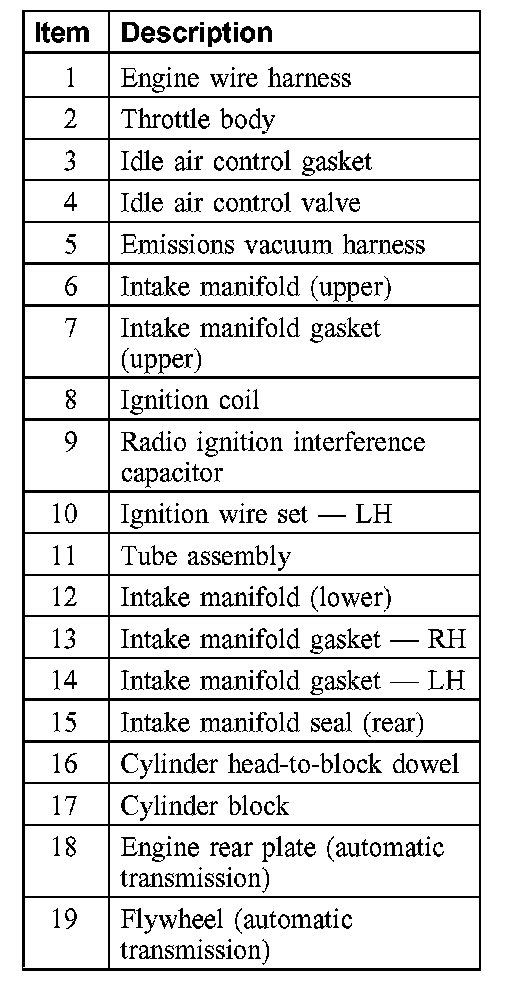

Engine Components

Part 1 Of 3:



Part 2 Of 3:



Part 3 Of 3:
