Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine-Upper Components

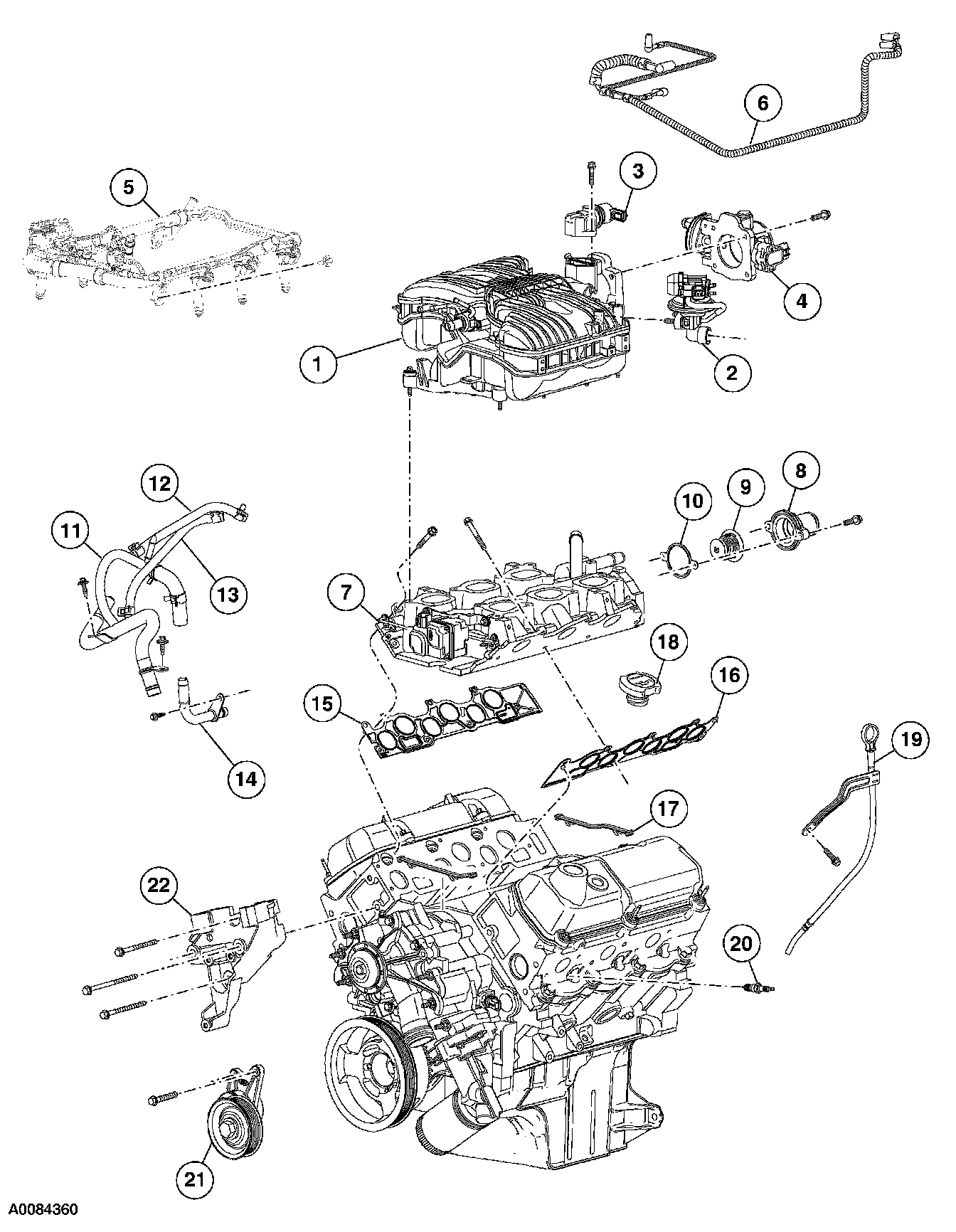

Engine-Upper Components

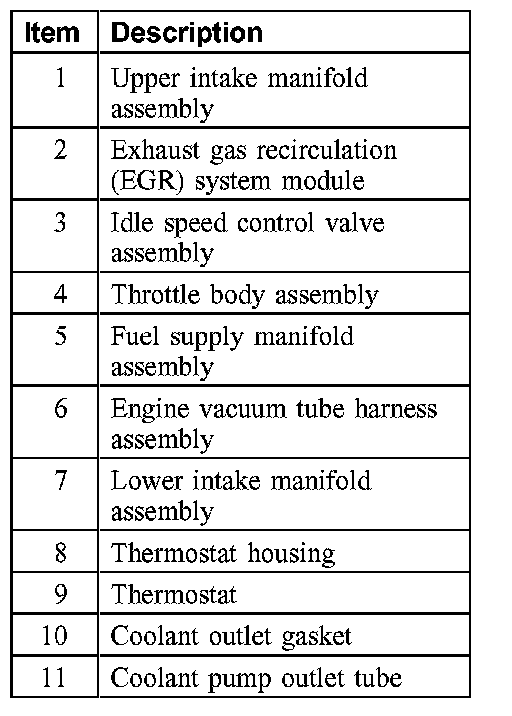

Engine-Upper Components Part 1 Of 3:

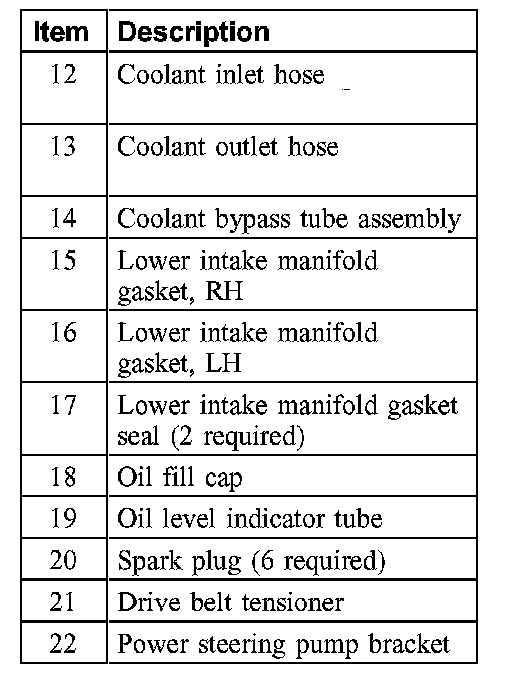

Engine-Upper Components Part 2 Of 2:



Engine-Upper Components Part 3 Of 3:
