Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

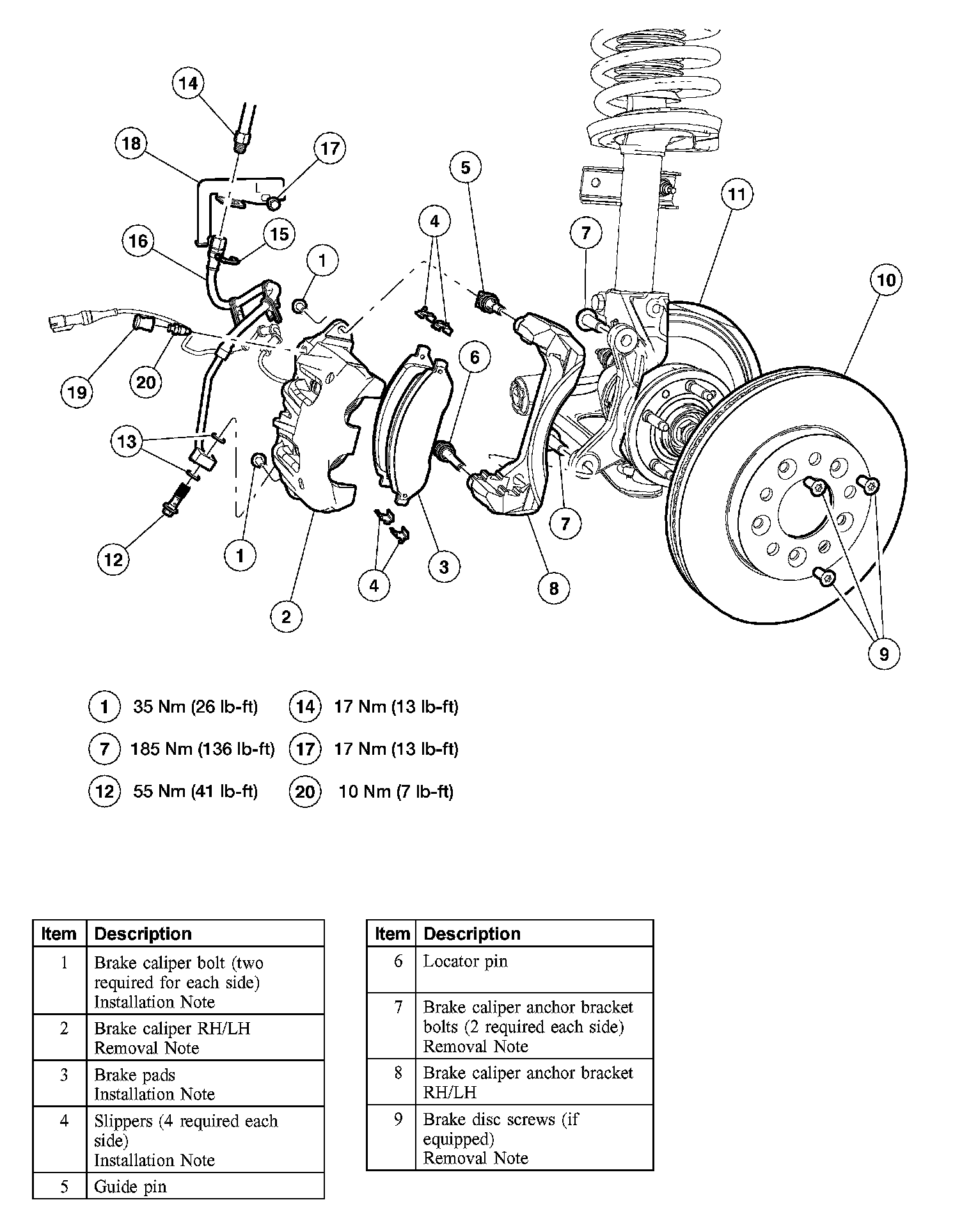

Front

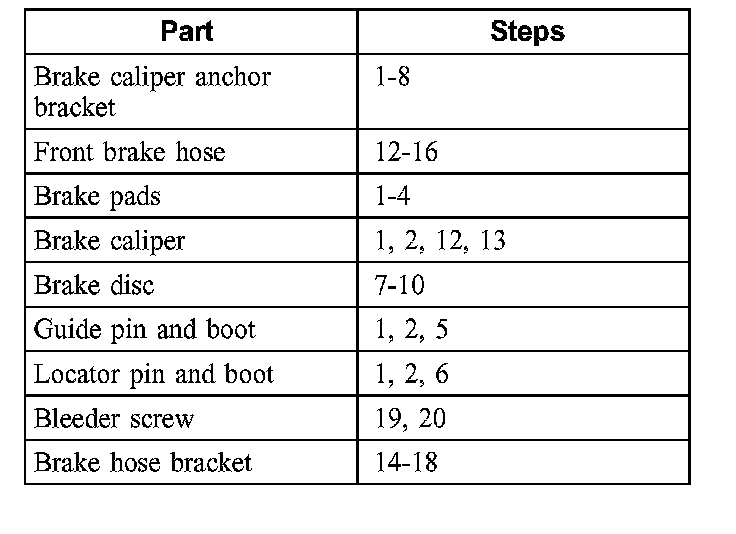

Part 1 Of 3:

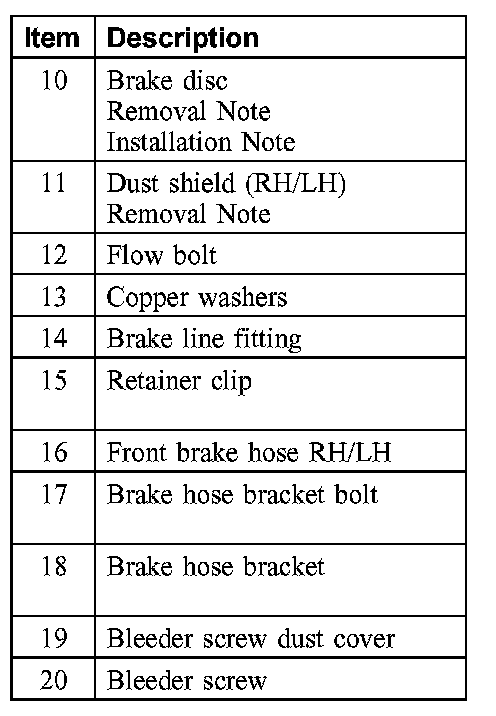

Part 2 Of 3:

Part 3 Of 3:
