Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Climate Controlled Seat Module, Driver Side

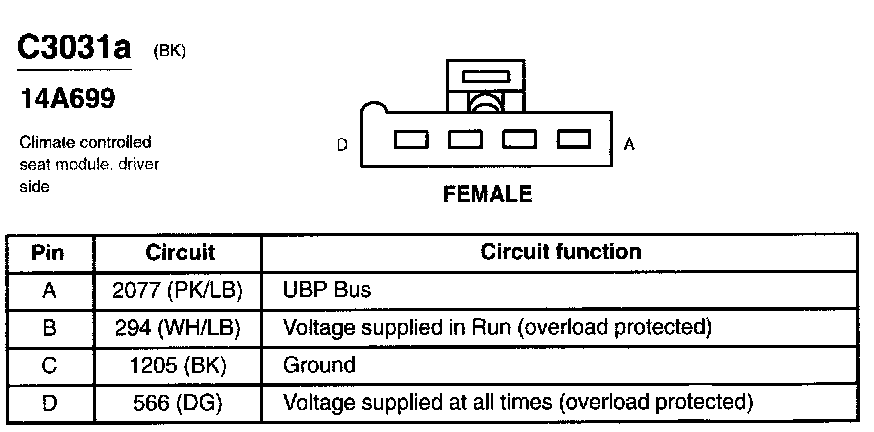

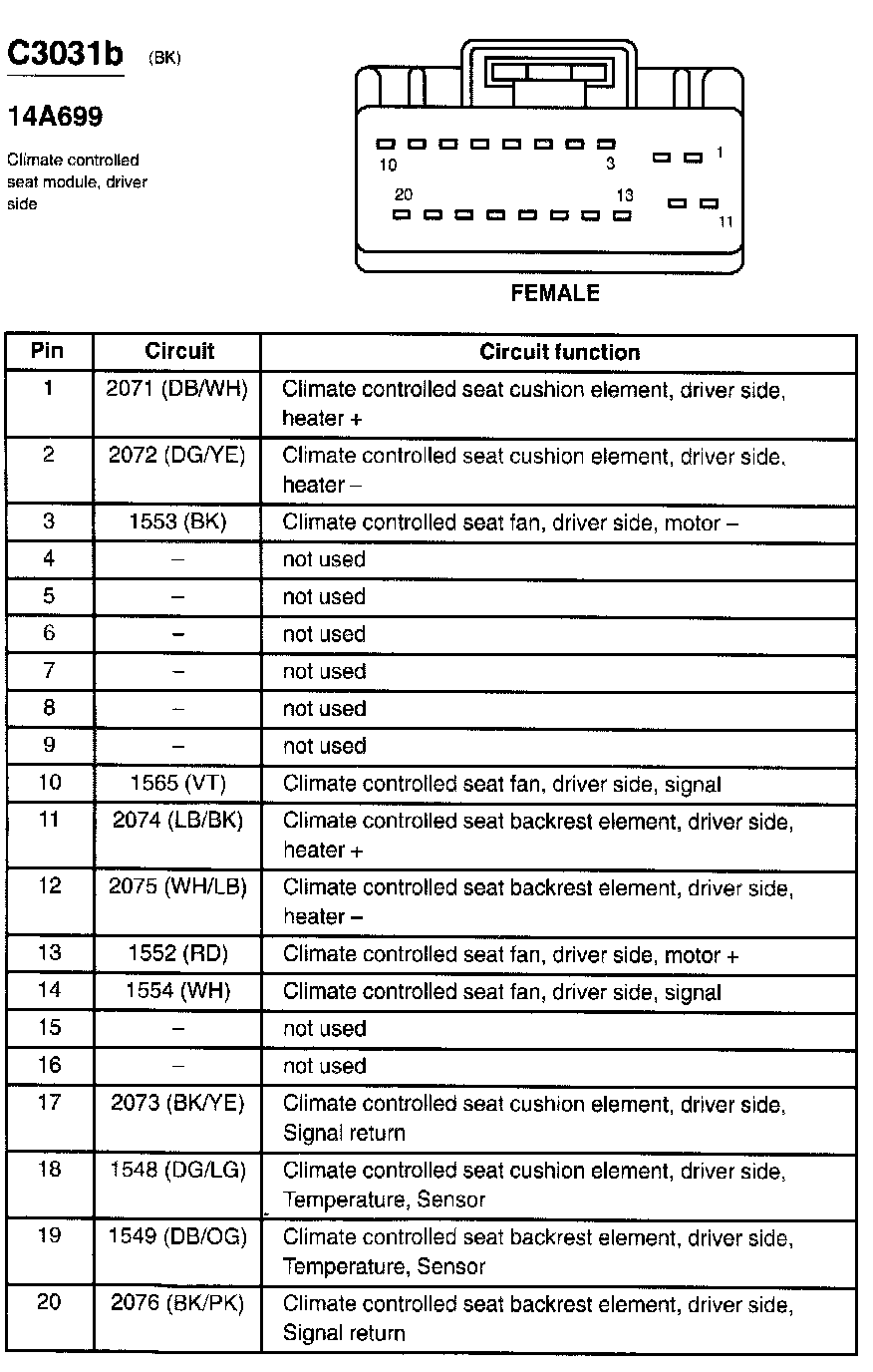

Climate Controlled Seat Module, Driver Side
