Ford
>>
2004
>>
Freestar V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

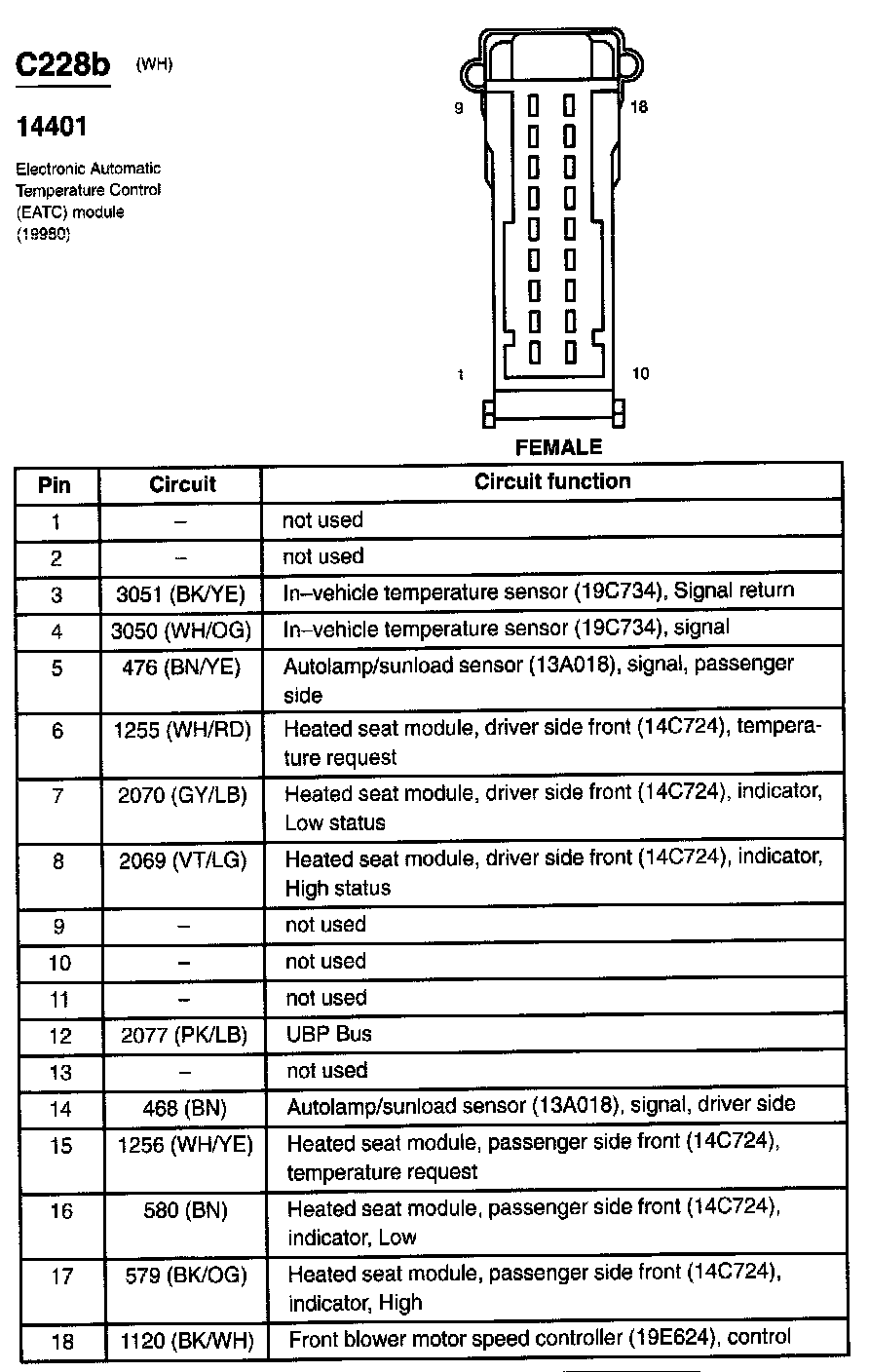

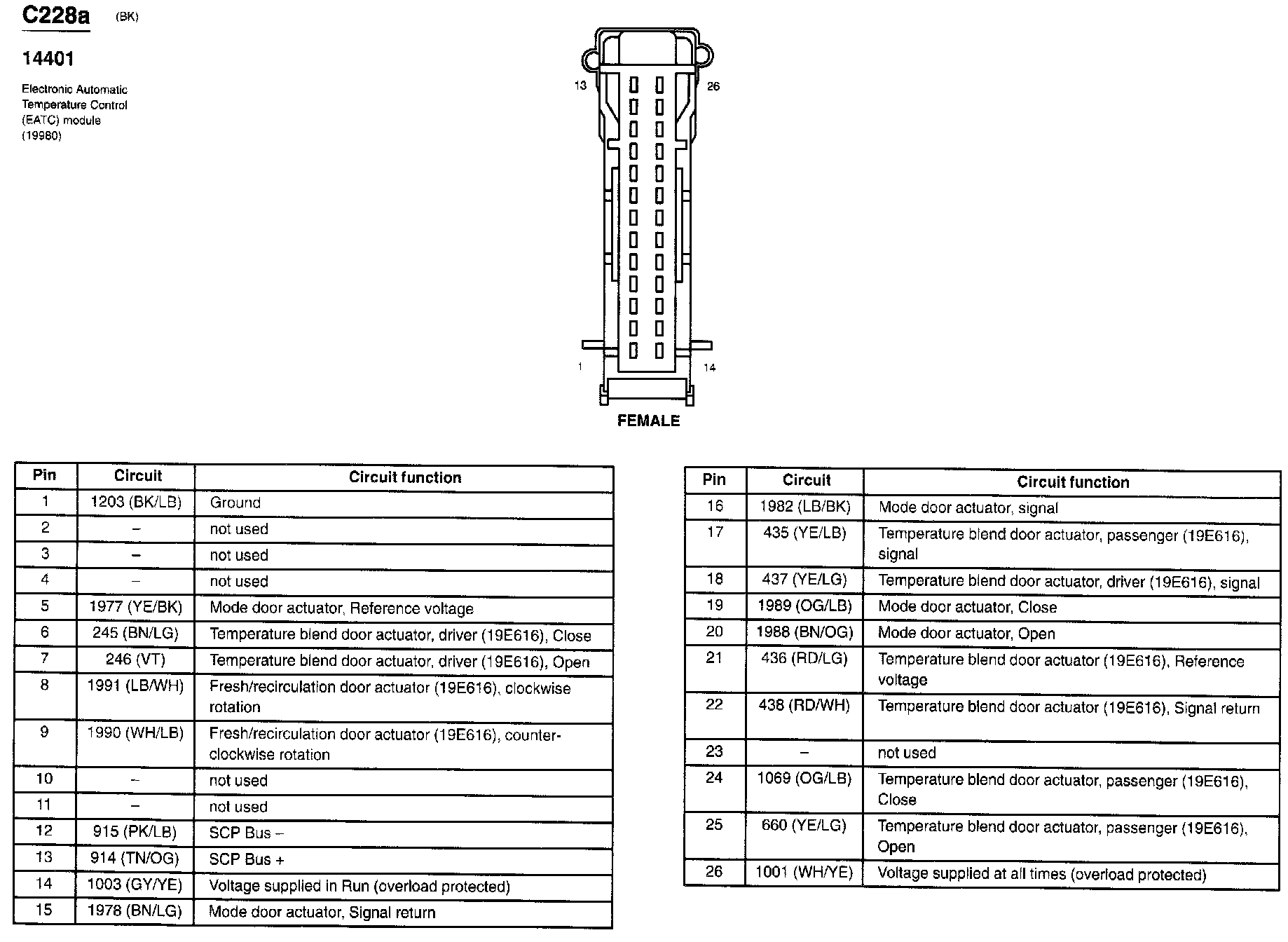

Electronic Automatic Temperature Control (EATC) Module
Electronic Automatic Temperature Control (EATC) Module
