Keyless Entry Key-Pad: Service and Repair
KEYLESS ENTRY KEYPADREMOVAL
1. Remove the front door trim panel.

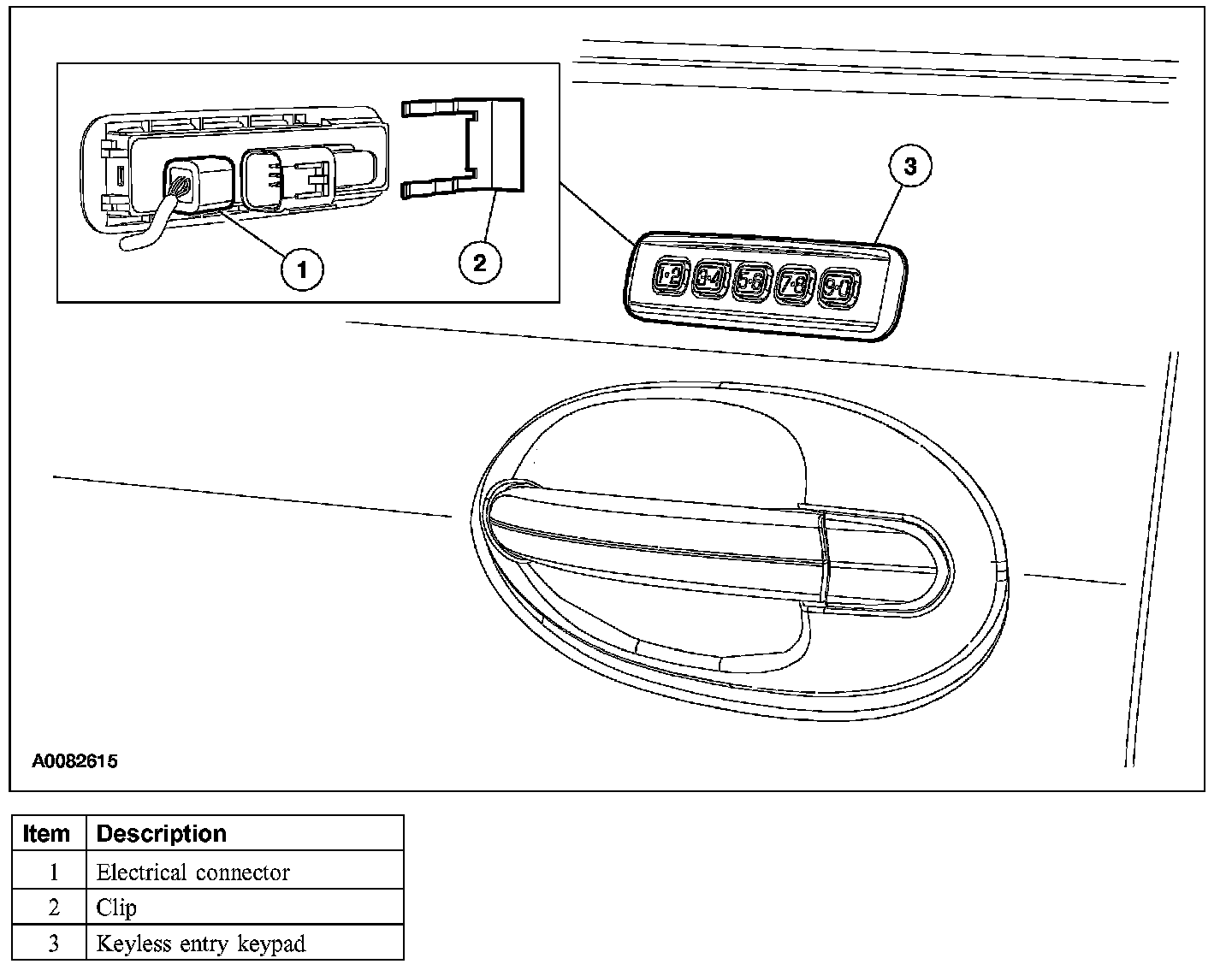

2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Remove the front door trim panel.
2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
