Upper End

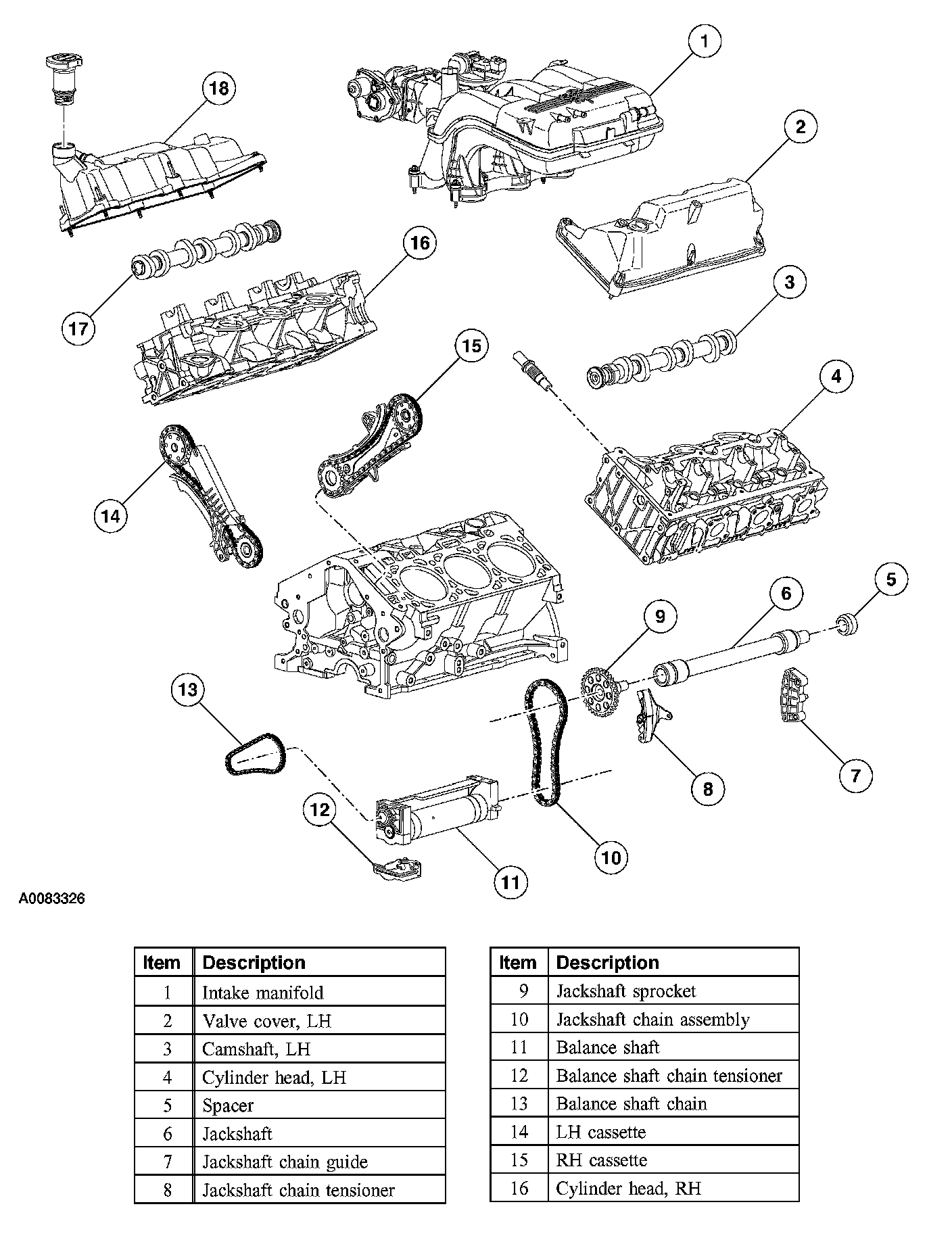

Upper End - 4.0L SOHC Engine Part 1 Of 3:

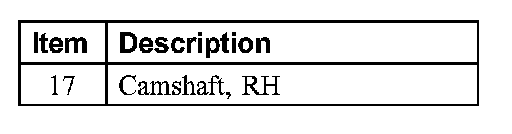

Upper End - 4.0L SOHC Engine Part 2 Of 3:

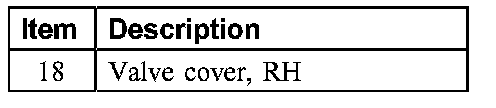

Upper End - 4.0L SOHC Engine Part 3 Of 3:
