Home >> Ford >> 2004 >> Explorer 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

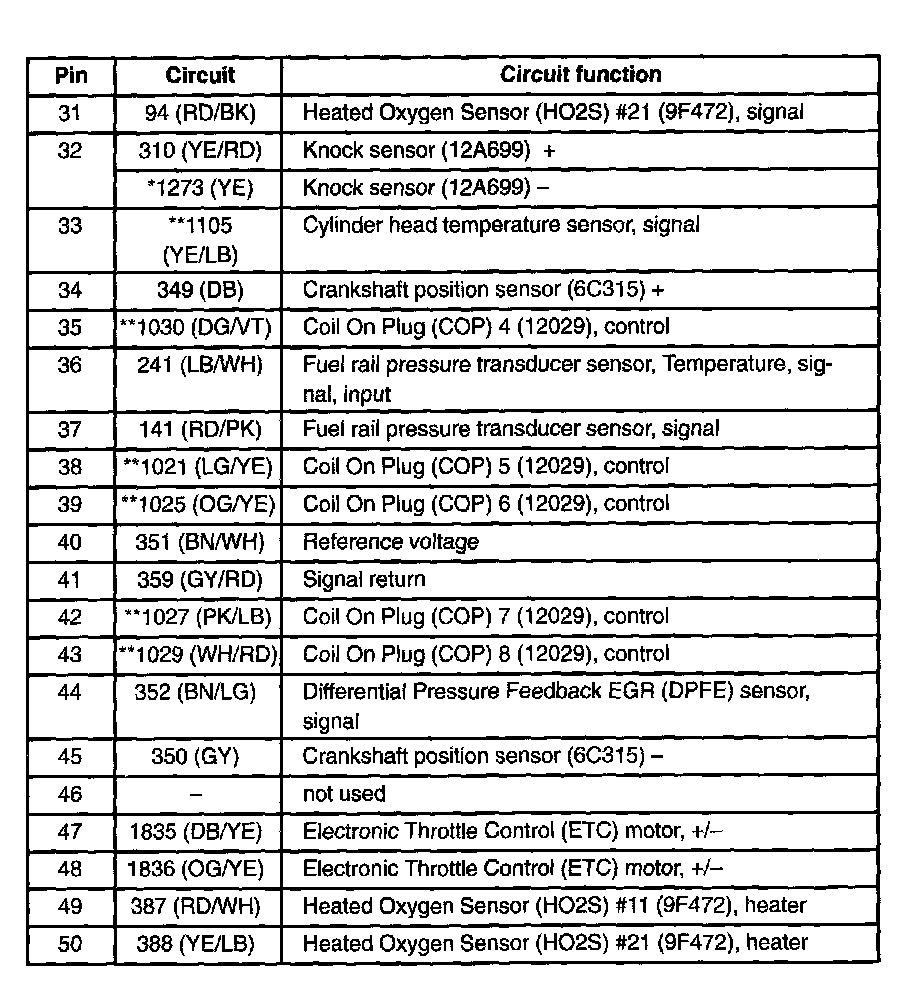

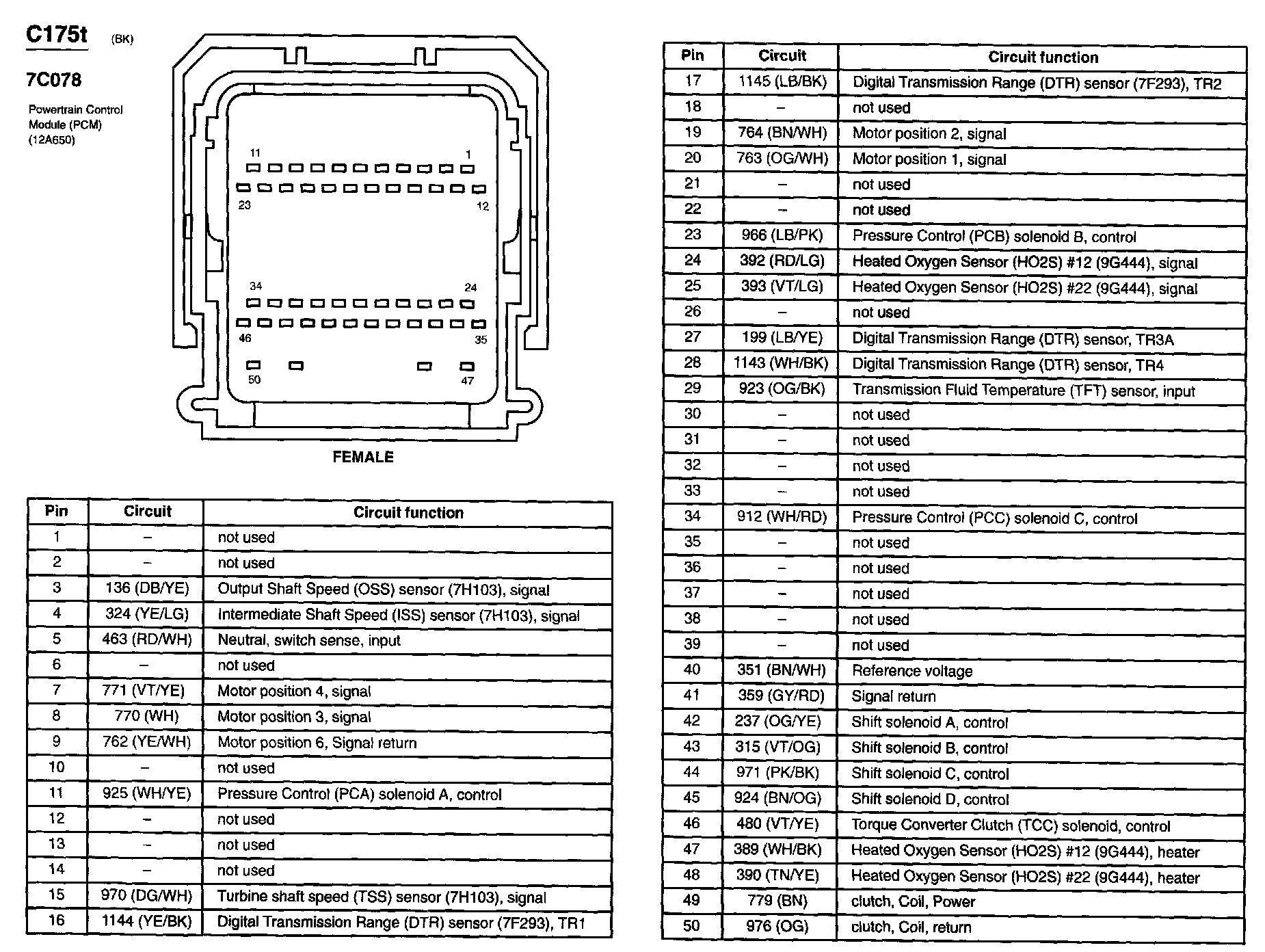

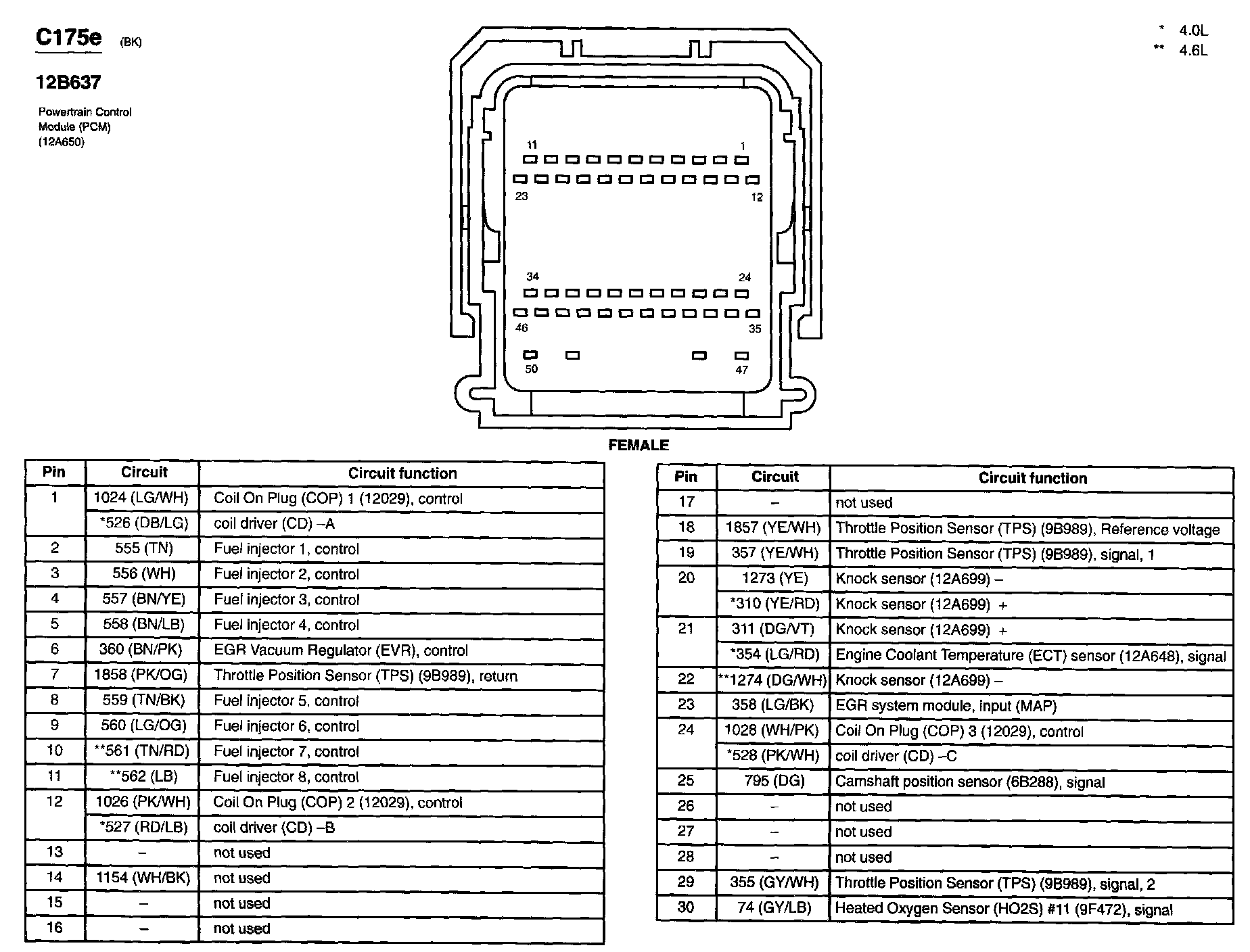

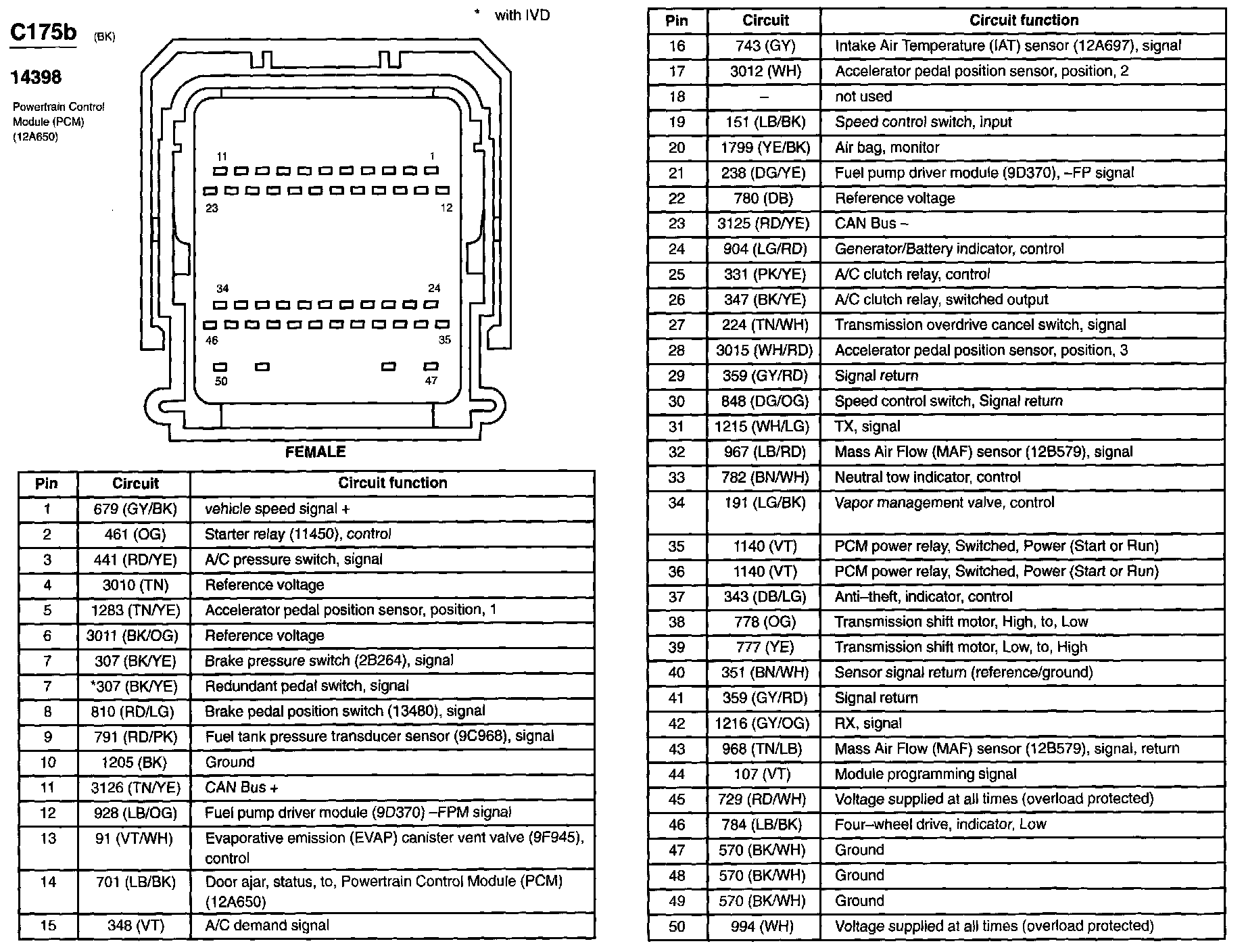

Part 1:



Part 2:
