System Diagram

Steering System

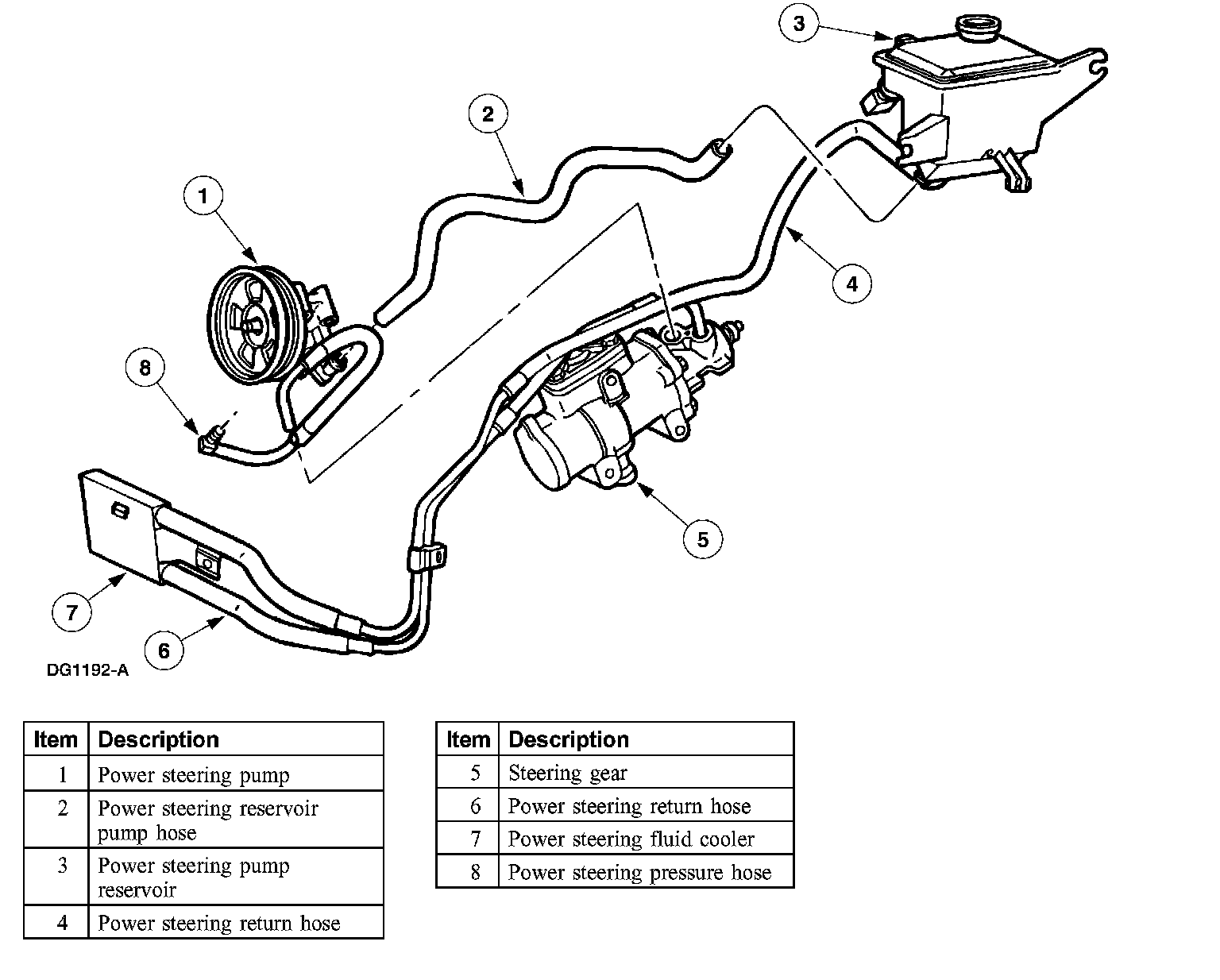

Steering System Components - 5.4L and 6.8L Gas Engines with Vacuum Boost Brake System (CIII Power Steering Pump)

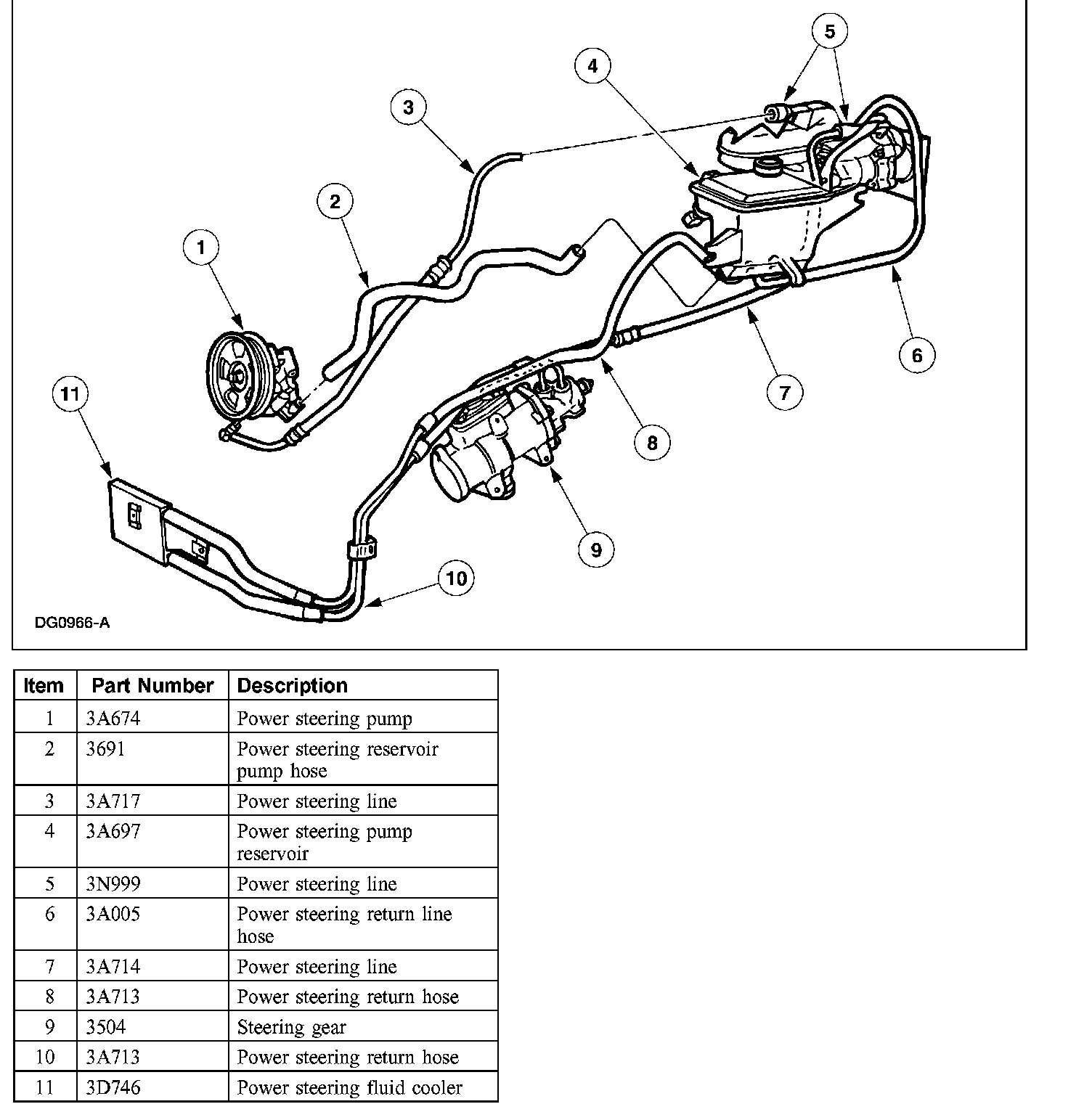

Steering System Components - 5.4L and 6.8L Gas Engines with Hydro Boost Brake System (CIII Power Steering Pump)
