Ford
>>
2004
>>
Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

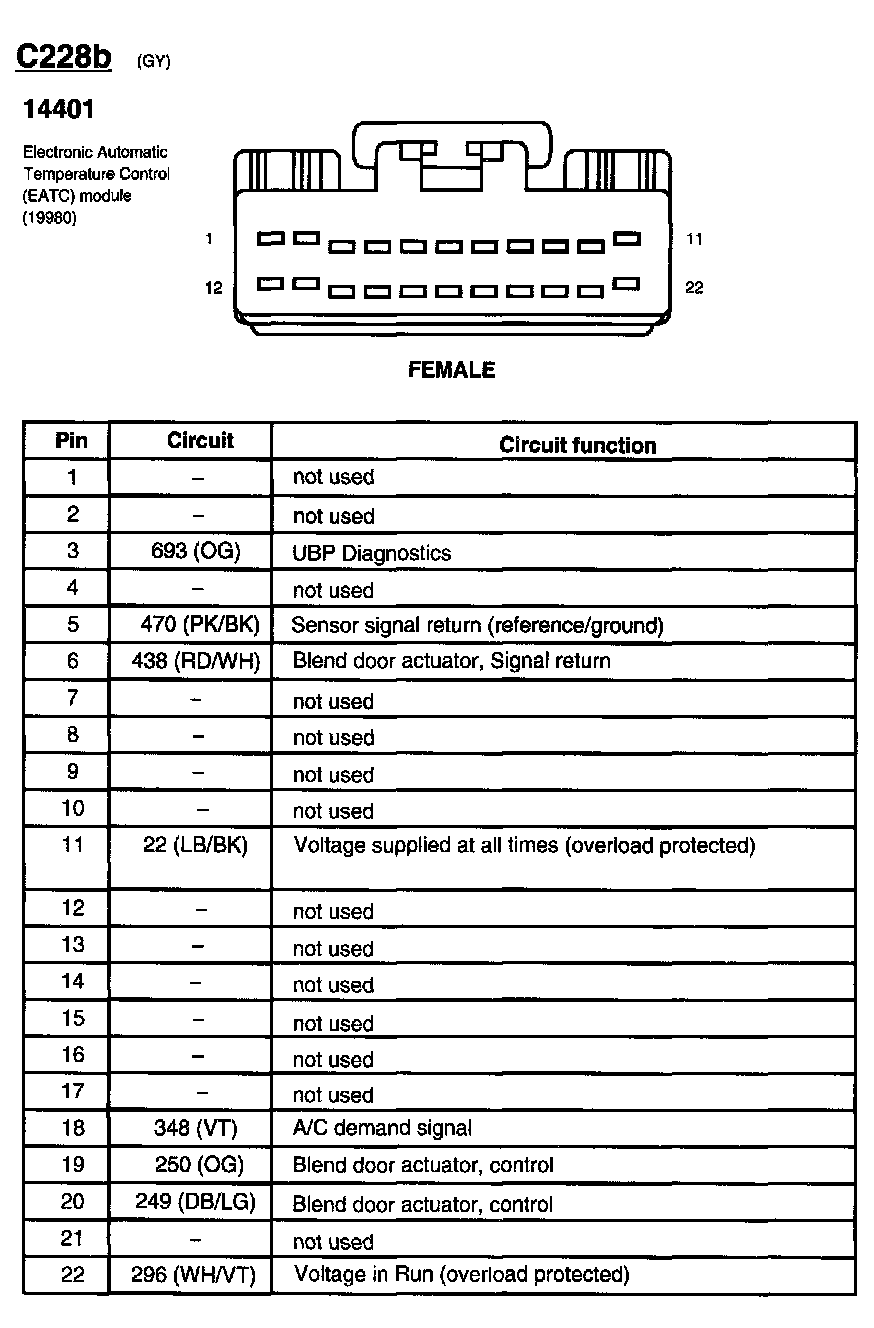

Electronic Automatic Temperature Control (EATC) Module

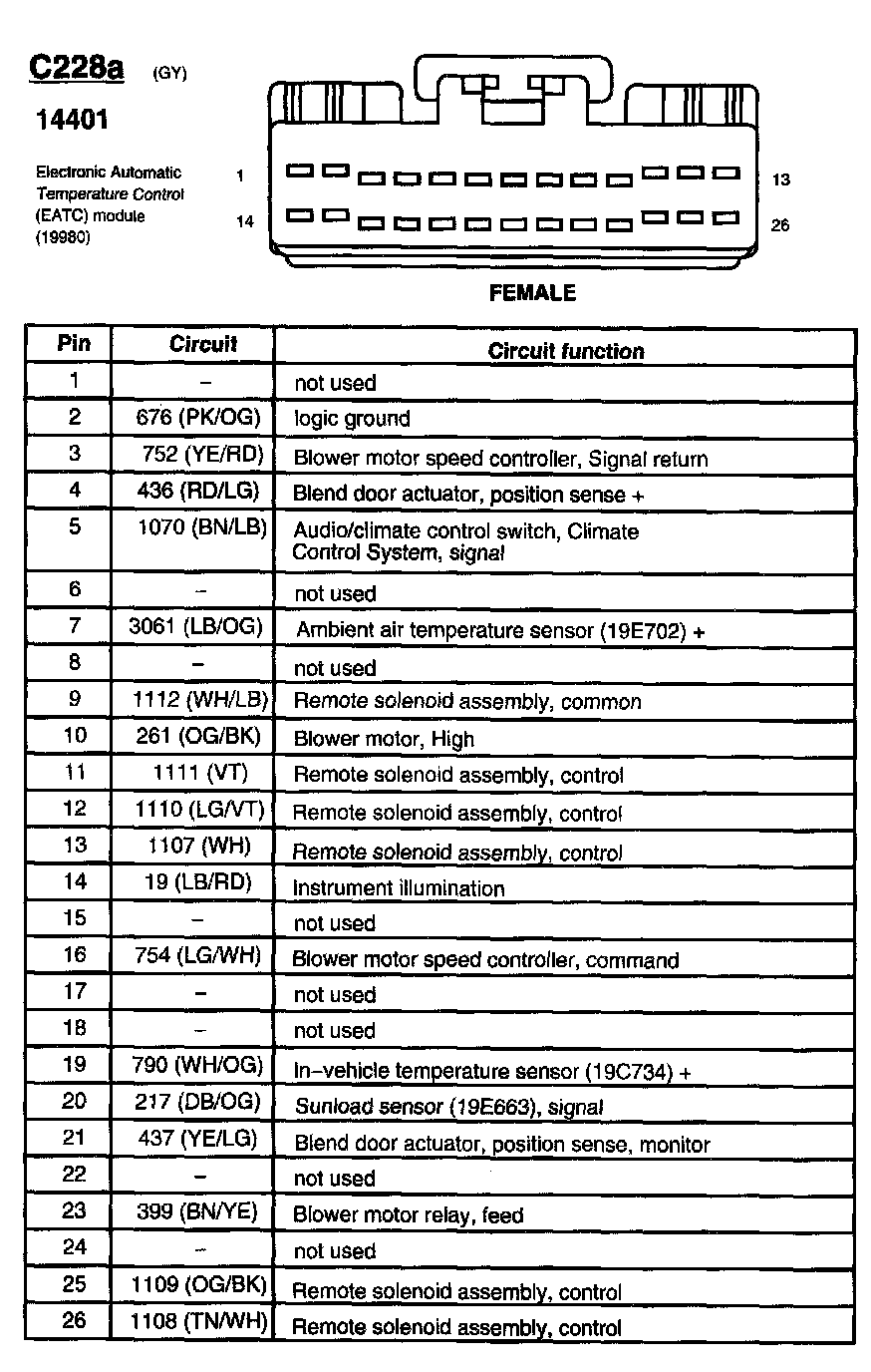

Electronic Automatic Temperature Control (EATC) Module
