Test L
Test L
PINPOINT TEST L: THE SMART UNLOCK DOES NOT OPERATE CORRECTLY

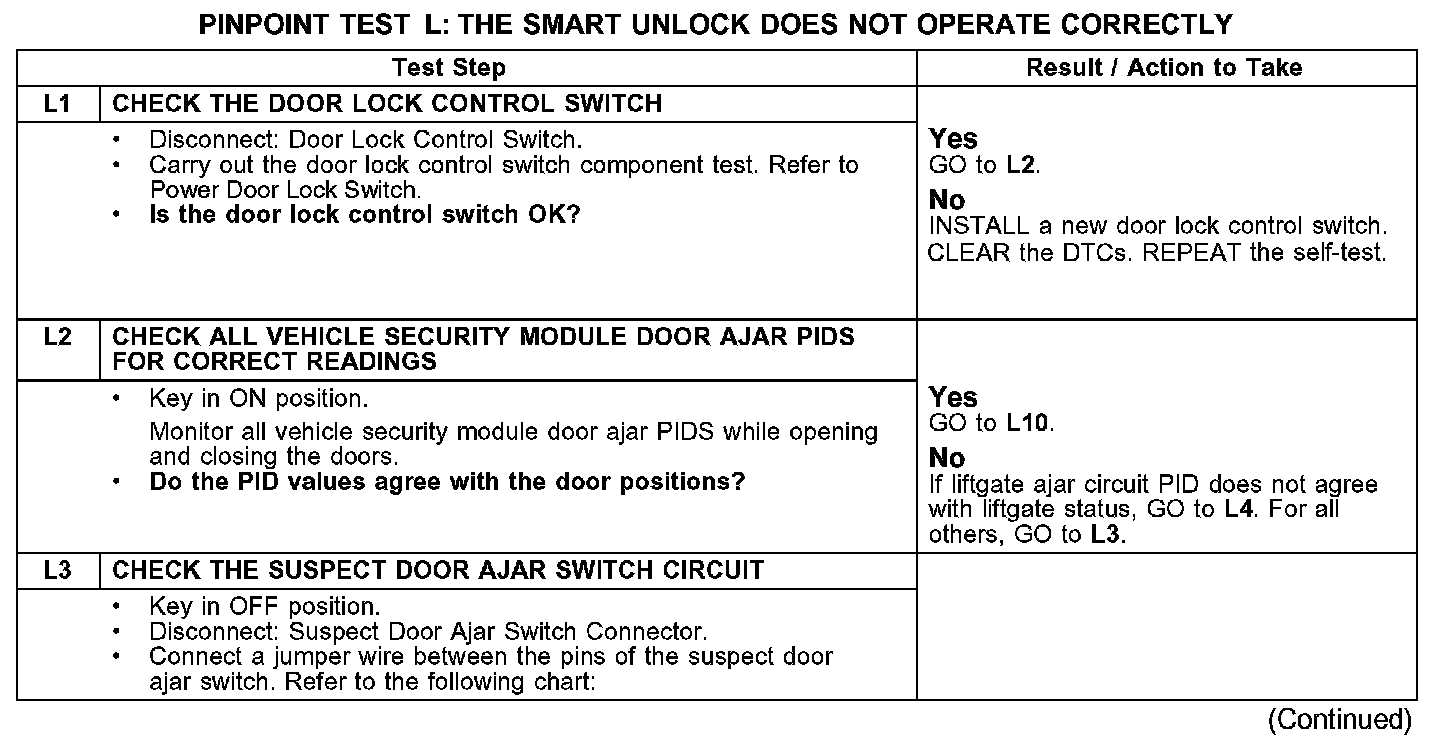

Test L1-L3:

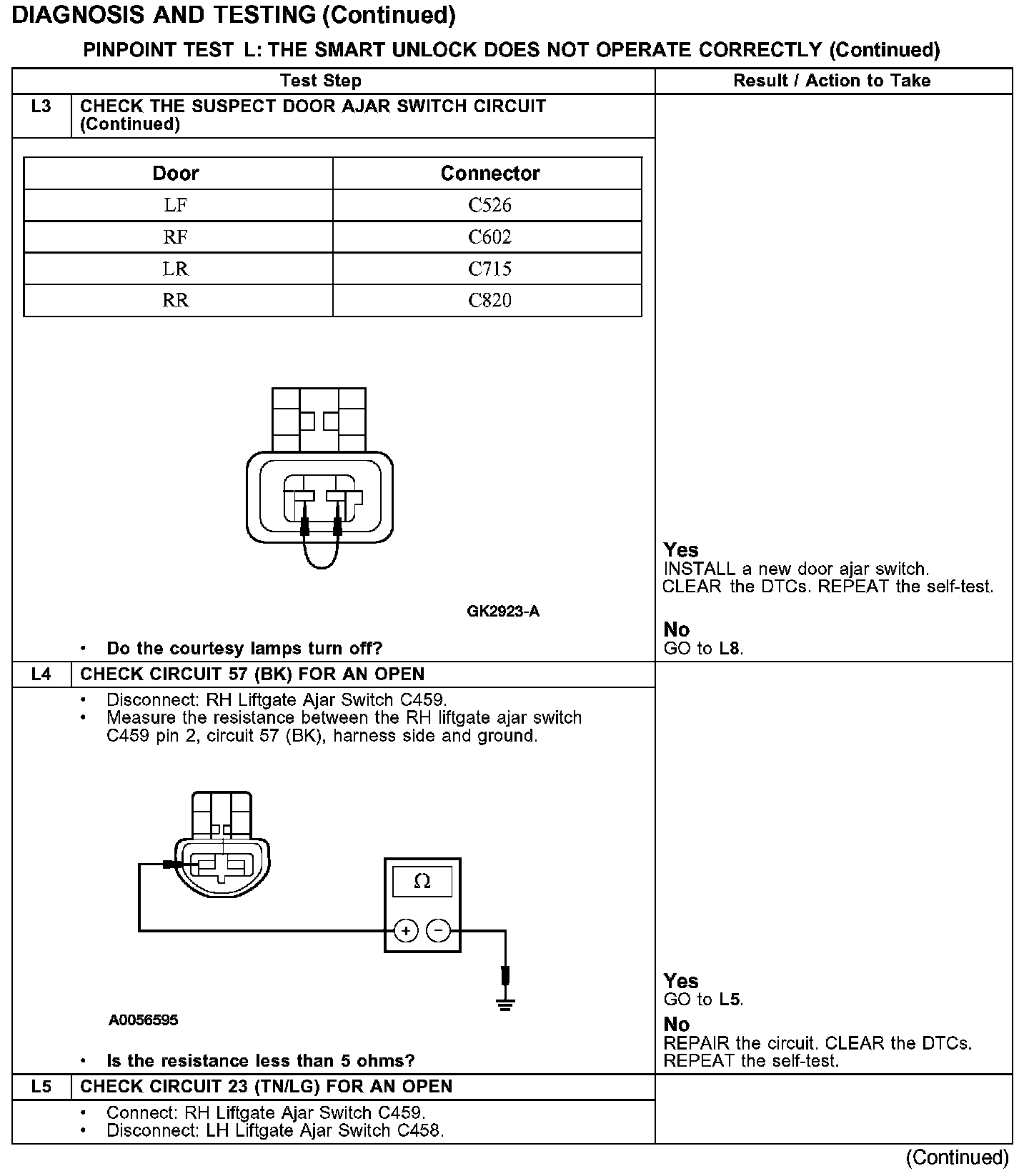

Test L3-L5:

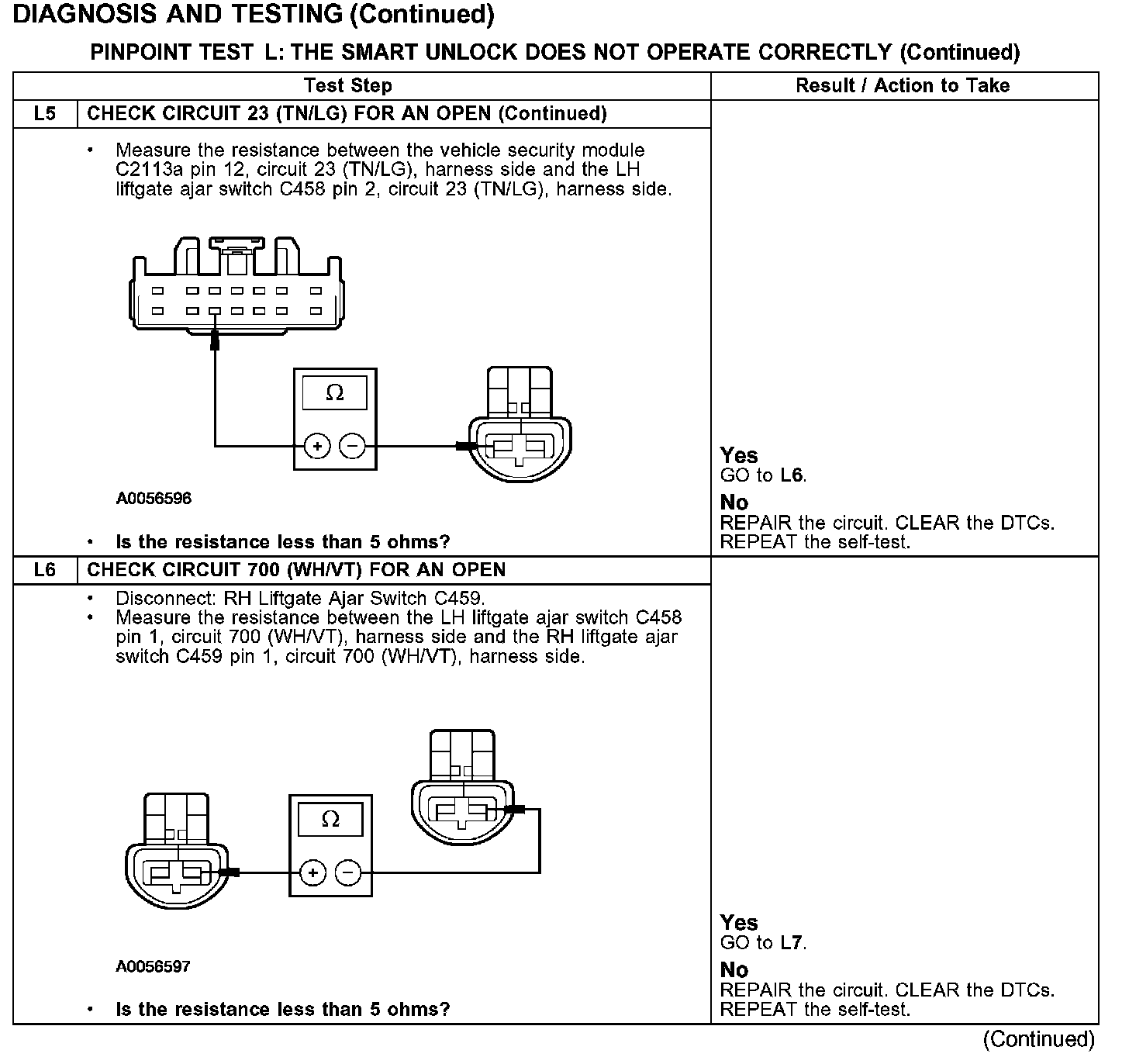

Test L5-L6:

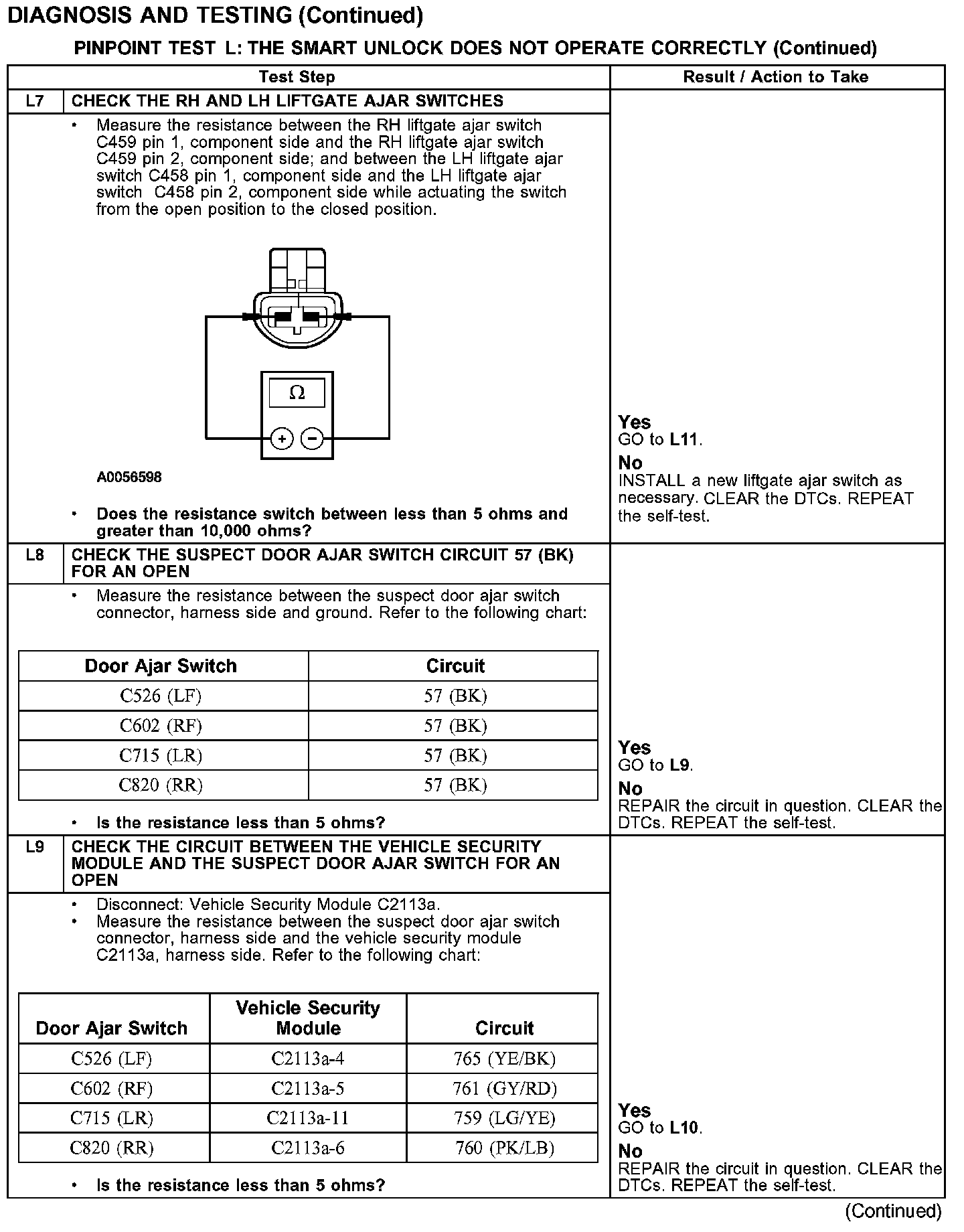

Test L7-L9:

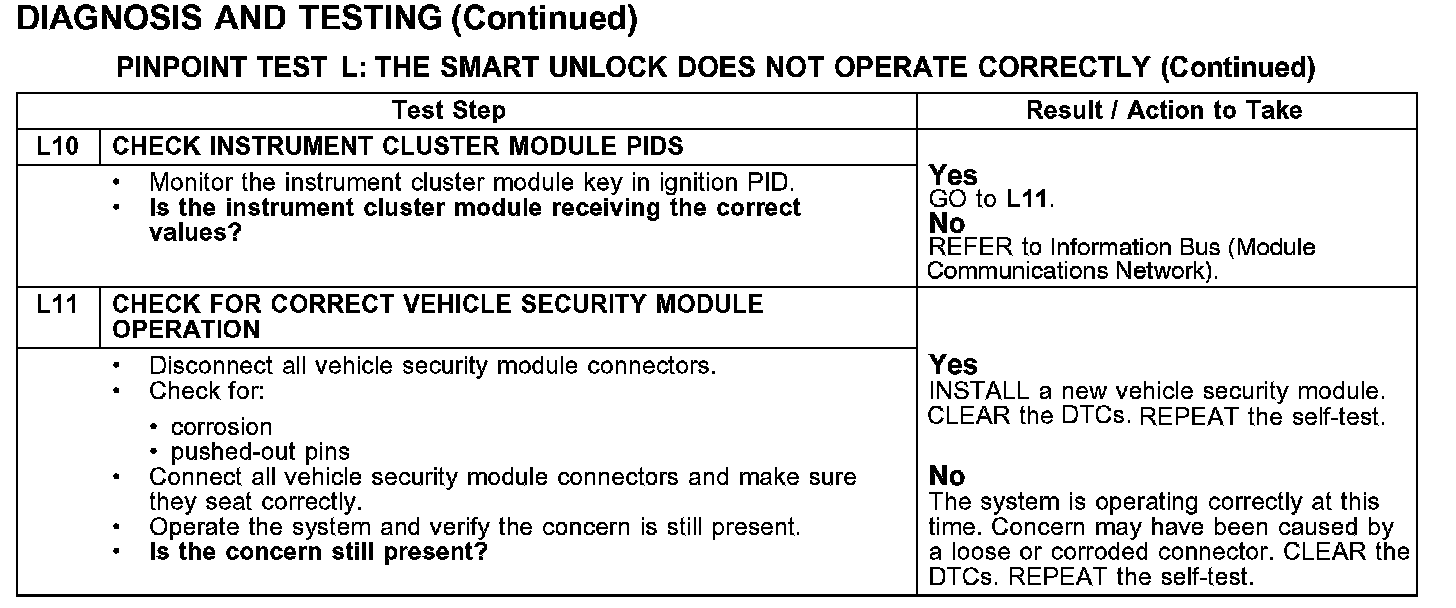

Test L10-L11:
