Home >> Ford >> 2004 >> Escape AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Disassembled View

Disassembled View

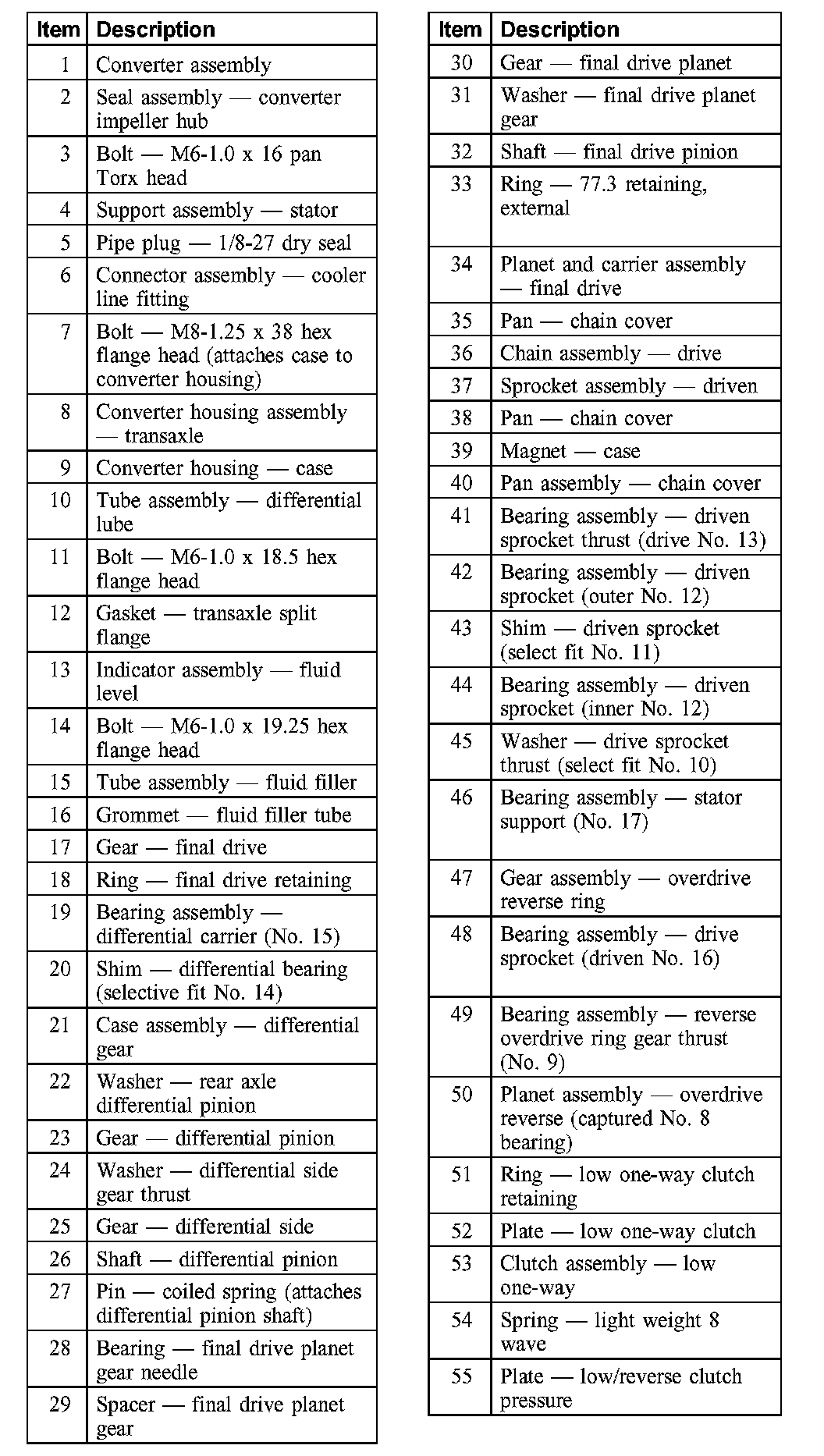

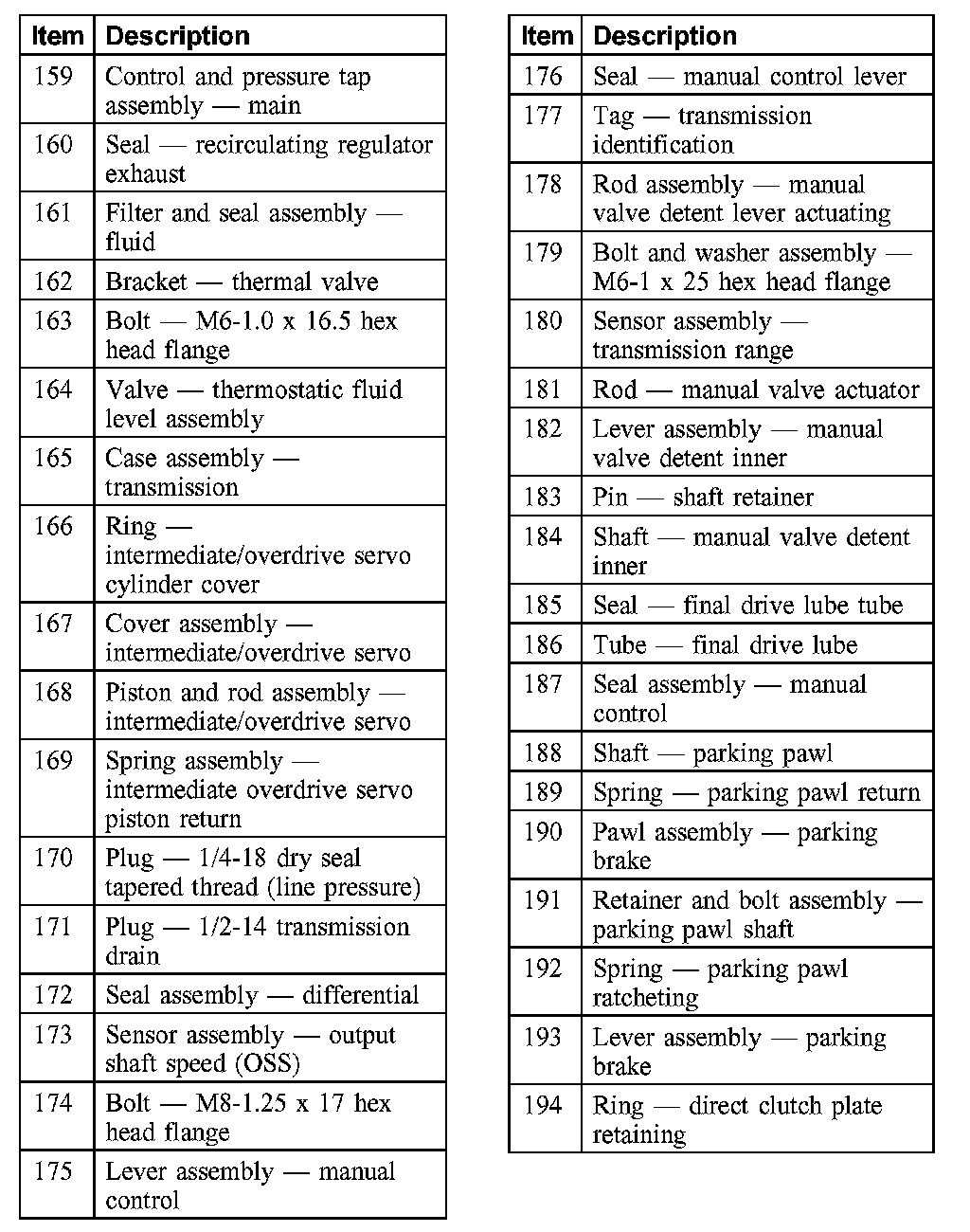

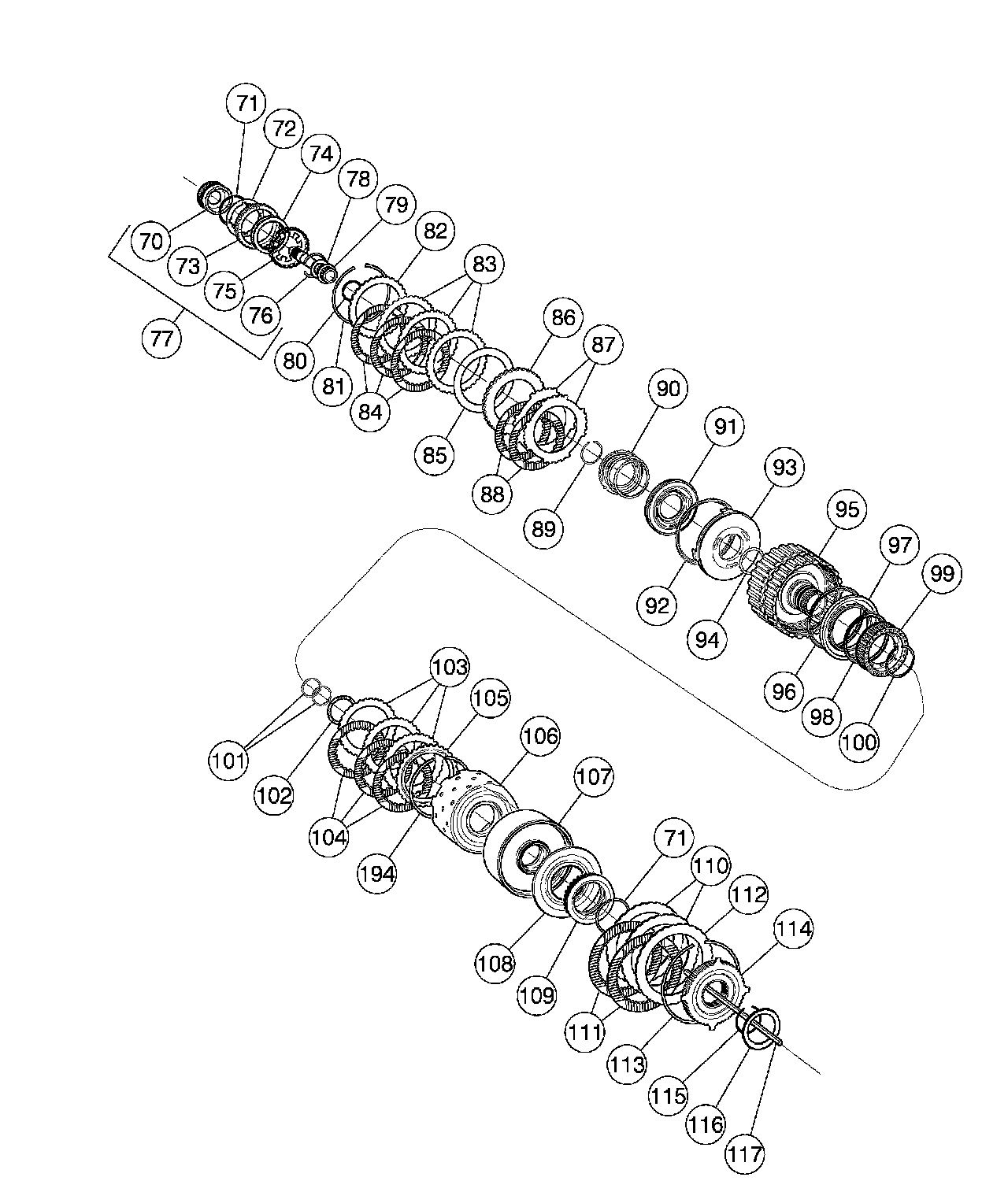

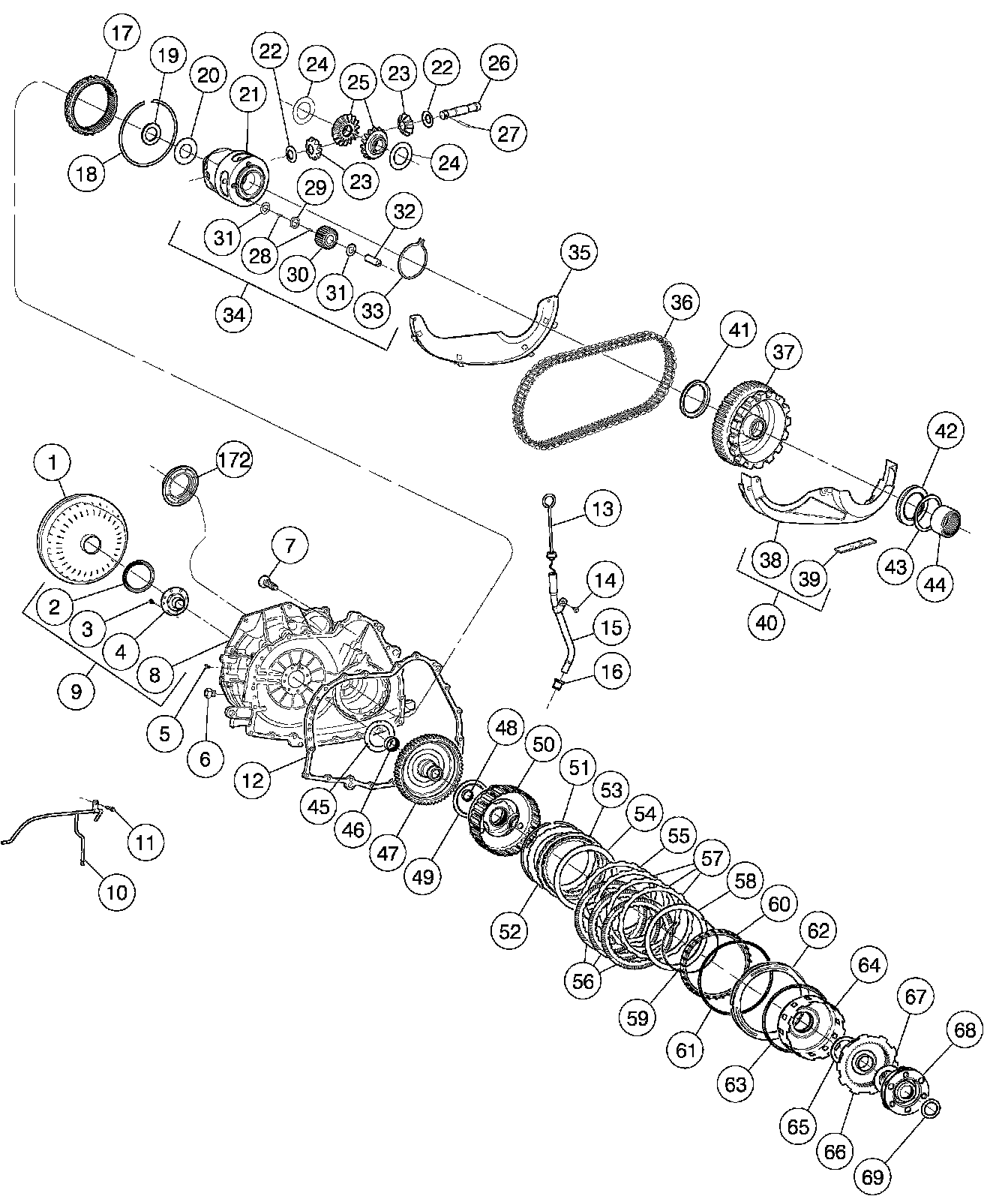

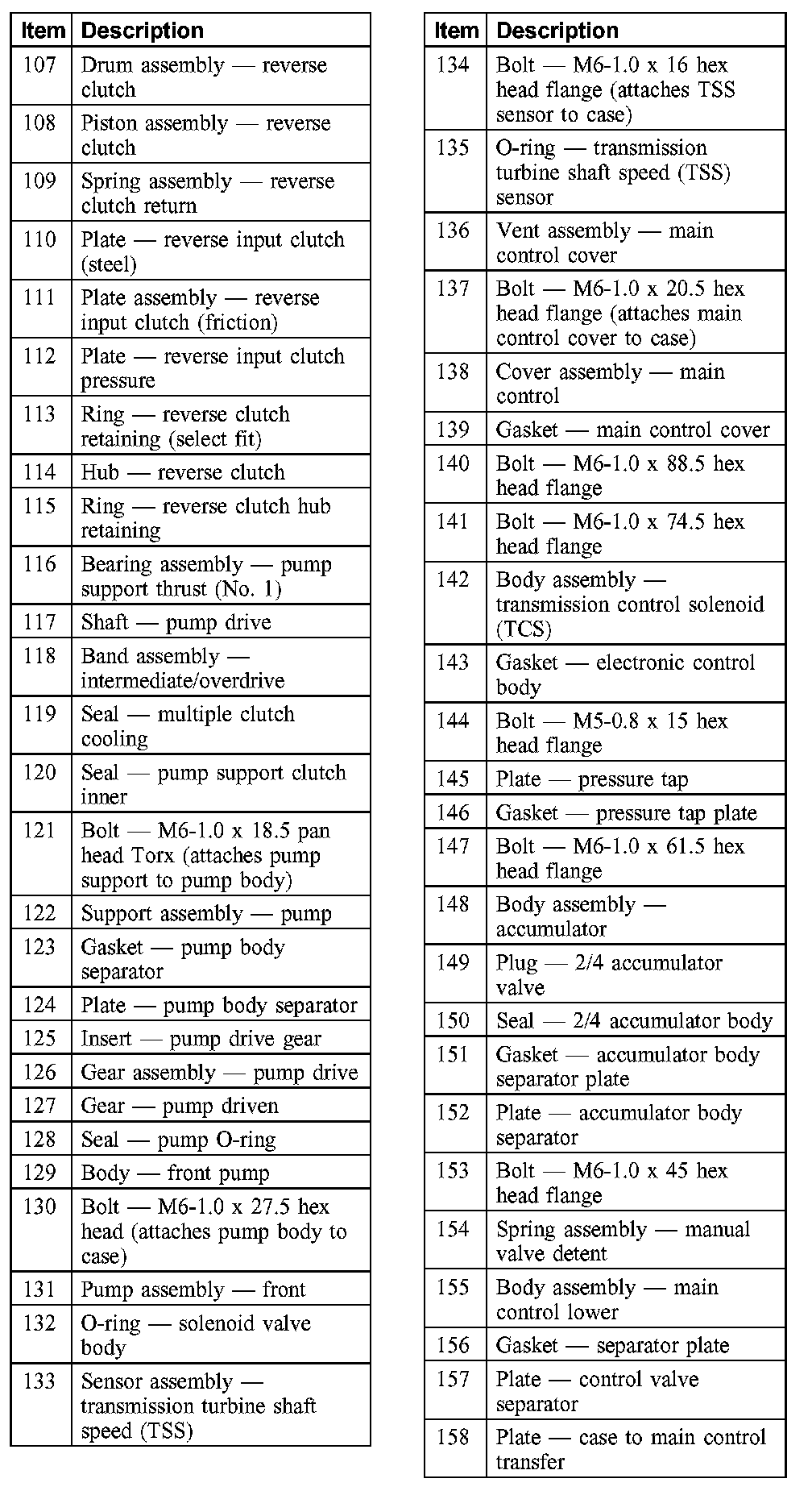

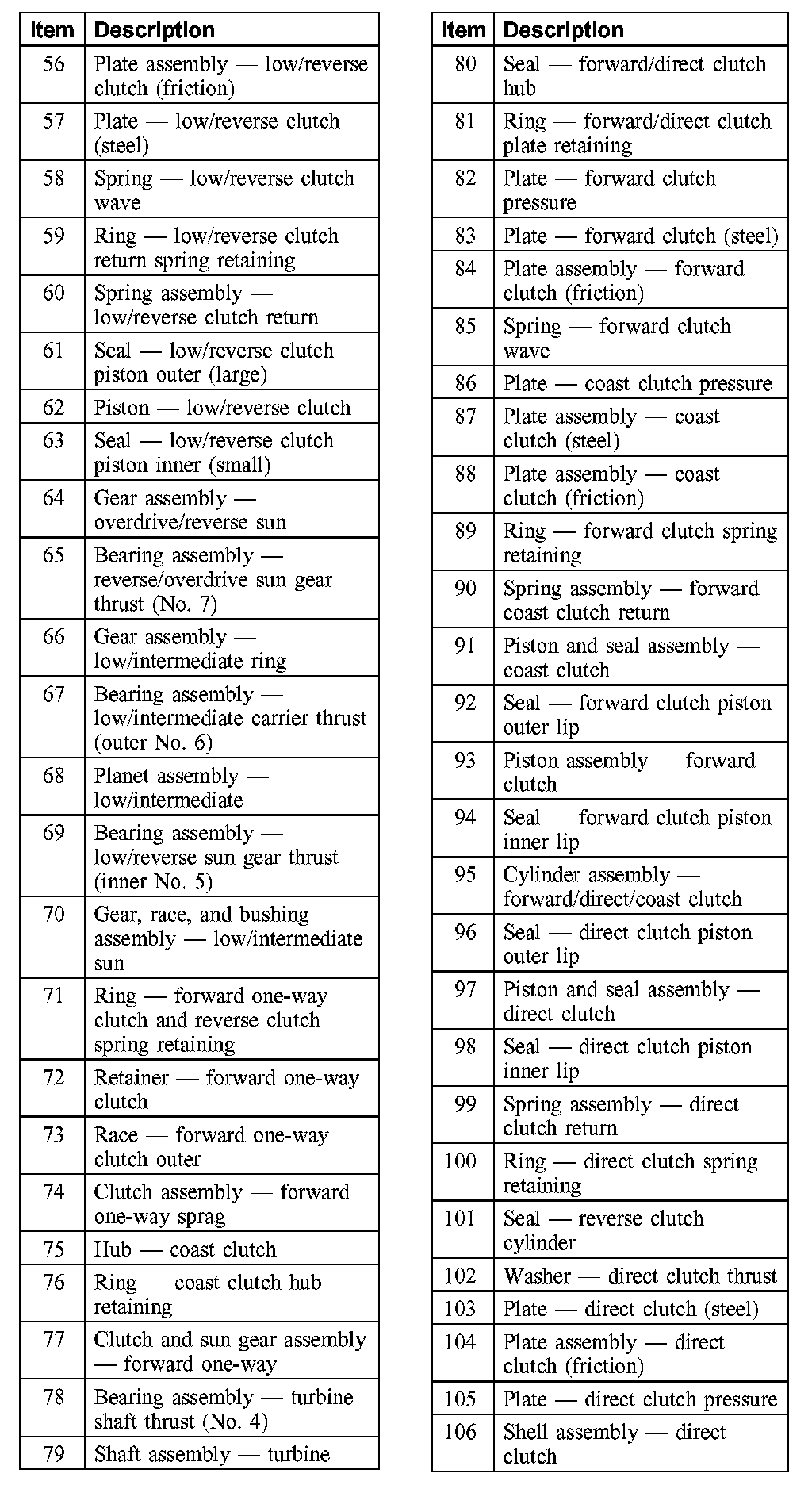

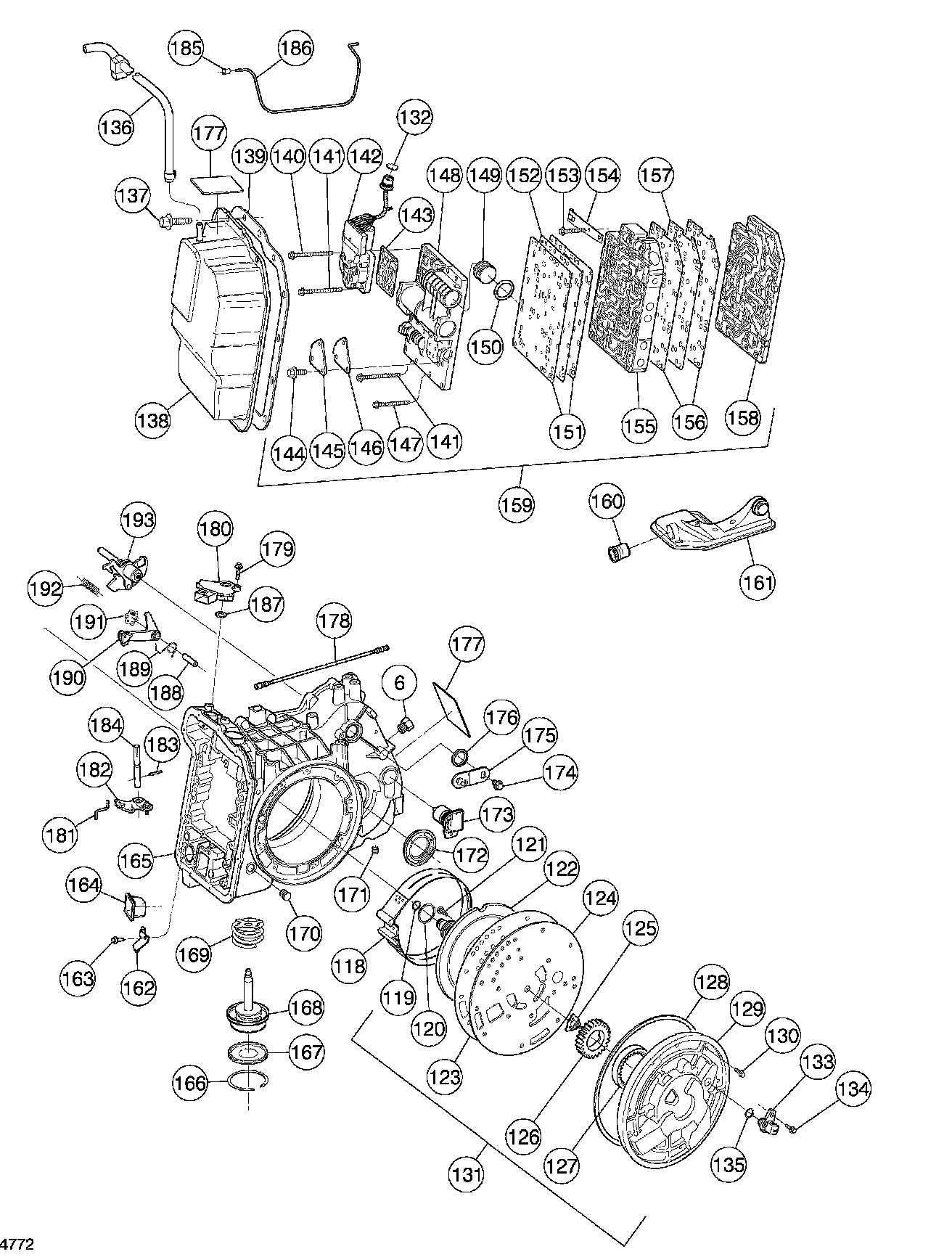

Part 1 Of 7:



Part 2 Of 7:



Part 3 Of 7:



Part 4 Of 7:



Part 5 Of 7:



Part 6 Of 7:



Part 7 Of 7:
