Home >> Ford >> 2003 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Major Upper Engine Components

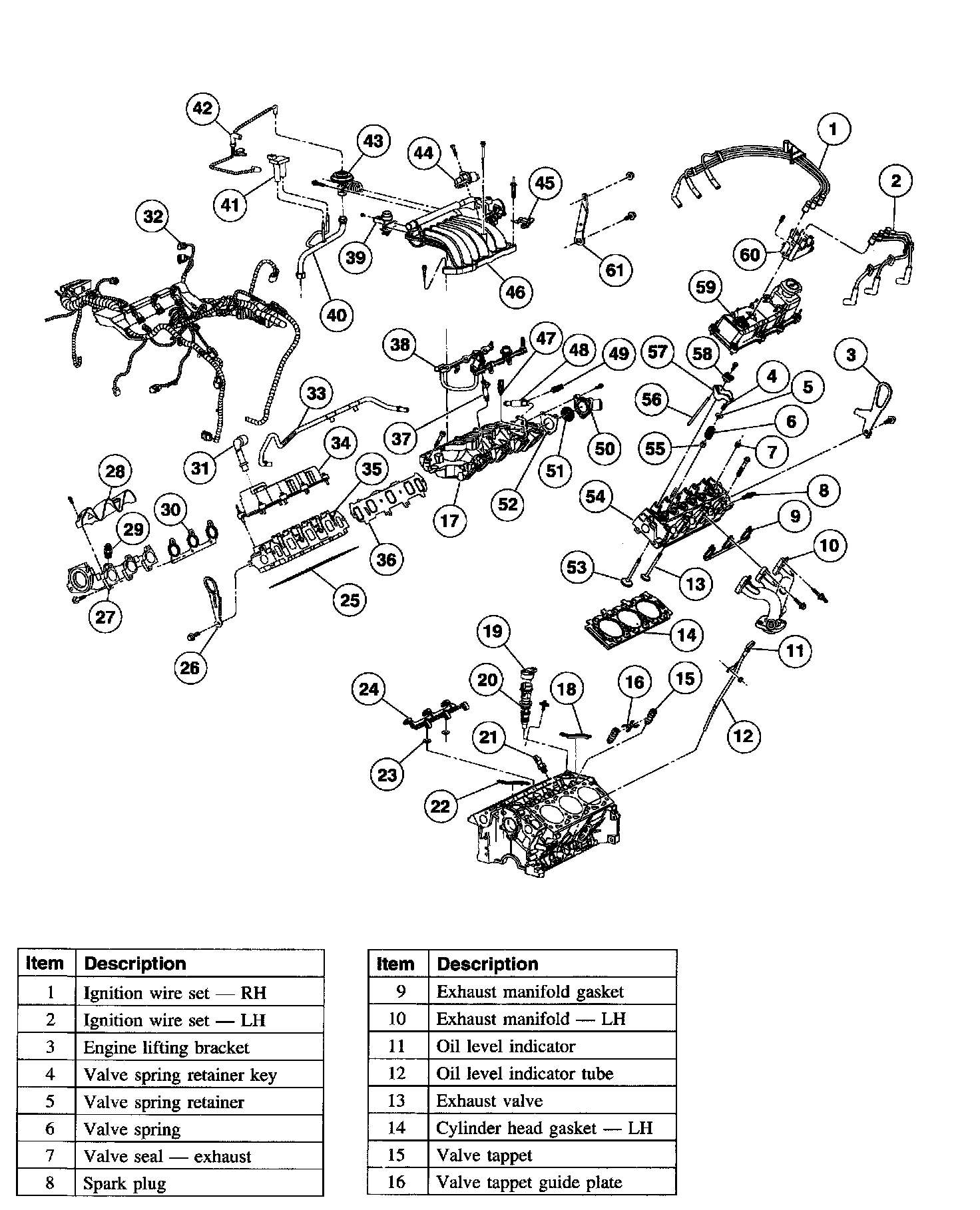

Major Upper Engine Components

Major Upper Engine Components

Part 1 Of 2:

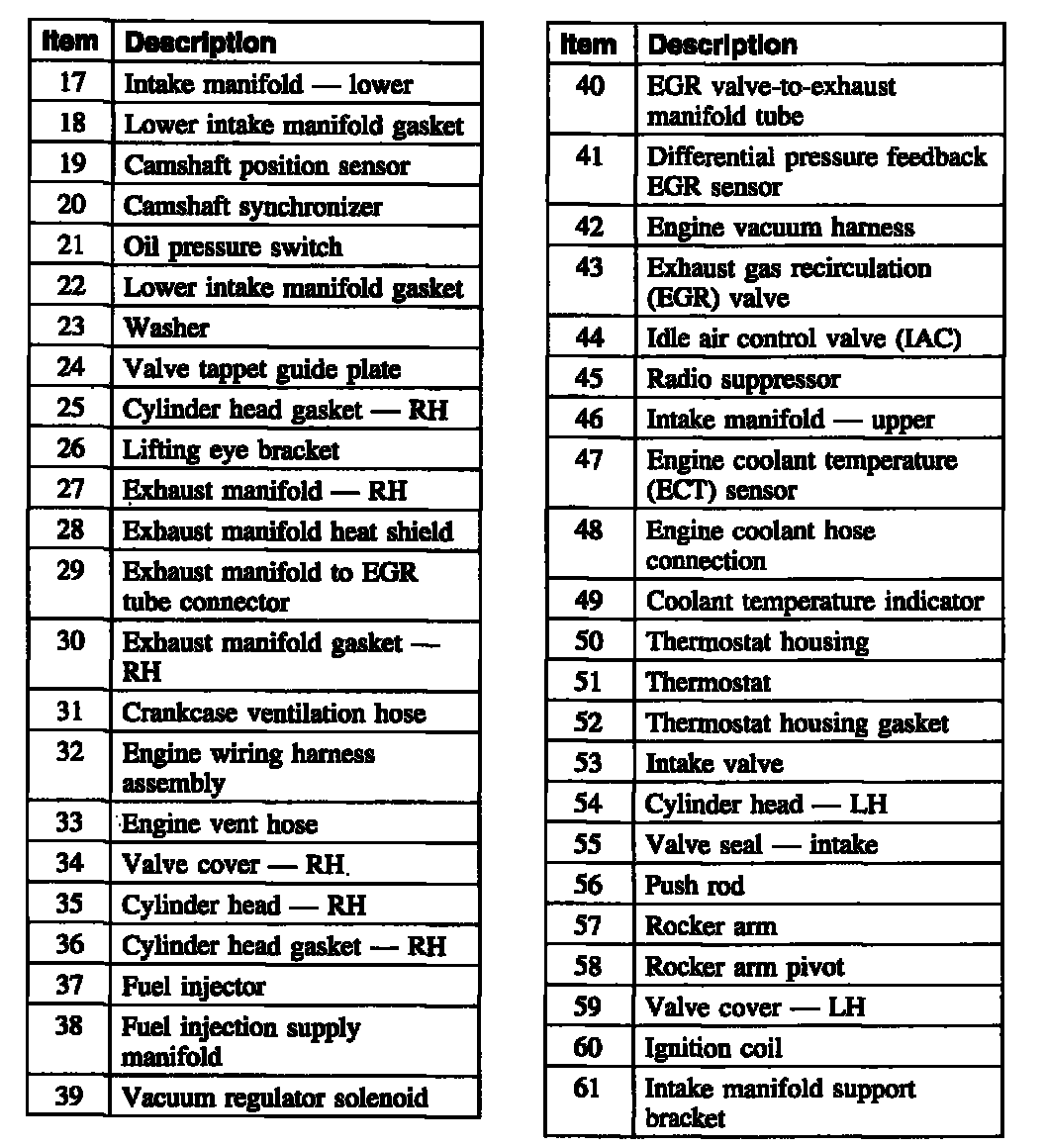

Part 2 Of 2:
