Home >> Ford >> 2003 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Front Blower Motor Speed Controller

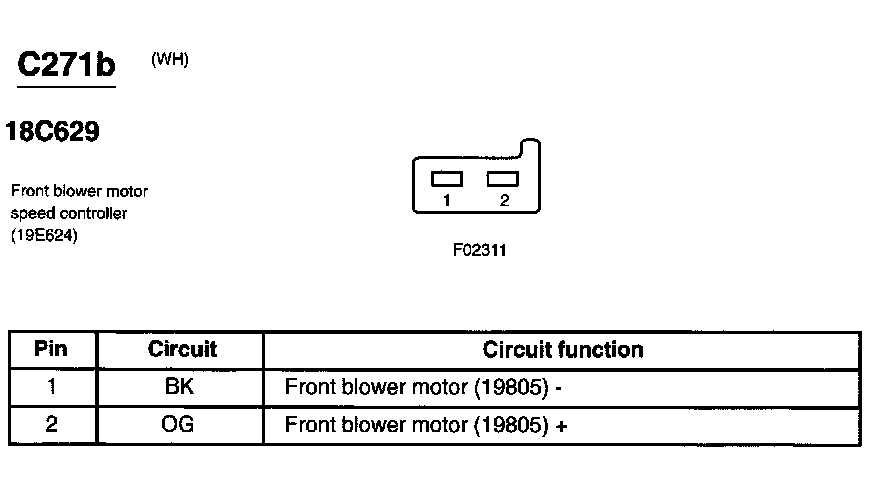

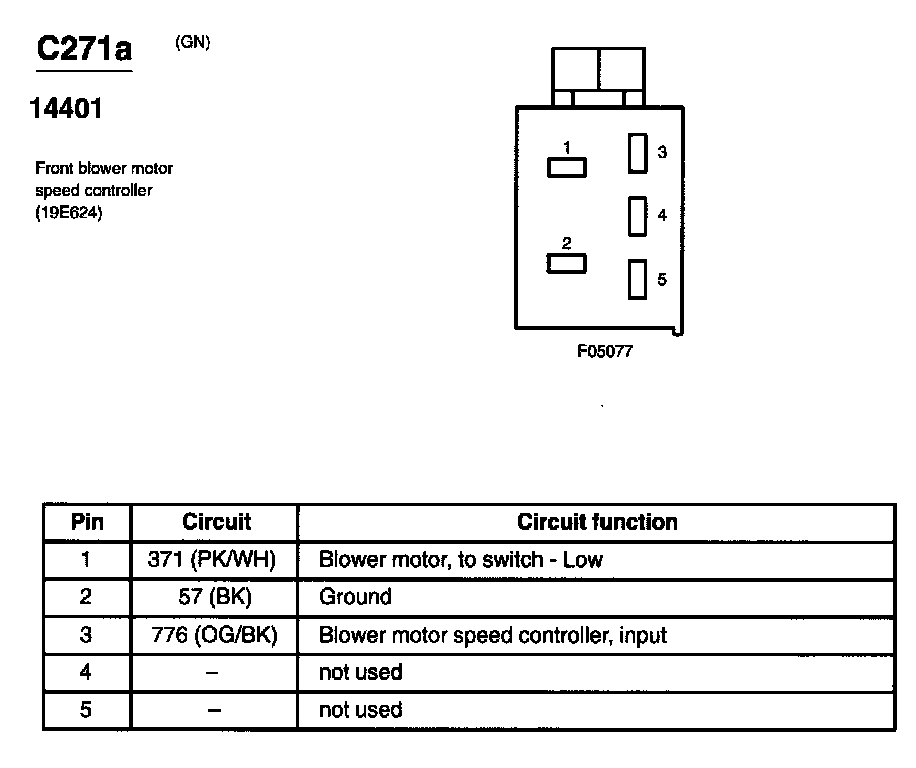

Front Blower Motor Speed Controller
