System Specifications

Timing Chain Tensioner 10 Nm (87 inch lbs.)
Camshaft Sprocket Bolts 65 Nm (48 ft. lbs.)
Timing chain guide bolts 10 Nm (89 inch lbs.)

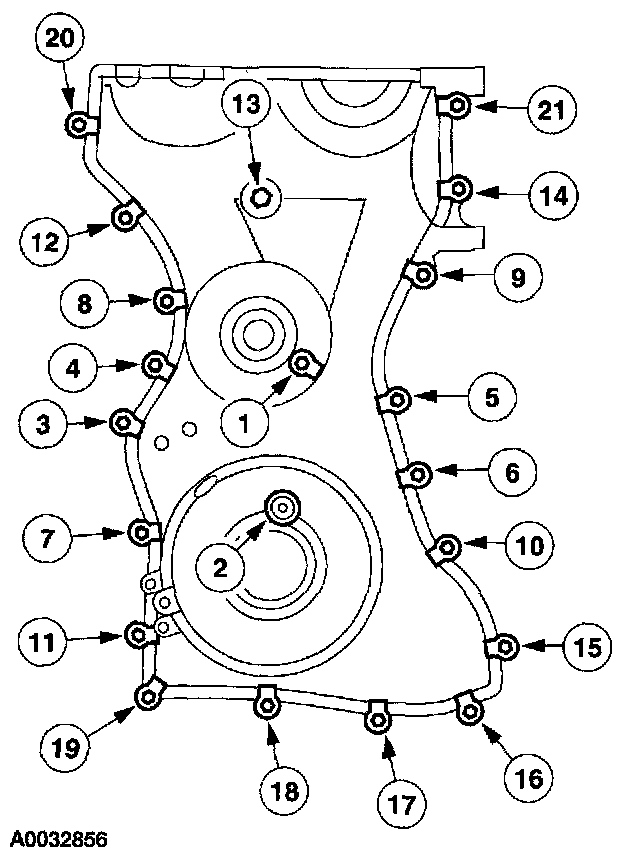

Front cover bolts:
Stage 1 8 mm bolts to 10 Nm (89 inch lbs.)
Stage 2 10 mm bolts to 25 Nm (18 ft. lbs.)
Stage 3 13 mm bolts to 48 Nm (35 ft. lbs.)
