Spark Plug: Service and Repair

REMOVAL

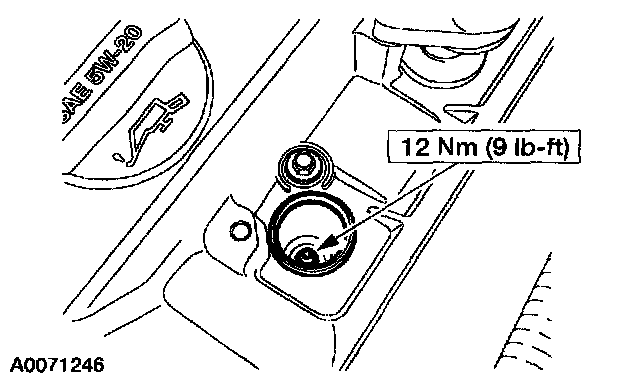

1. Remove the ignition coil.







2. Remove the spark plug.


NOTE: Remove foreign material with compressed air.

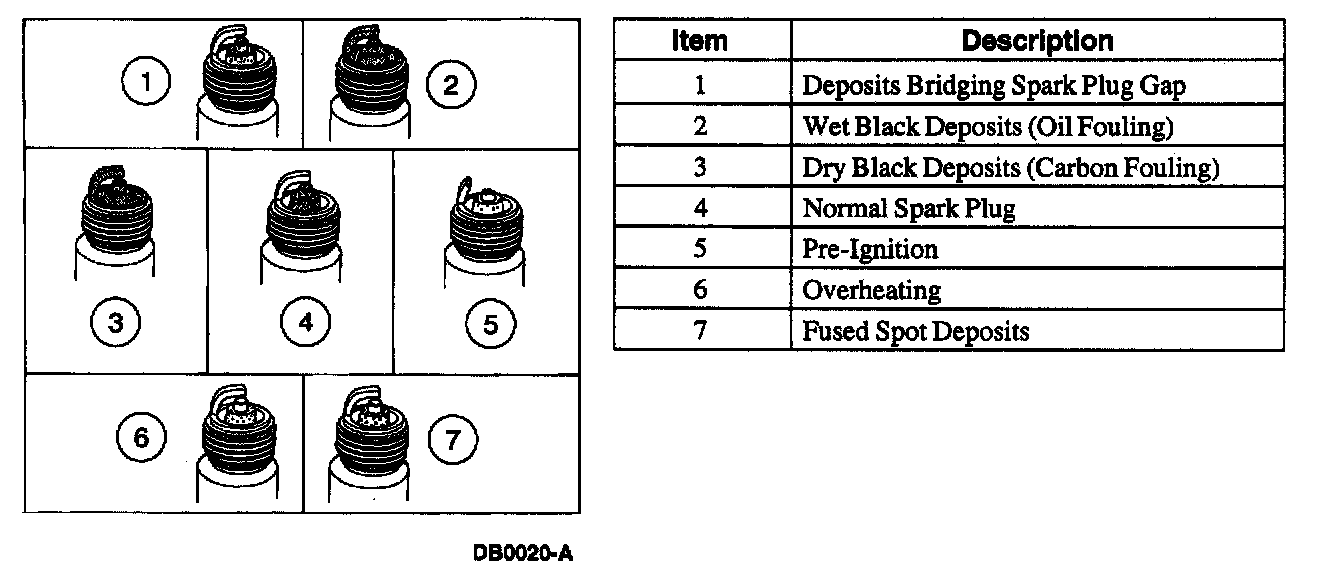

3. Inspect the spark plugs.

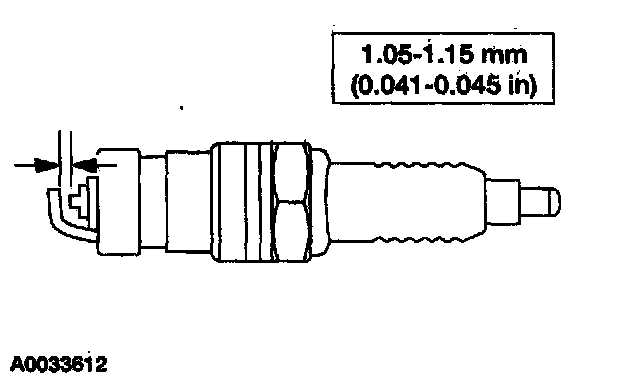

4. Check and adjust the spark plug gap as necessary.

INSTALLATION
1. To install, reverse the removal procedure.
