Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values - Includes PIDs >> Reference Values >> Reference Value Symptom Chart

Reference Value Symptom Chart

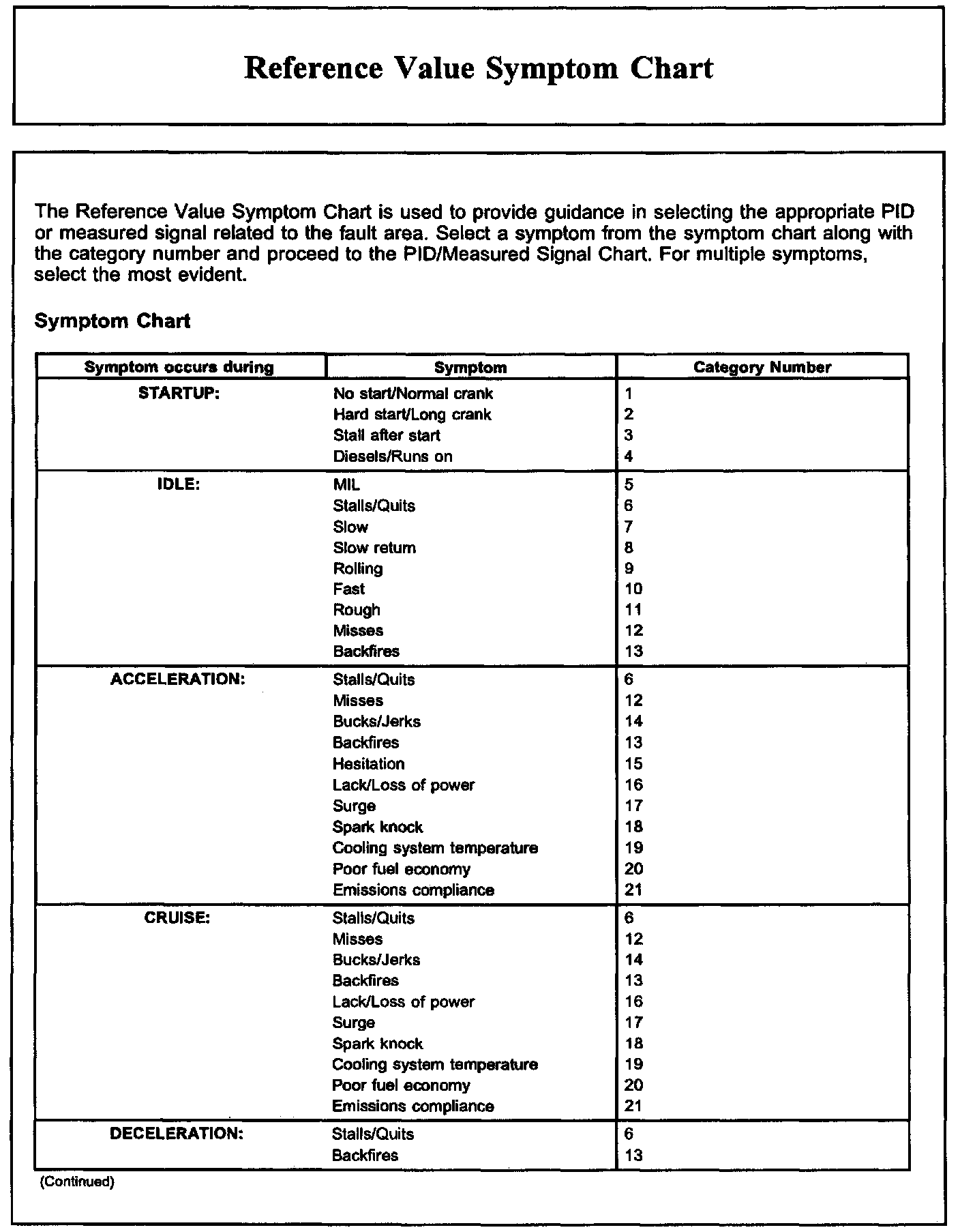

Reference Value Symptom Chart, Part 1:

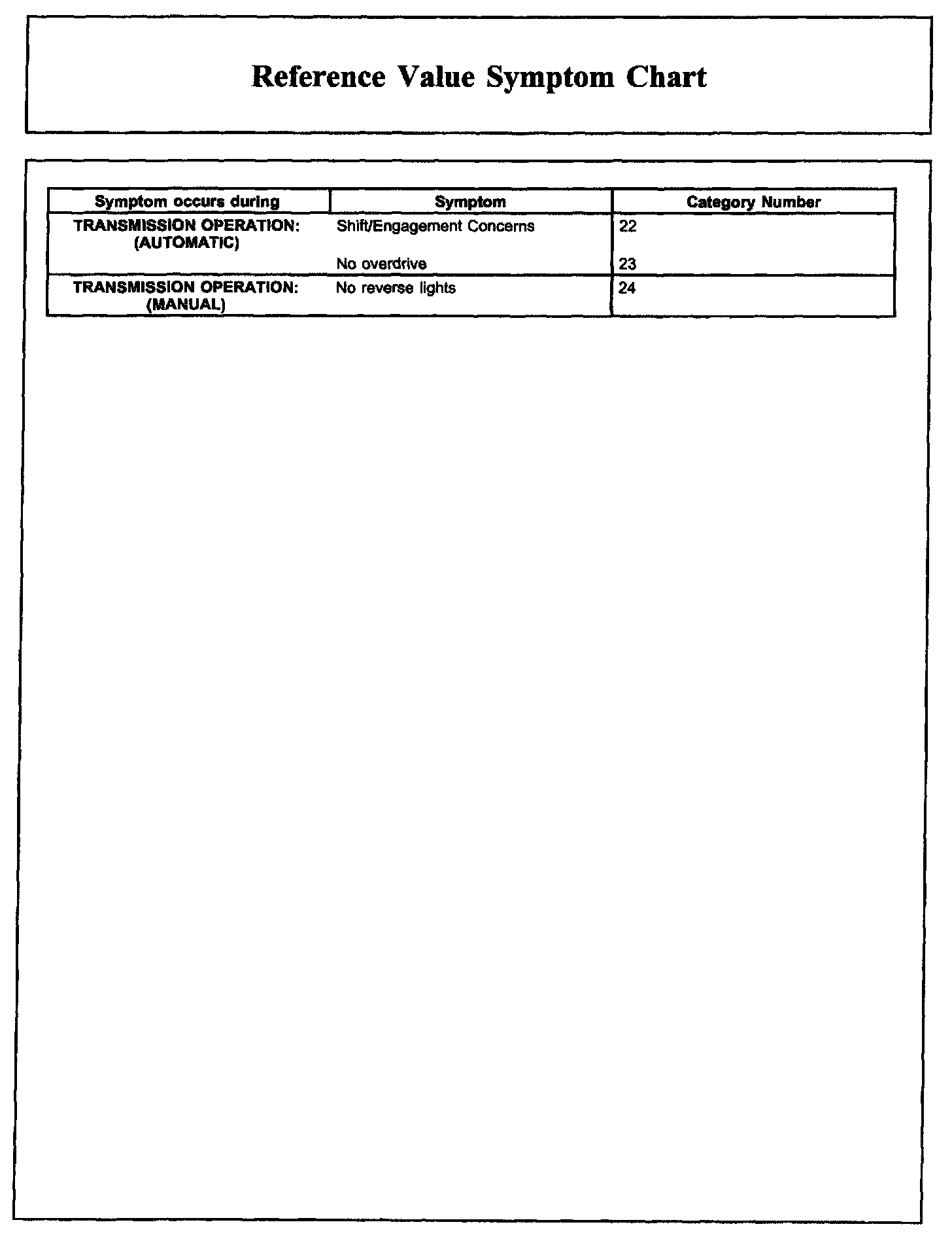

Reference Value Symptom Chart, Part 2:
