Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

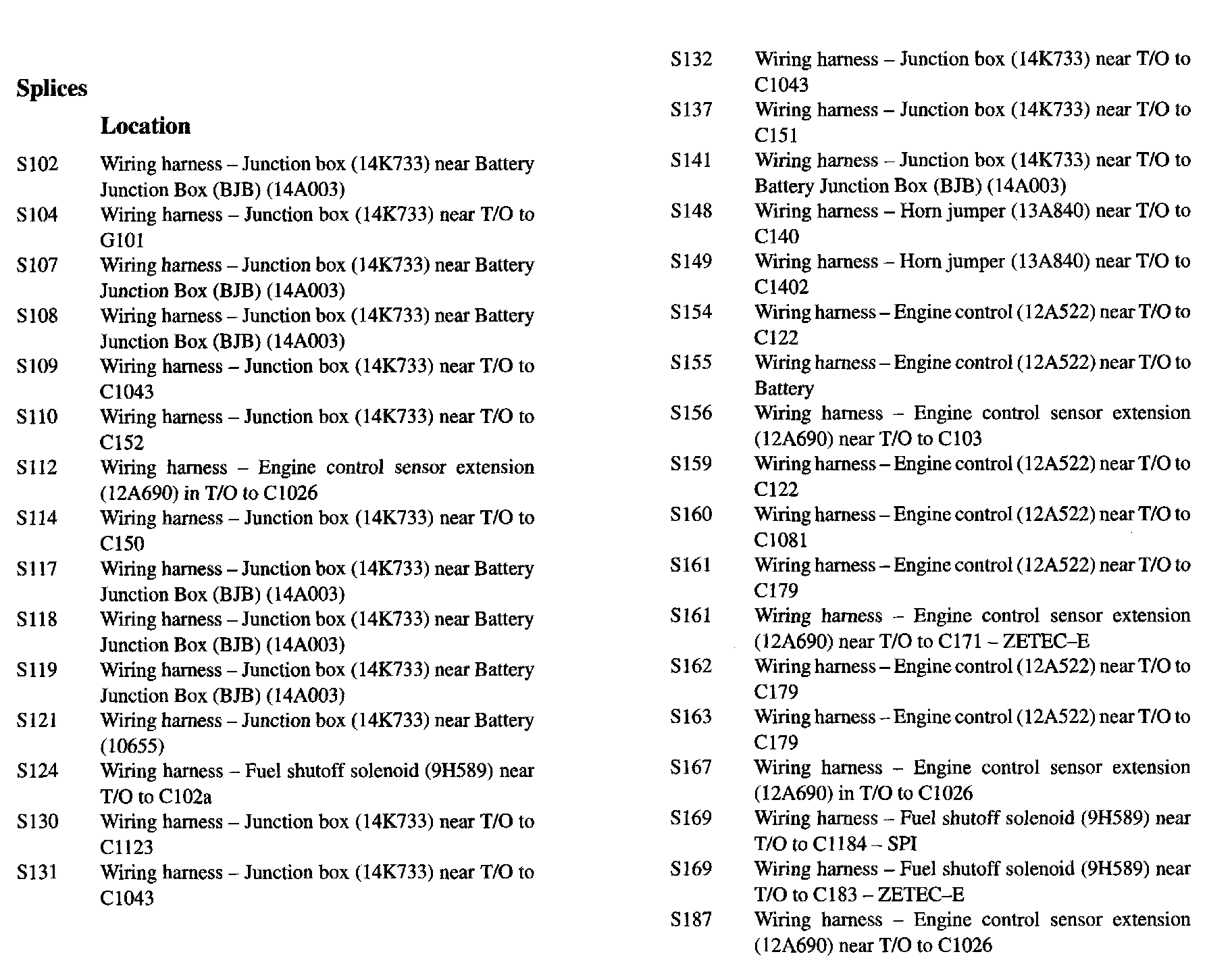

S102 - S187:

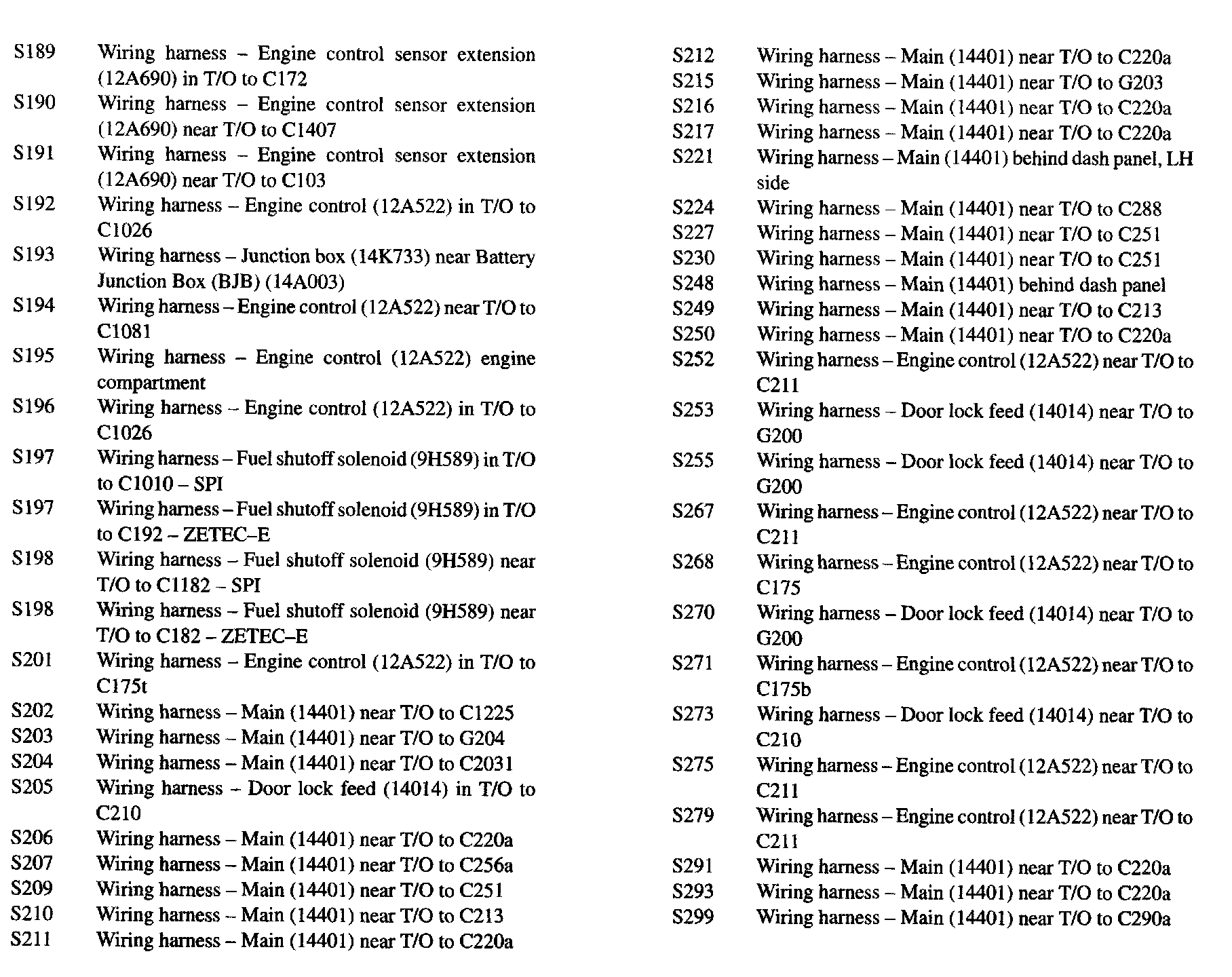

S189 - S299:

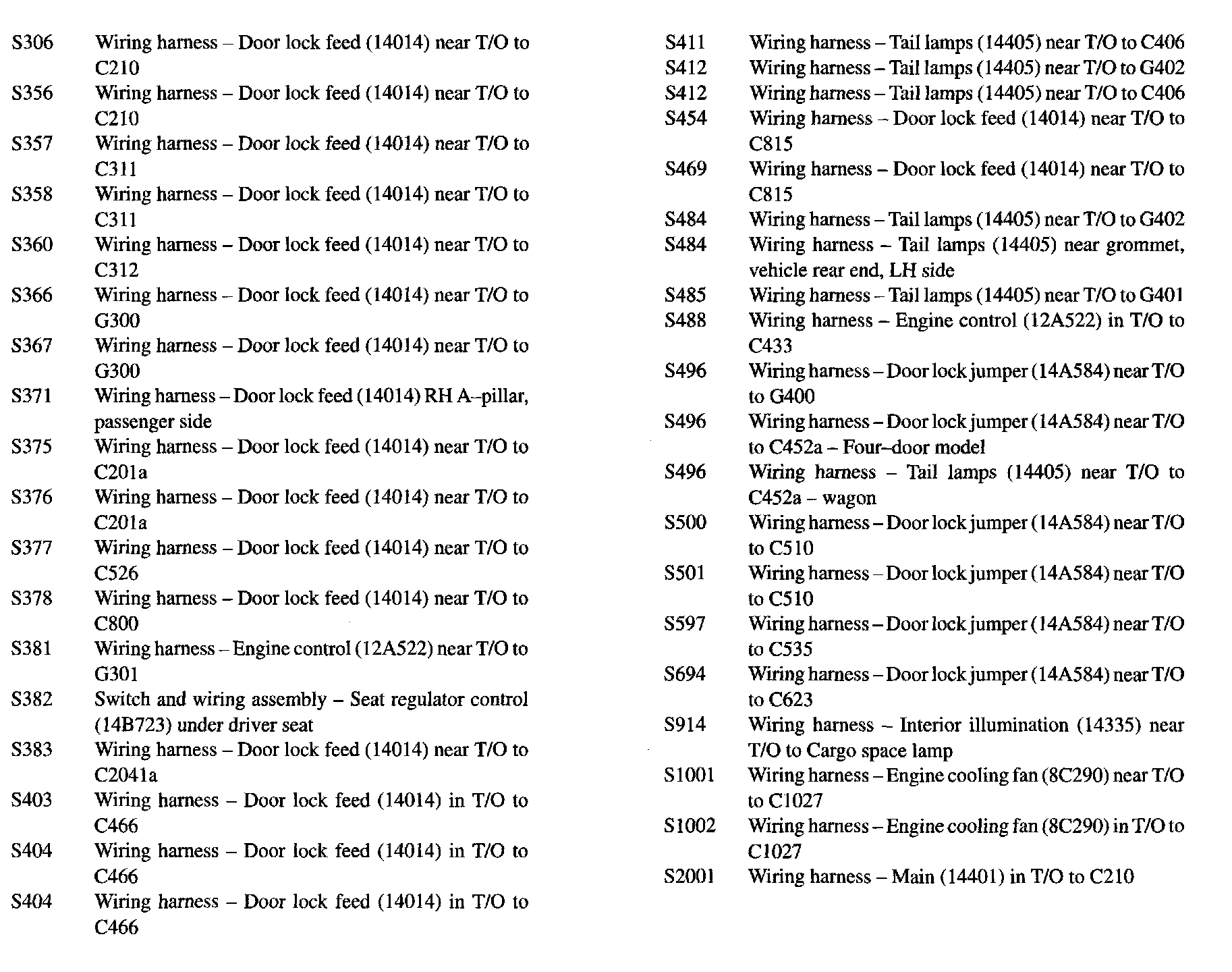

S306 - S2001:
