Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension >> Rear

Rear

Rear Suspension

Part 1 Of 2:




Part 2 Of 2:

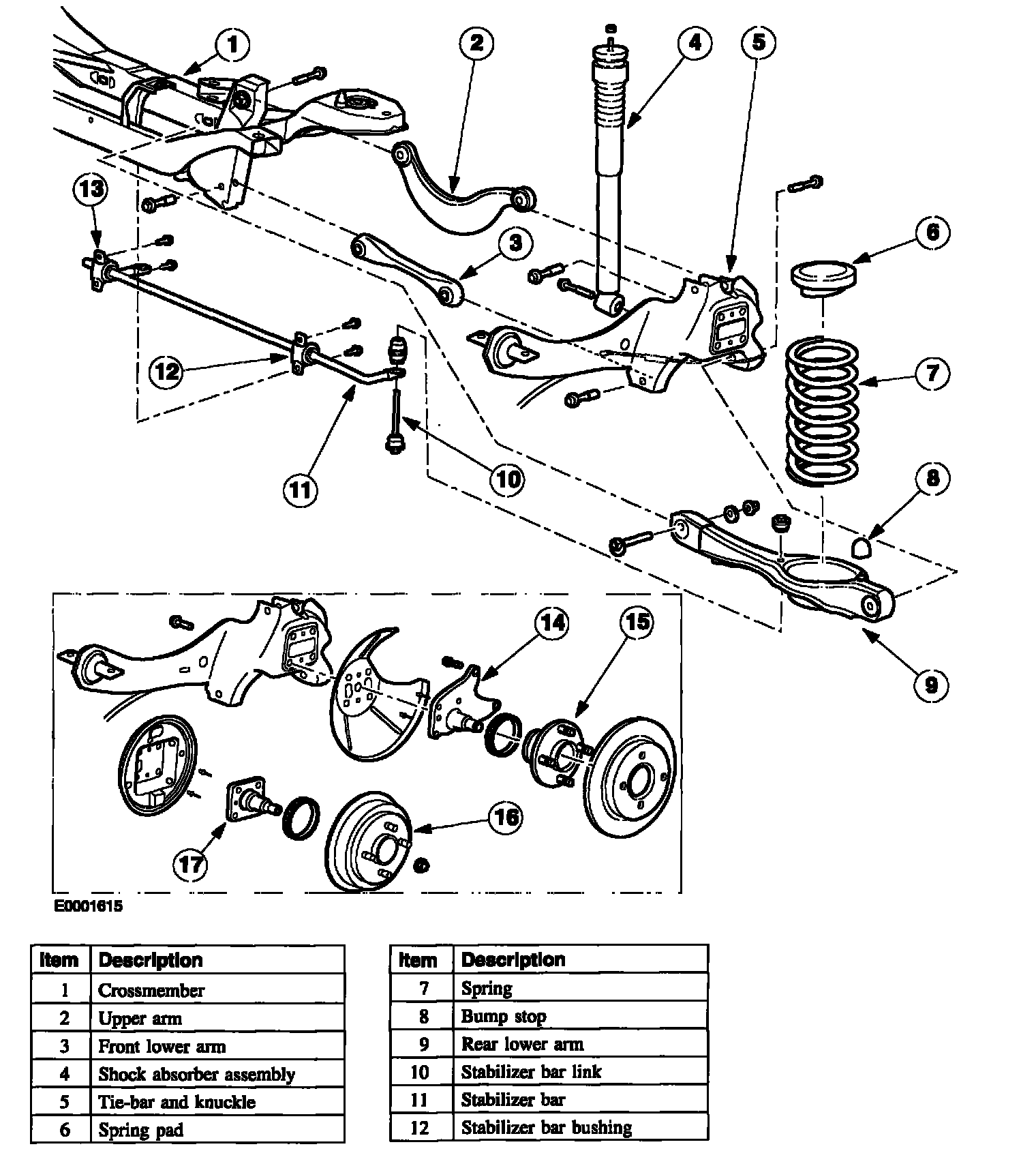

All Except Wagon


Part 1 Of 2:




Part 2 Of 2:

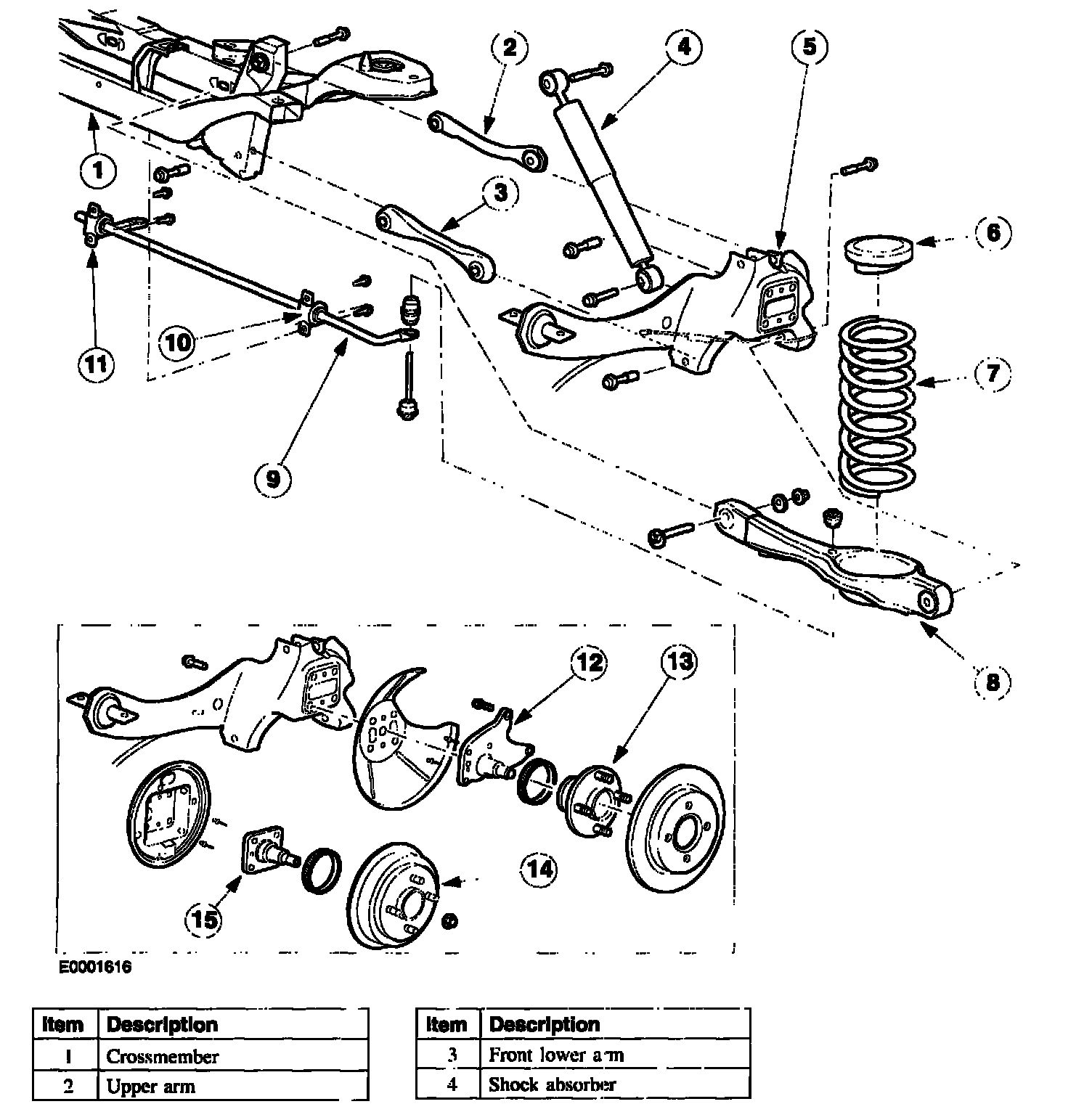

Wagon
