Ford
>>
2003
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine
Exploded Views

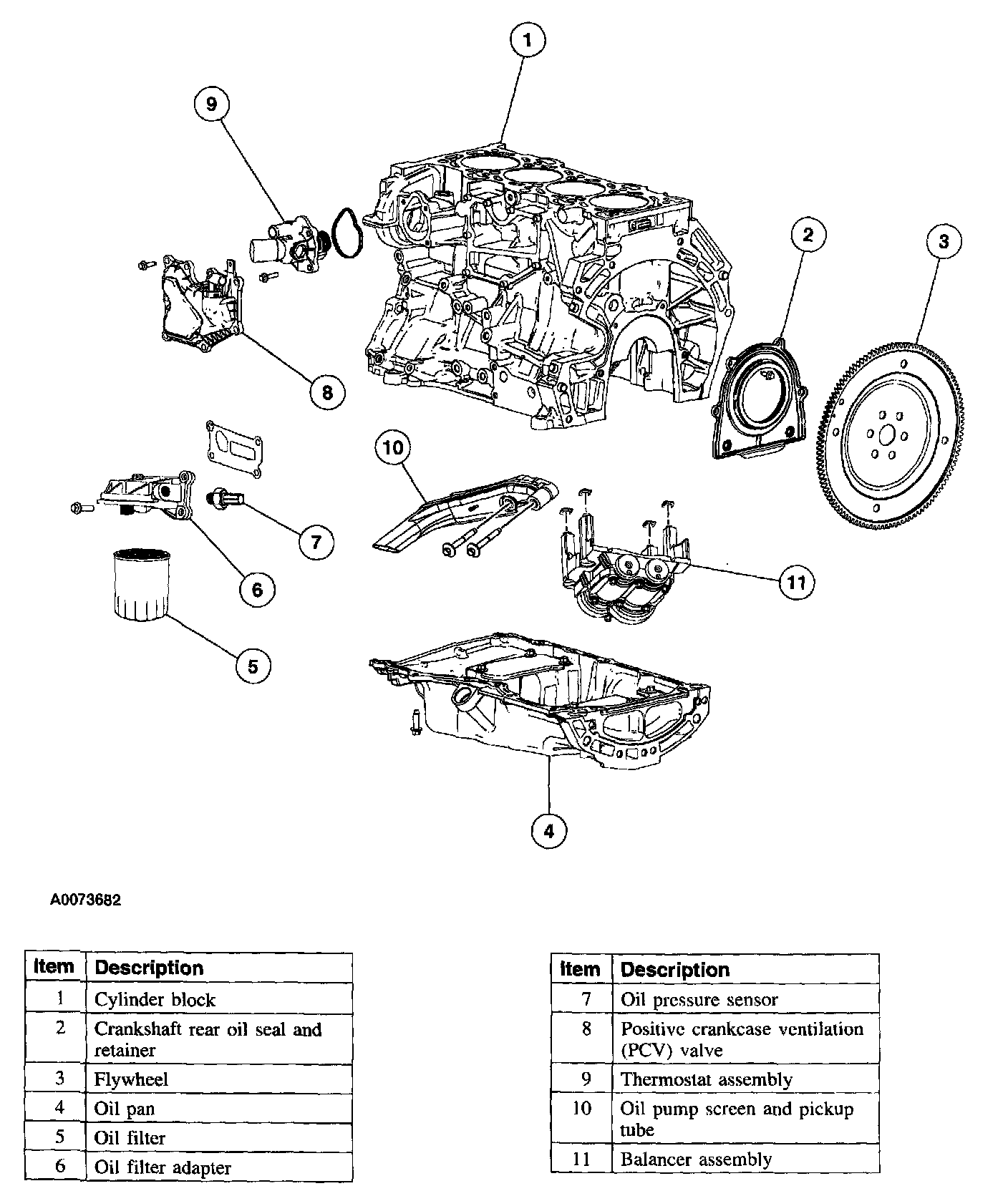

Lower Engine Block

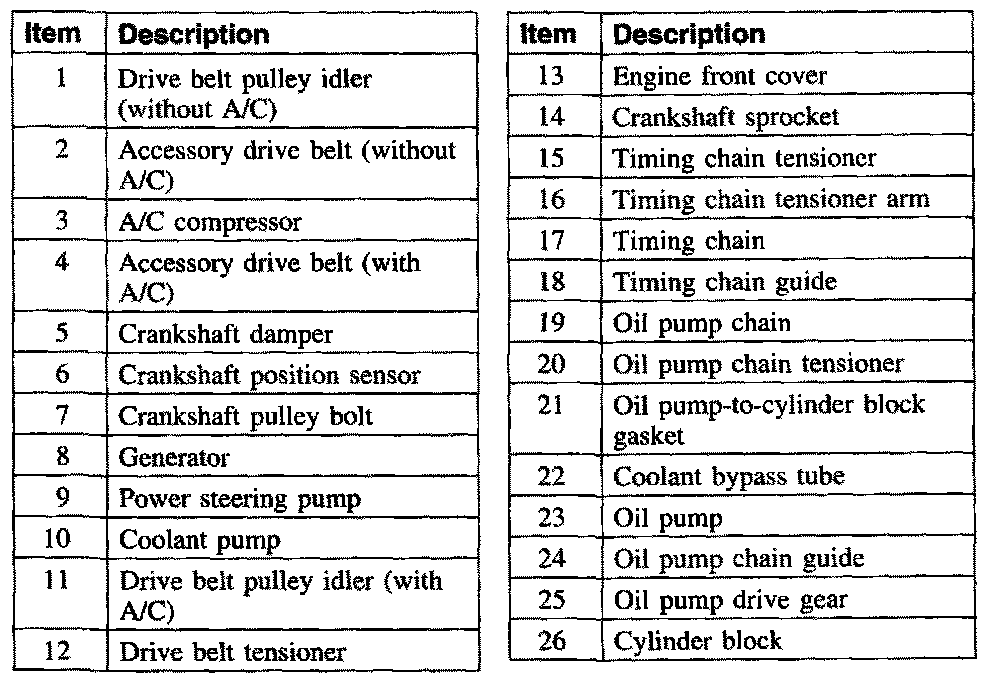

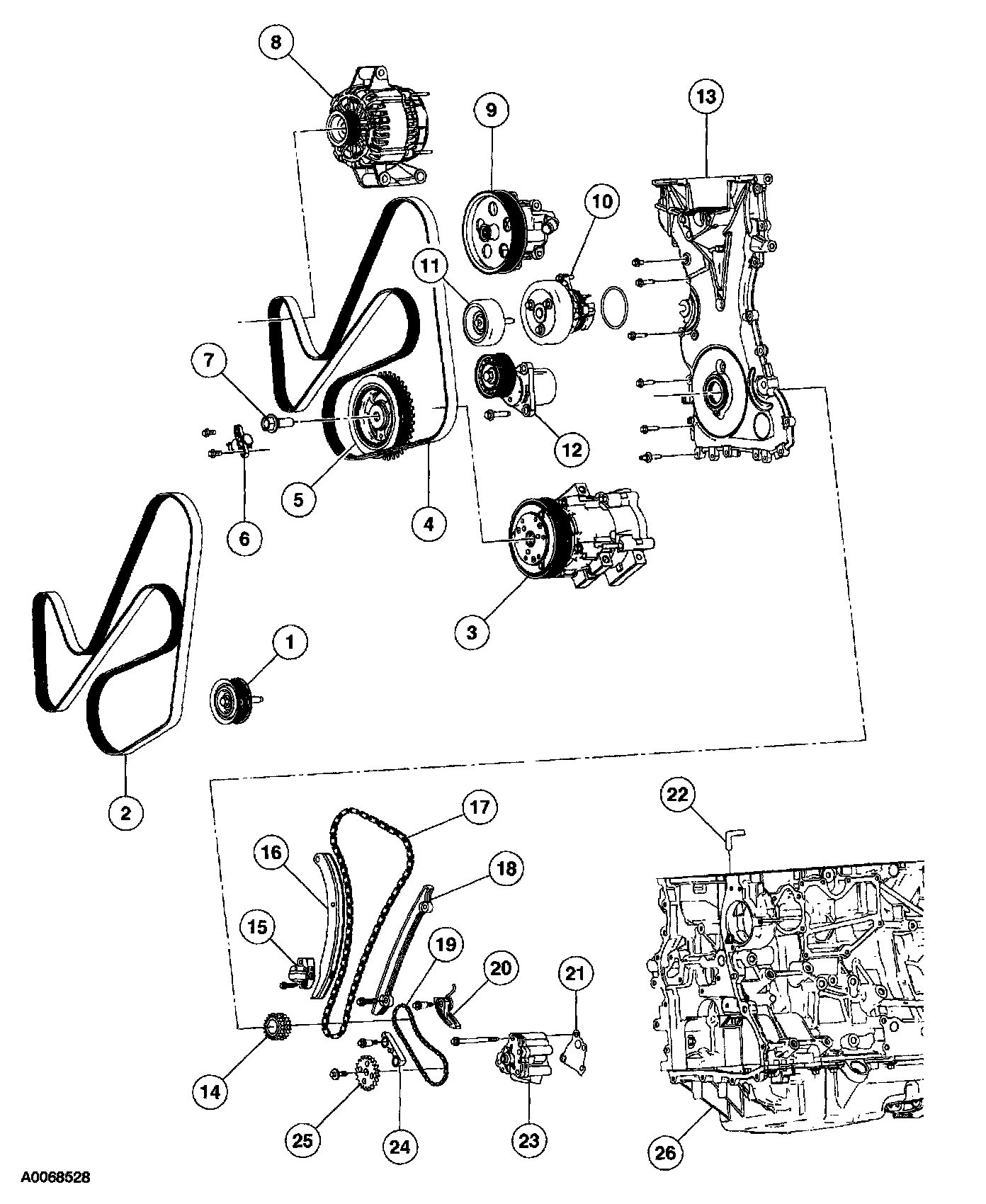

Front Engine Block

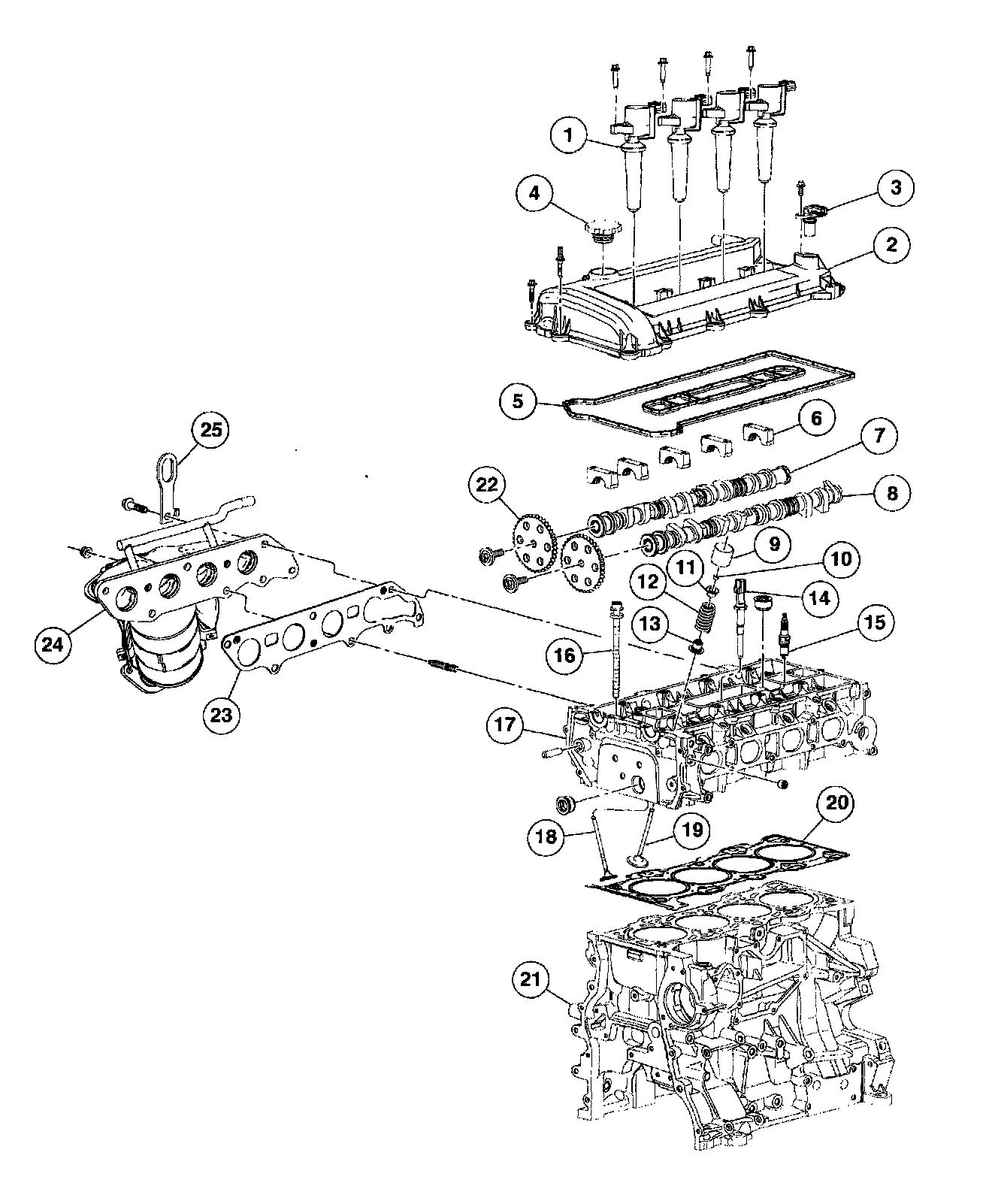

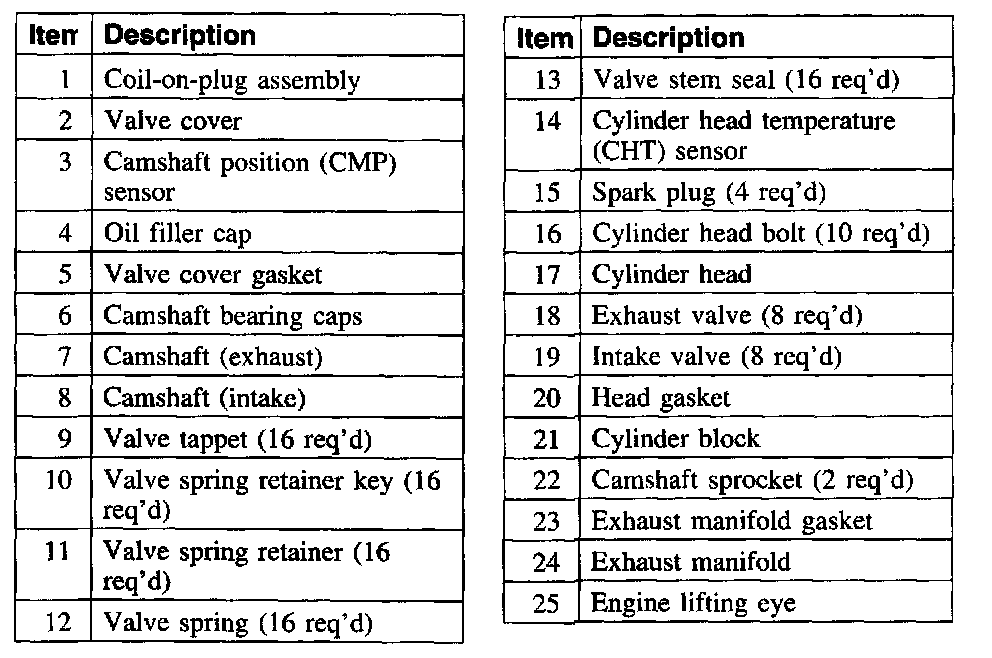

Cylinder Head

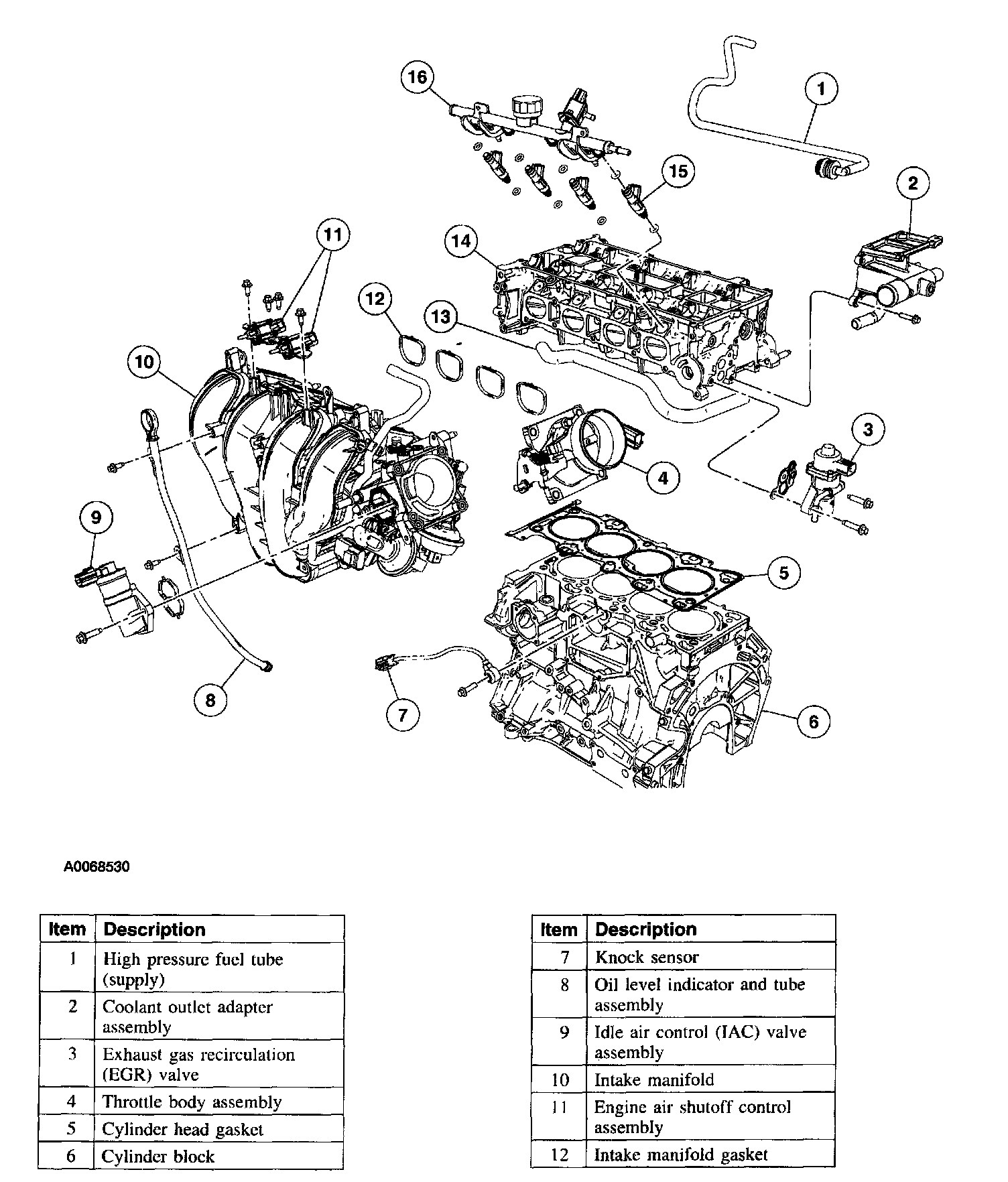

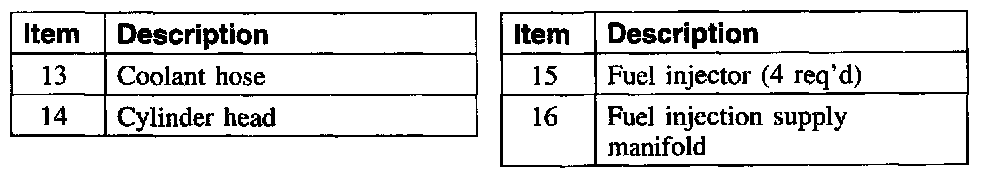

Intake Manifold
