Ford
>>
2003
>>
Explorer 2WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

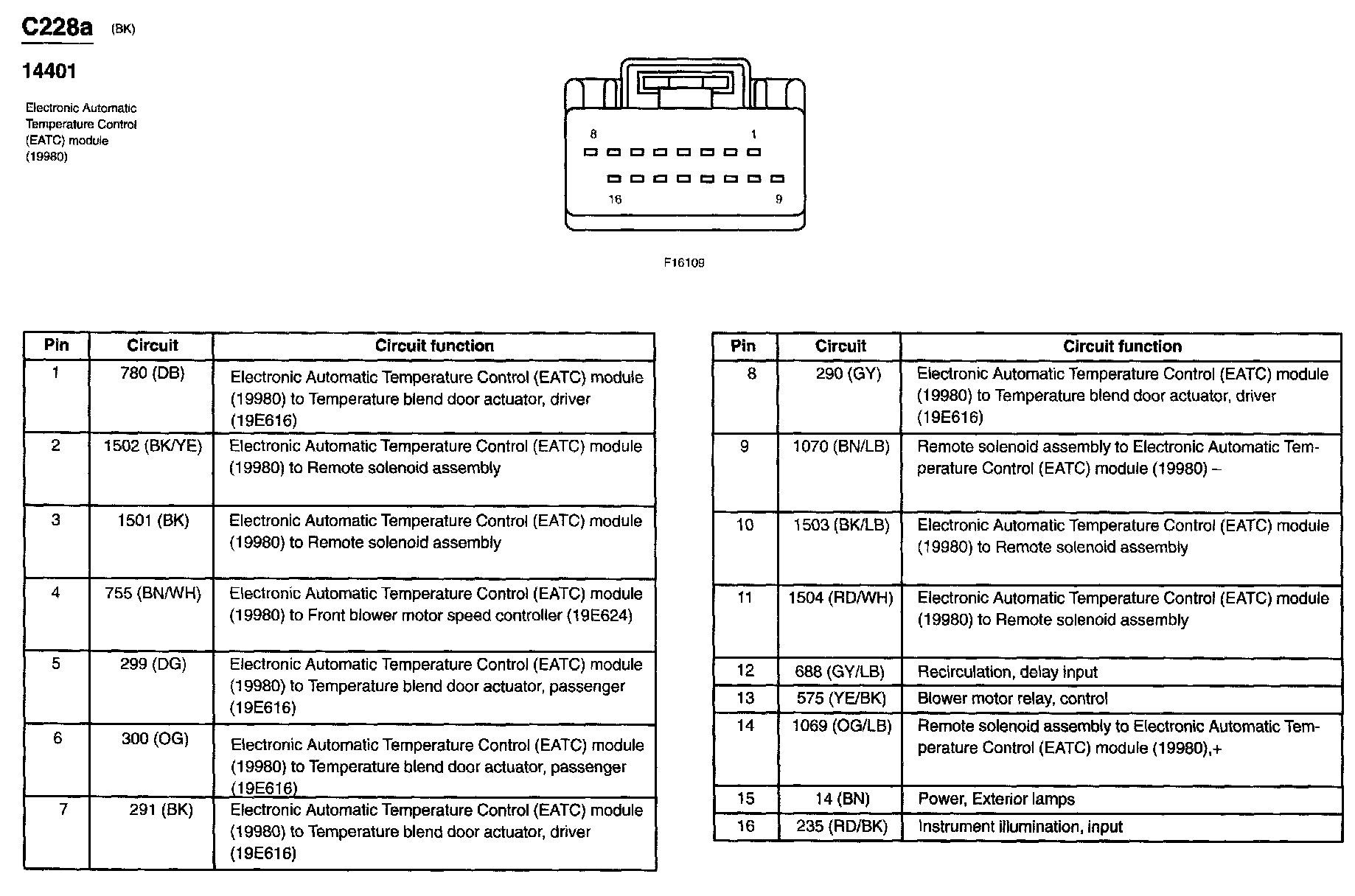

Electronic Automatic Temperature Control (EATC) Module

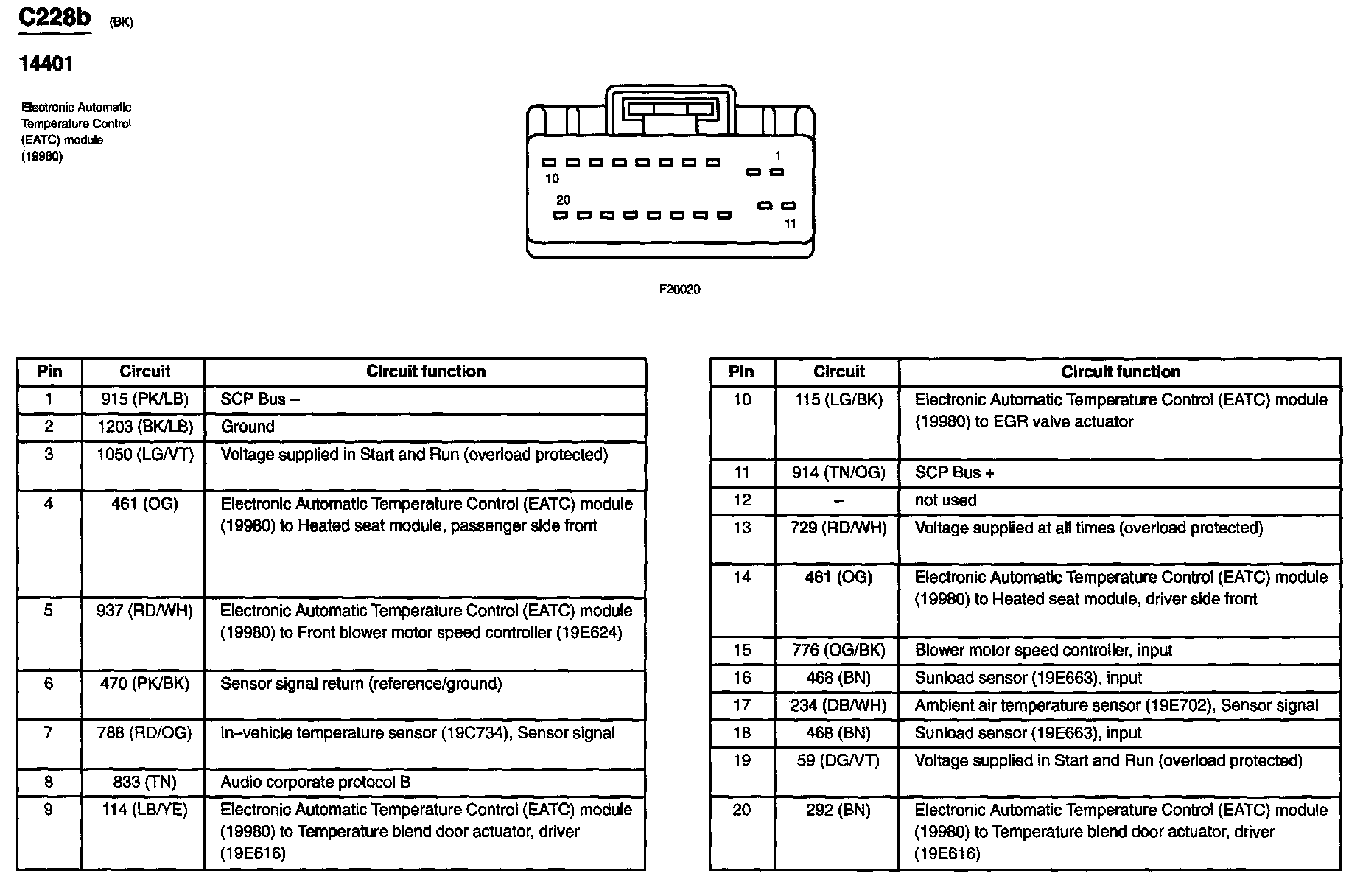

Electronic Automatic Temperature Control (EATC) Module
