Test Q

PINPOINT TEST Q: NO UART BASED PROTOCOL (UBP) NETWORK COMMUNICATION

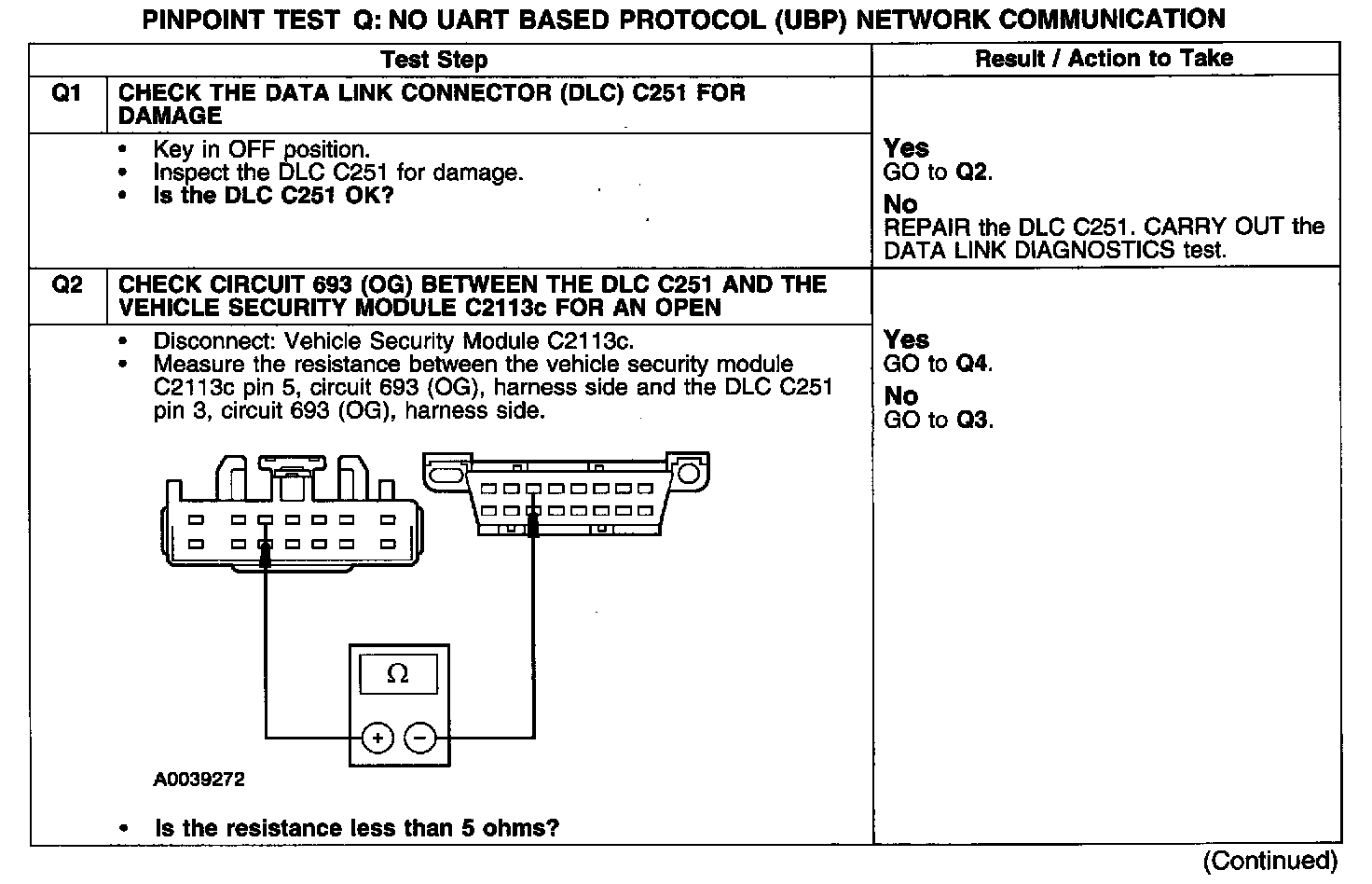

Test Q1-Q2:

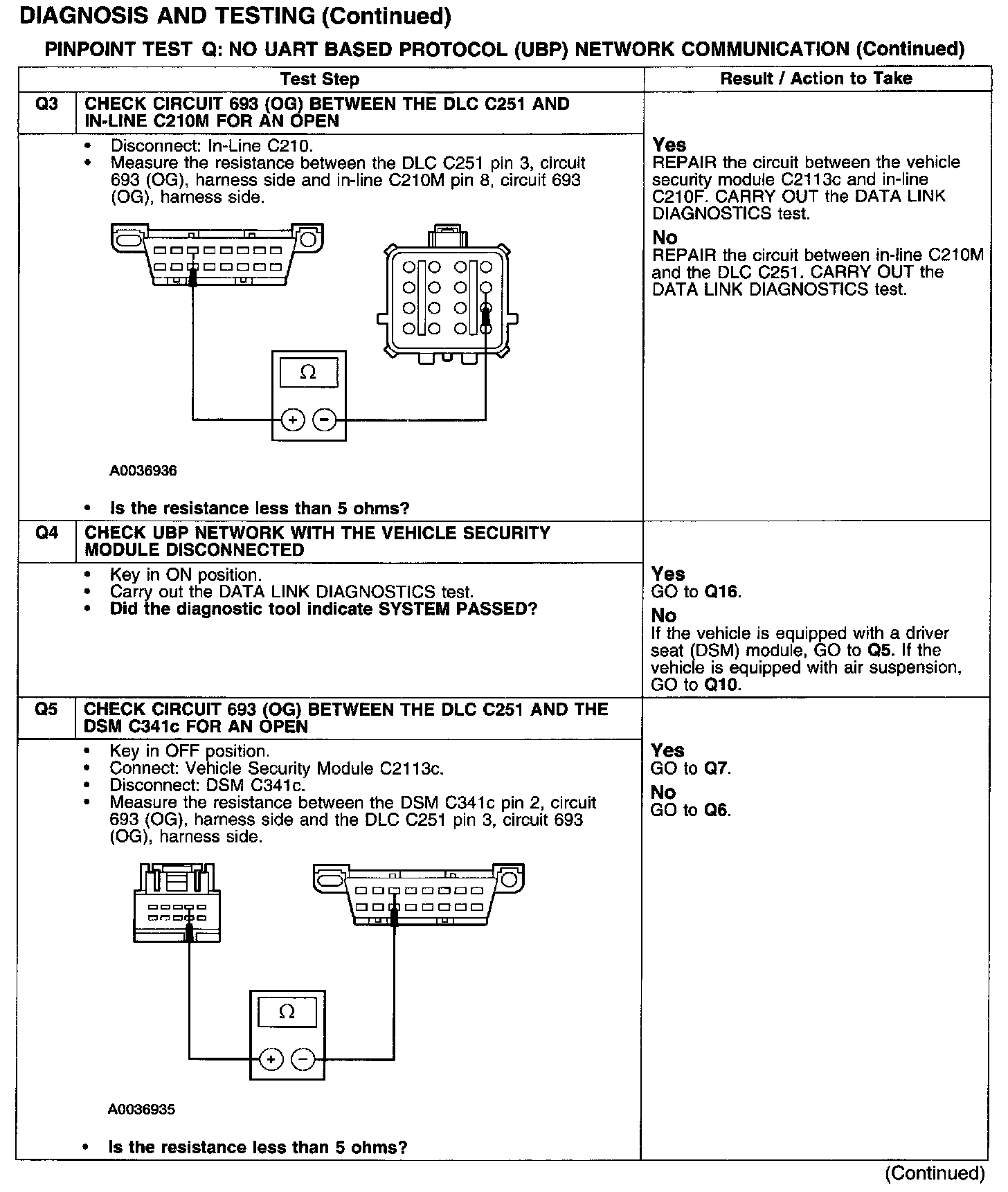

Test Q3-Q5:

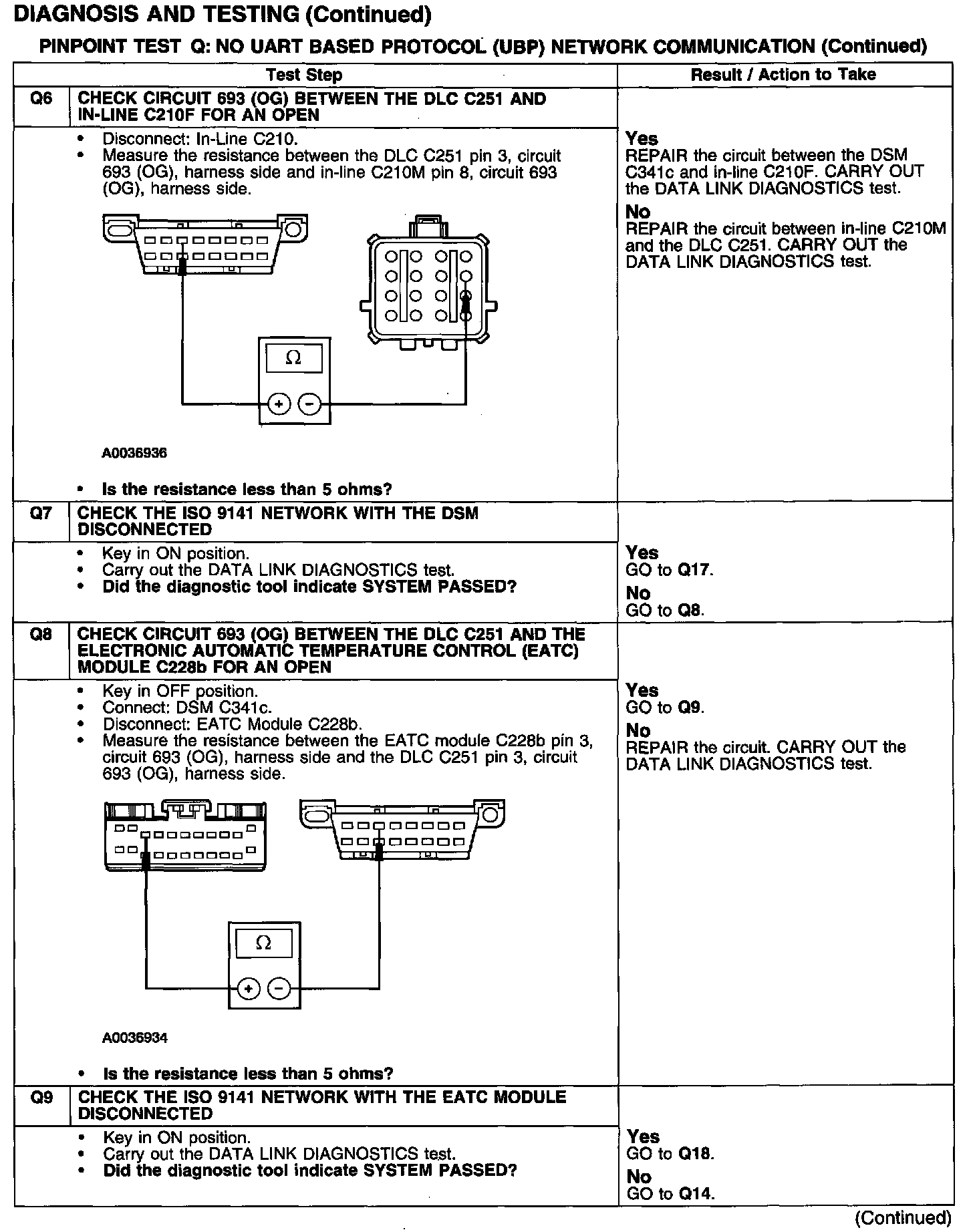

Test Q6-Q9:

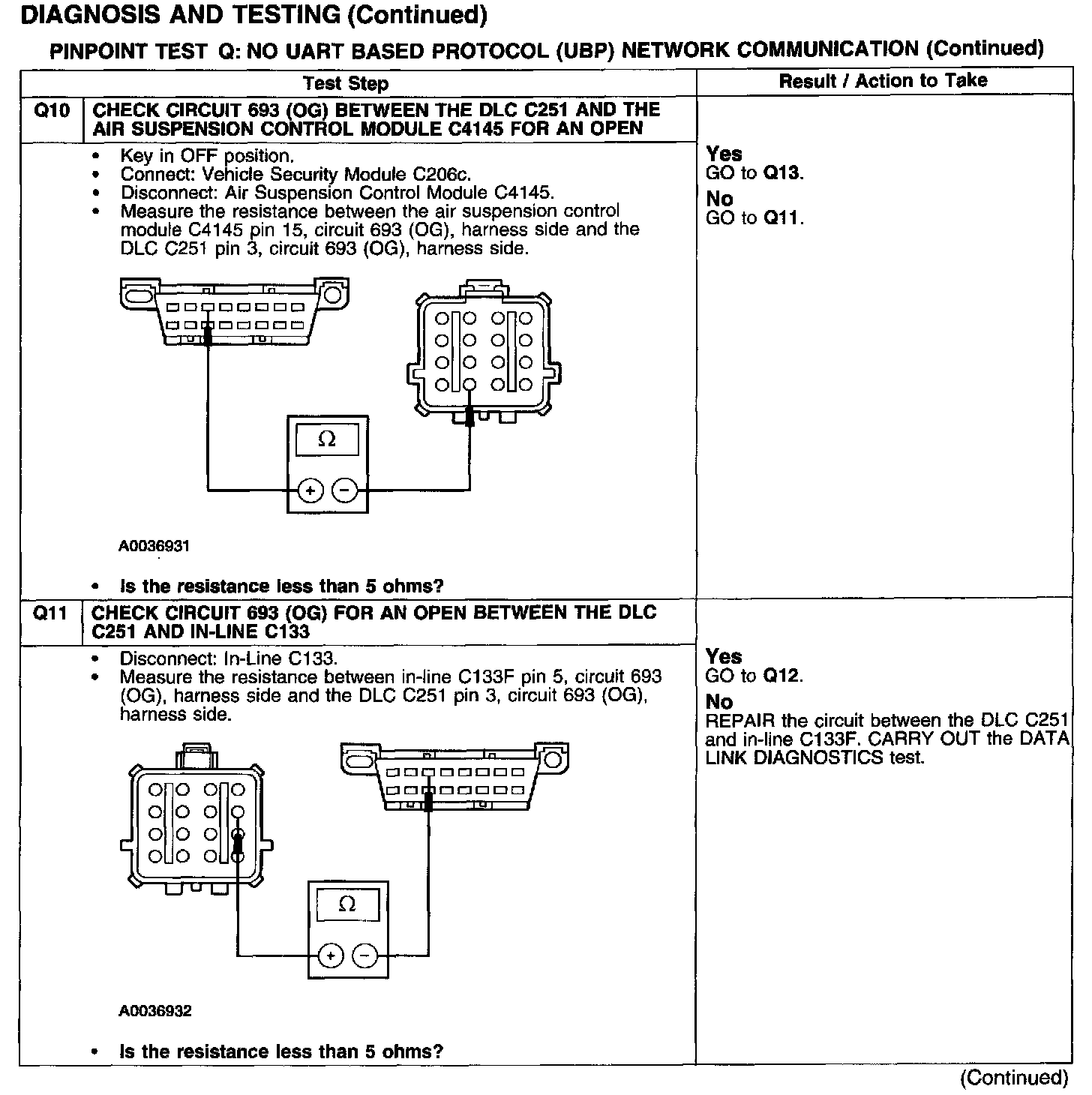

Test Q10-Q11:

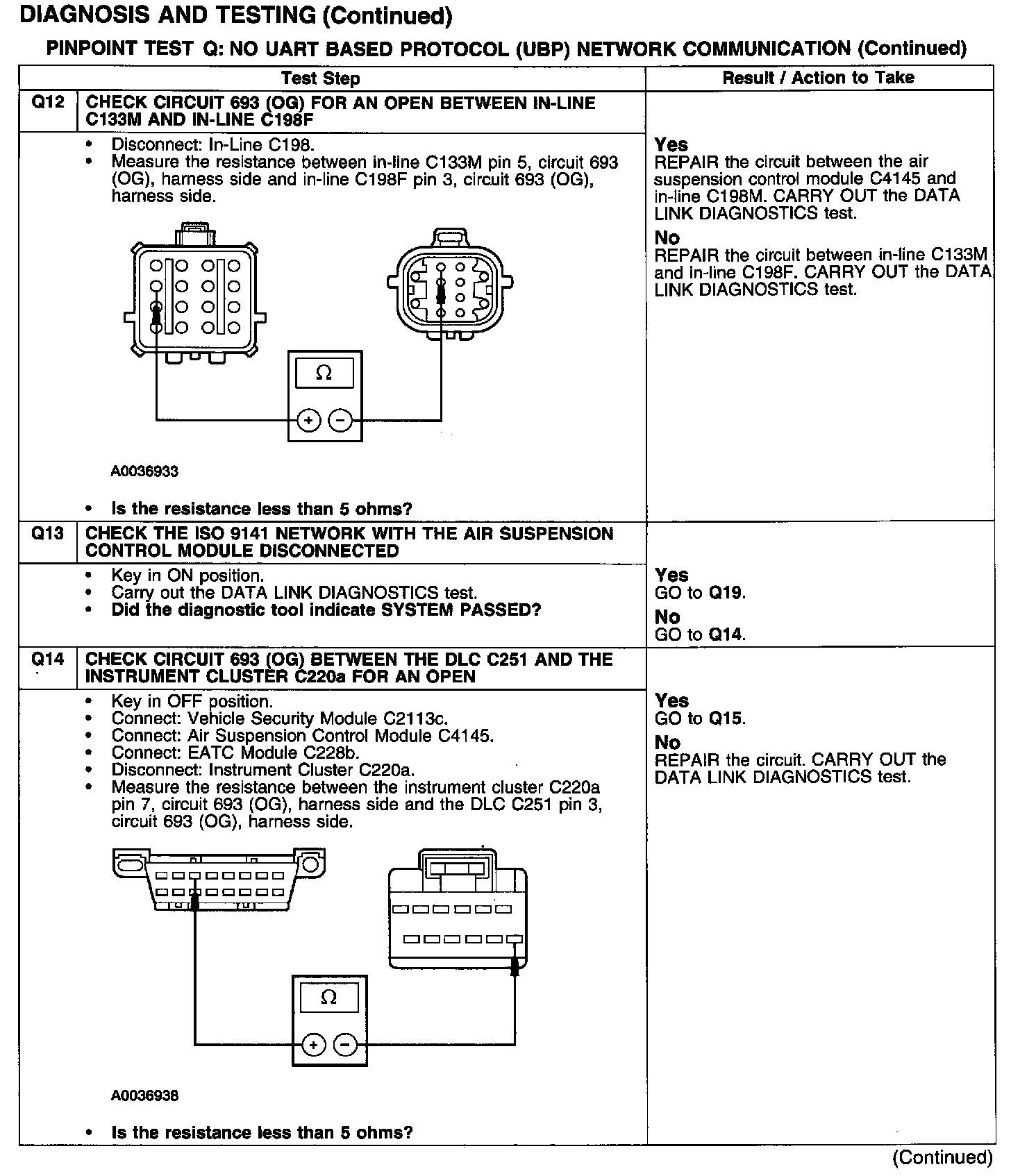

Test Q12-Q14:

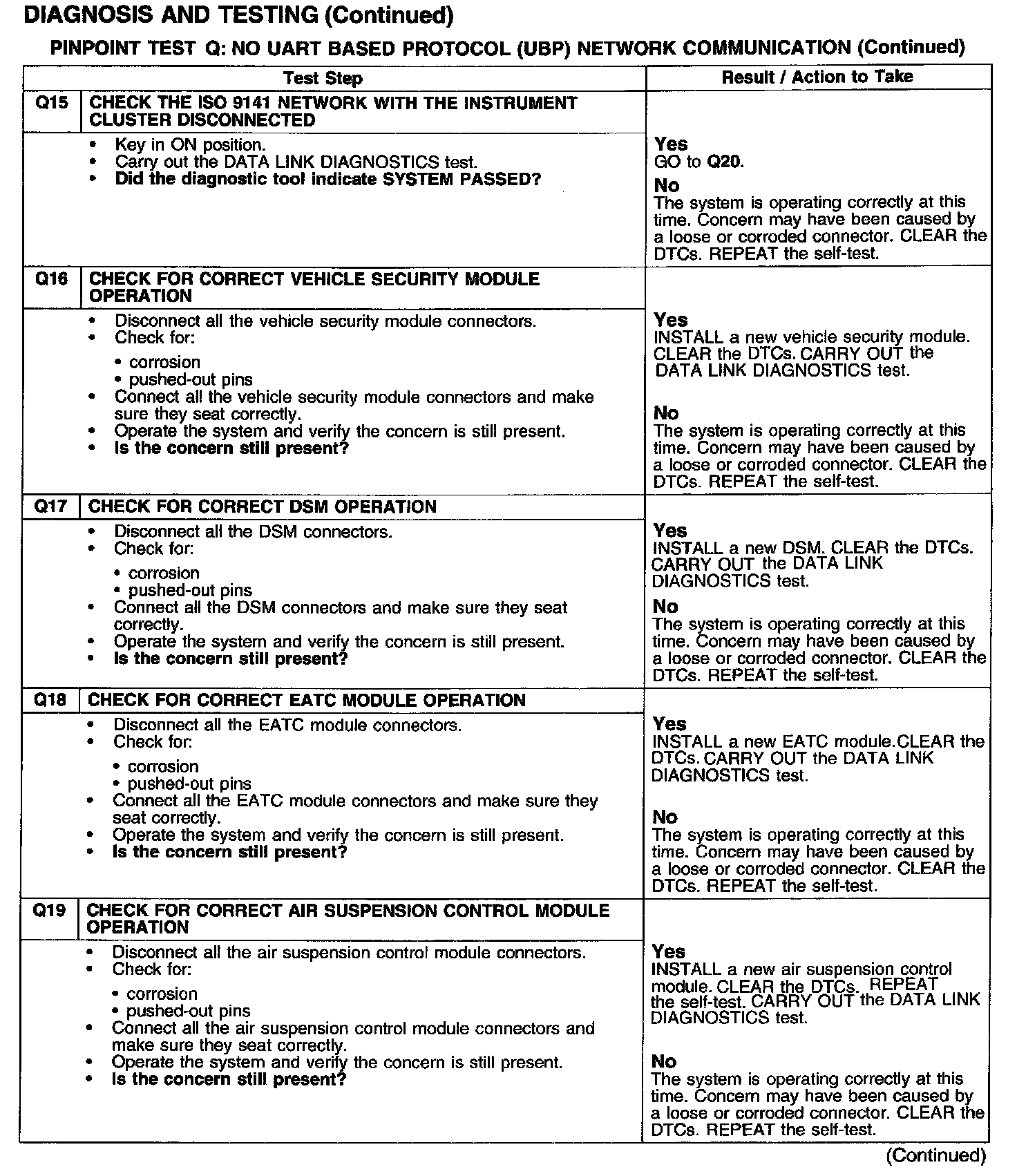

Test Q15-Q19:

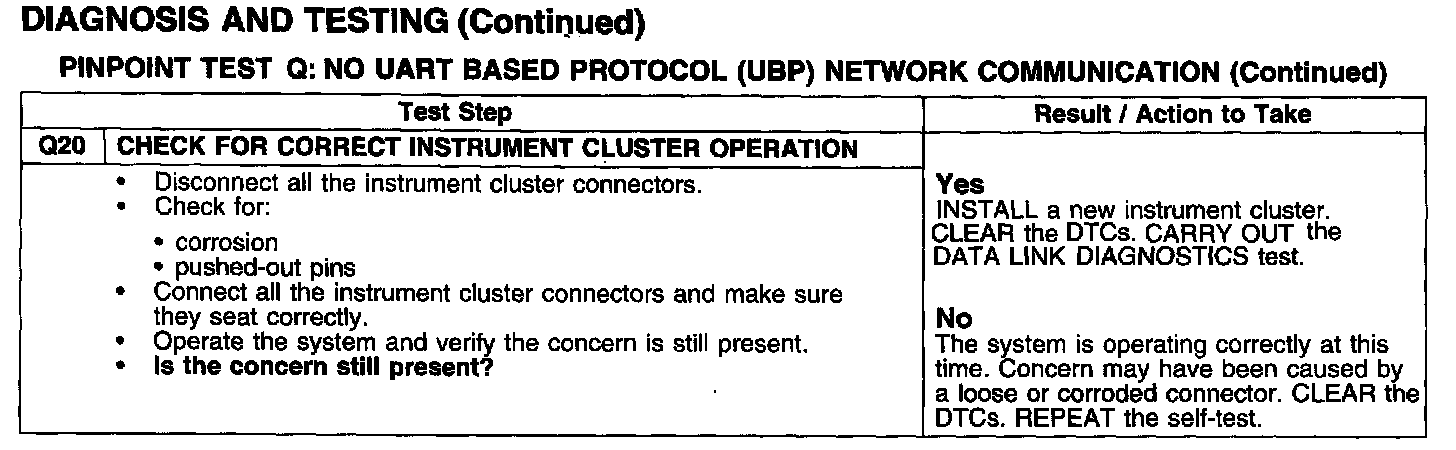

Test Q20:
