Test L

PINPOINT TEST L: THE DRIVER SEAT (DSM) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL (EXCURSION)

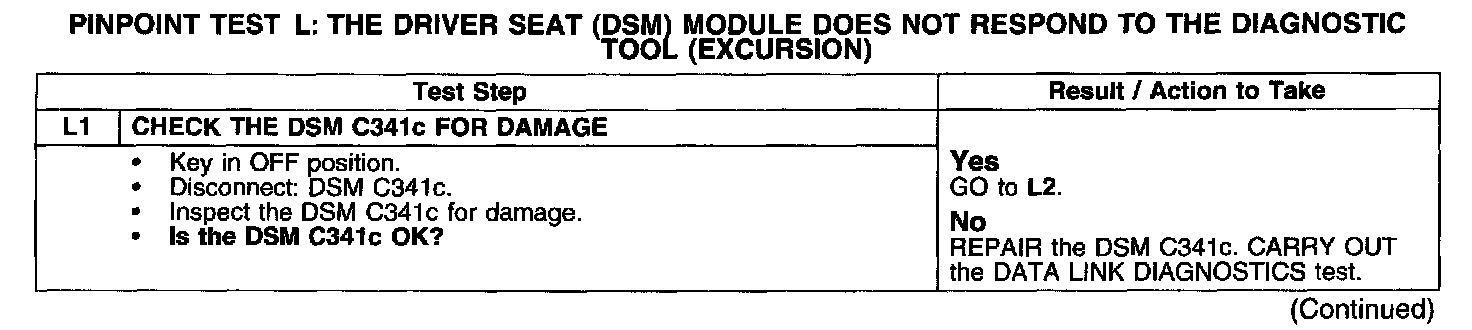

Test L1:

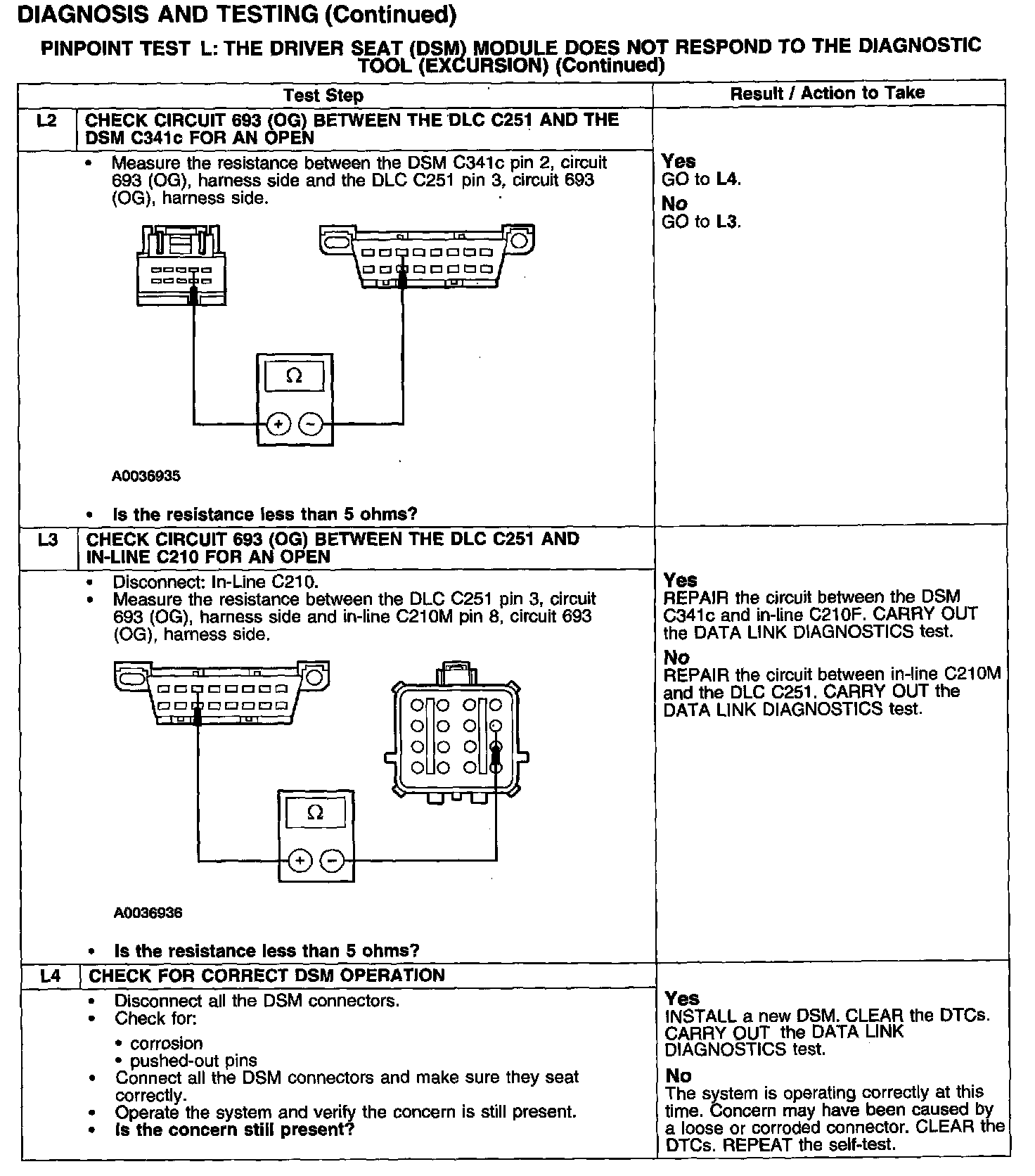

Test L2-L4:
