Test K

PINPOINT TEST K: THE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL (EXCURSION)

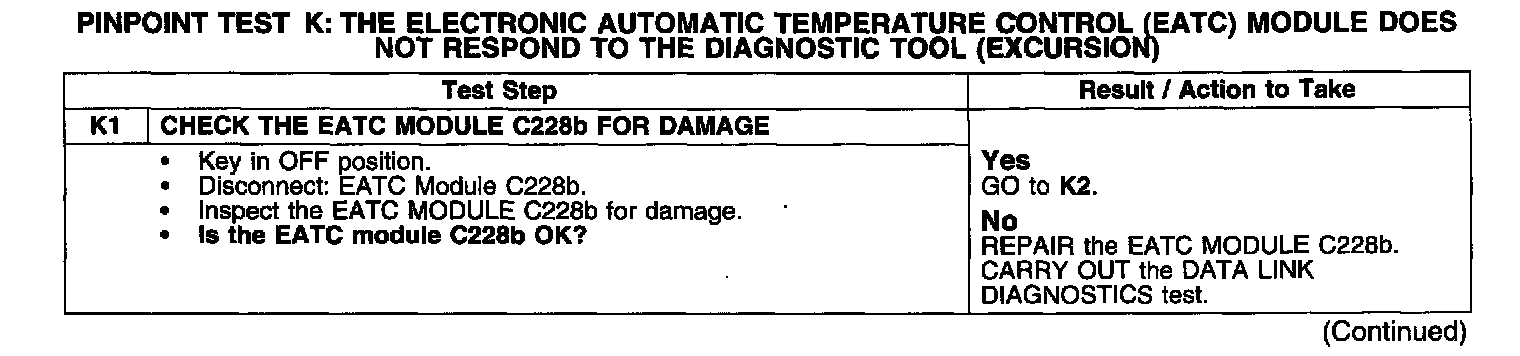

Test K1:

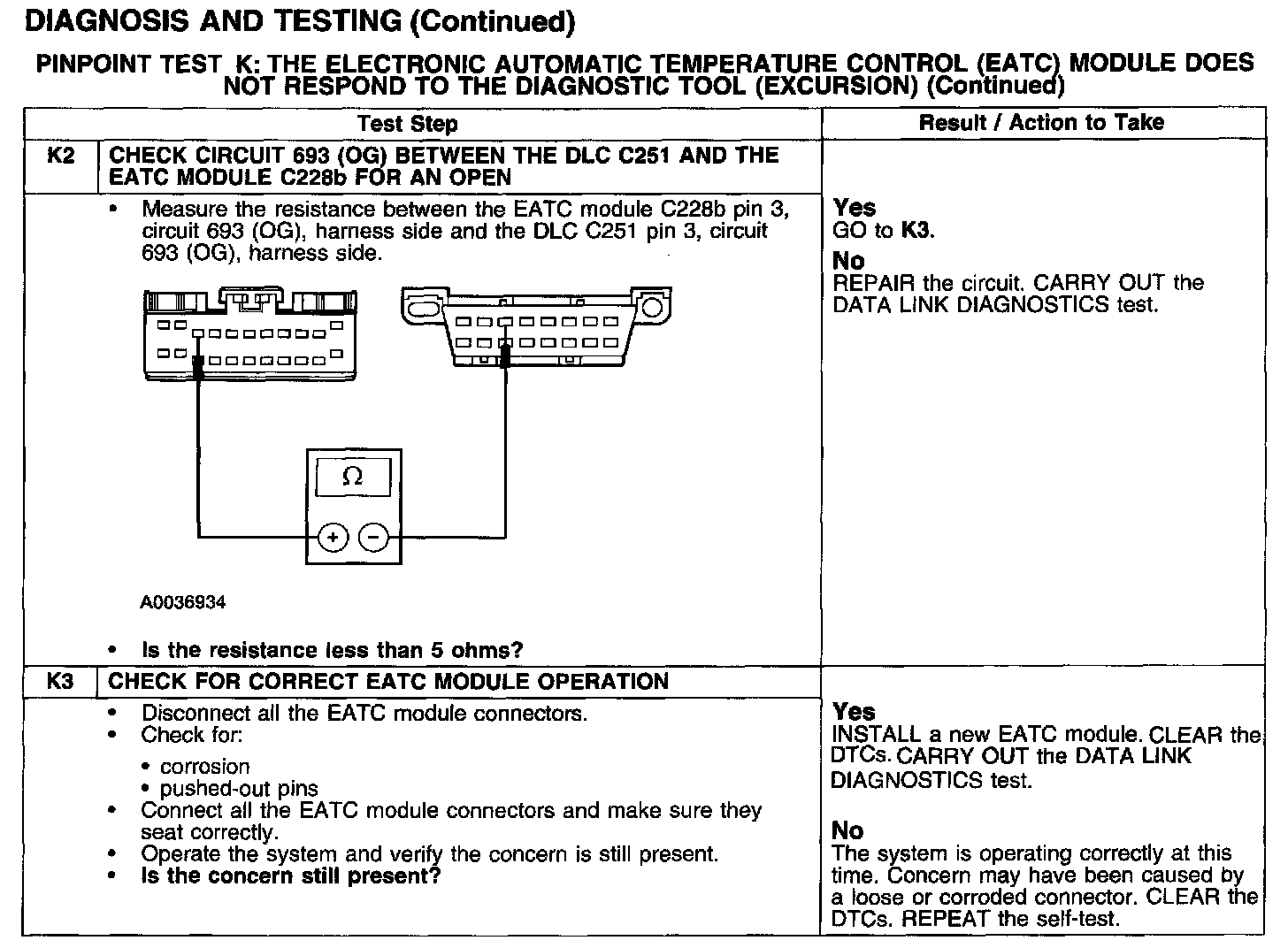

Test K2-K3:
