Test J

PINPOINT TEST J: THE AIR SUSPENSION CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL (F350/450/550) (IF EQUIPPED)

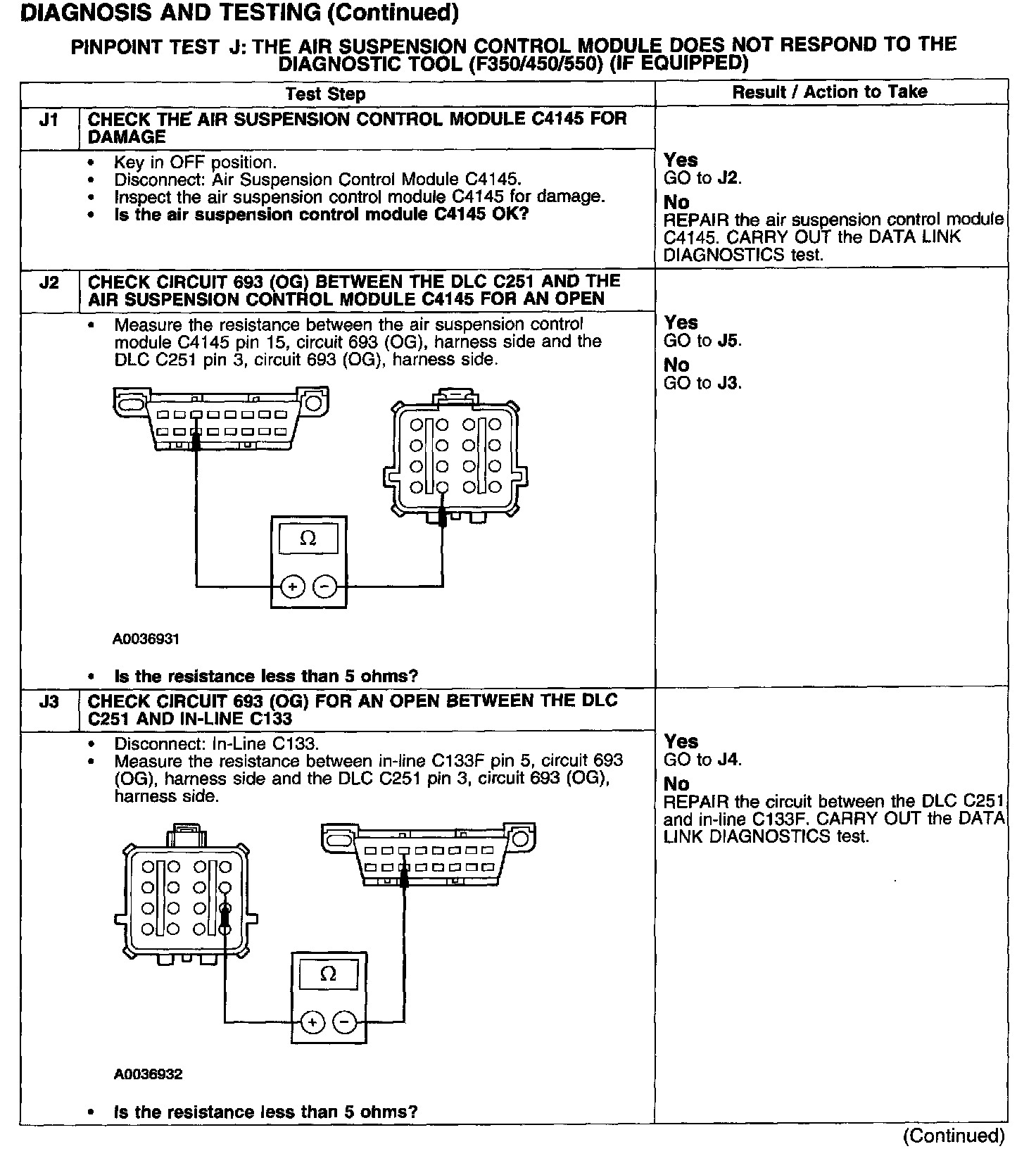

Test J1-J3:

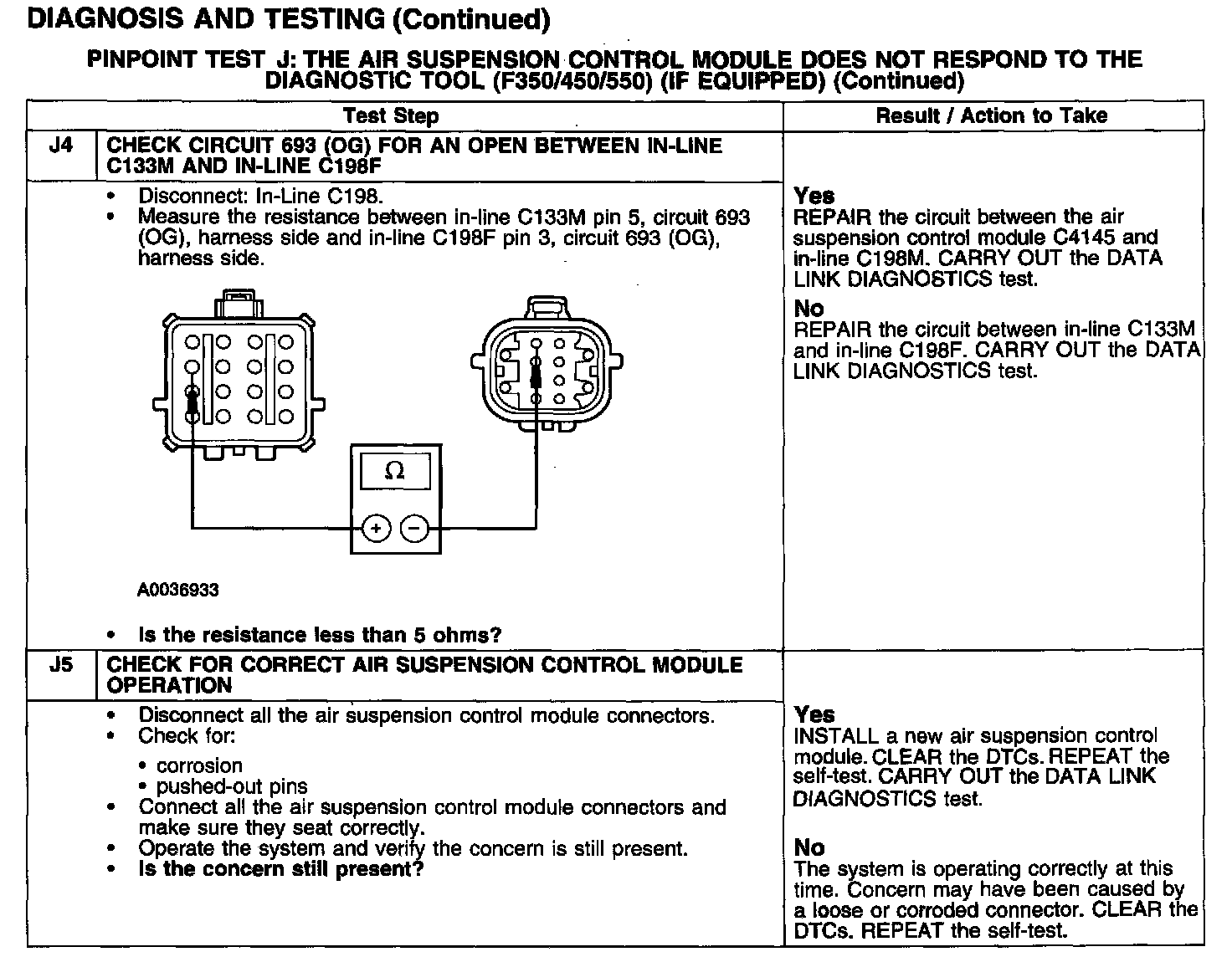

Test J4-J5:
