Test F

PINPOINT TEST F: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

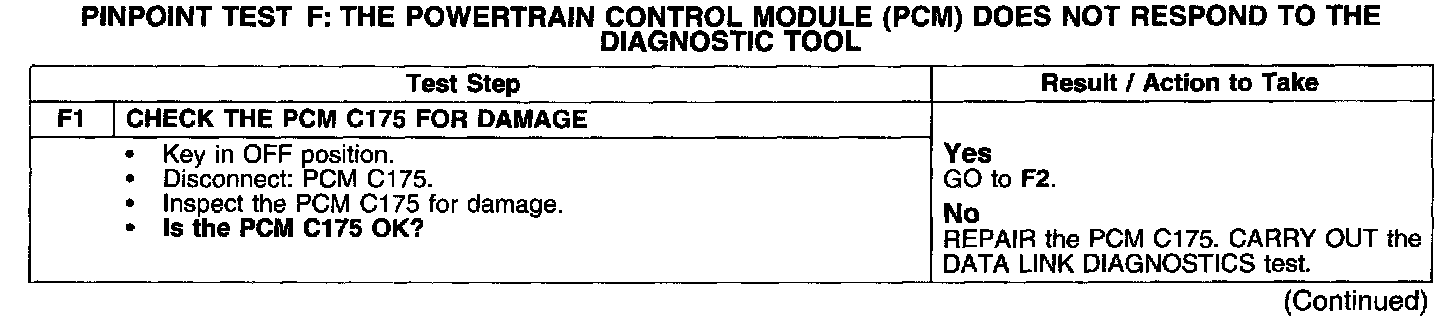

Test F1:

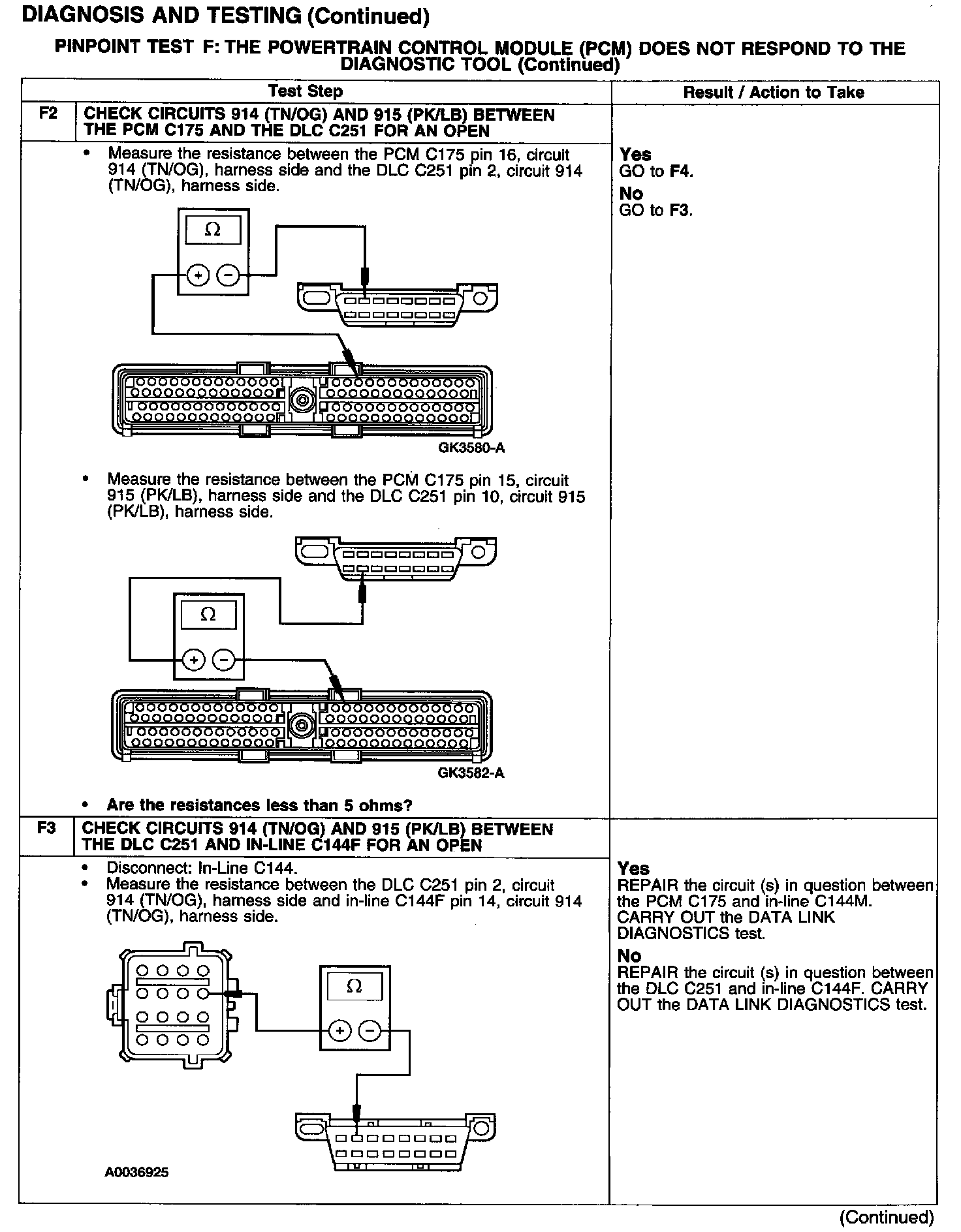

Test F2-F3:

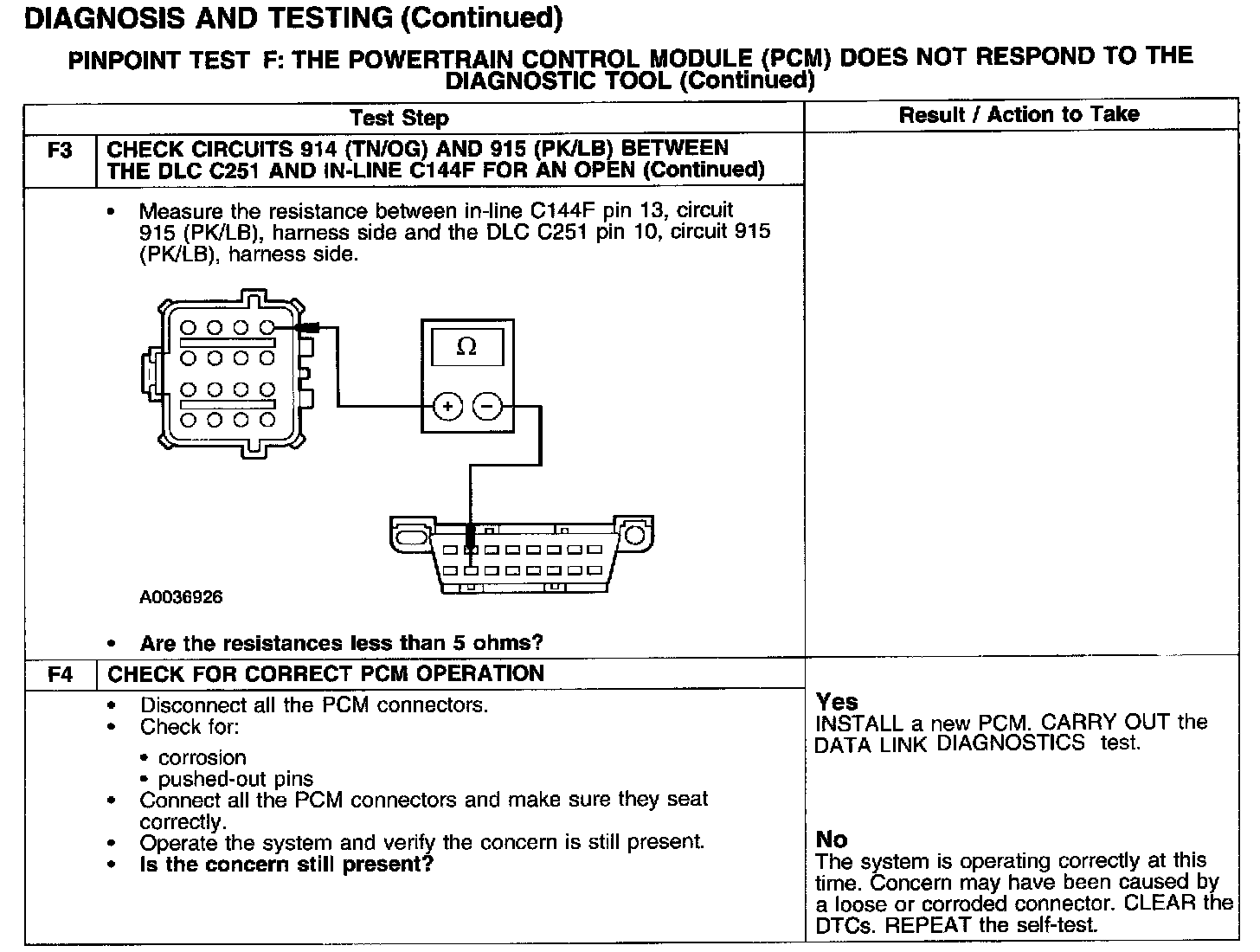

Test F3-F4:
