Test A

PINPOINT TEST A: THE 4-WHEEL ANTI-LOCK BRAKE CONTROL (4WABS) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

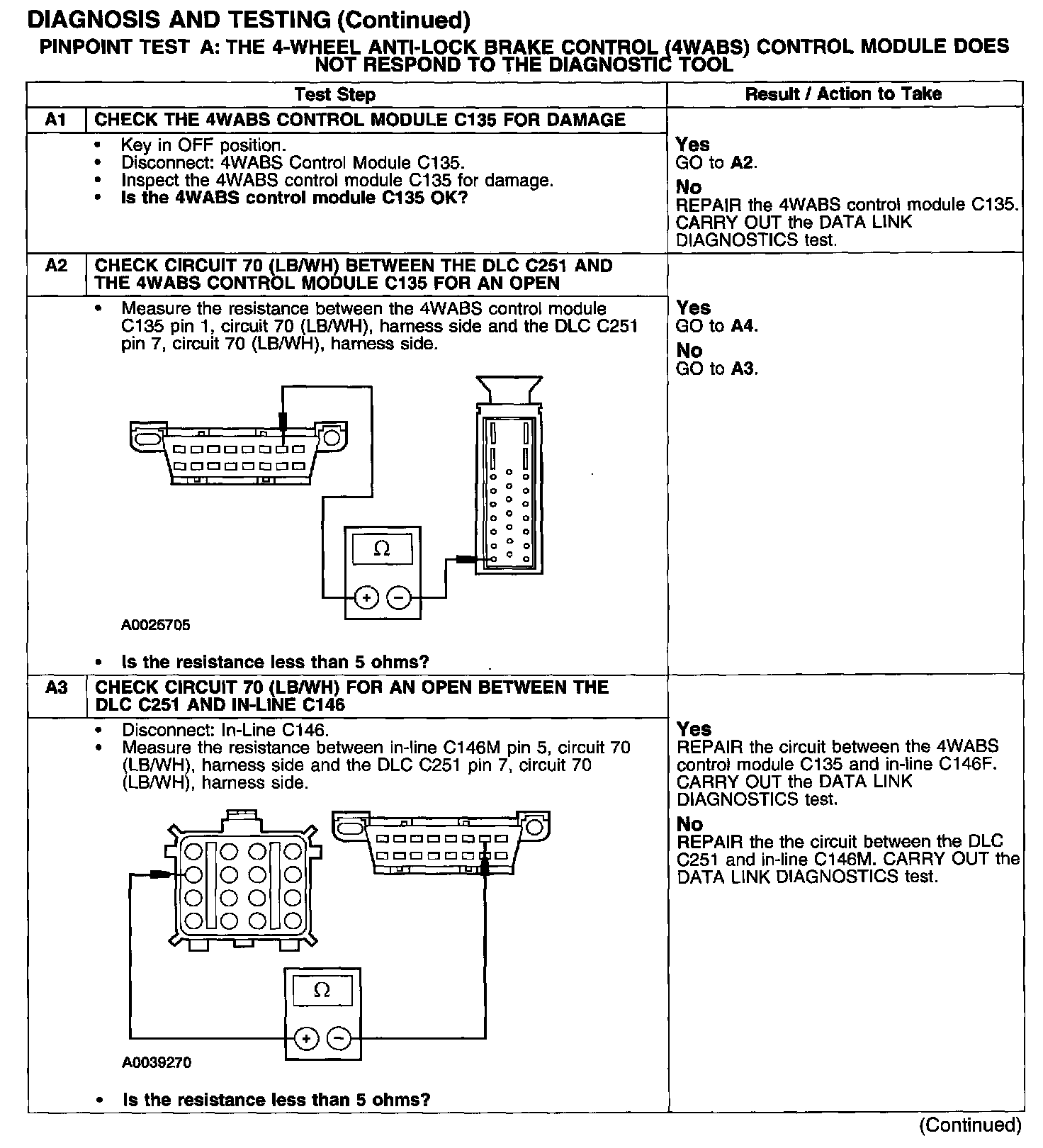

Test A1-A3:

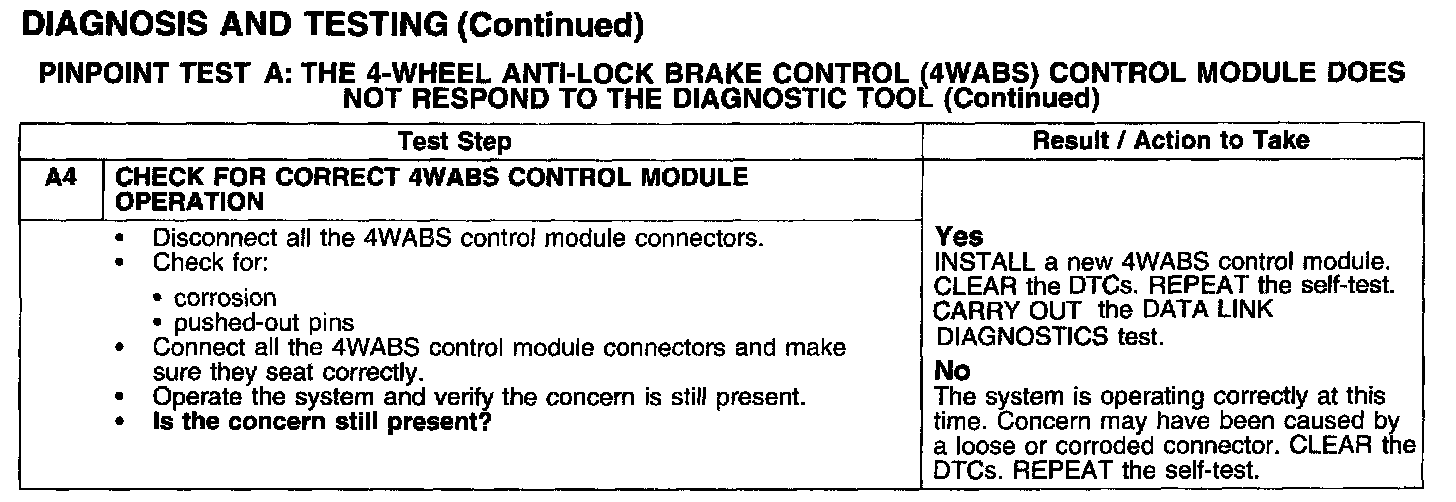

Test A4:
