AX4S

SPECIFICATIONS

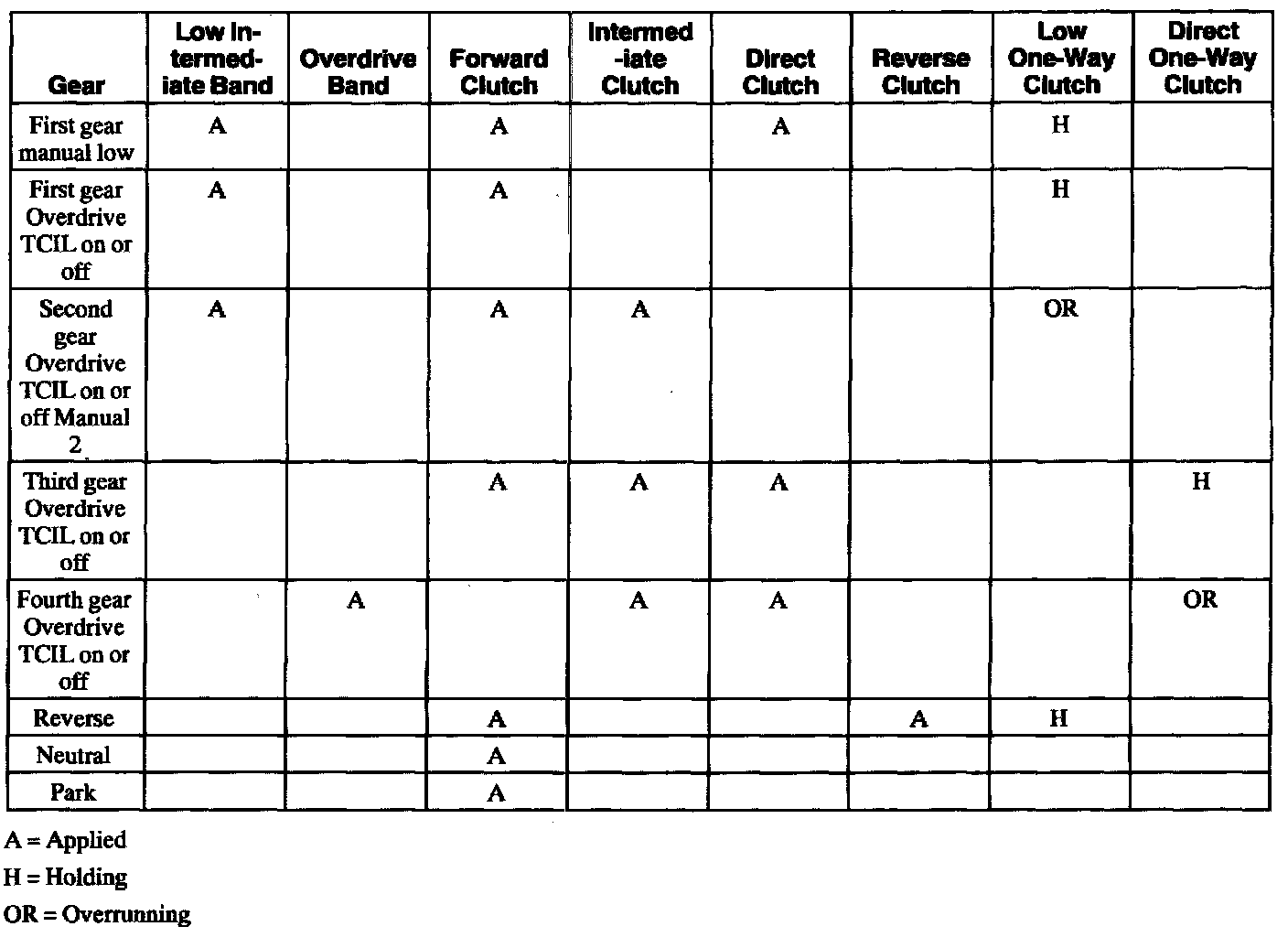

Band and clutch application chart

A = Applied
H = Holding
OR = Overrunning





General Specifications

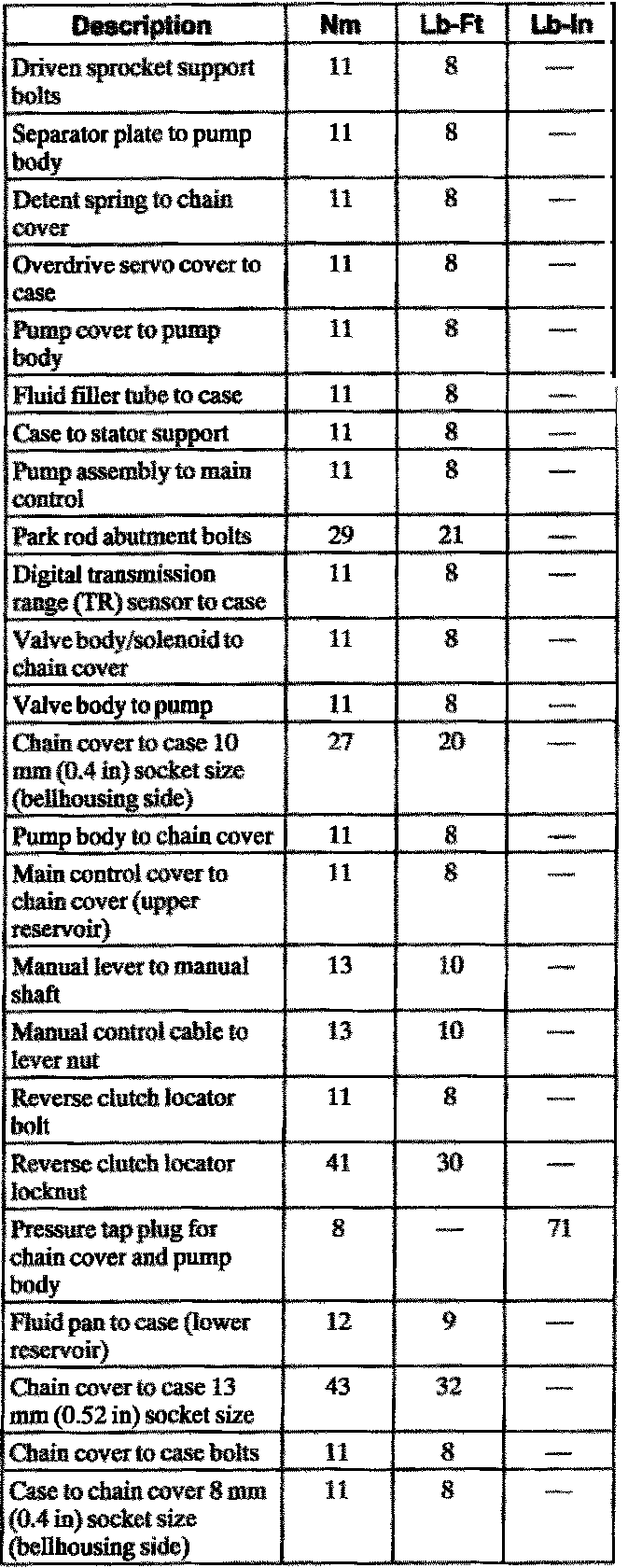

Torque Specifications






Flex Plate Torque/Sequence





Transmission Pan Torque/Sequence


Transaxle/Transmission Cooling

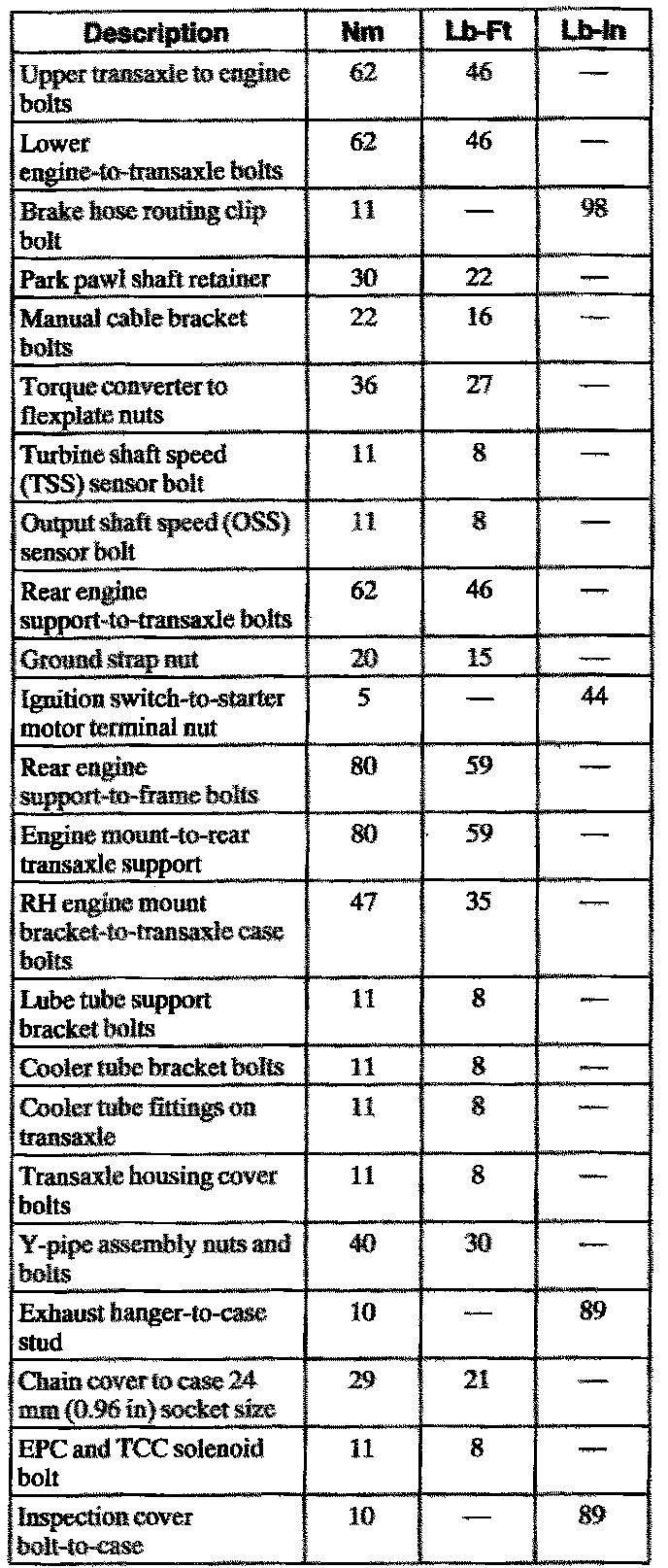

Torque Specifications
