Engine Control Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

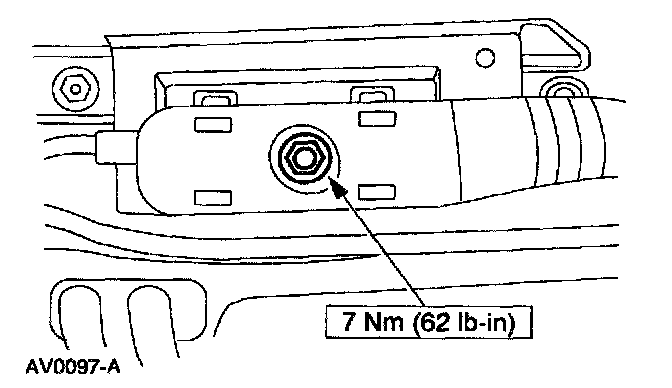

2. Remove the Powertrain Control Module (PCM) electrical connector.

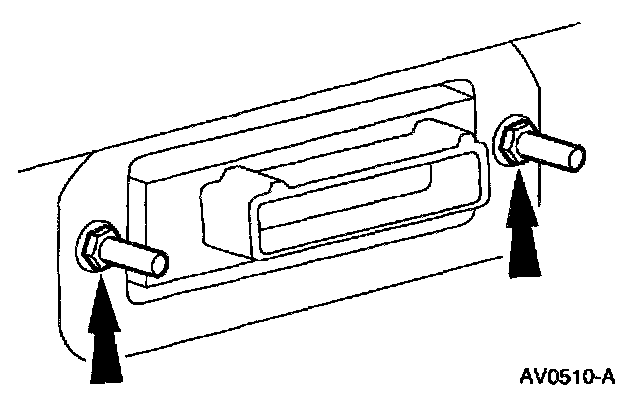

3. Remove the nuts and the PCM cover.
4. Remove the PCM.

INSTALLATION
1. To install, reverse the removal procedure.
