Home >> Ford >> 2002 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

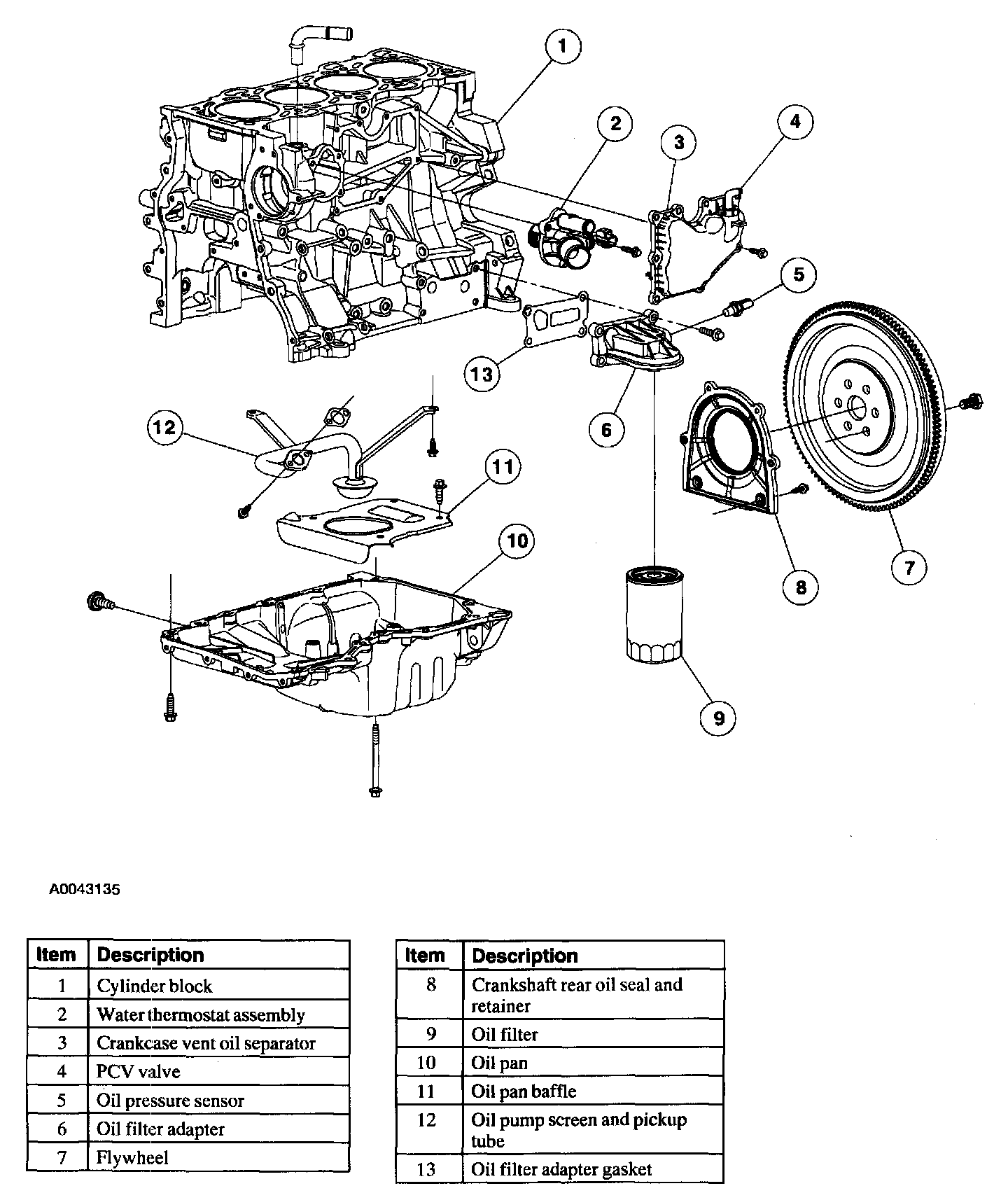

Lower Engine Block

Part 1 Of 2:




Part 2 Of 2:

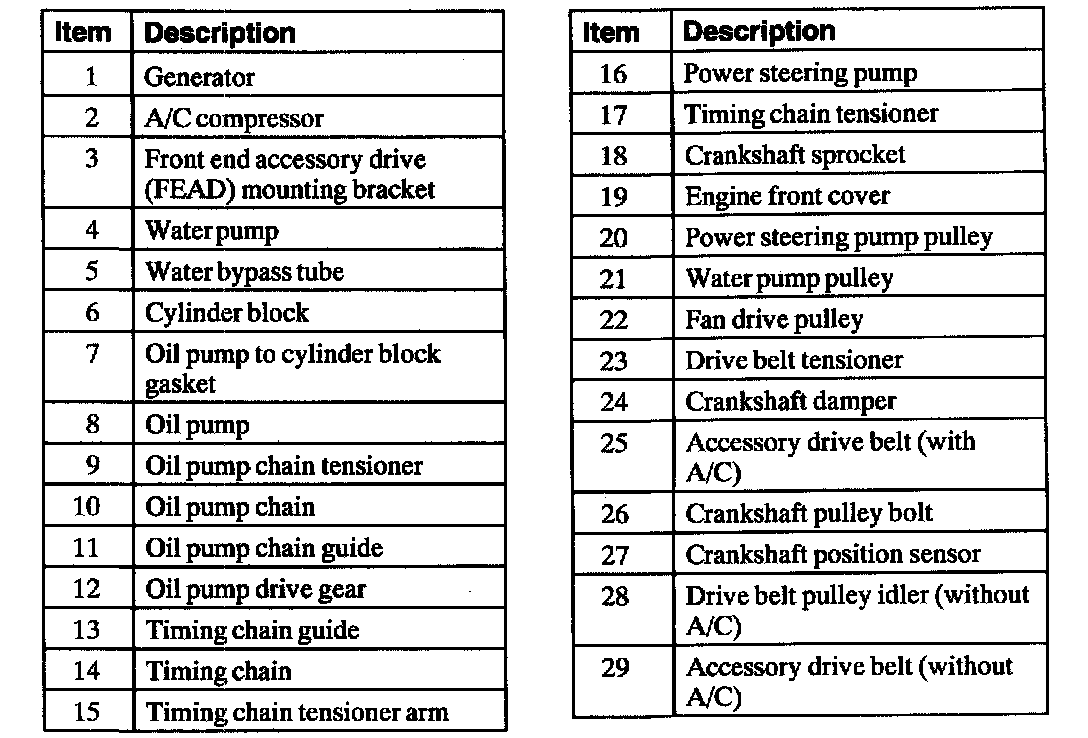

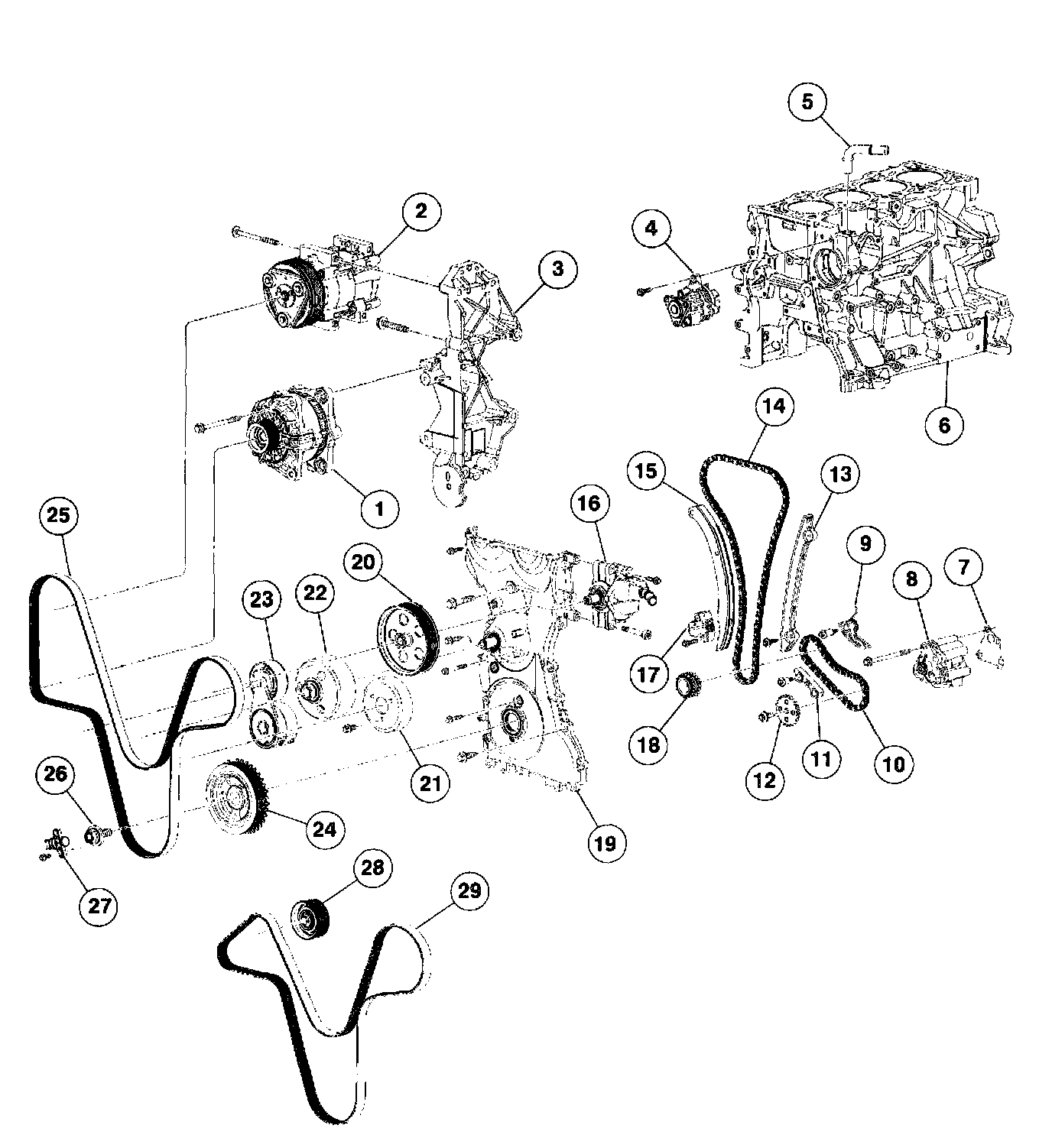

Front Engine Block

Part 1 Of 2:




Part 2 Of 2:

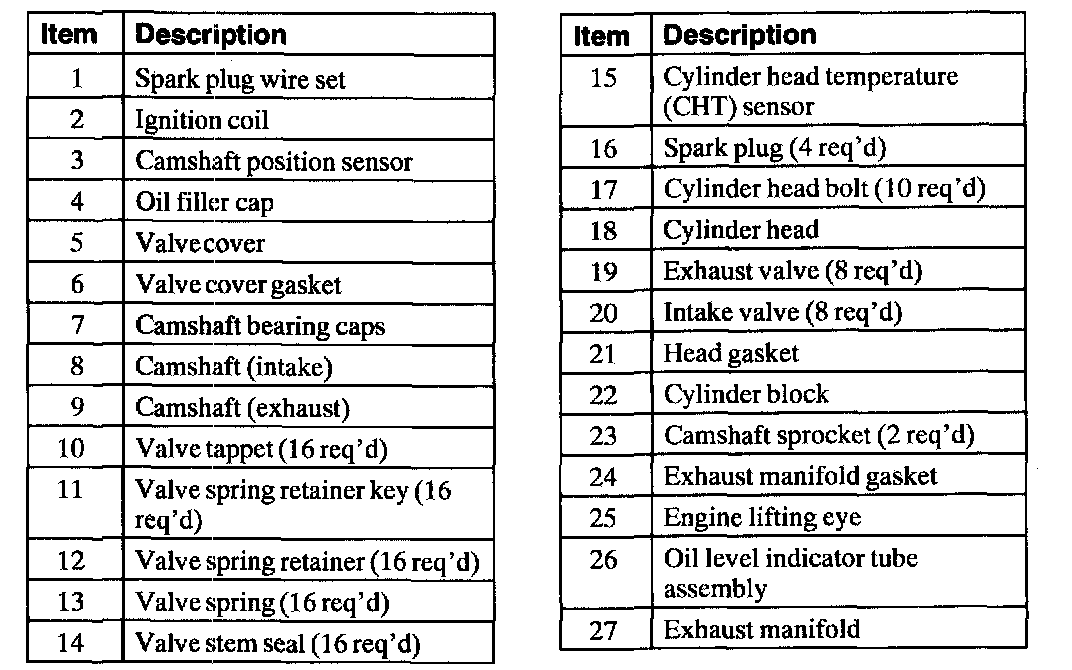

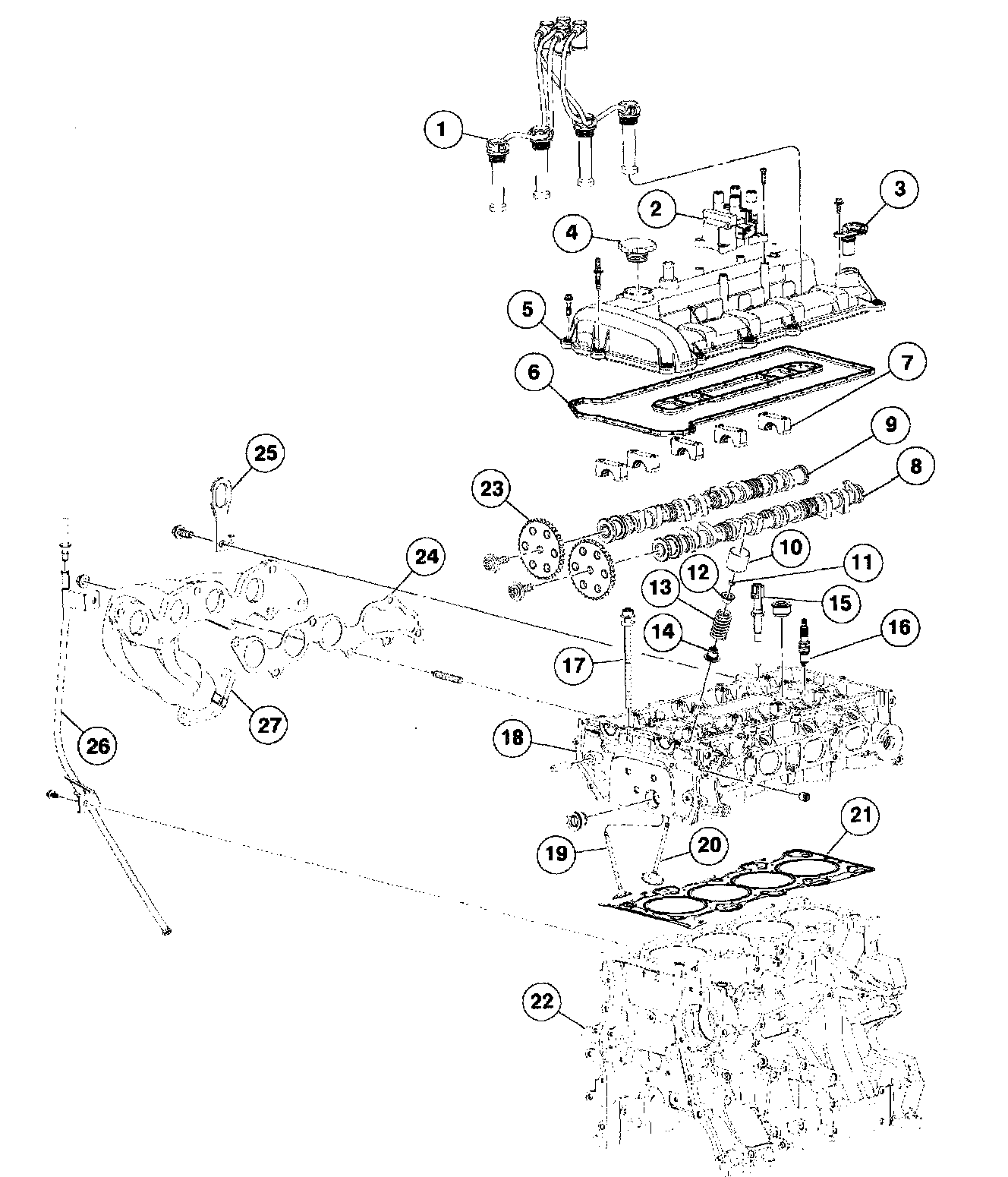

Cylinder Head

Part 1 Of 2:




Part 2 Of 2:

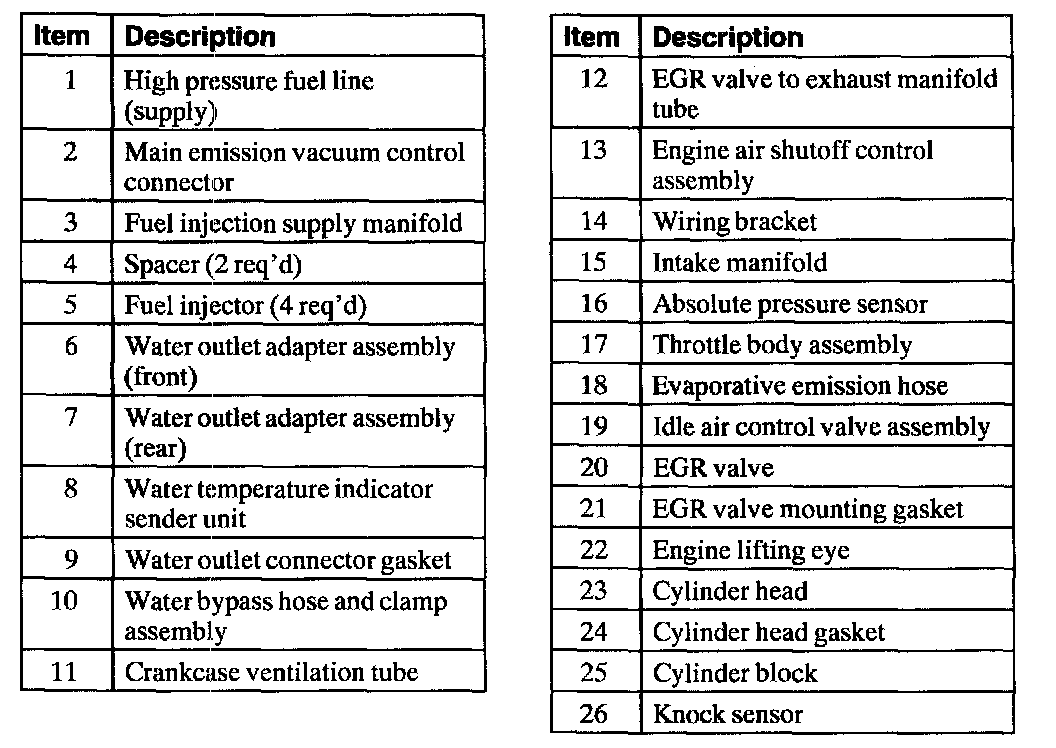

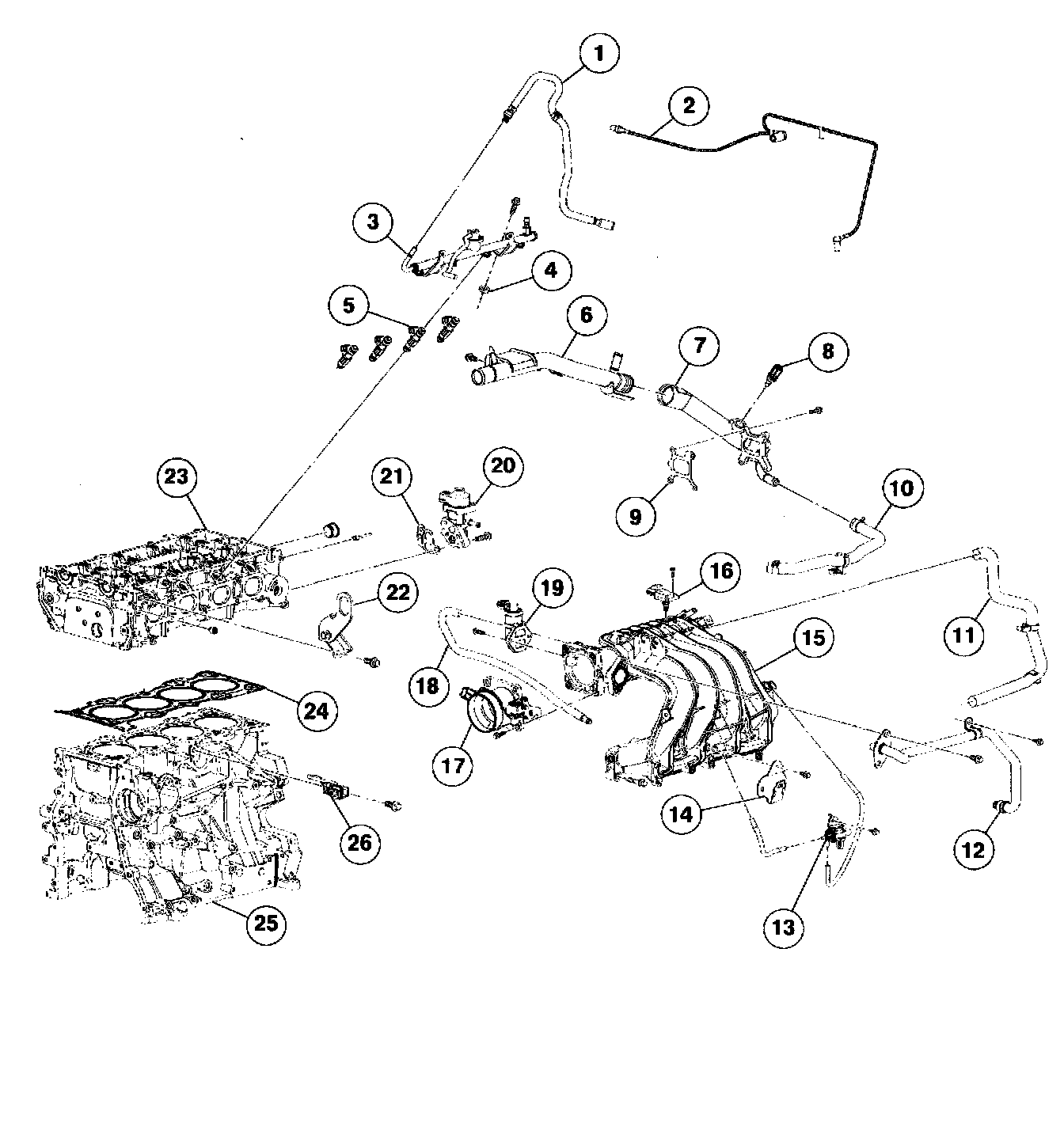

Intake Manifold
