Home >> Ford >> 2002 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

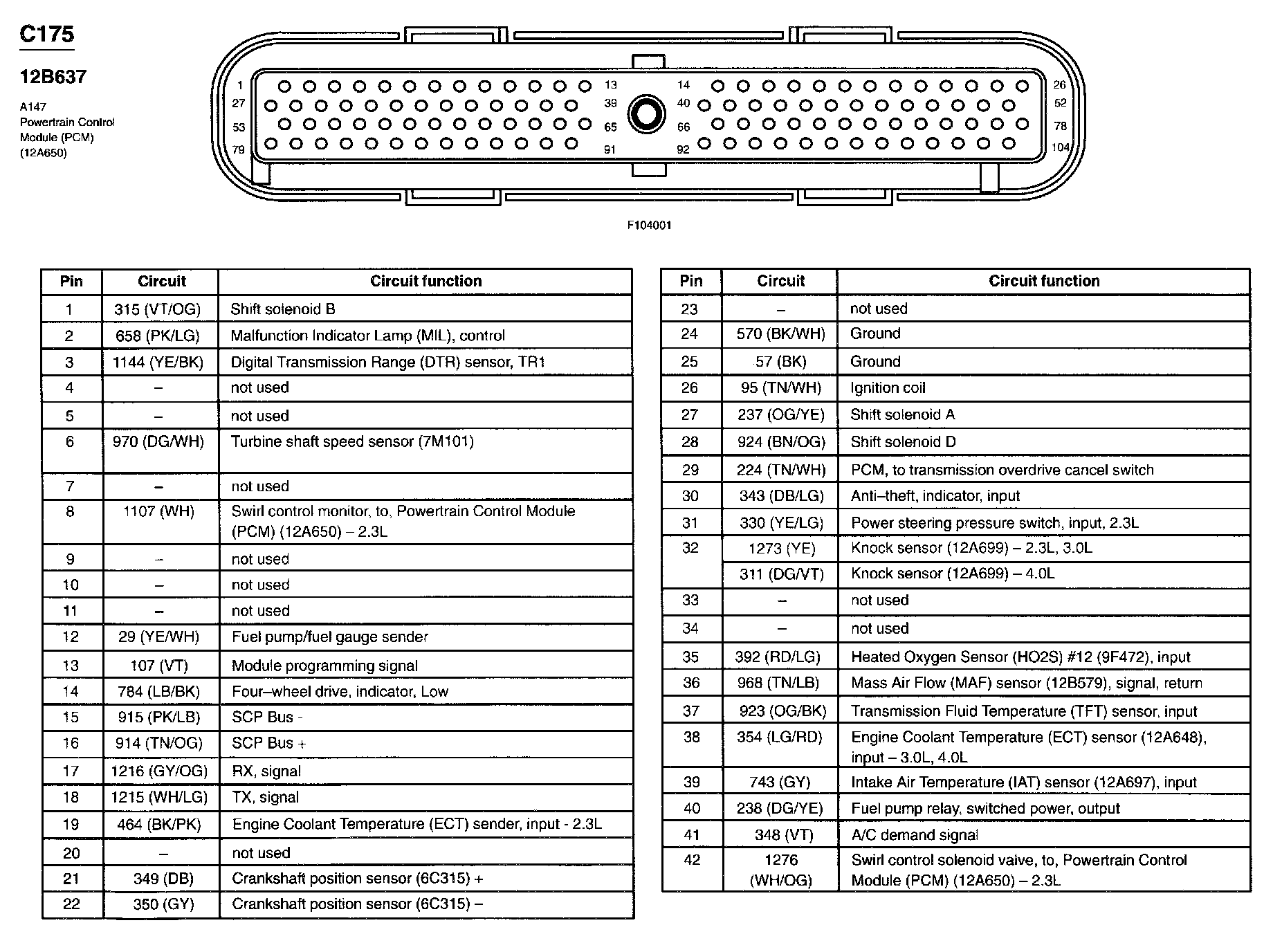

Part 1:

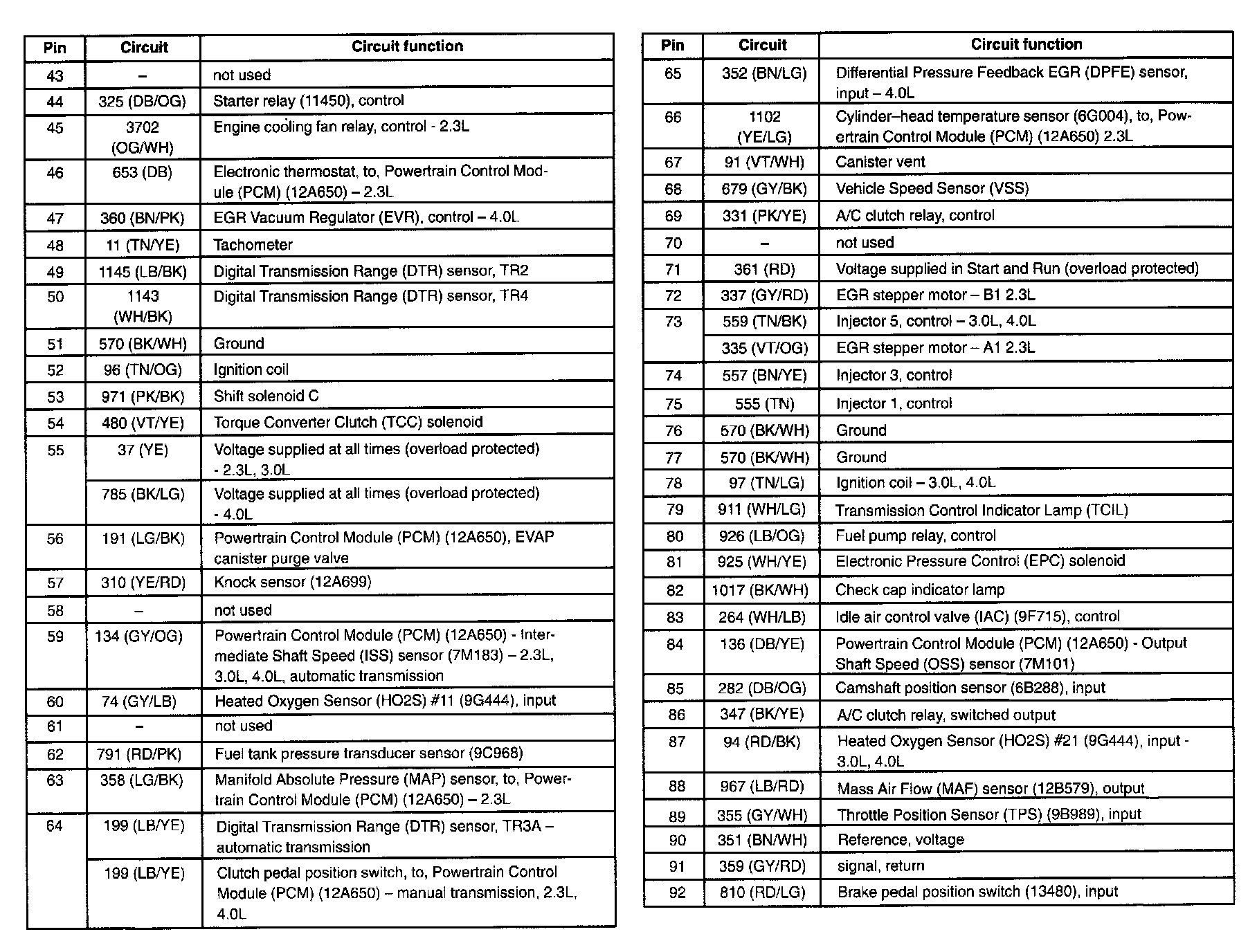

Part 2:

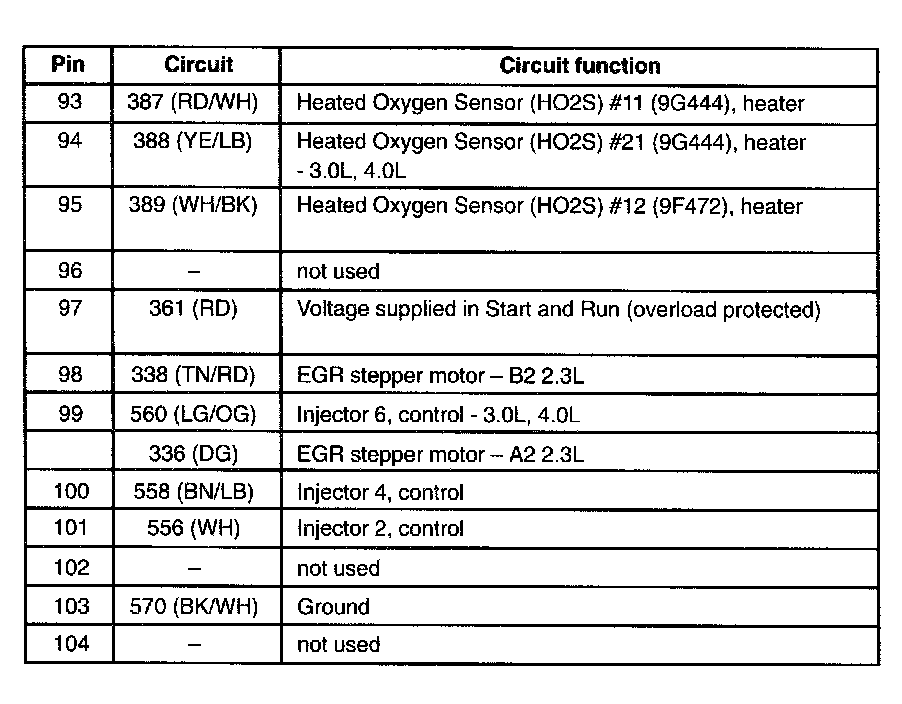

Part 3:
