Home >> Ford >> 2002 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

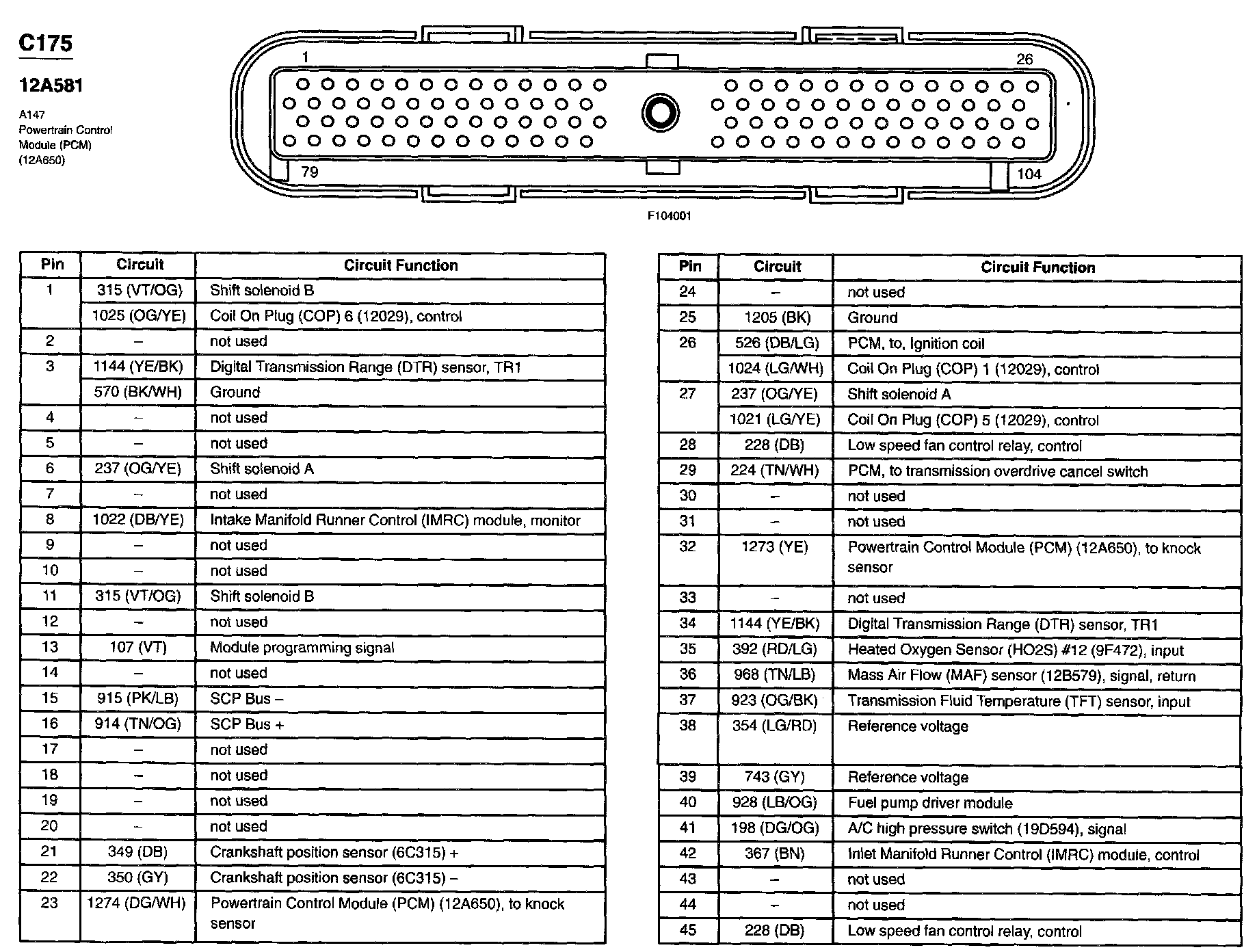

Part 1:

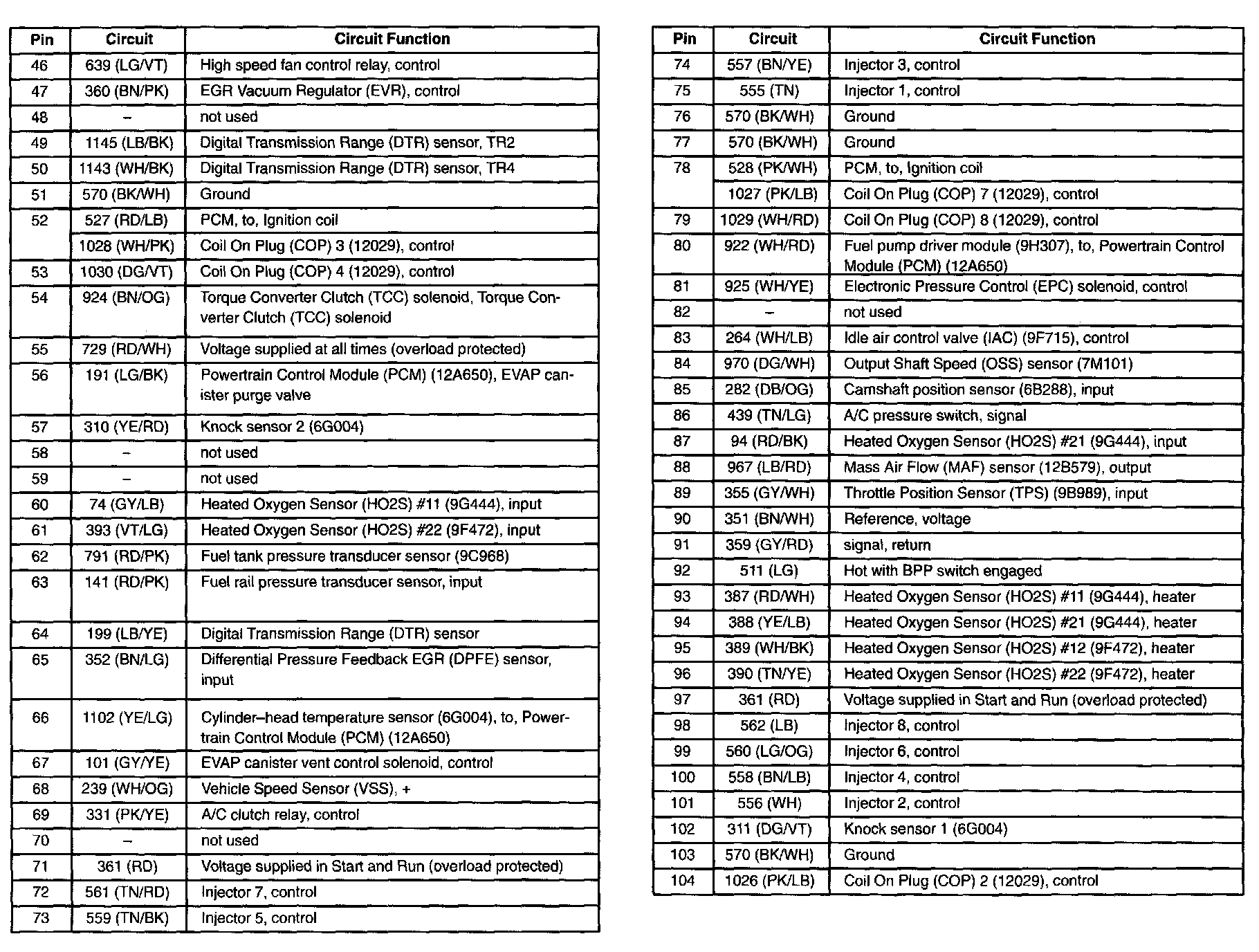

Part 2:
