Engine Control Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

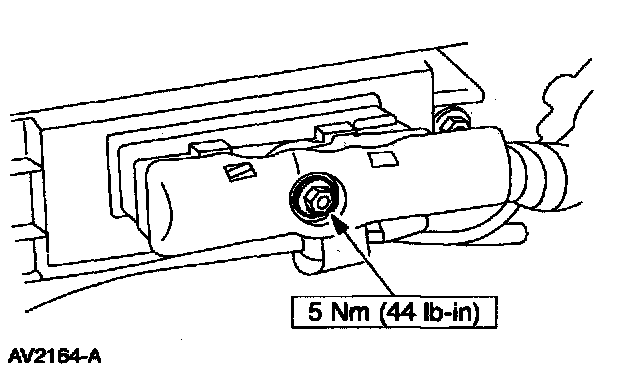

2. Disconnect the Powertrain Control Module (PCM) electrical connector.

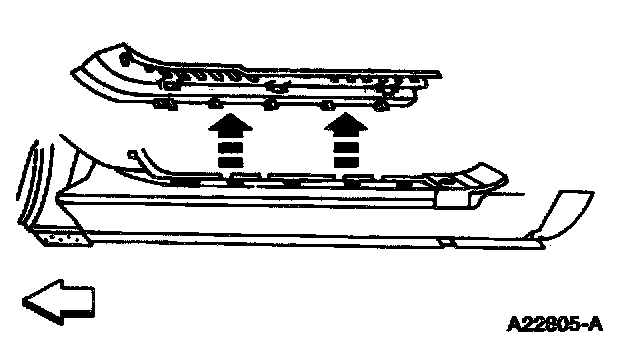

3. Remove the right front door scuff plate.

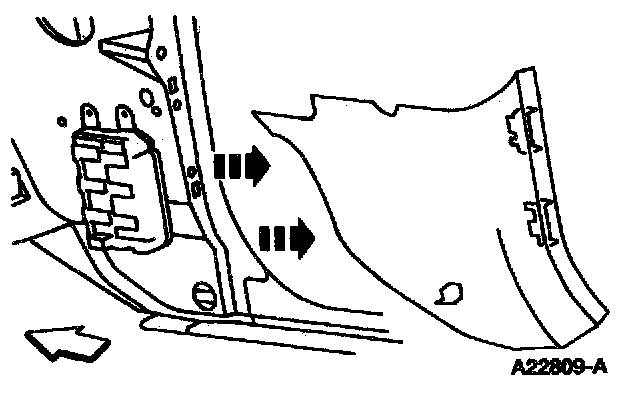

4. Remove the right cowl side trim panel.

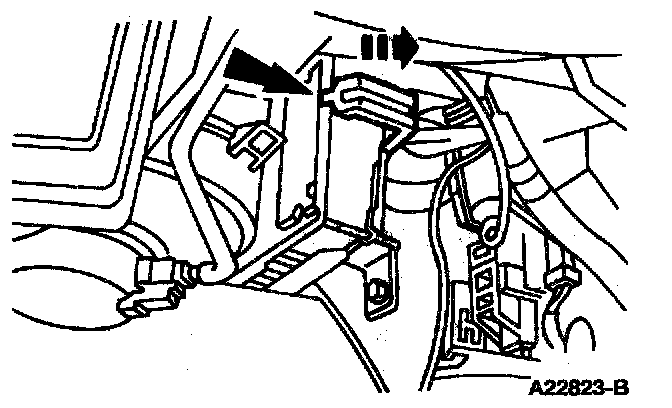

5. Remove the clip and remove the PCM.

INSTALLATION
1. To install, reverse the removal procedure.
