Home >> Ford >> 2002 >> F 150 2WD Pickup V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

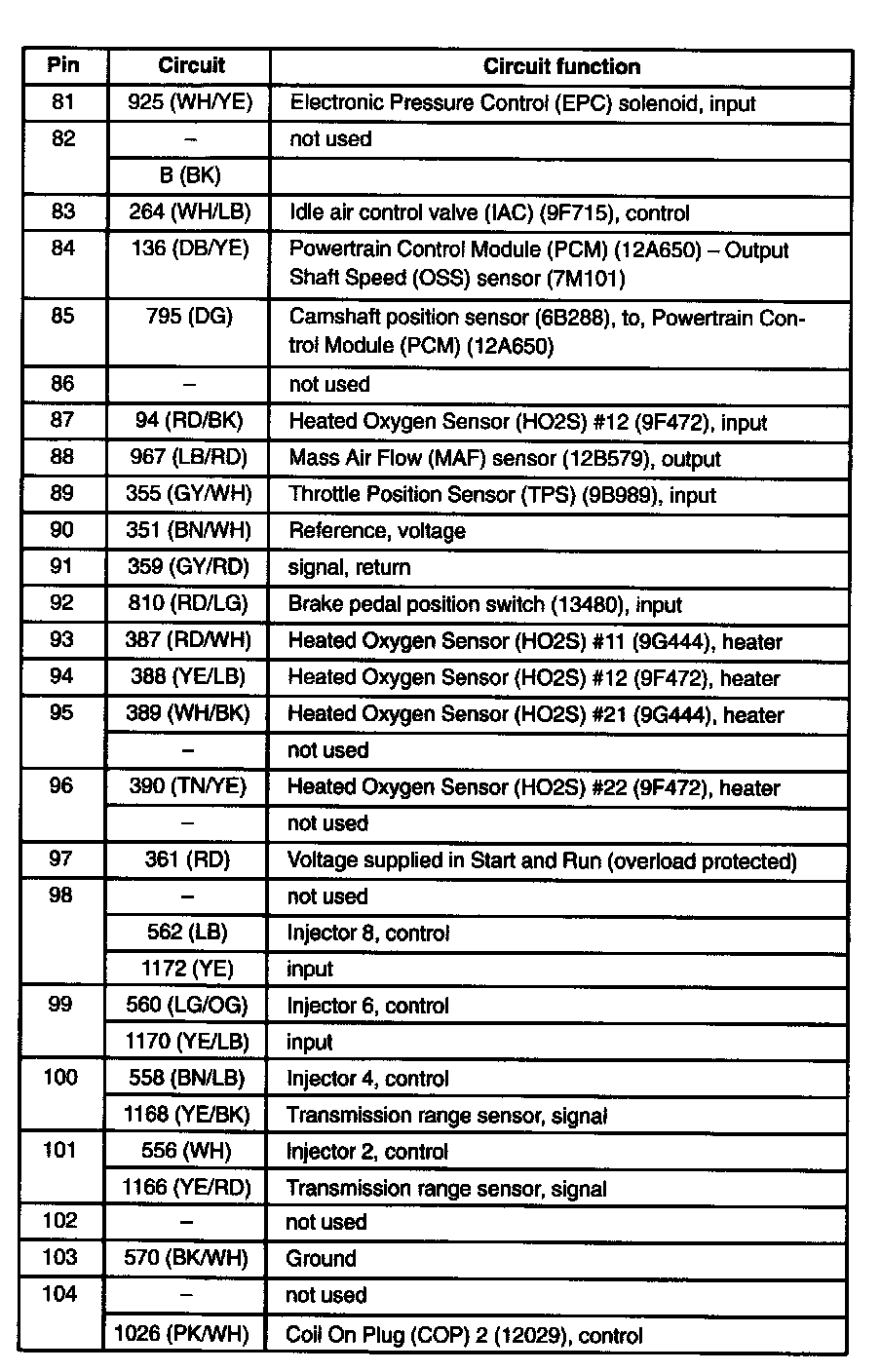

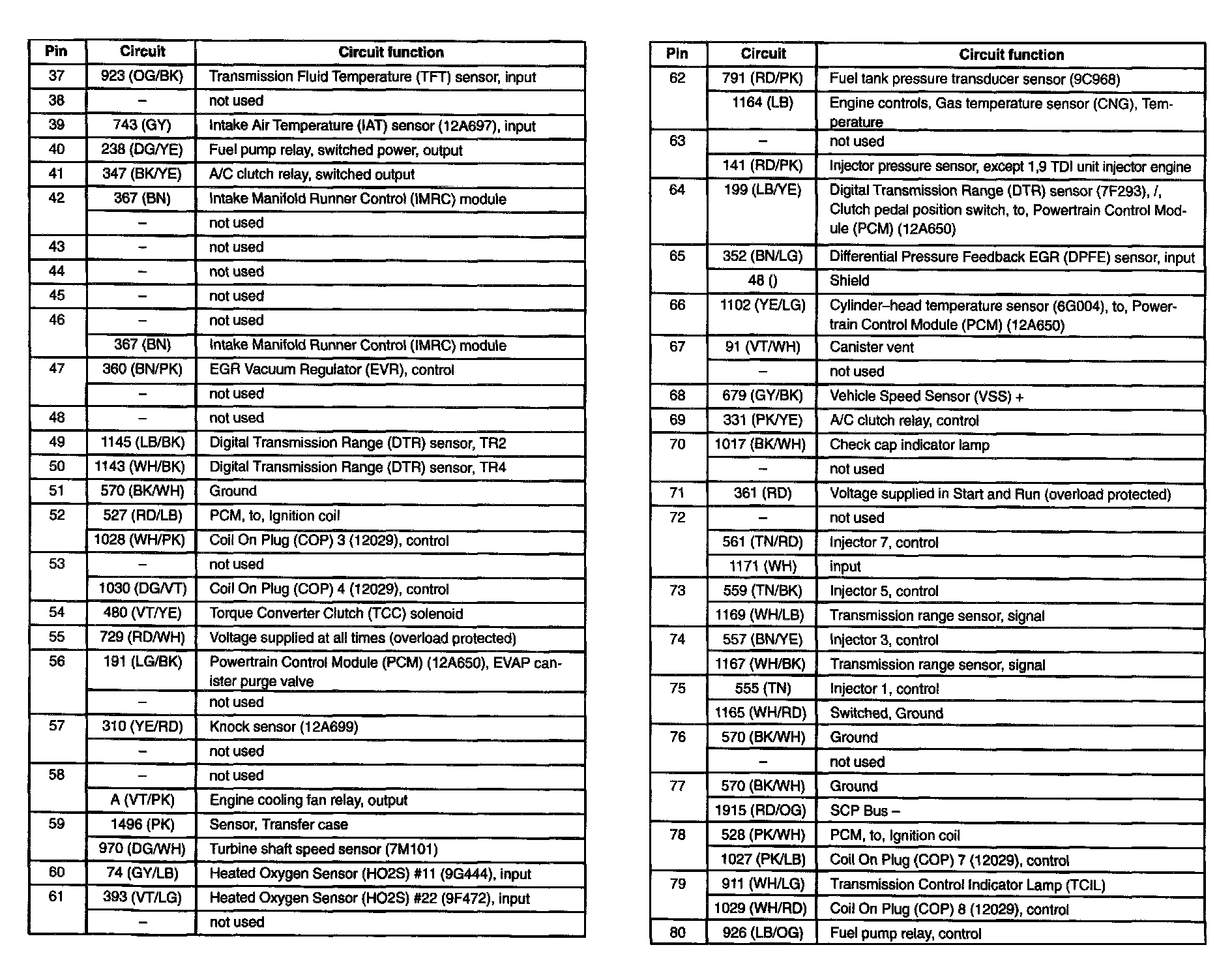

Engine Control Module

Part 1:






Part 2:






Part 3:
