Generic Electronic Module (GEM)
Generic Electronic Module (GEM)
View 151-46 (Behind Instrument Cluster, RH Side):

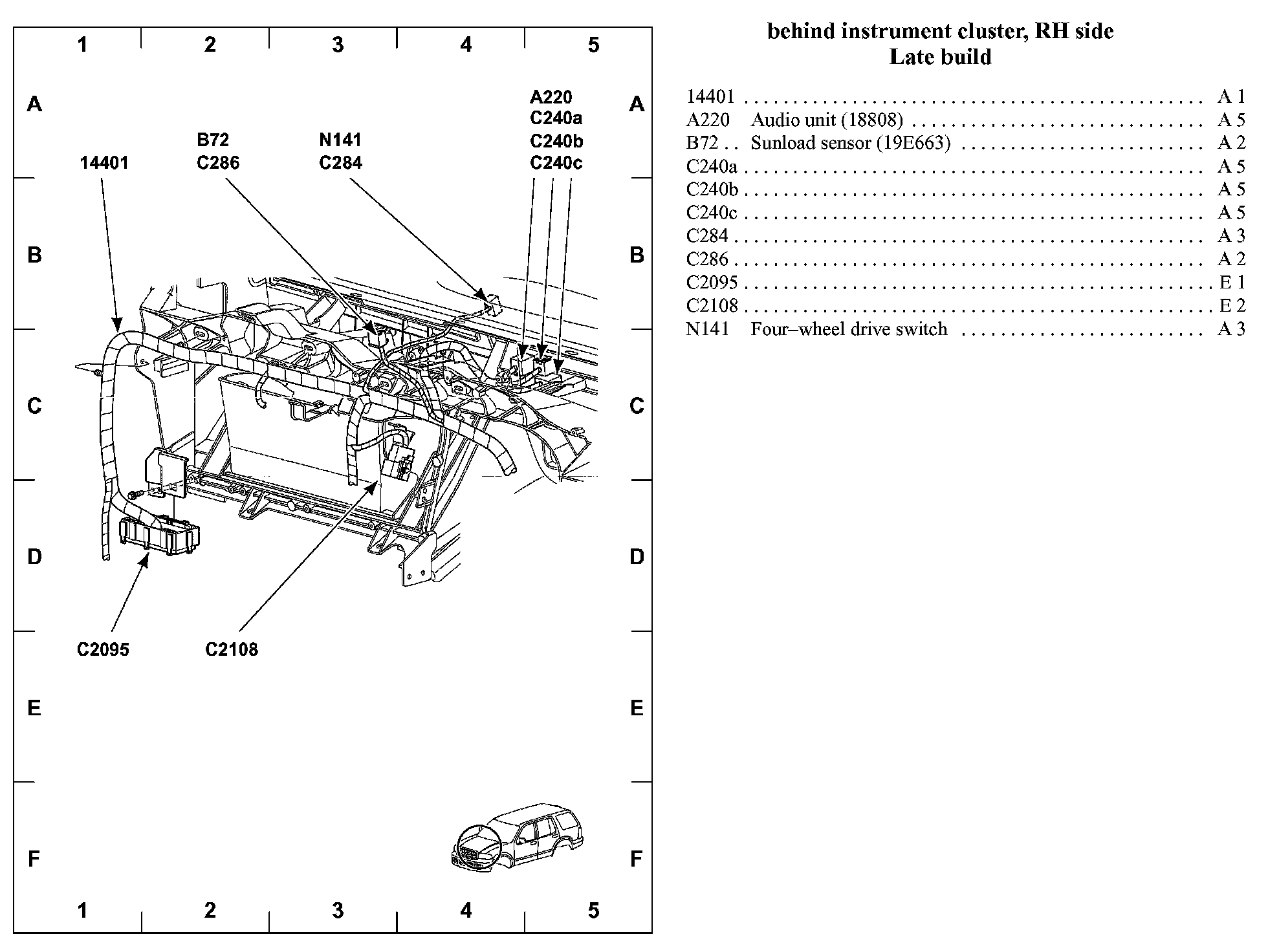

View 151-47 (Behind Instrument Cluster, RH Side Late Build):
