Home >> Ford >> 2002 >> Explorer 2WD V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

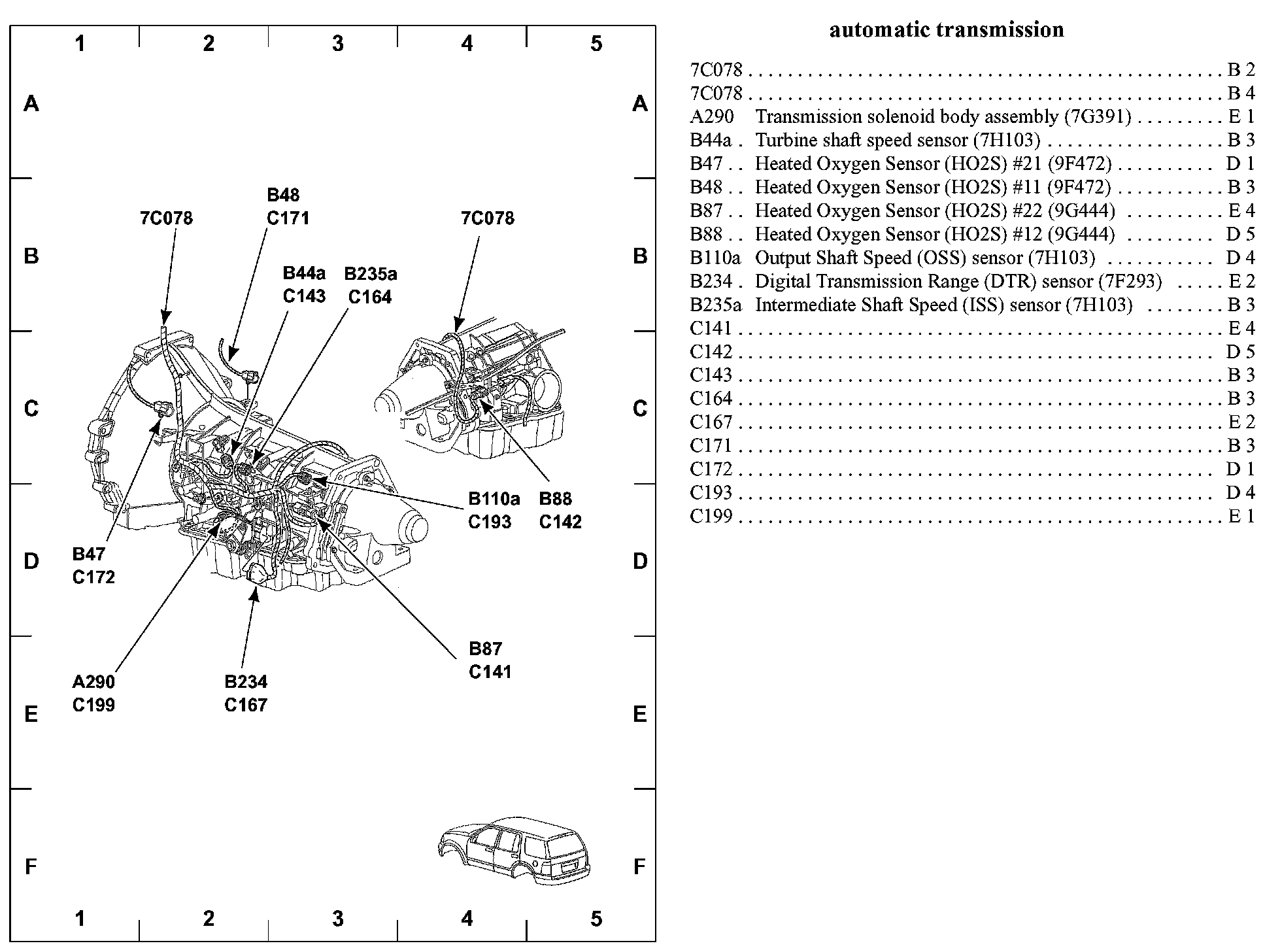

View 151-8 (Automatic Transmission):

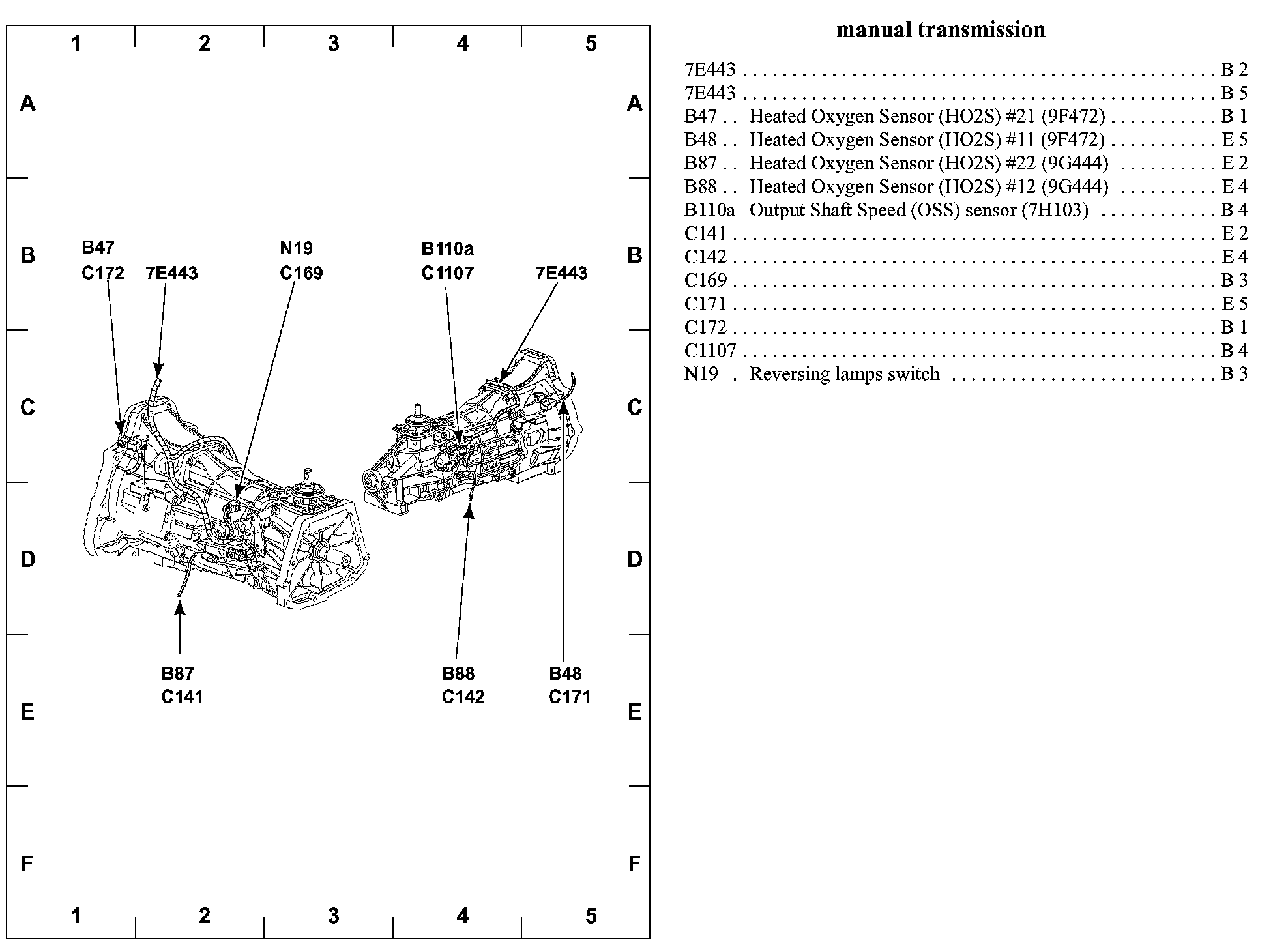

View 151-9 (Manual Transmission):
