Ford
>>
2002
>>
Explorer 2WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
Knock Sensor: Locations

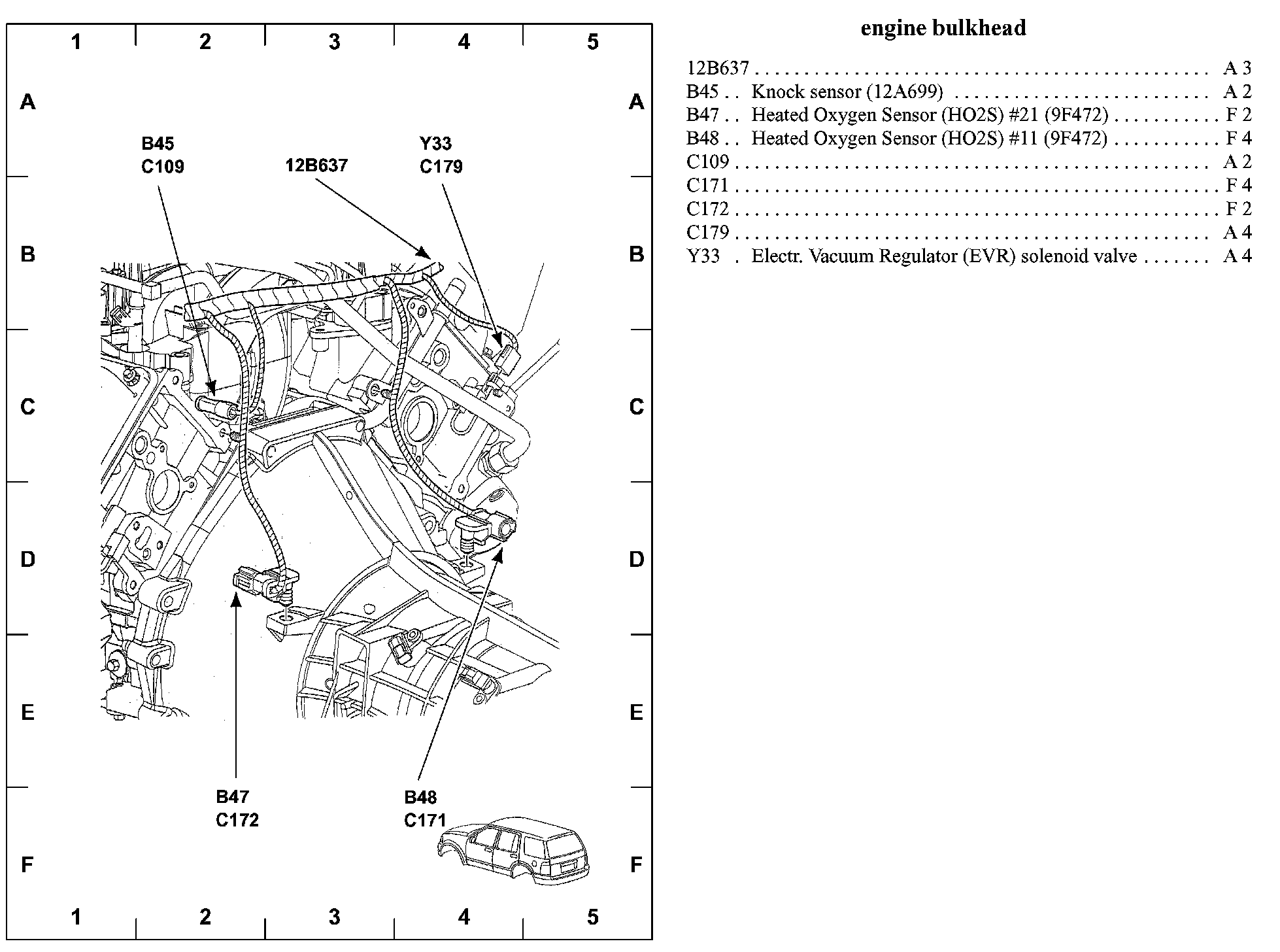

View 151-79 (Engine Bulkhead):

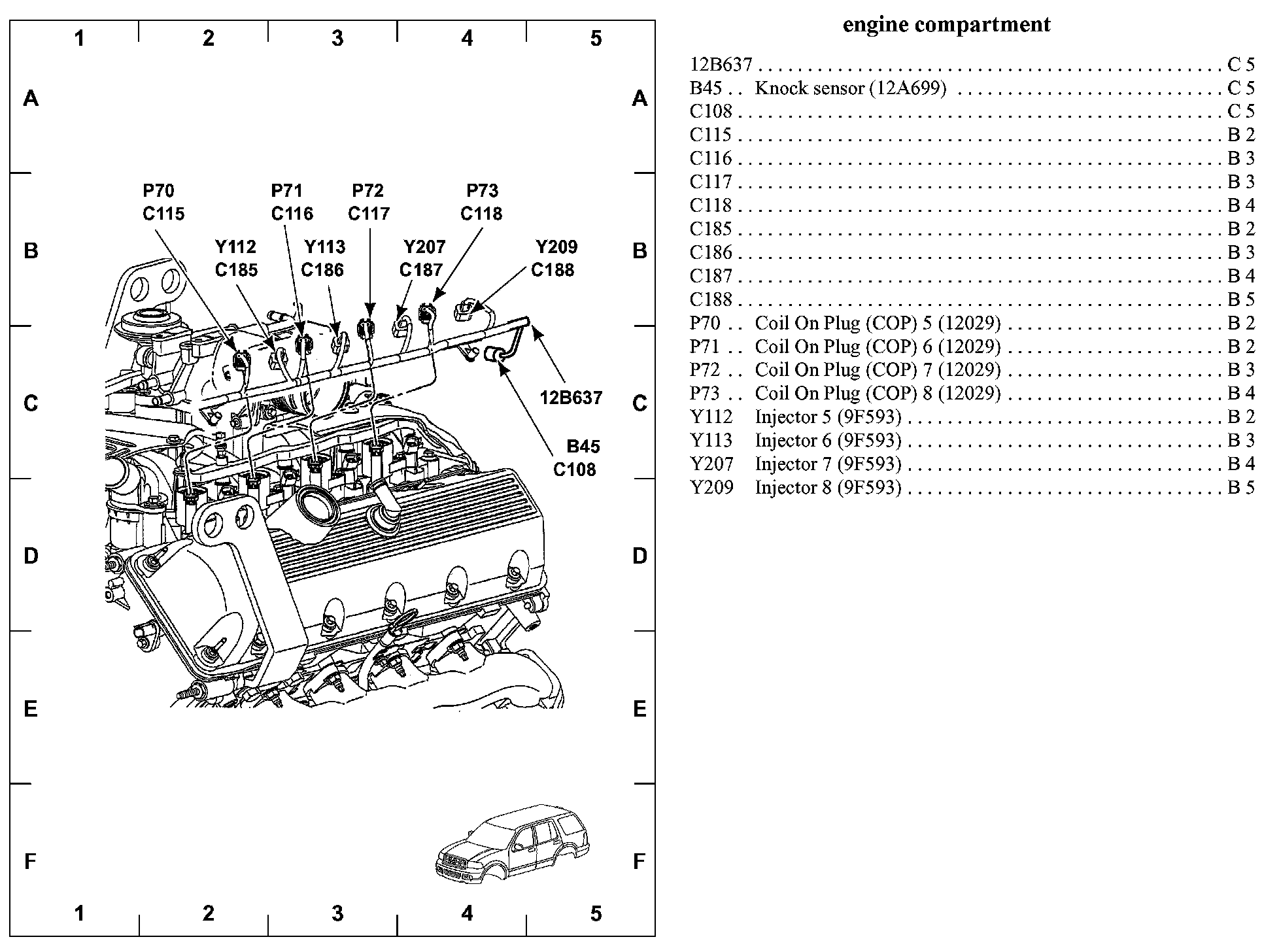

View 151-107 (Engine Compartment):
