Air Flow Meter/Sensor: Locations

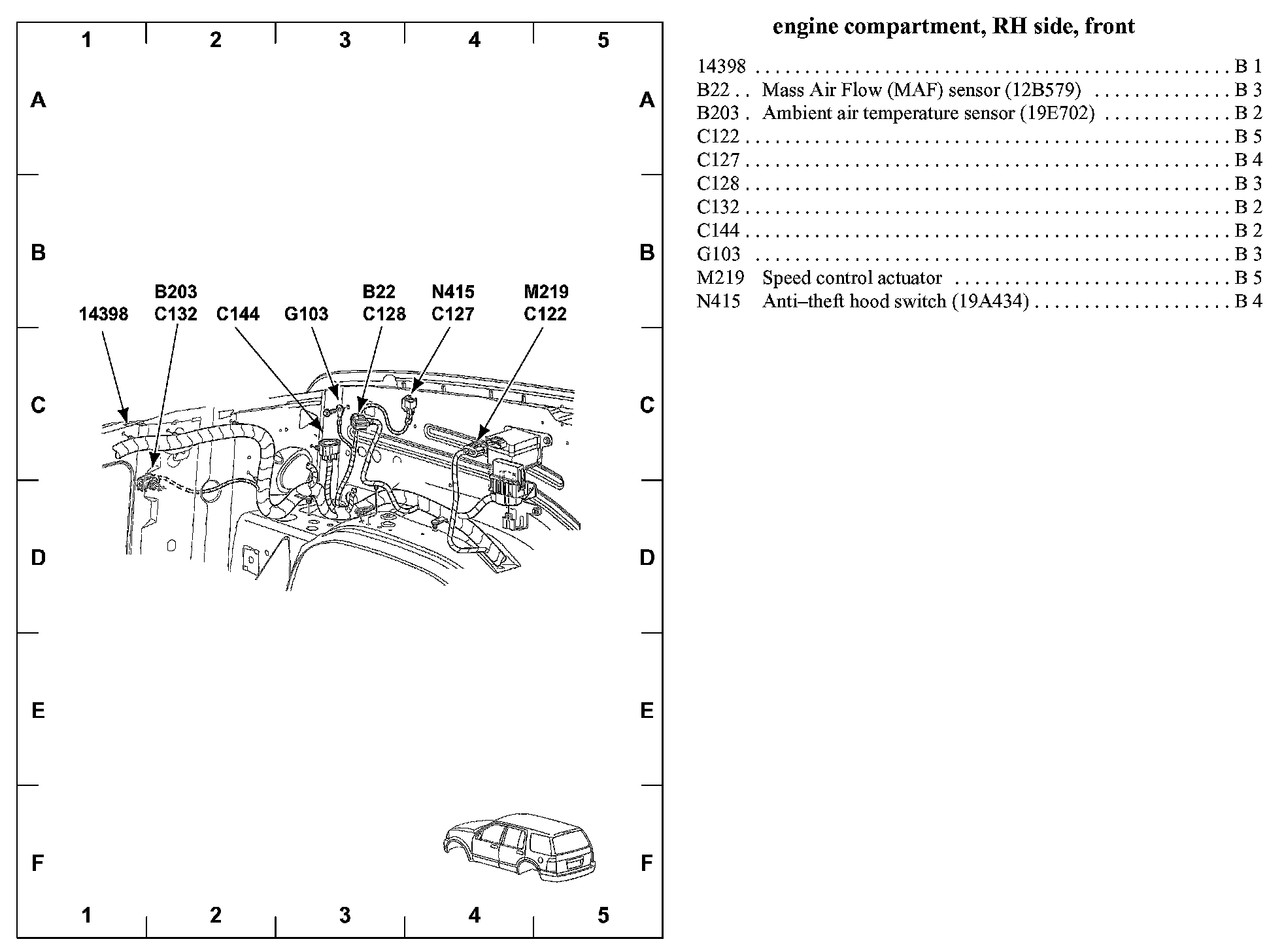

View 151-21 (Engine Compartment, RH Side, Front):

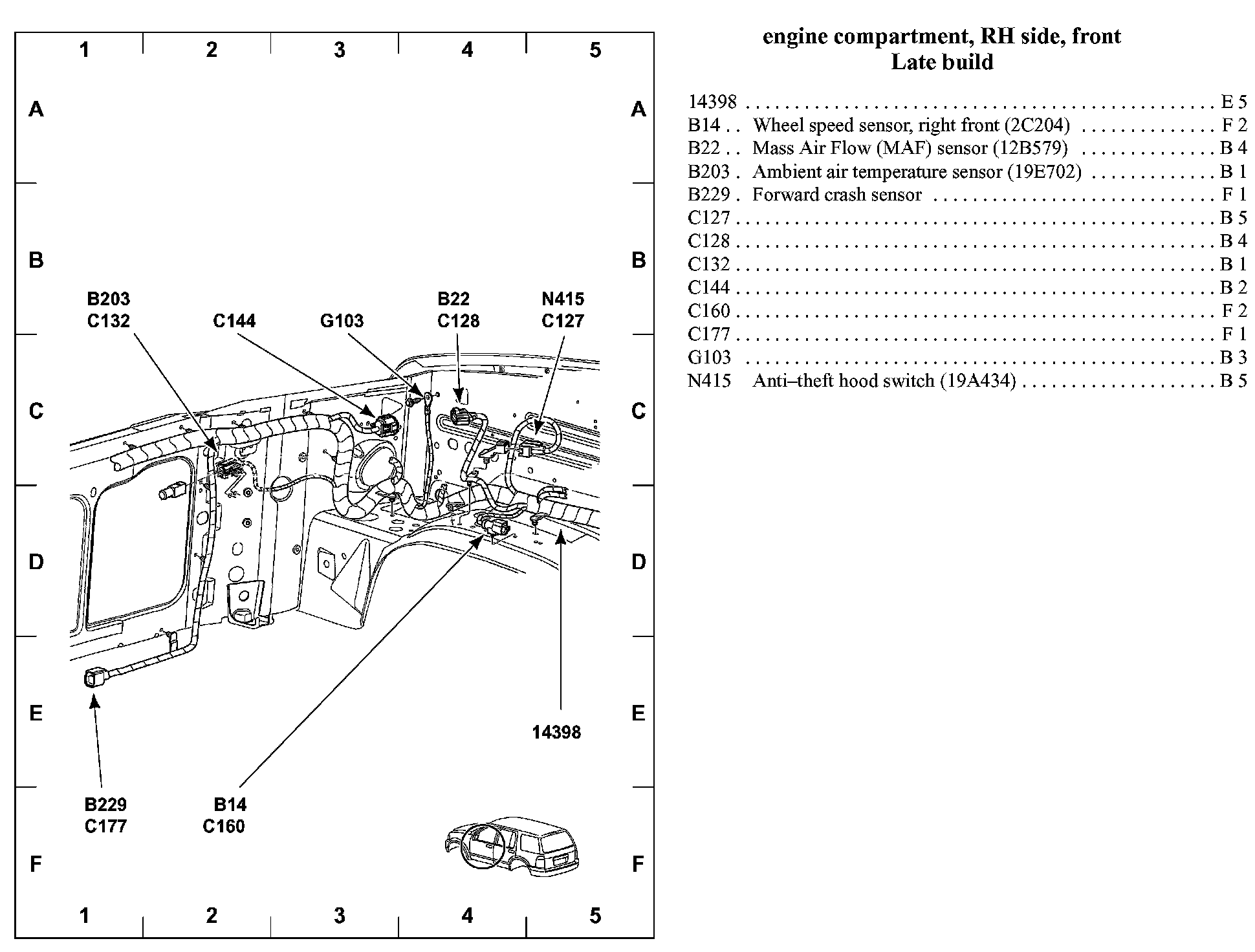

View 151-22 (Engine Compartment, RH Side, Front Late Build):
