Home >> Ford >> 2002 >> Explorer 2WD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module

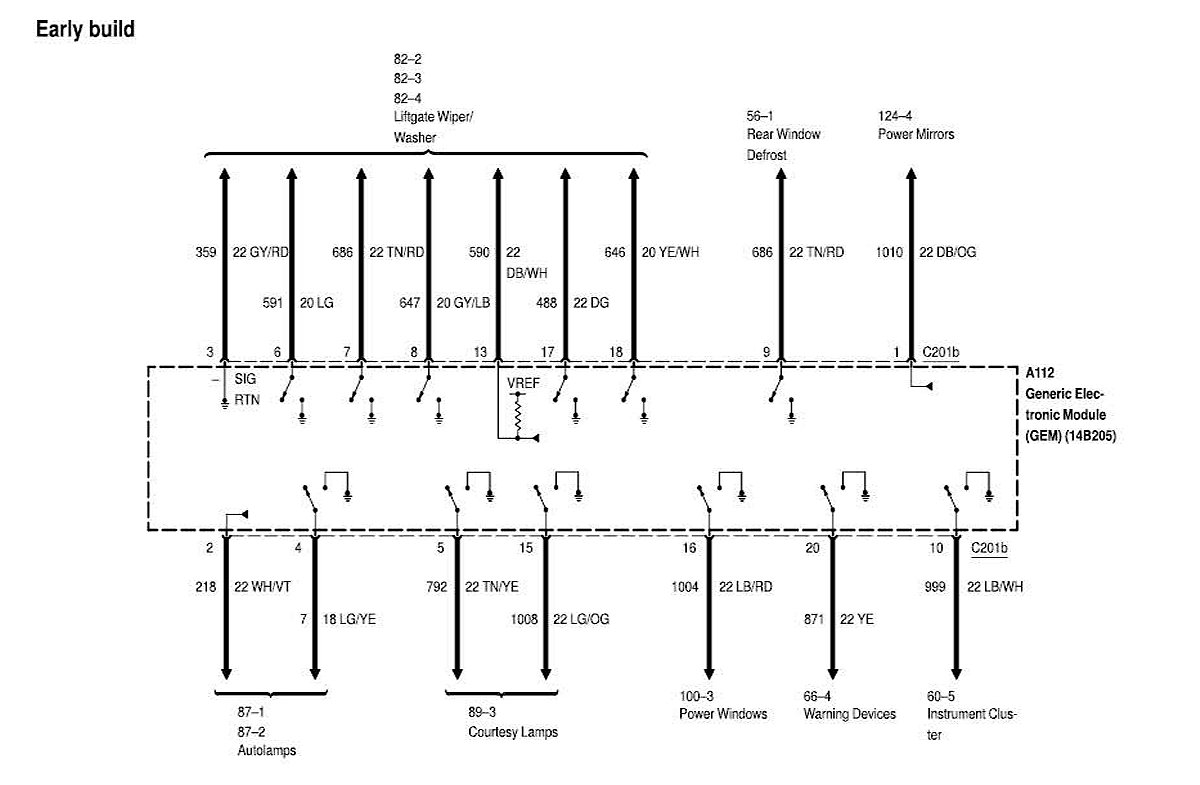

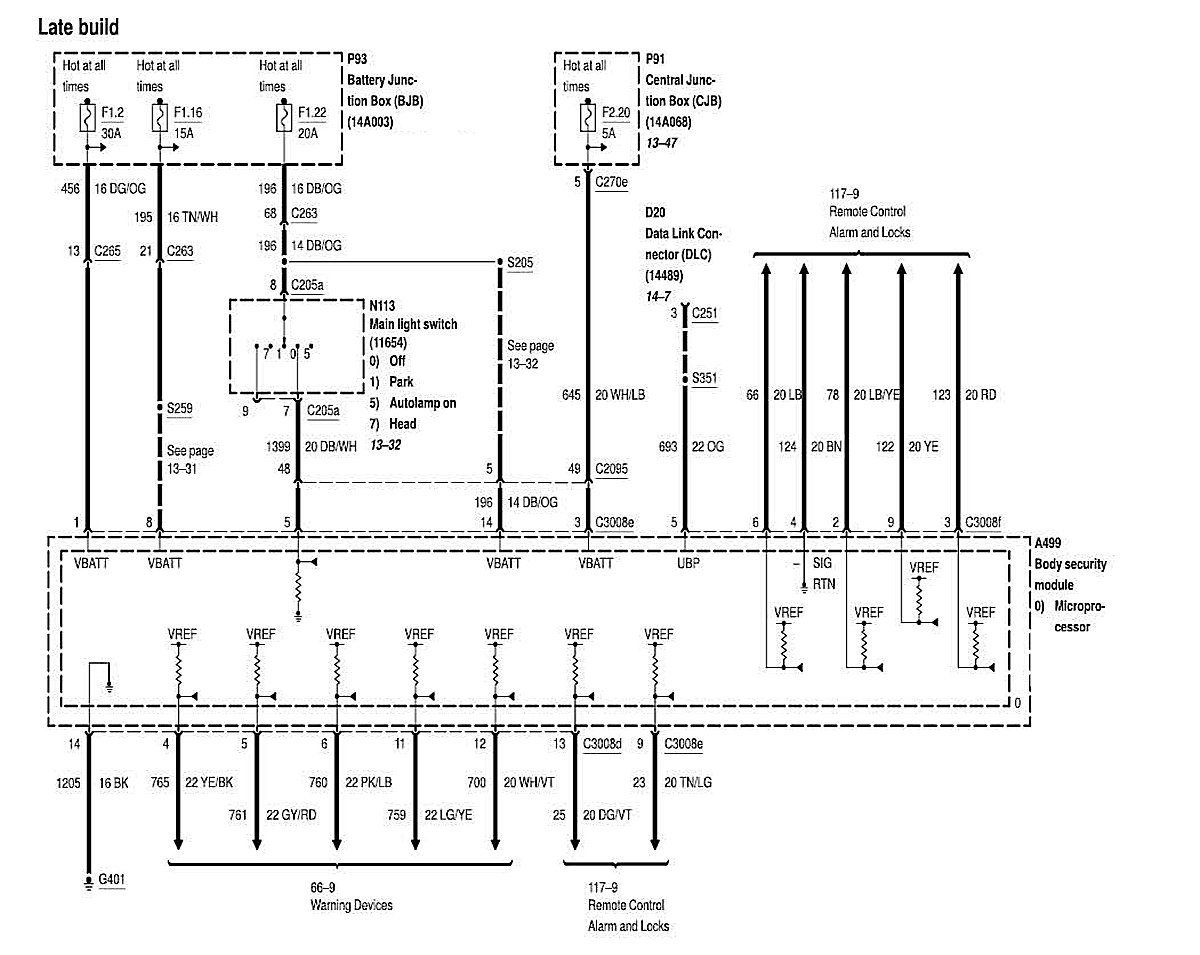

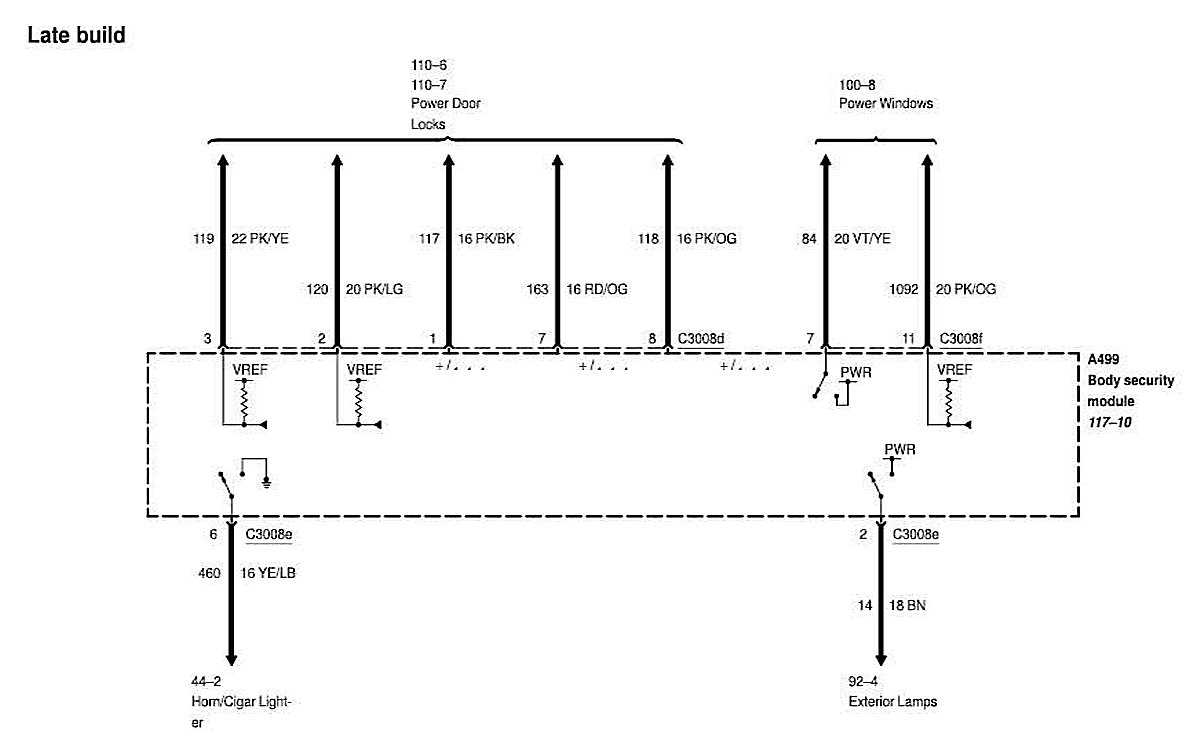

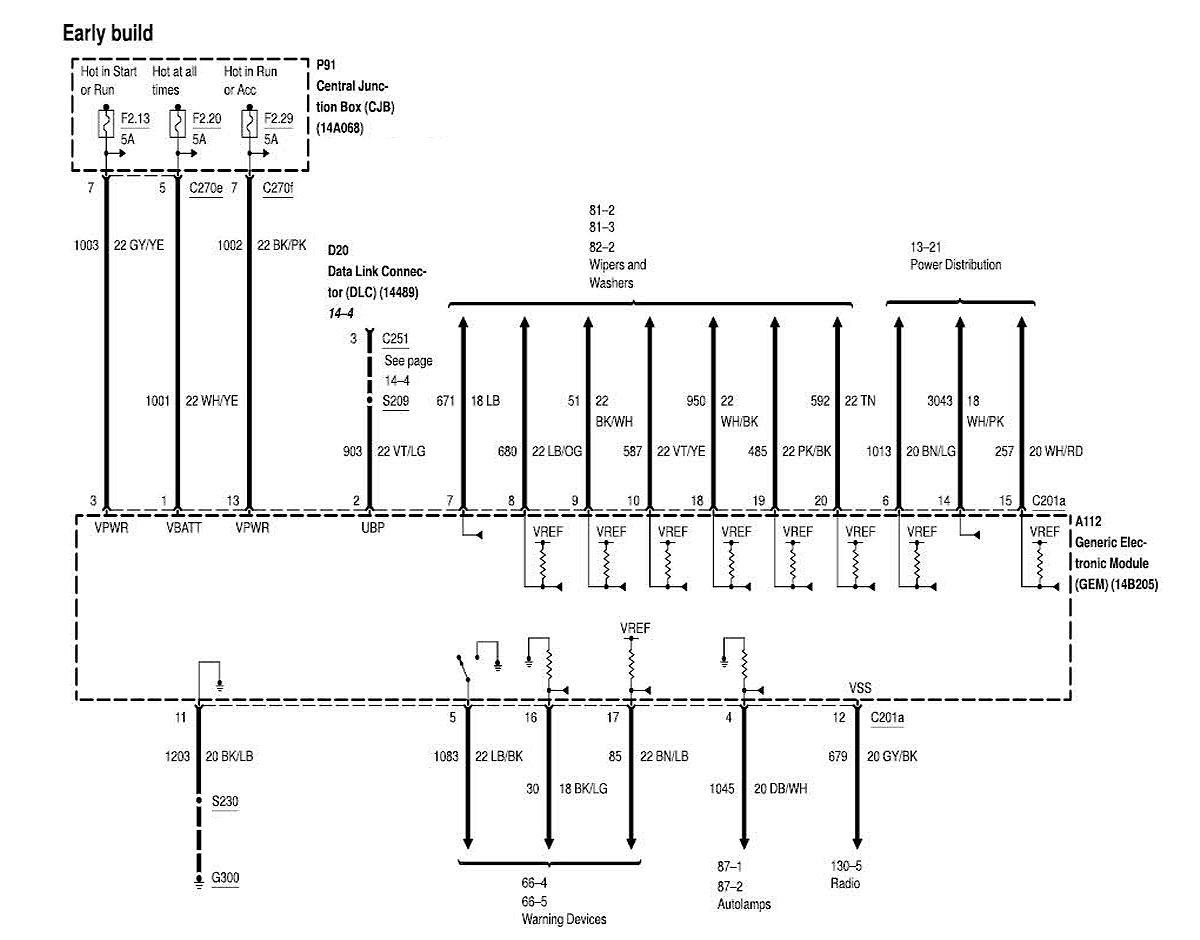

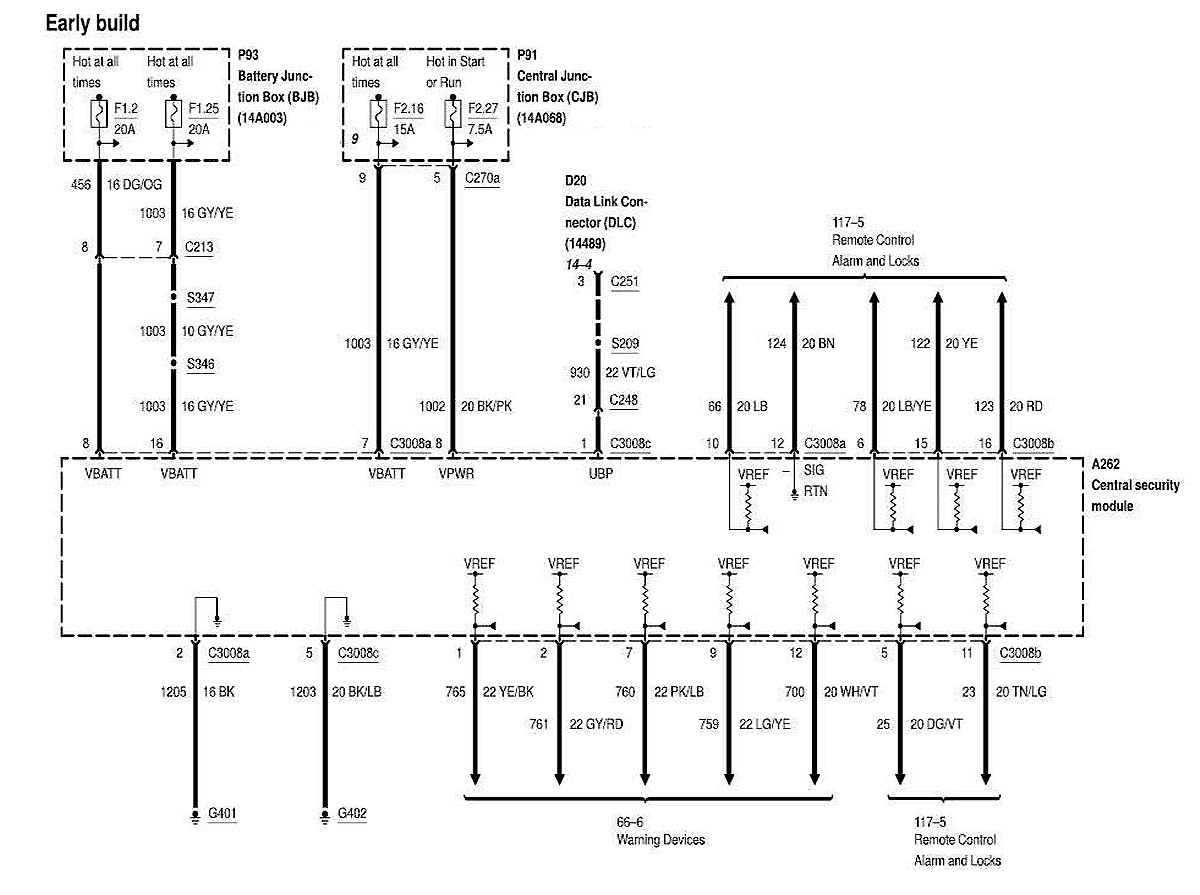

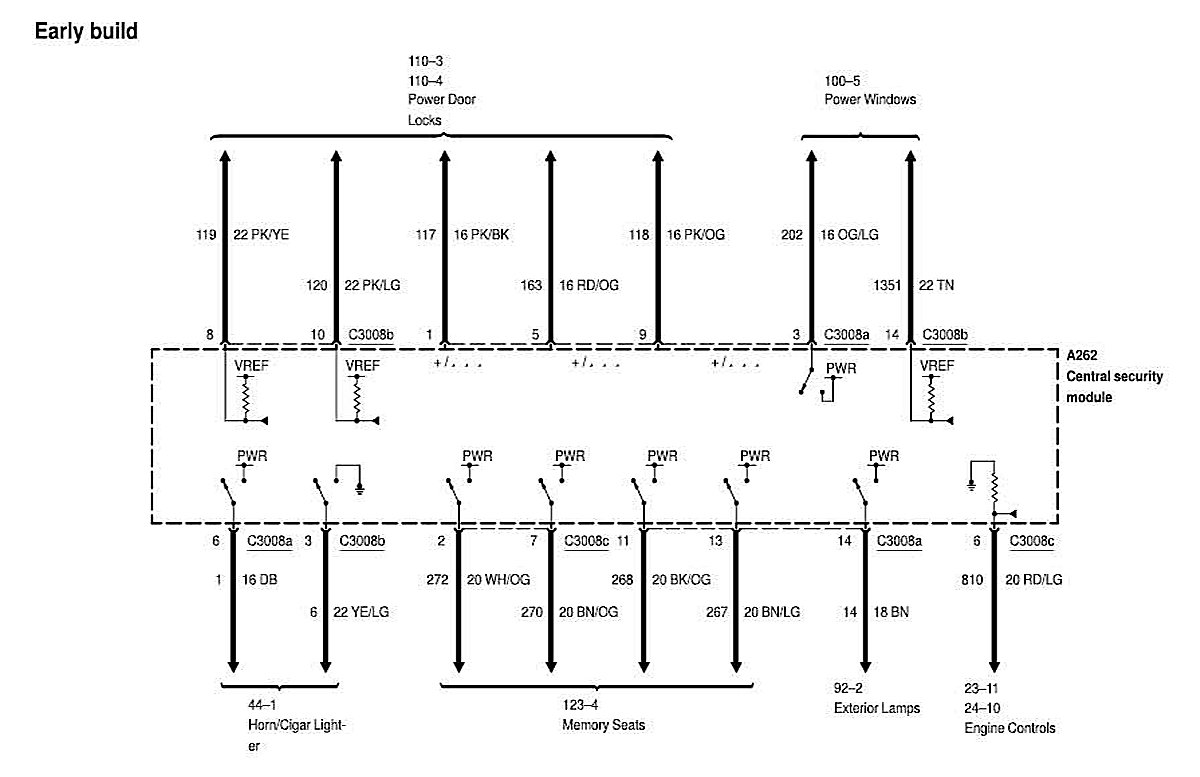

General Module

59-01:

59-02:

59-03:

59-04:

59-05:

59-06:
