Home >> Ford >> 2002 >> Explorer 2WD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module, Driver Side Front

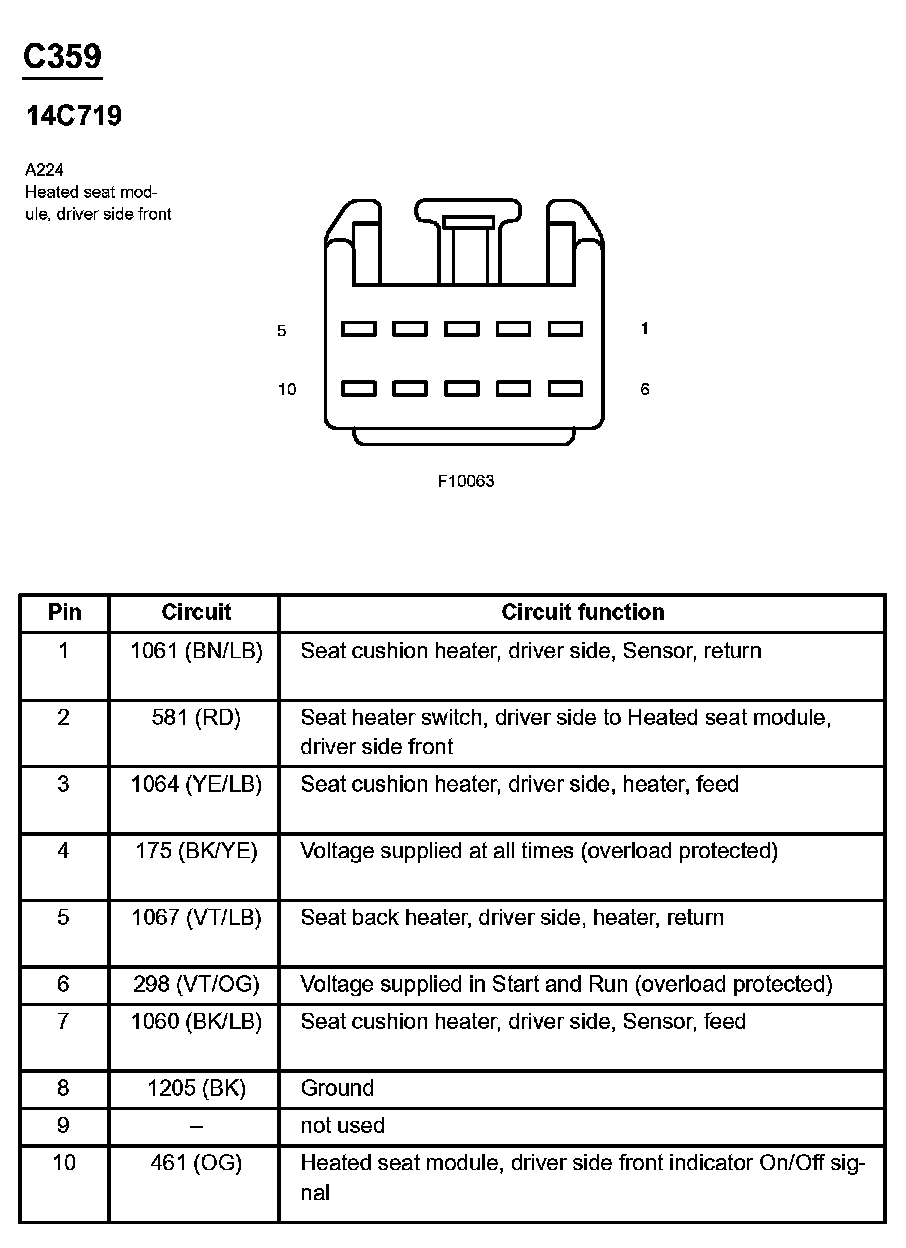

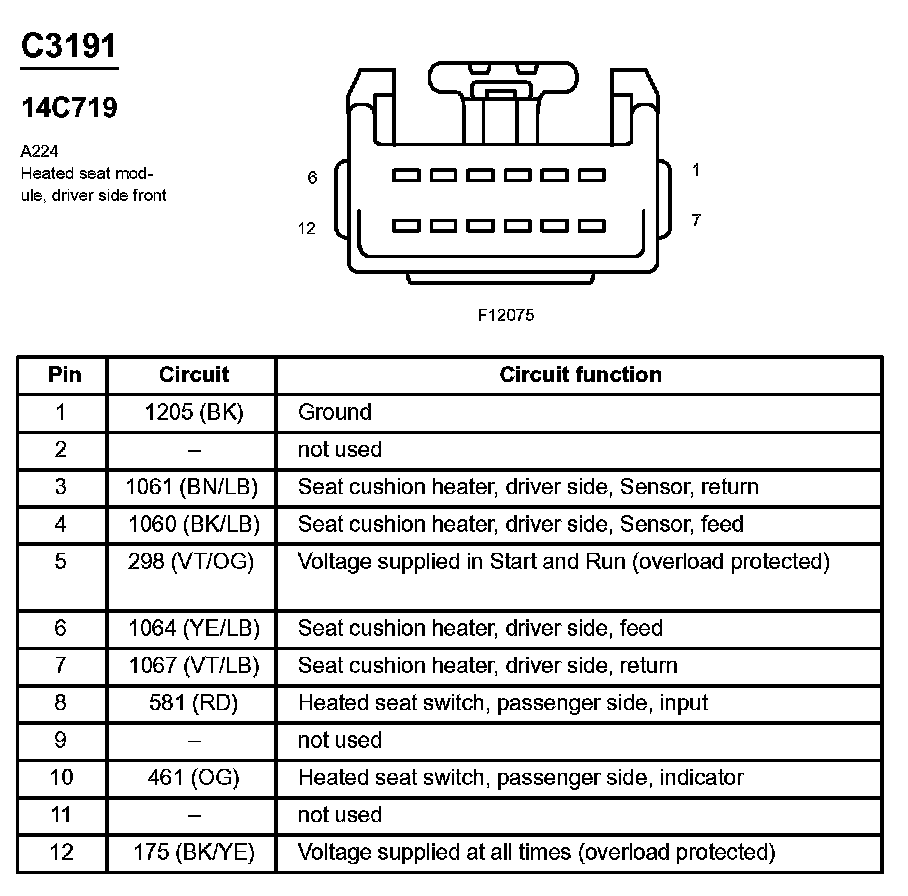

Heated Seat Module, Driver Side Front
