Home >> Ford >> 2002 >> Excursion 4WD V10-6.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Injector Driver Module Relay >> Locations

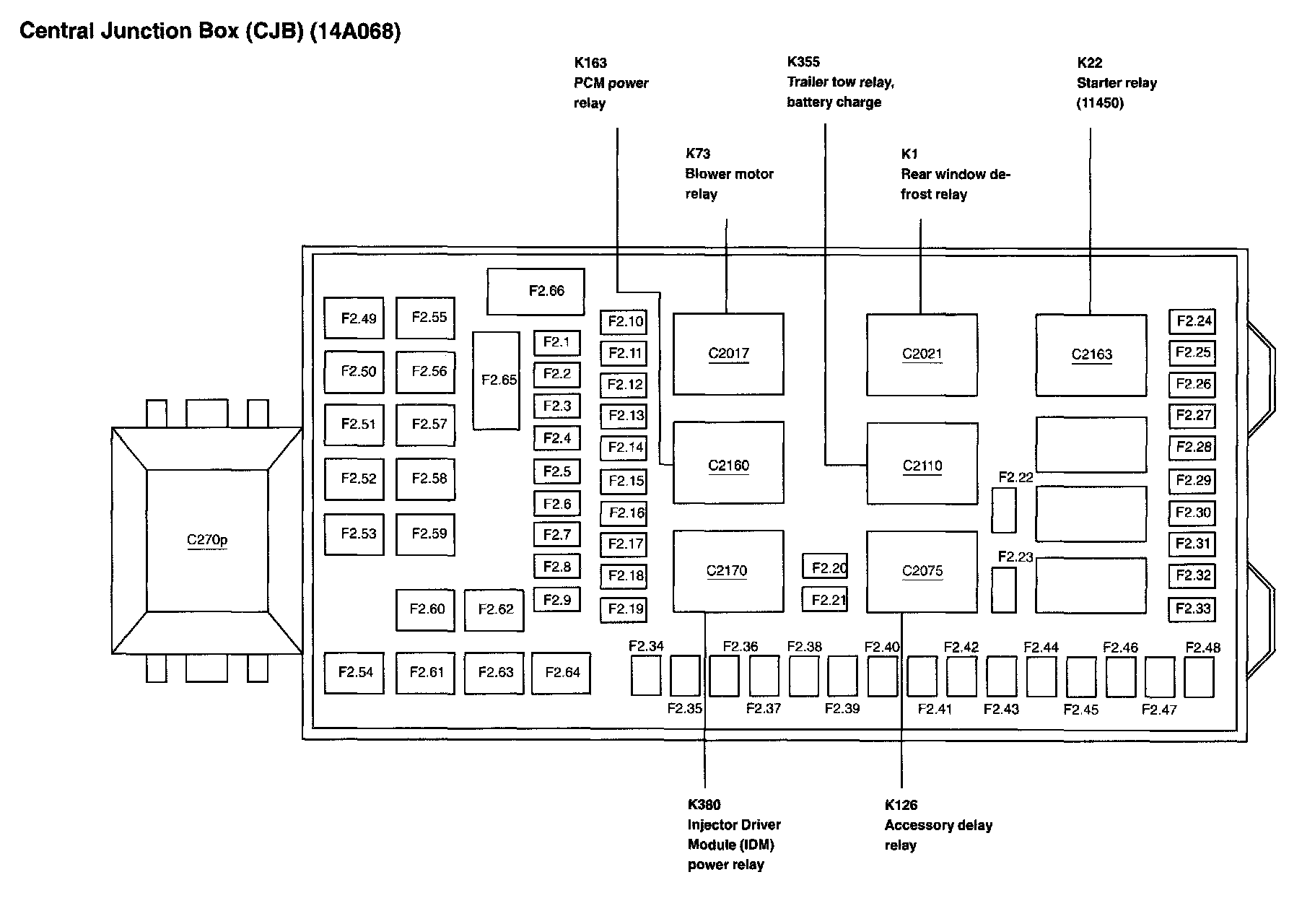

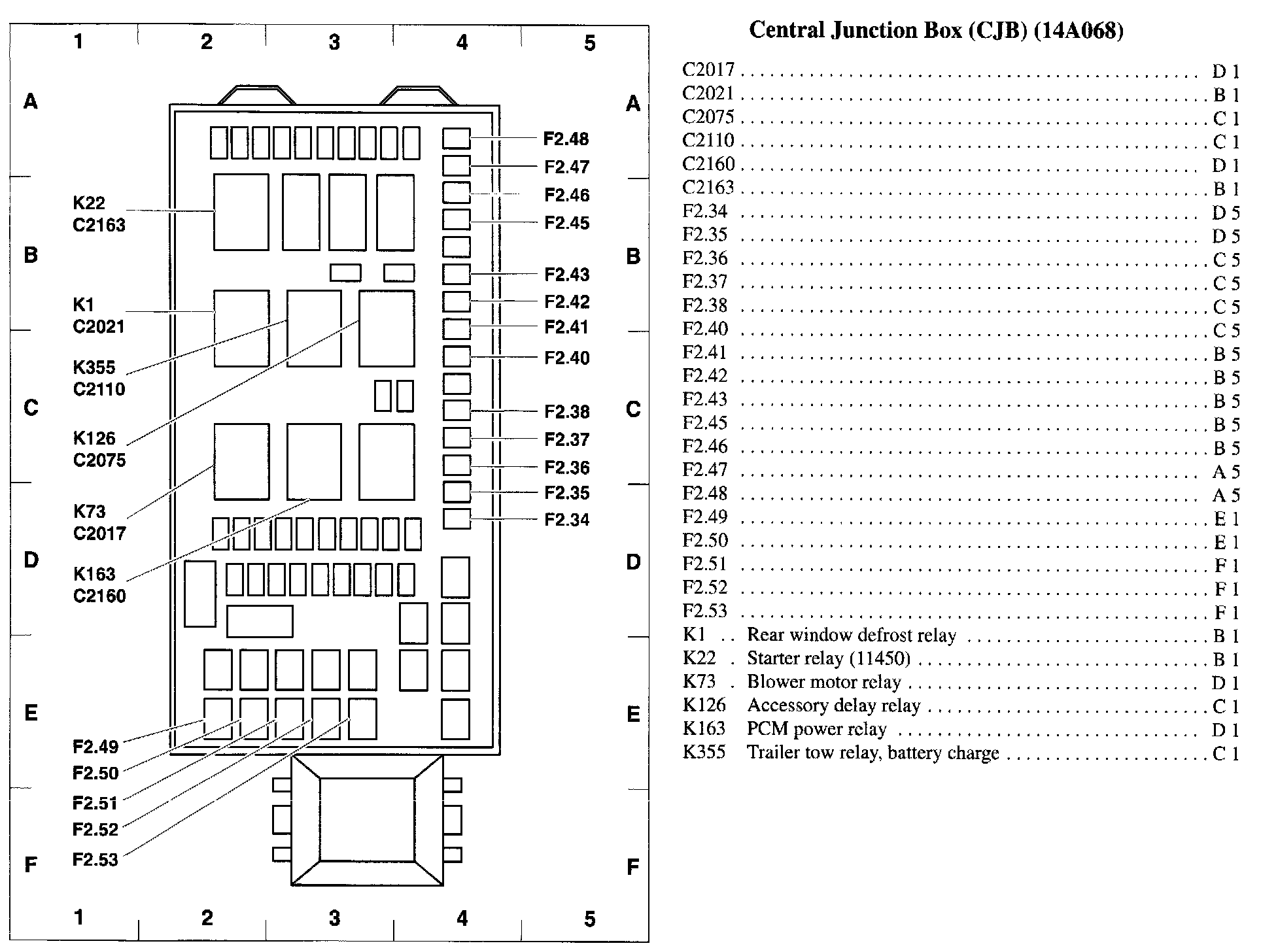

Injector Driver Module Relay: Locations

Part 1:



View 151-35:
