Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Electrical Accessory Panel >> Locations

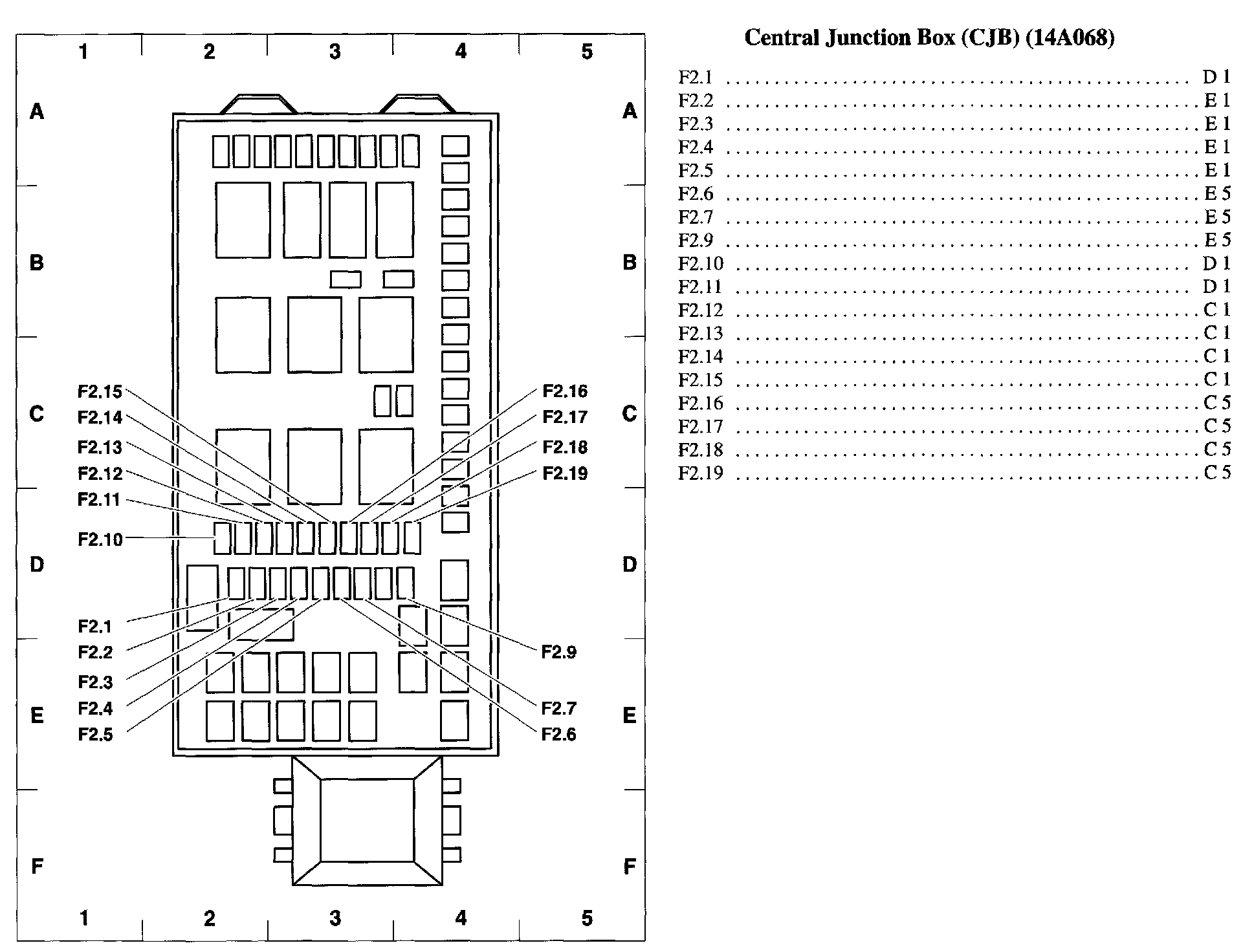

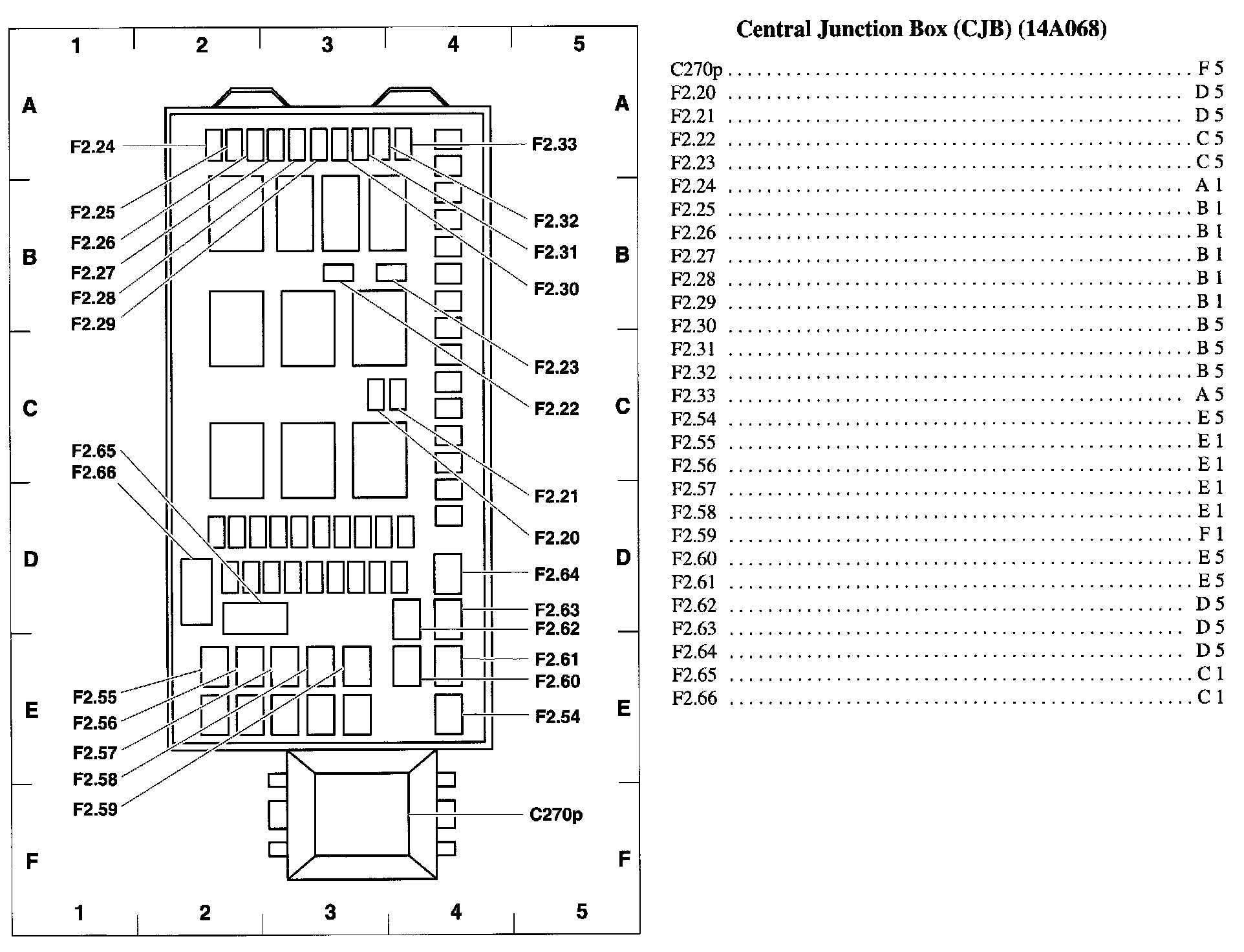

Electrical Accessory Panel: Locations

View 151-4:






View 151-34:






View 151-35:






View 151-36:
