Drive Belt: Locations



Accessory Drive

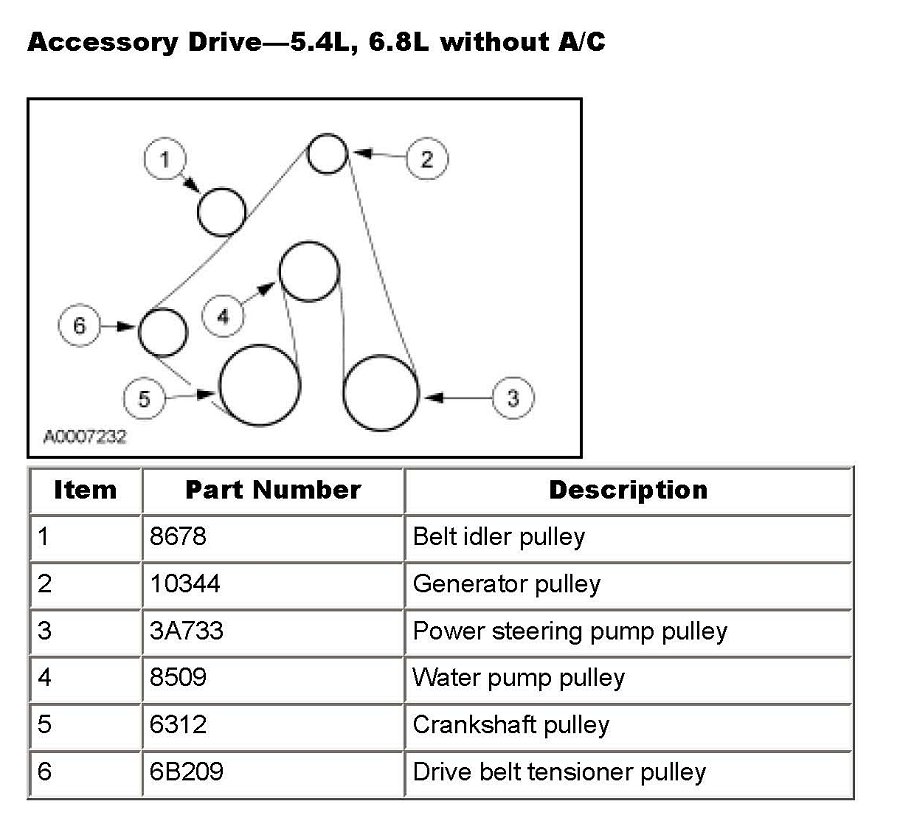

5.4L, 6.8L Without A/C:

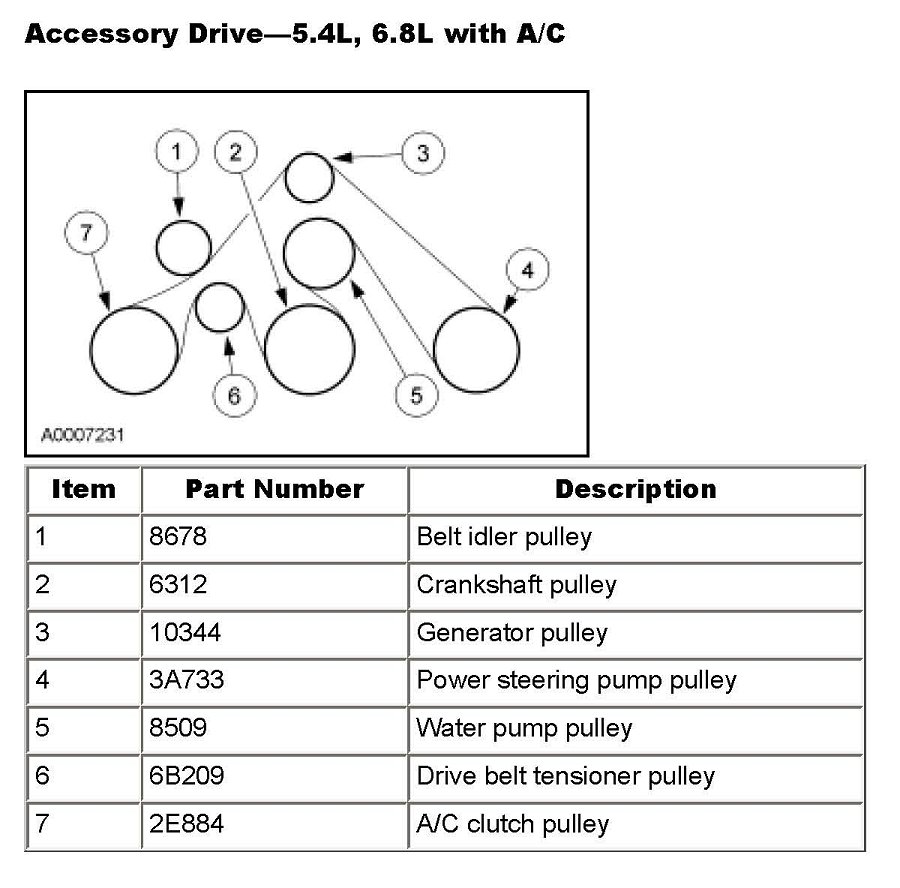

5.4L, 6.8L With A/C:

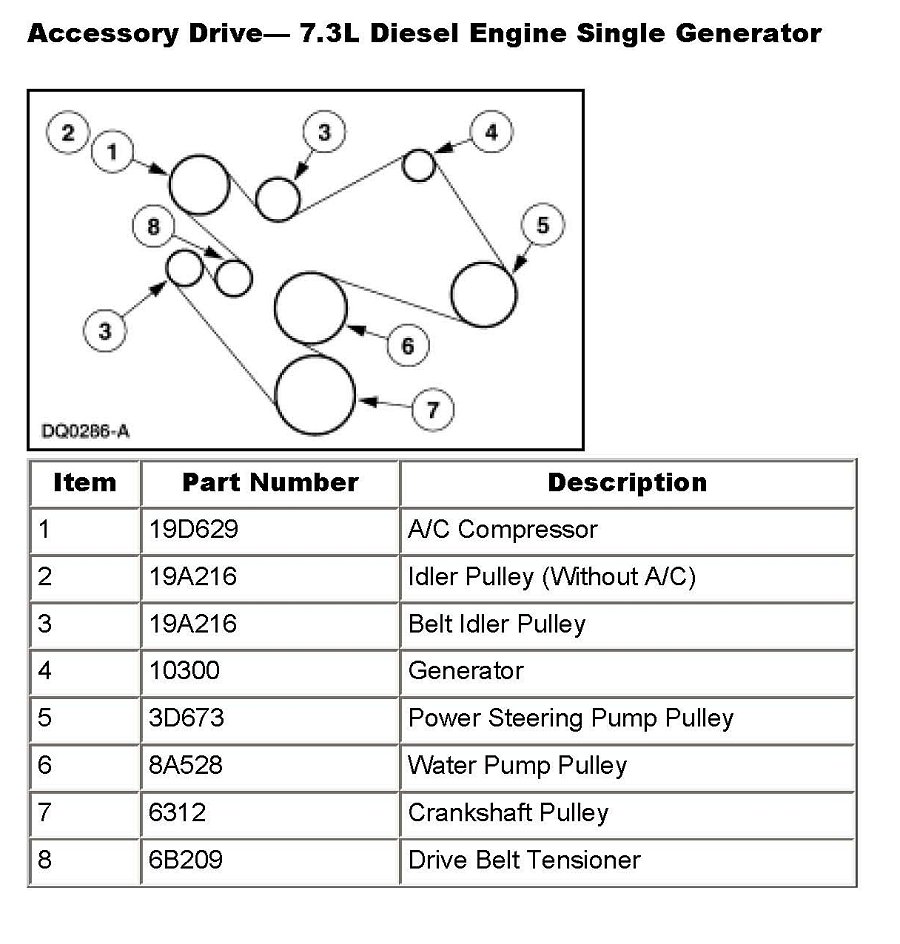

7.3L Diesel With Single Generator:

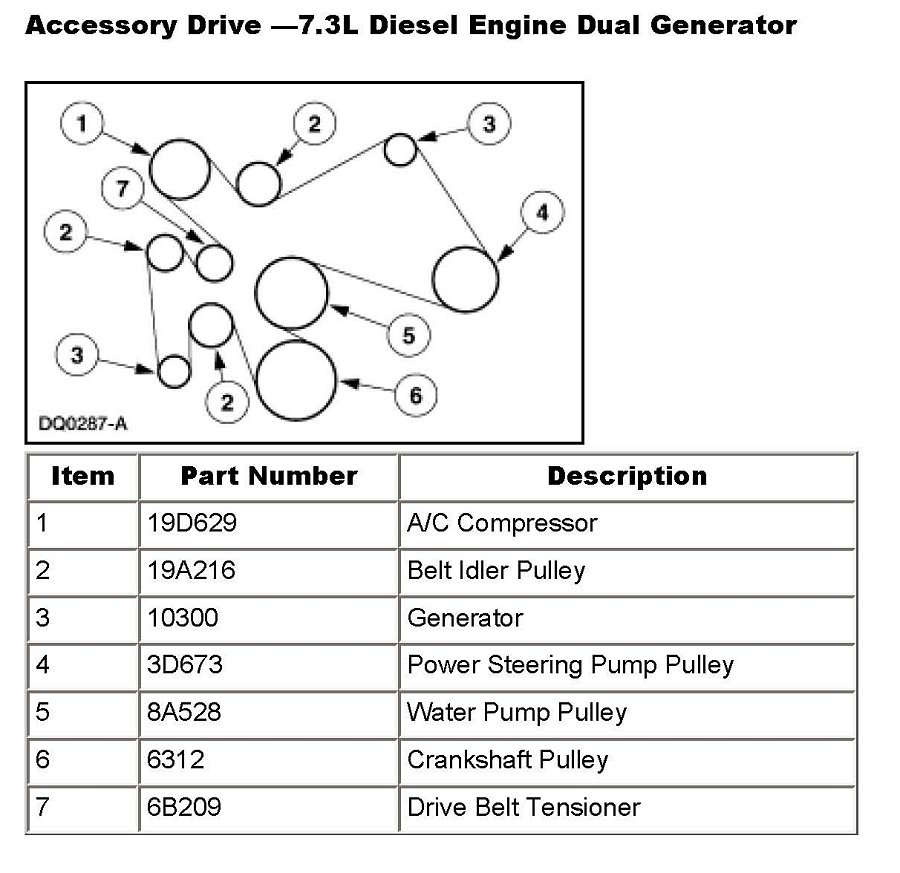

7.3L Diesel With Dual Generator:
