Home >> Ford >> 2001 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

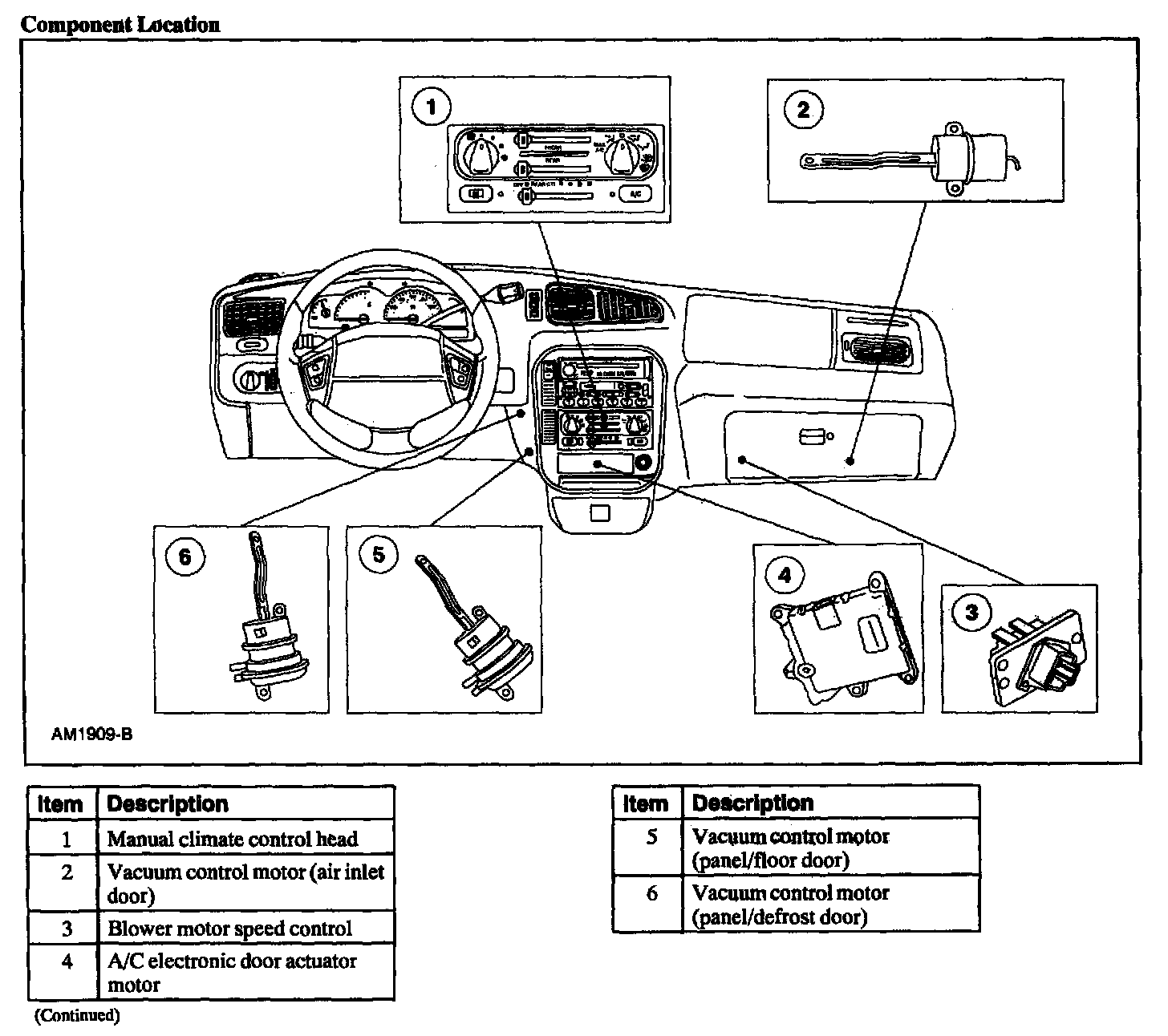

Control Module HVAC: Locations

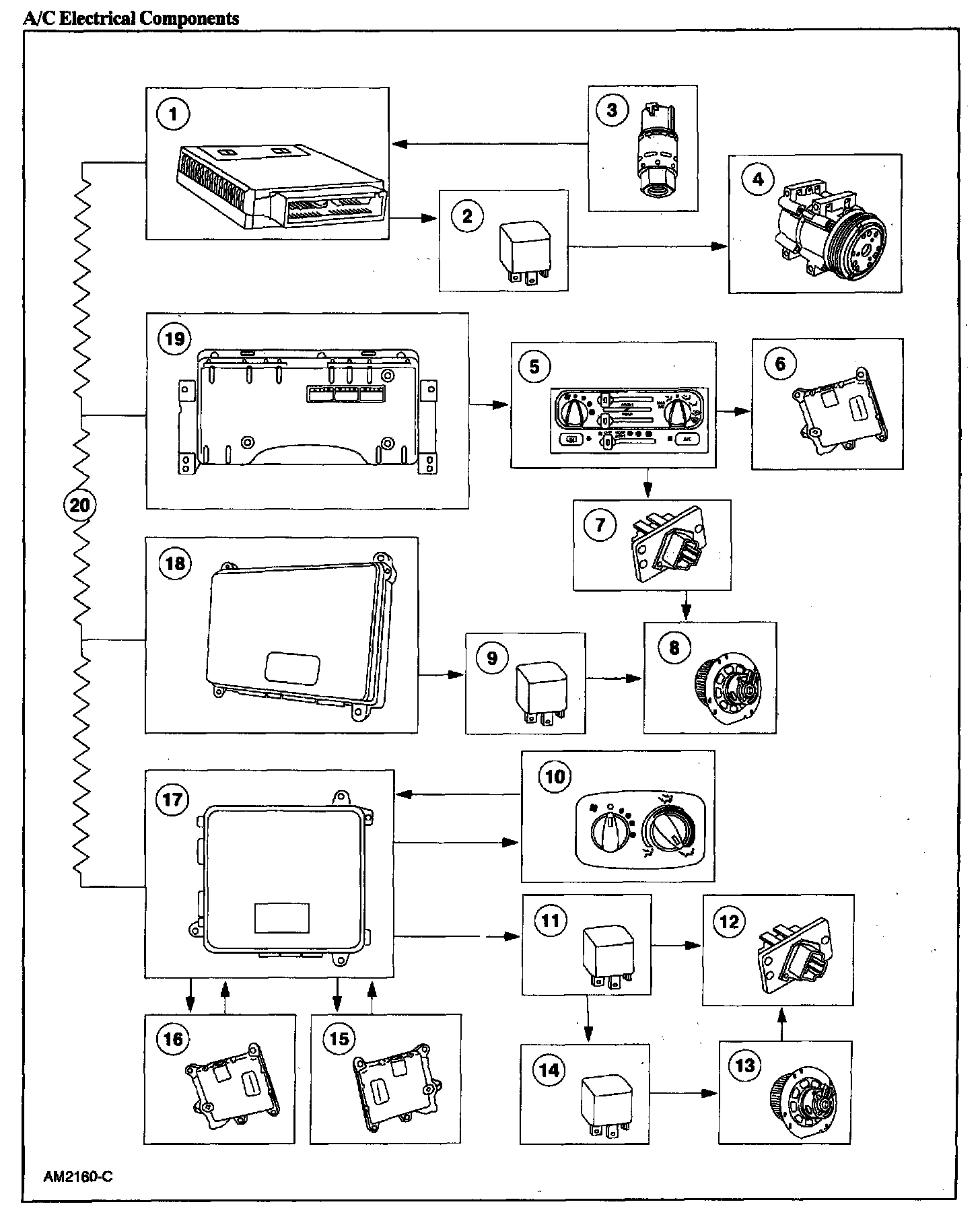

A/C Electrical Components, Part 1:

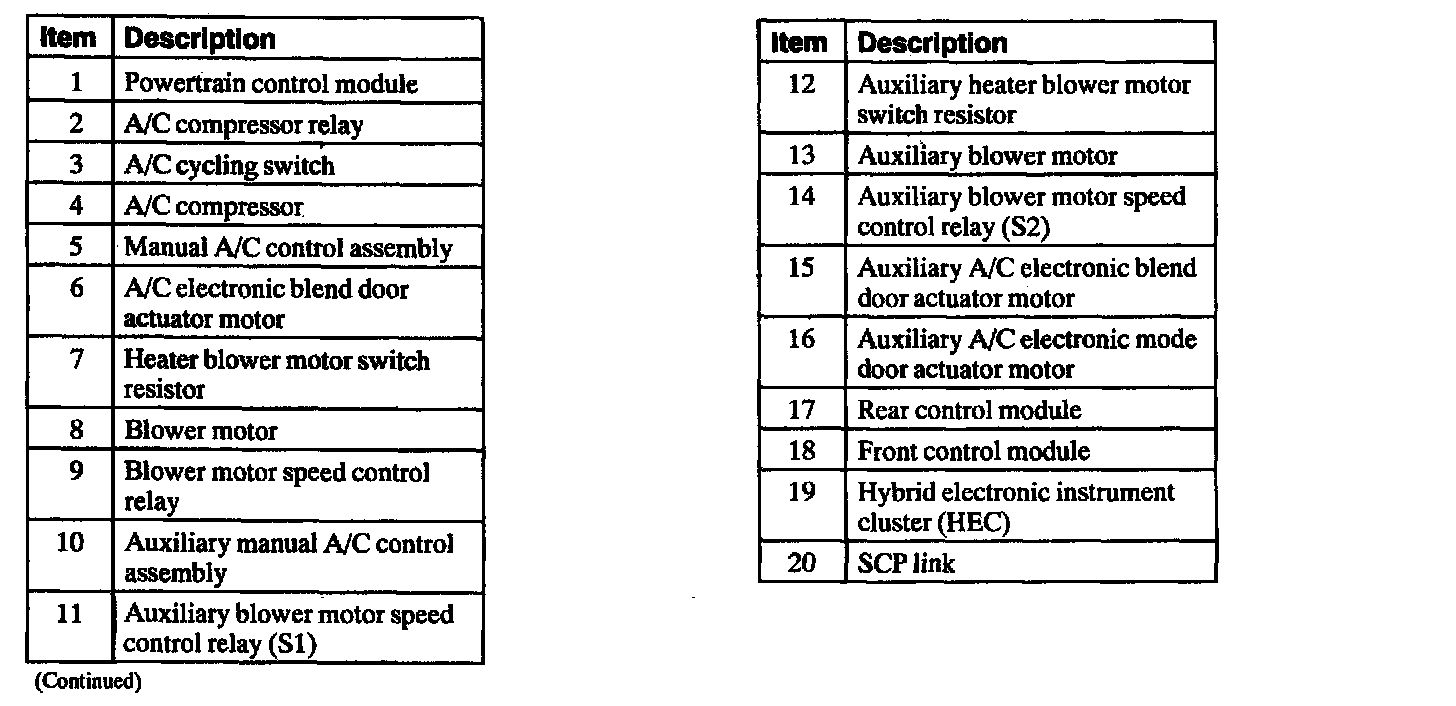

A/C Electrical Components, (Legend) Part 2:
