Differential Assembly
Differential Assembly

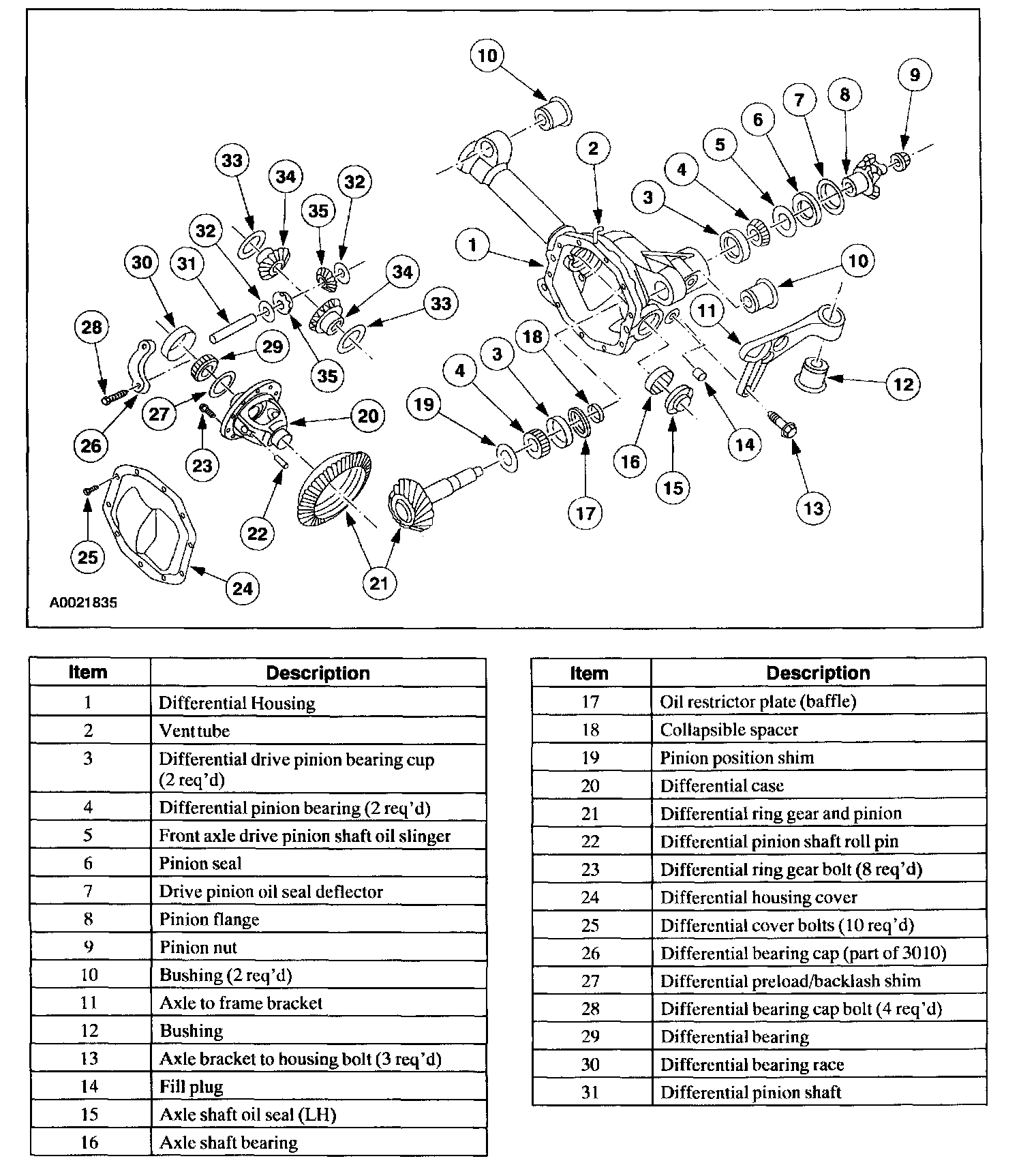

AWD Dana 35 Exploded View part 1 of 2

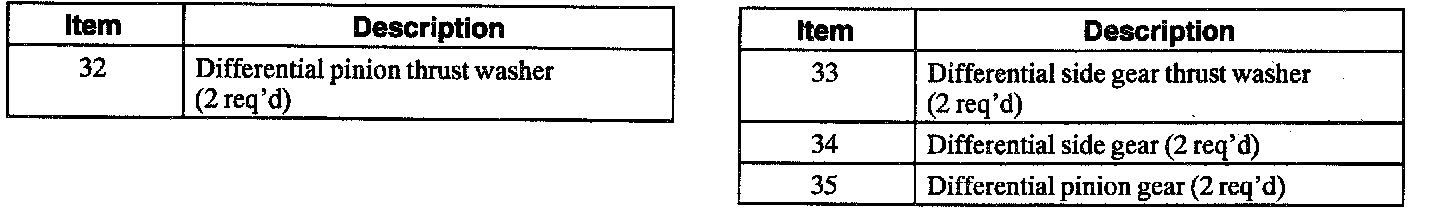

AWD Dana 35 Exploded View part 2 of 2
