General Torque Specifications

Torque Specifications

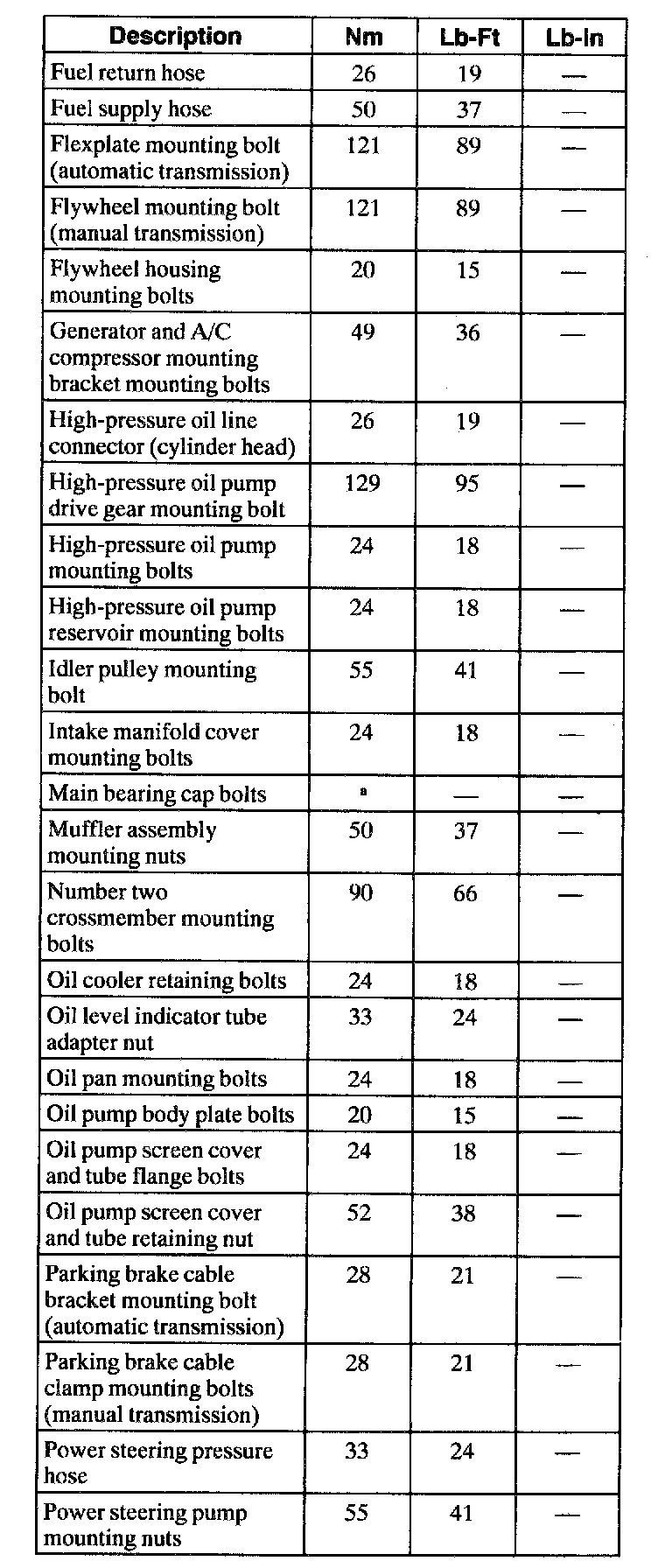

Part 1 of 6

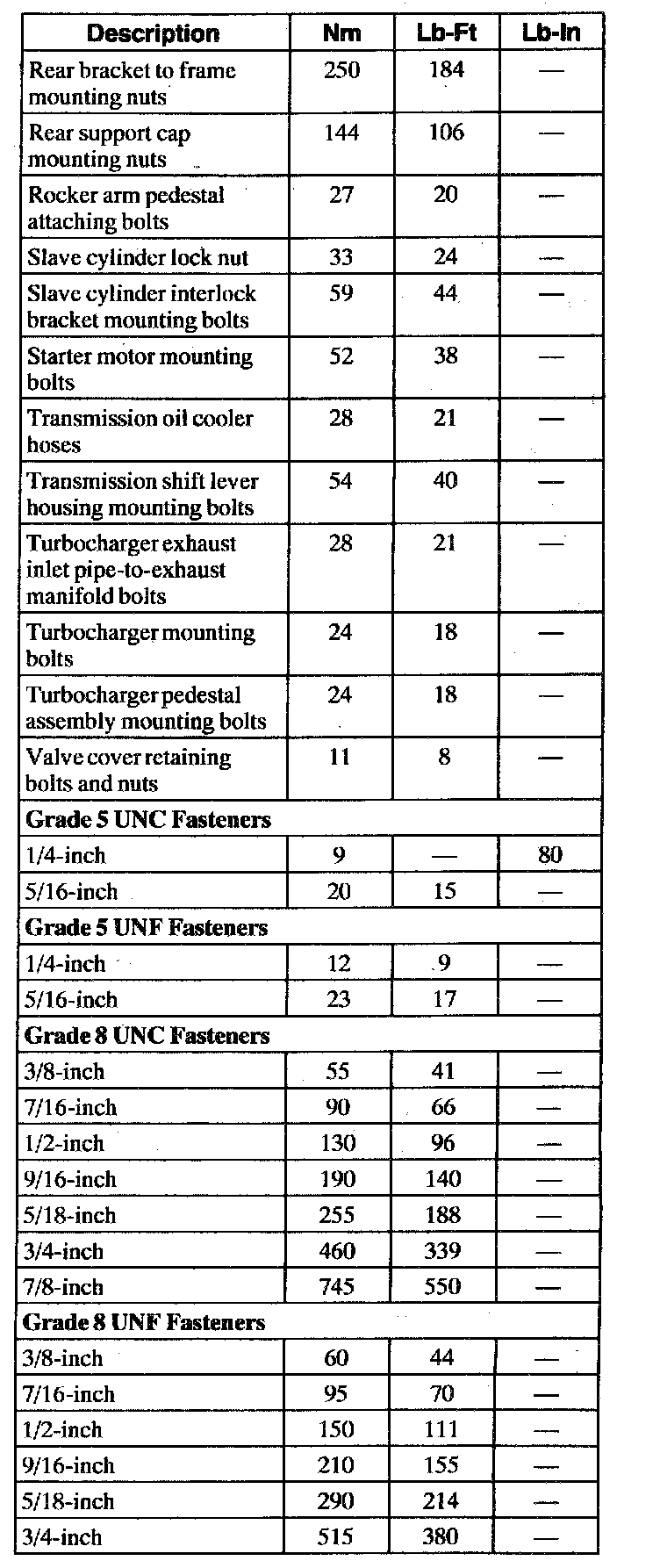

Part 2 of 6

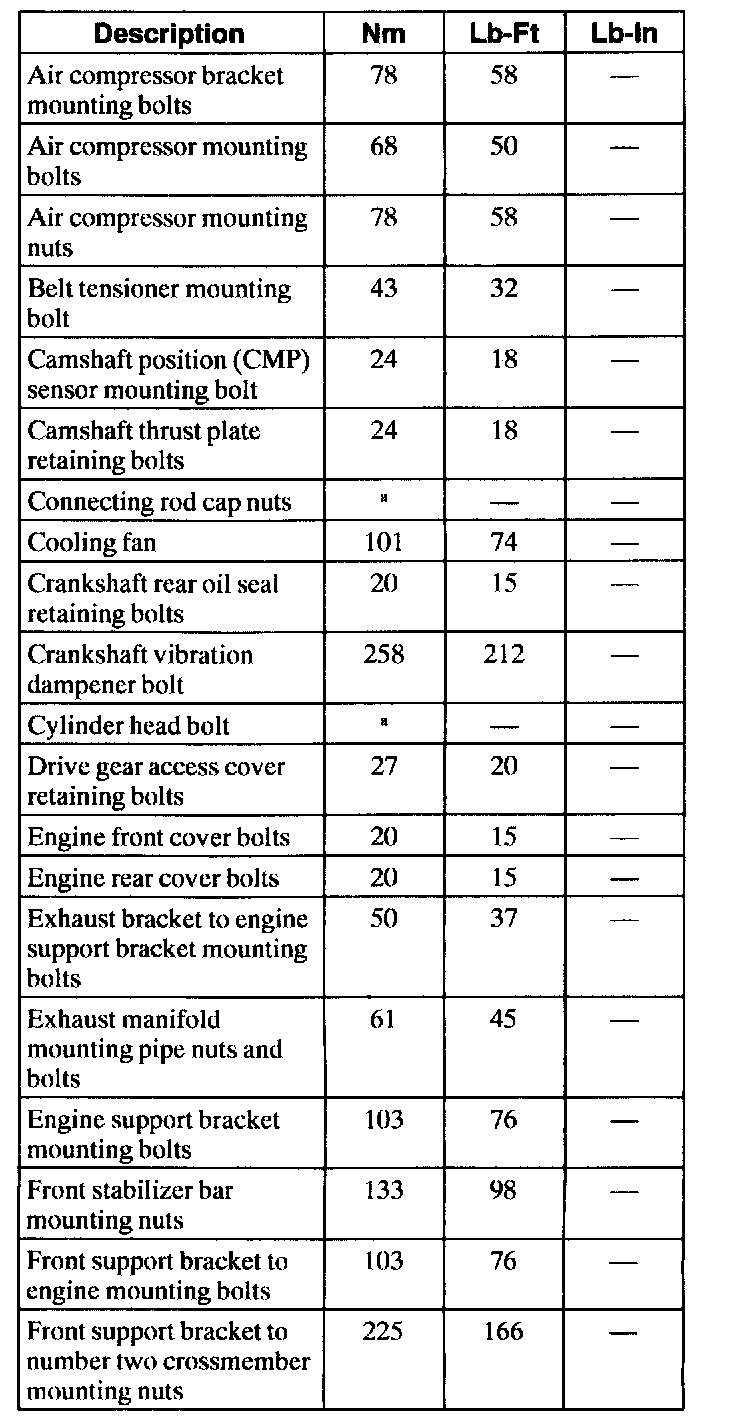

Part 3 of 6

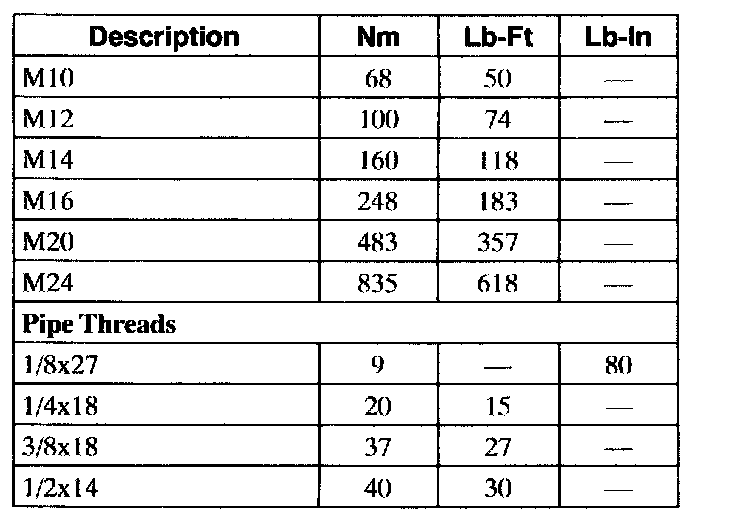

Part 4 of 6

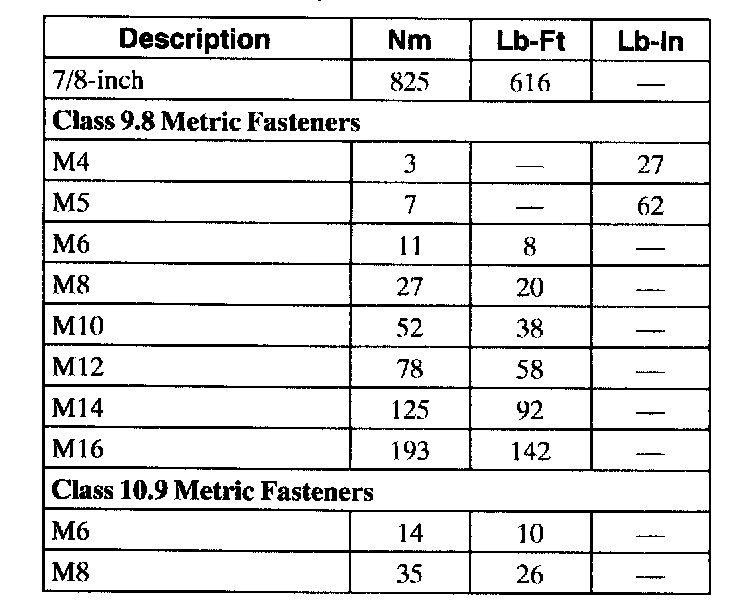

Part 5 of 6

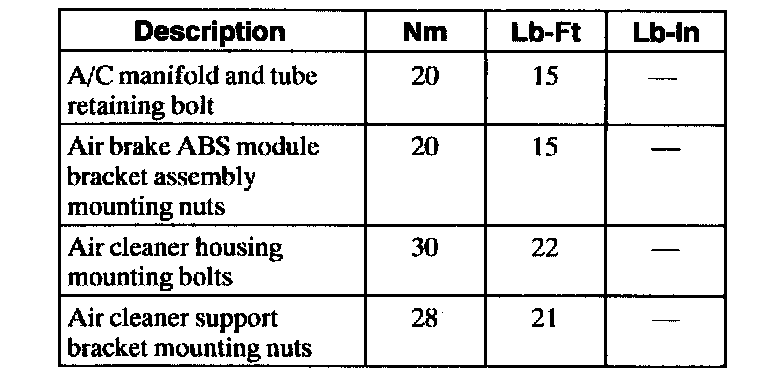

Part 6 of 6


Footnotes:

a - Refer to the applicable service and repair procedure for tightening specification and/or sequence.
