Home >> Ford >> 2001 >> Excursion 2WD V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

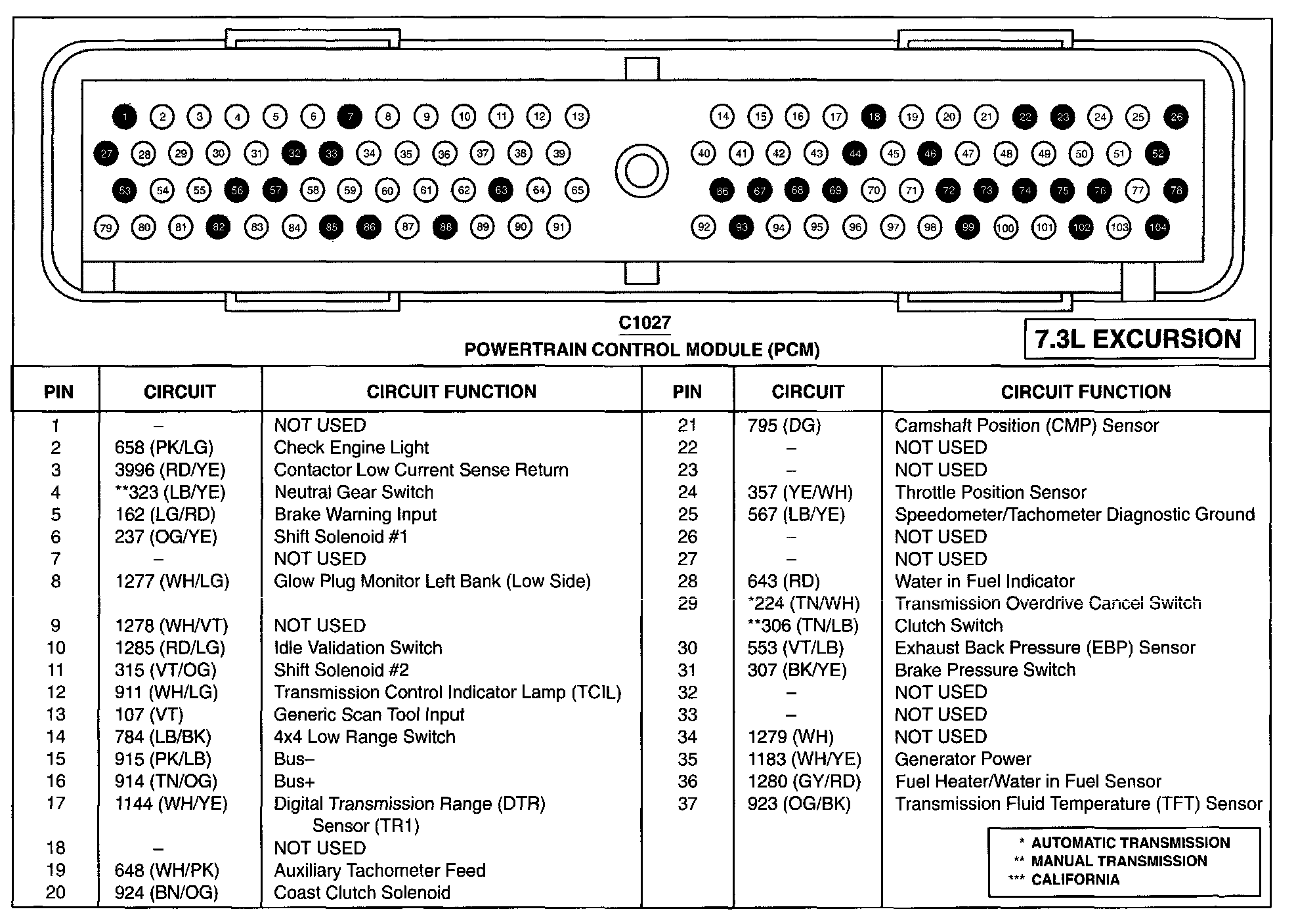

Part 1:

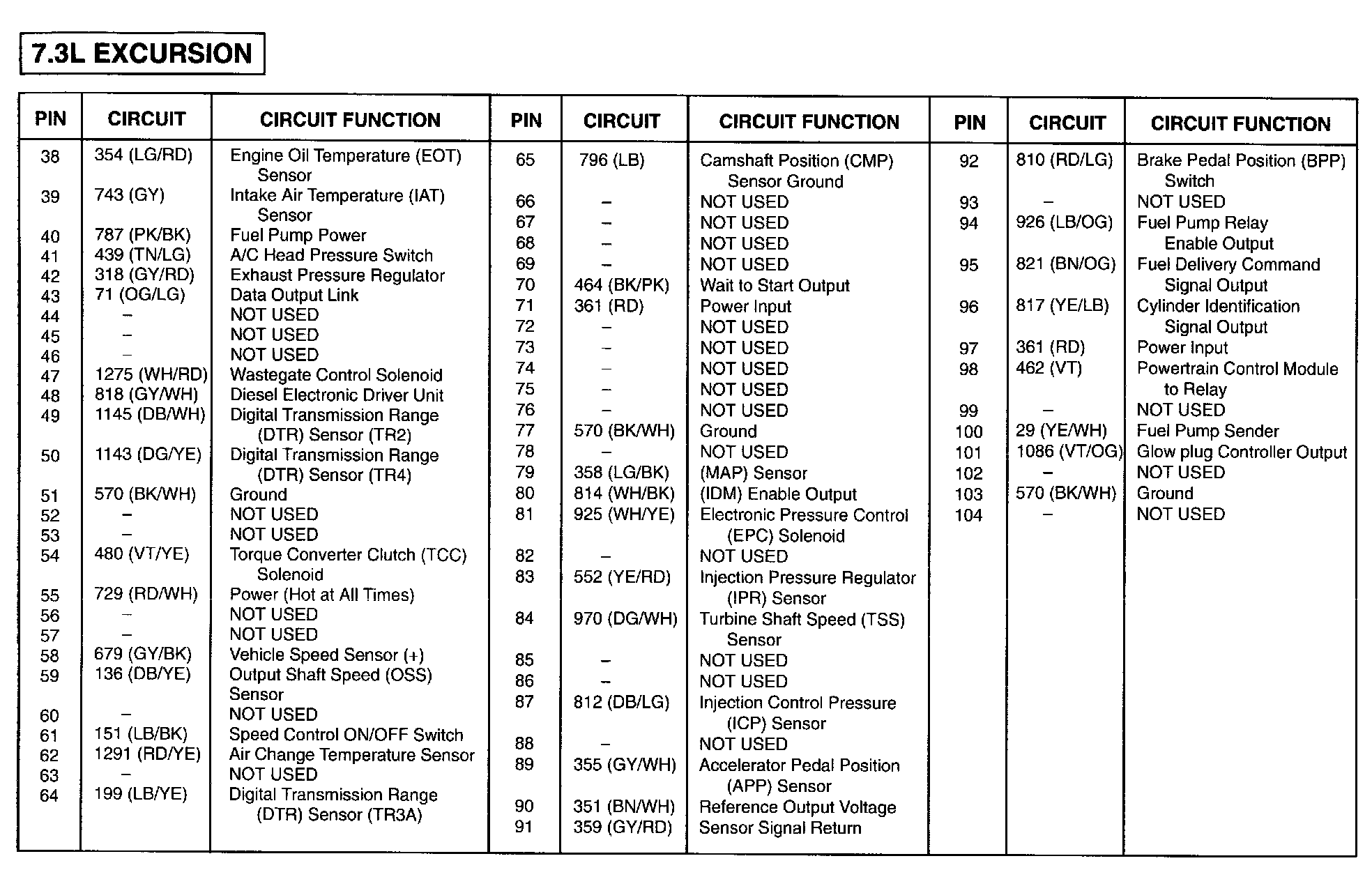

Part 2:
