Home >> Ford >> 2001 >> Excursion 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper End

Upper End

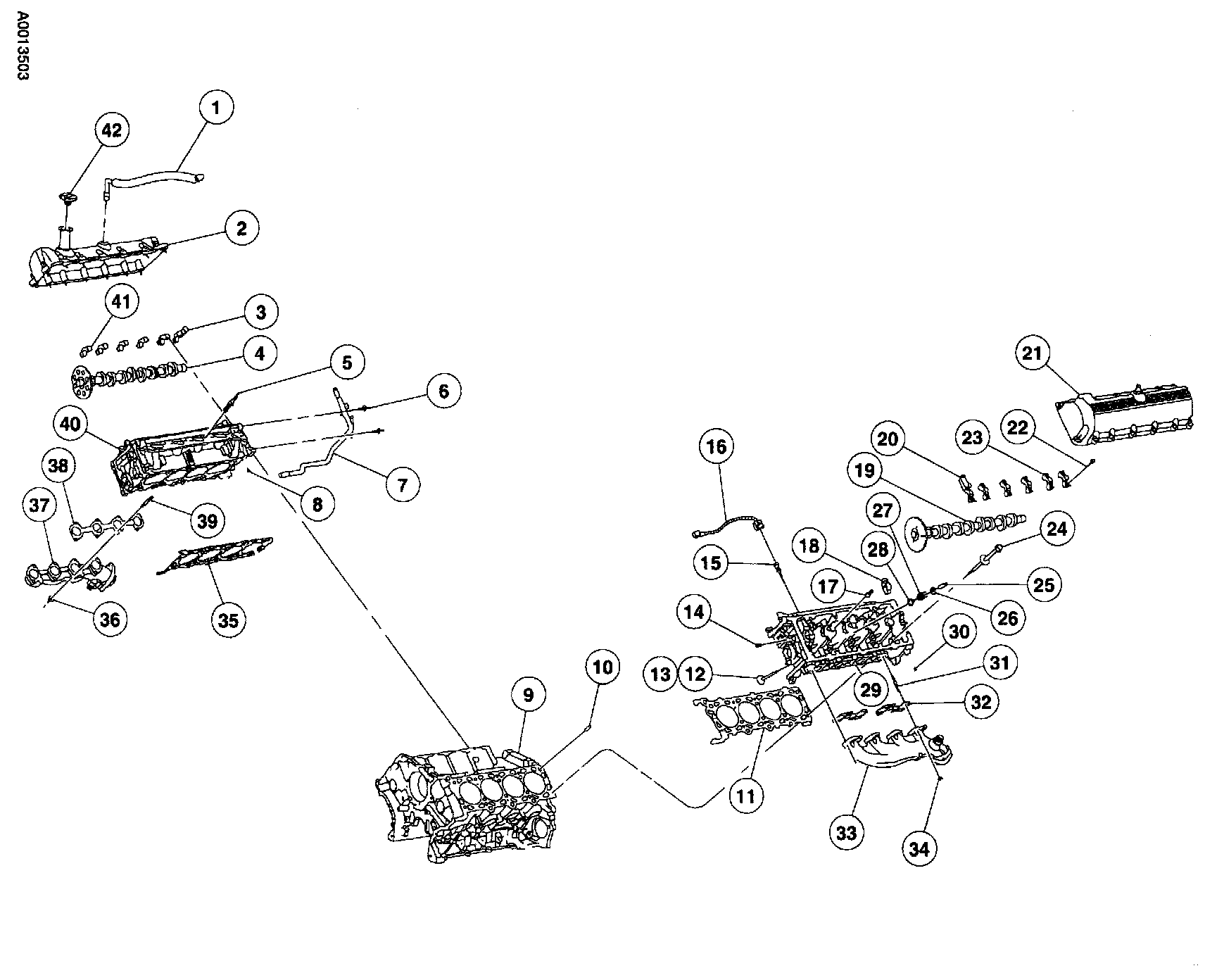

Engine-Upper End

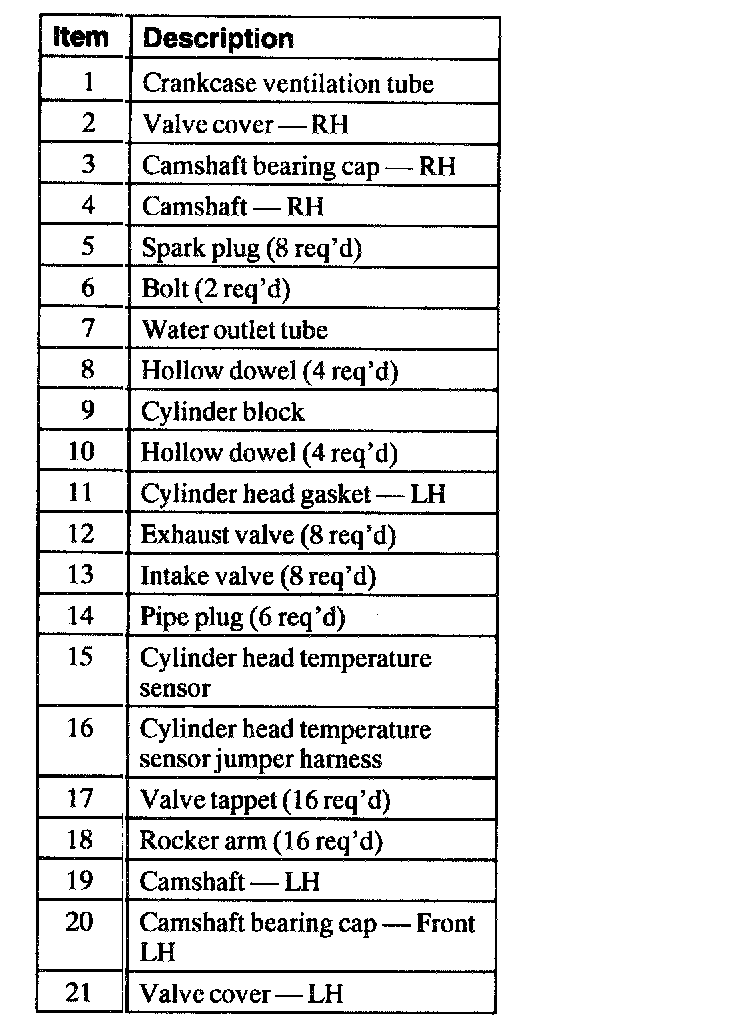

Part 1 of 3

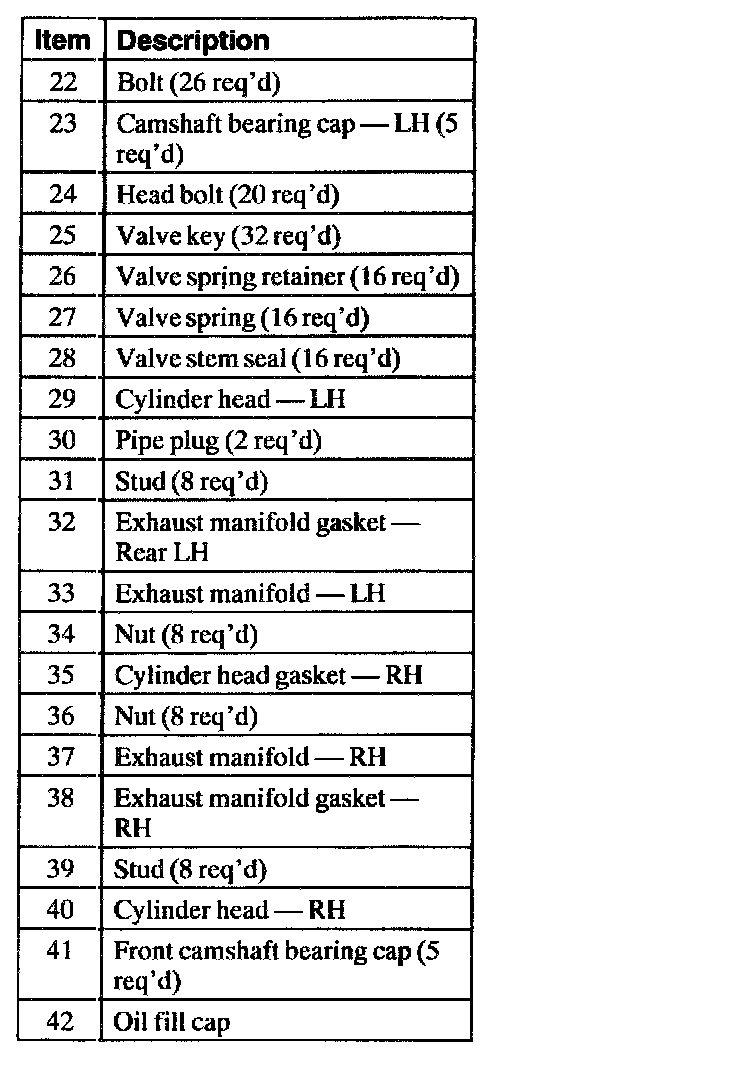

Part 2 of 3





Part 3 of 3
