Home >> Ford >> 2001 >> Excursion 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Induction System

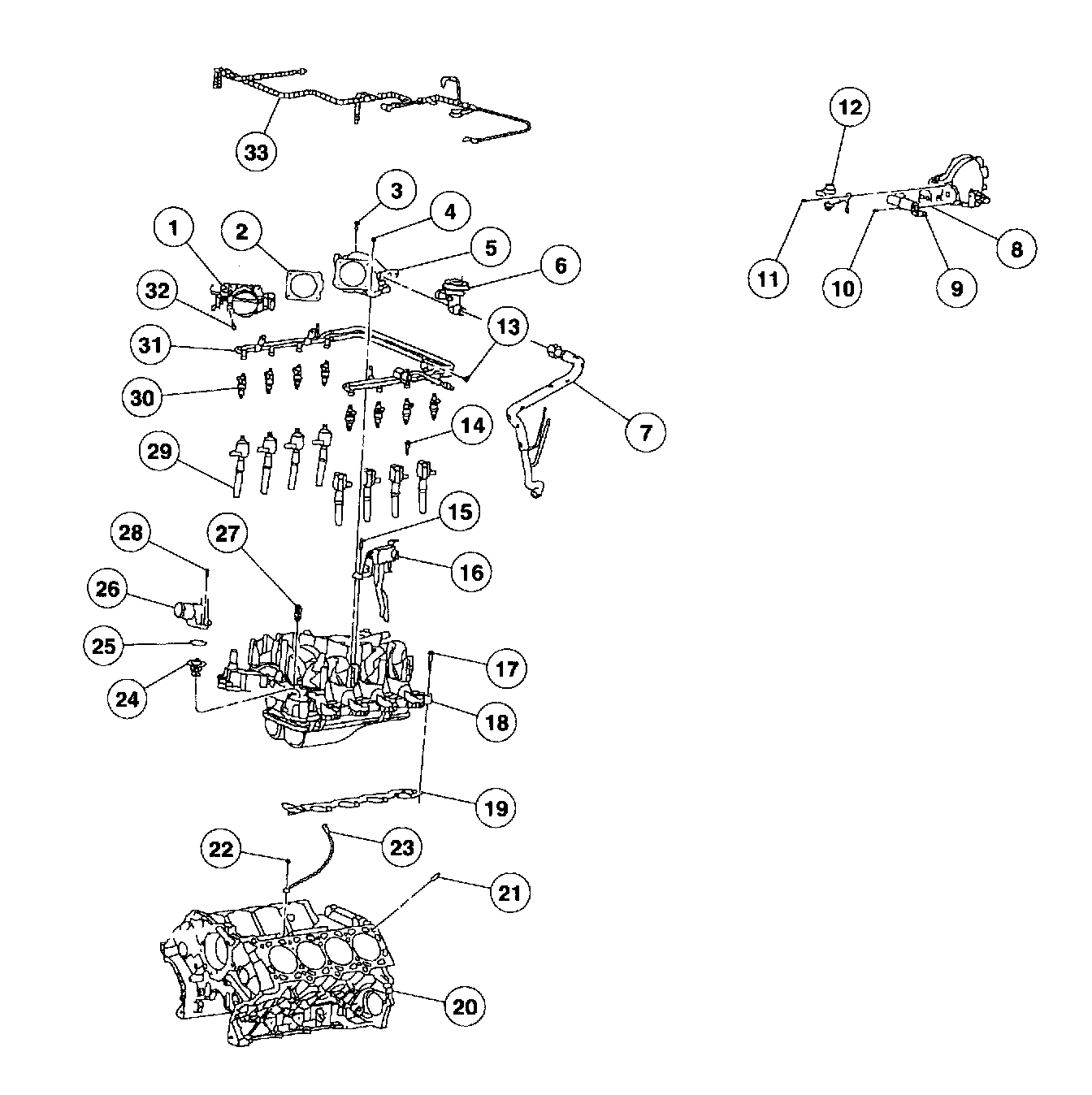

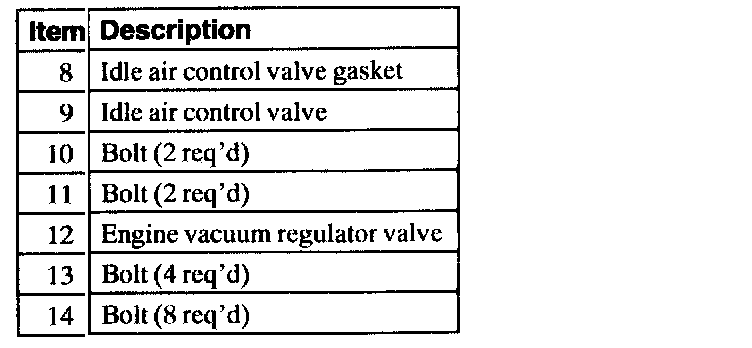

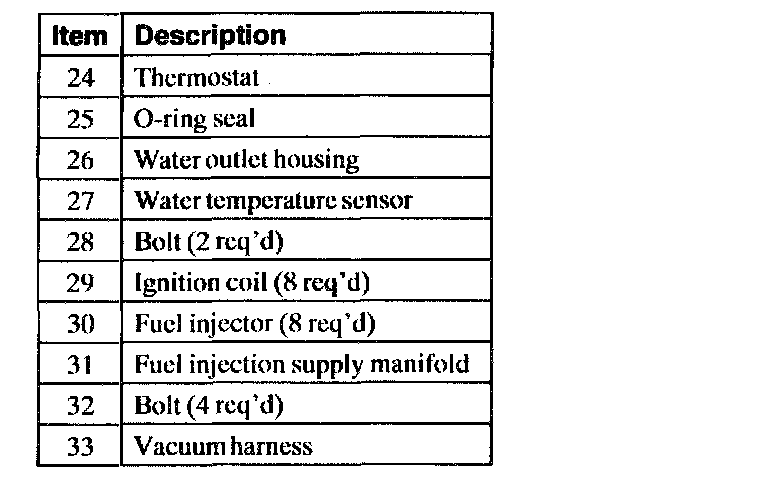

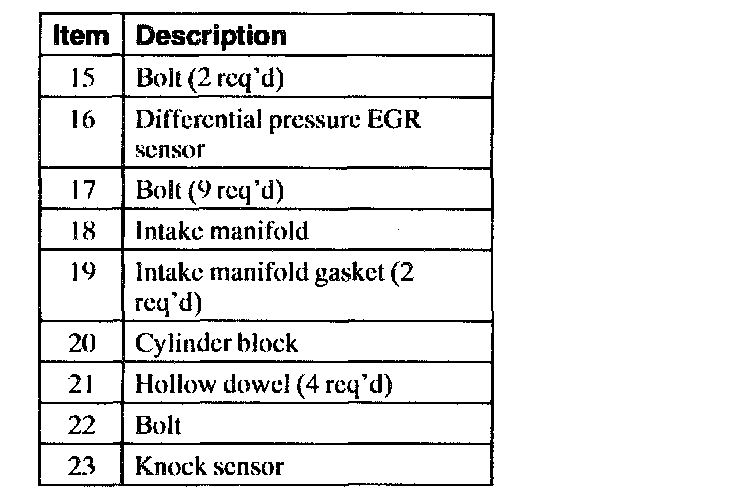

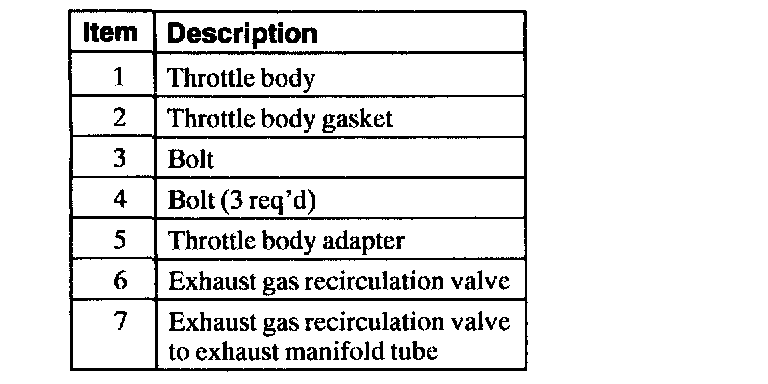

Engine Induction System

Engine Induction System

Part 1 of 5

Part 2 of 5

Part 3 of 5

Part 4 of 5

Part 5 of 5
