Home >> Ford >> 2001 >> Excursion 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

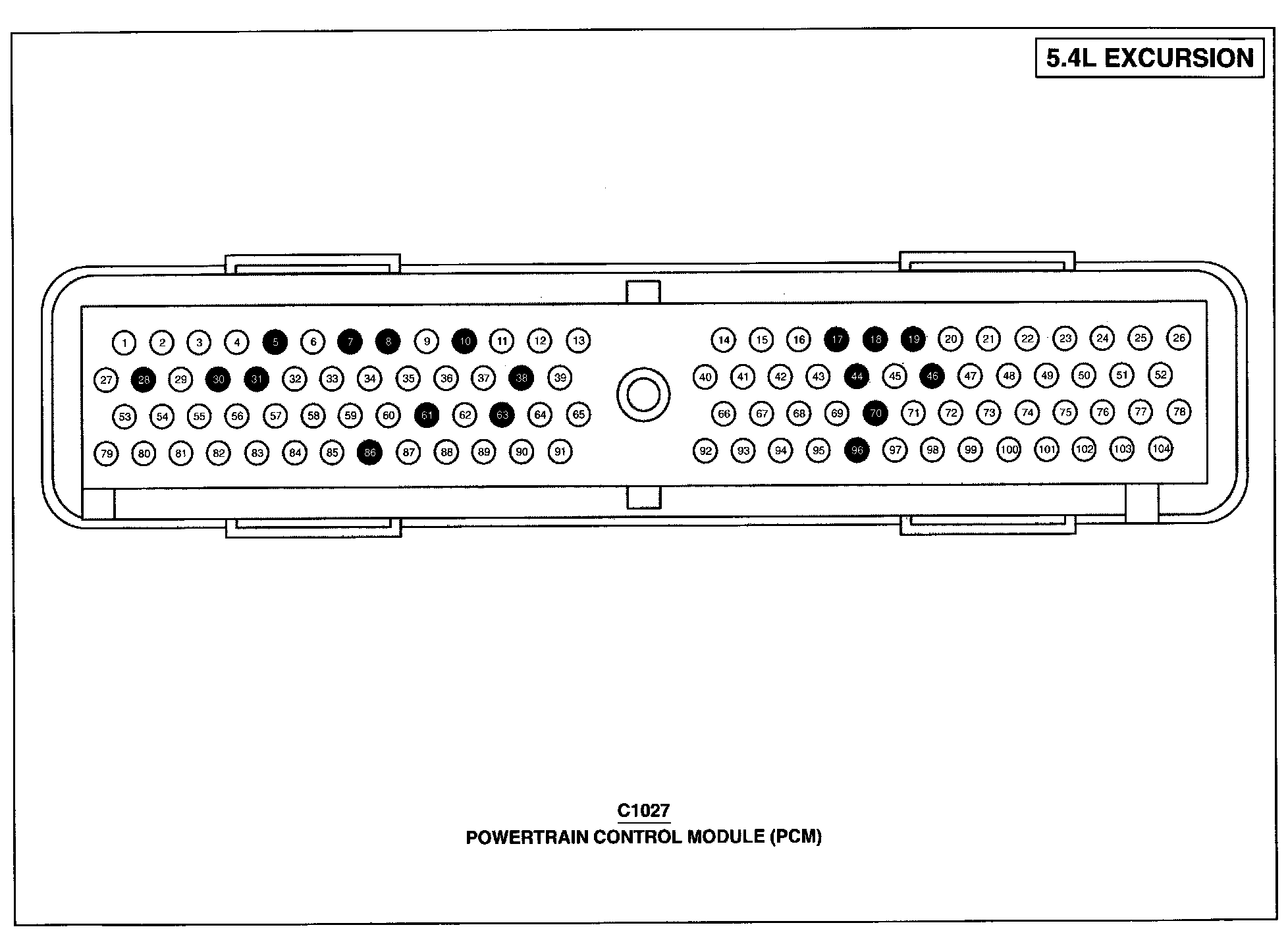

Engine Control Module

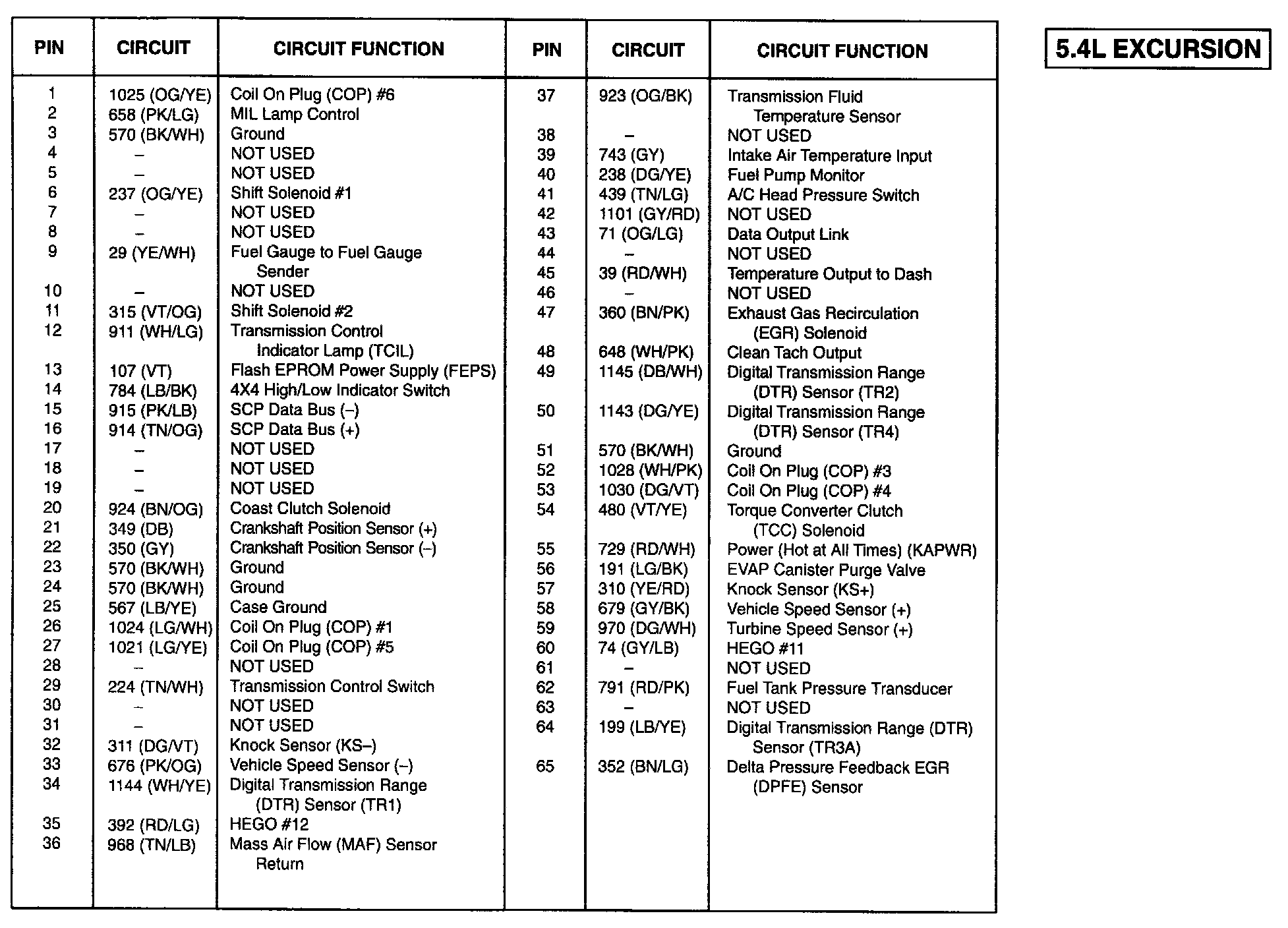

Part 1:

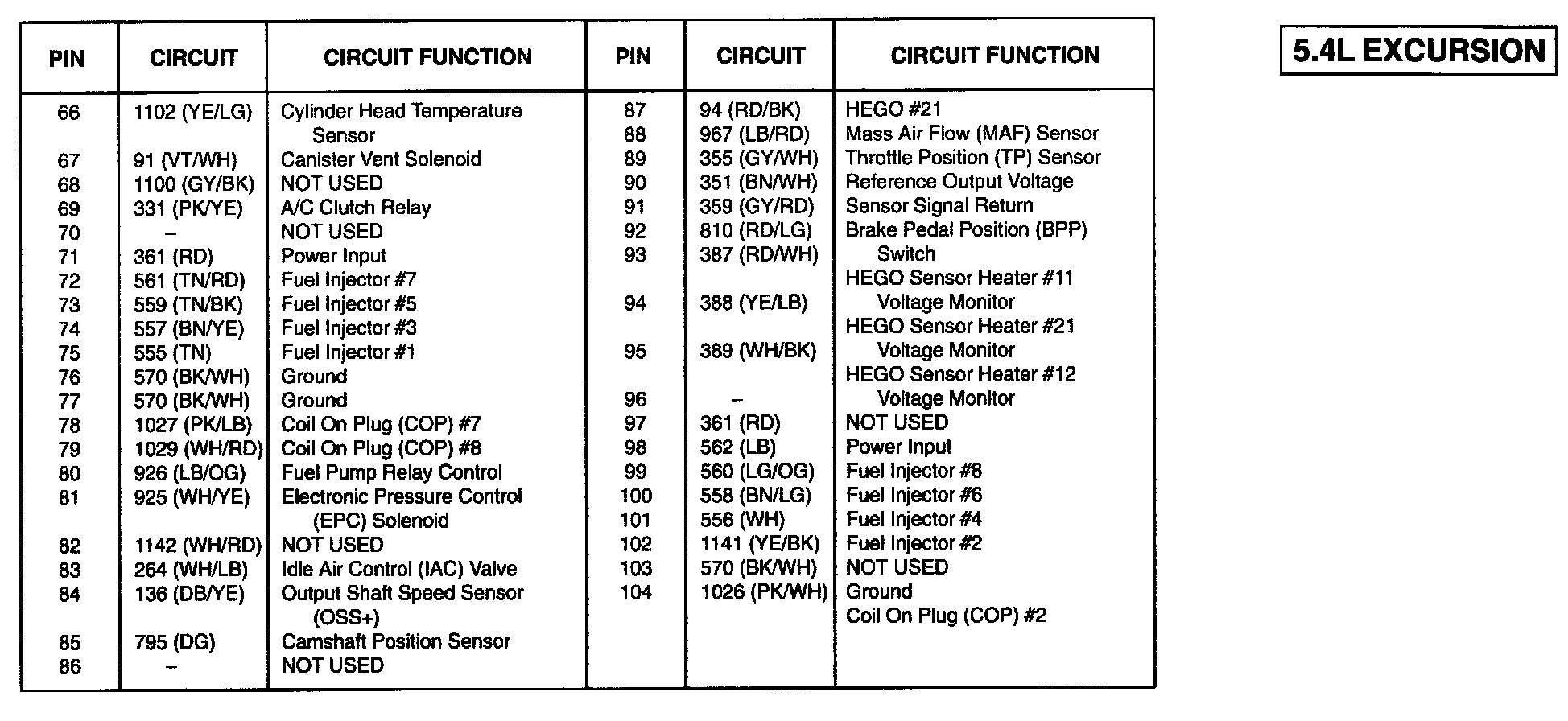

Part 2:






Part 3:
